Old 01-13-2013, 08:12 PM   #21
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by Joe Perez View Post

What I want to know is how you ship something like that.
It came on a pallet with a wood bottom, (2) 12 foot long steel C channel on the length and cardboard top and bottom of the sheet.

Im guessing what I have cut is about 30 lbs.



Here it is mostly finished, next up is the splitter/front diffuser

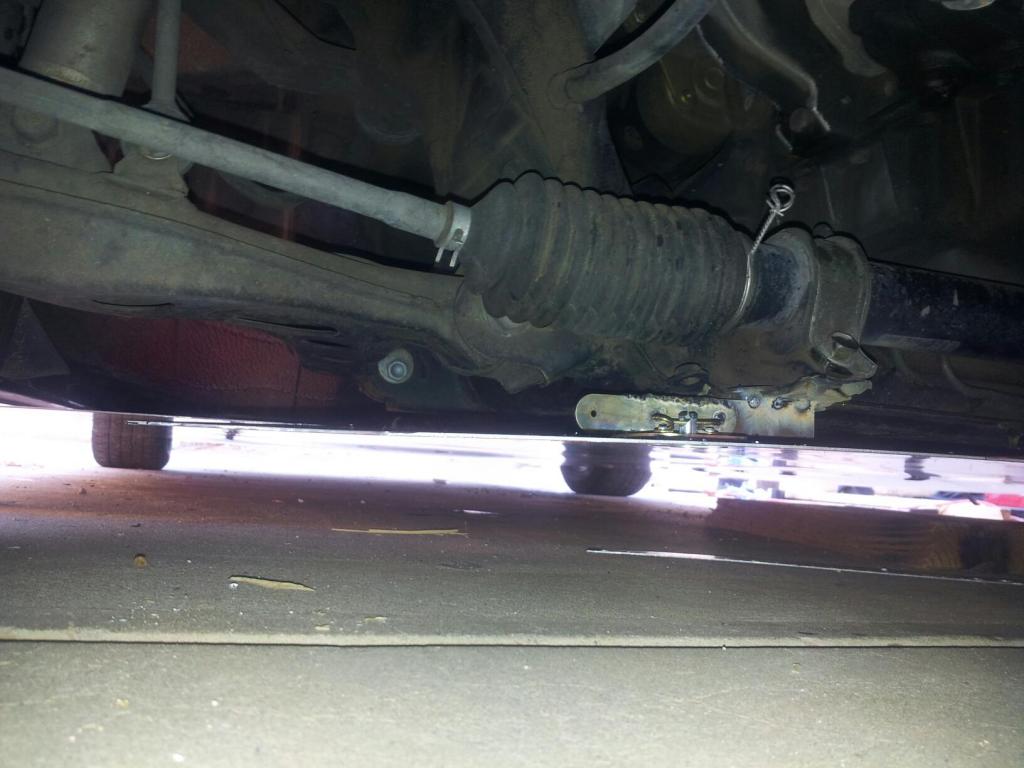

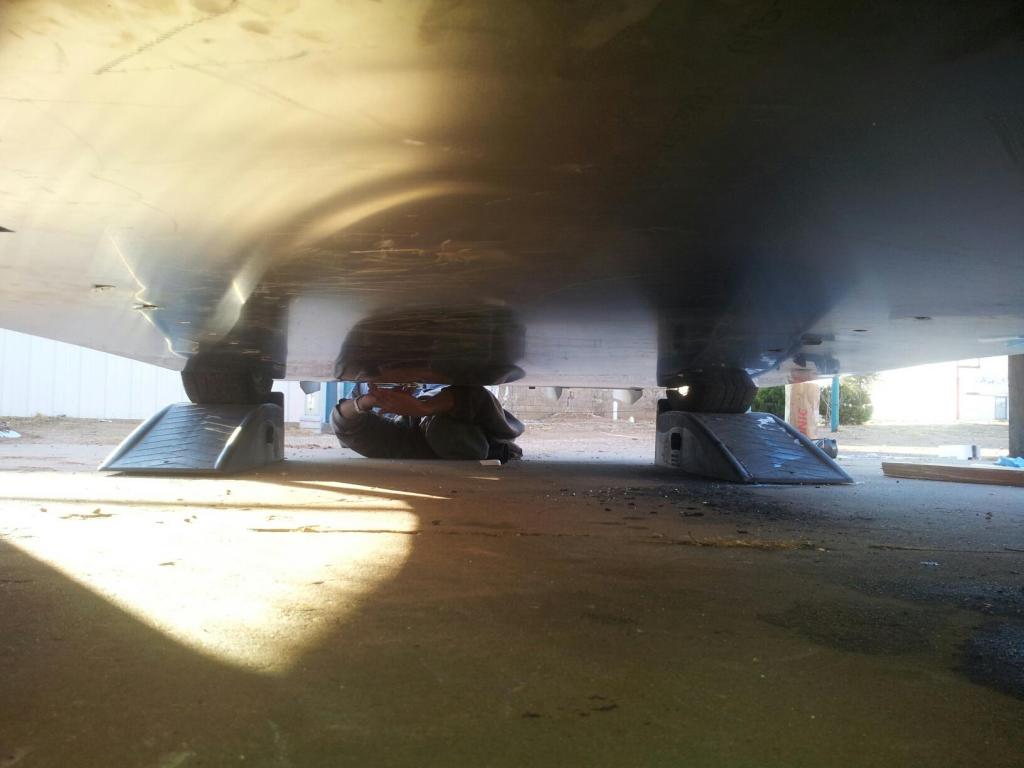

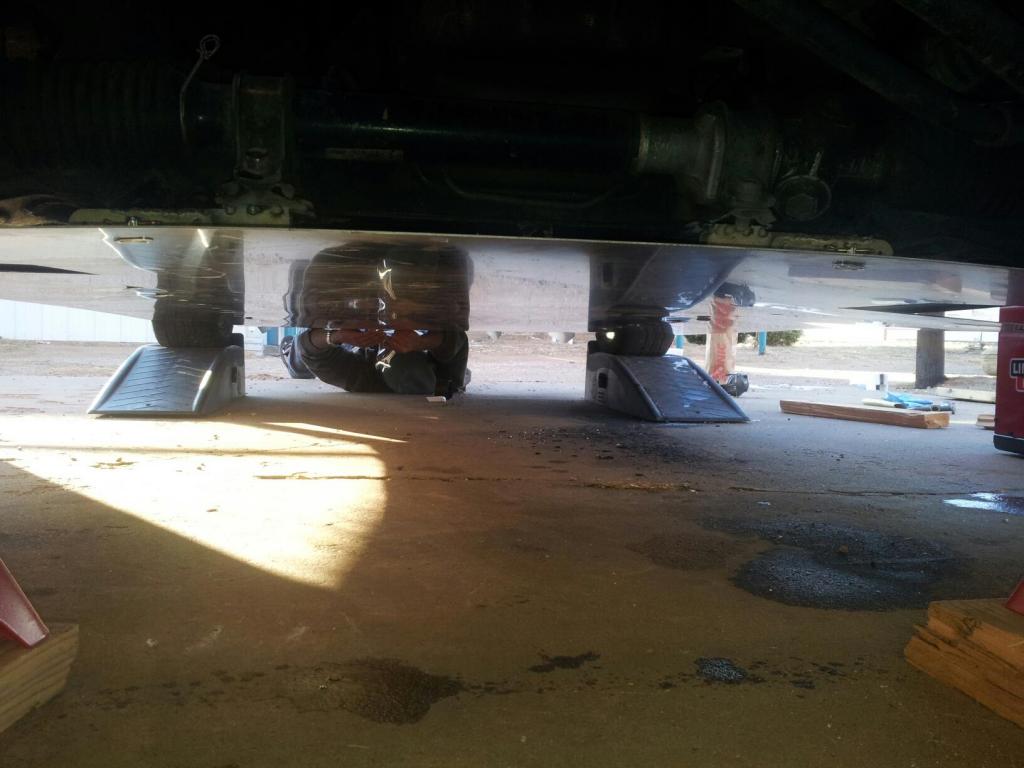

Attached Thumbnails
Miata Flat Underbody-321979_534775583207677_374496063_o_zpsb7d91981.jpg   Miata Flat Underbody-740833_534775526541016_625187510_o_zpsd7911d50.jpg   Miata Flat Underbody-740850_534775639874338_1583592501_o_zpsd4cd2f75.jpg
1993ka24det is offline   Reply With Quote
Old 01-13-2013, 09:04 PM   #22
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Wow, that is a flat bottom !!
ctdrftna is offline   Reply With Quote
Old 01-13-2013, 11:58 PM   #23
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

So ... where does the heat go?
Mobius is offline   Reply With Quote
Old 01-14-2013, 12:51 AM   #24
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Wouldn't air coming in the front grill still get trapped above the flat bottom?
wannafbody is offline   Reply With Quote
Old 01-14-2013, 02:20 AM   #25
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by Mobius View Post
So ... where does the heat go?
Quote:
Originally Posted by wannafbody View Post
Wouldn't air coming in the front grill still get trapped above the flat bottom?
The heat goes out the back above the diffuser.

There is a about a 1" gap between the panel and the steering box, which will have a opening in the front air dam to channel the air into this space.

The air trapped under the hood will be going out vents in the hood, I haven't got to working on yet due to the cold temps outside. I will be mocking it up to match the vents on the German Touring Car. I also have a 1" hood spacer with the rear hood seal removed.

To give an idea of how much air is going through the channel (4 inch space between the frame rails) I will put wind speed guage in there then drive to 60, 80, then 100 mph. I'm guessing 5 to 1 would be a goal for now(100 mph speed with 20 mph air speed)
1993ka24det is offline   Reply With Quote
Old 01-14-2013, 03:11 AM   #26
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Assuming you are intending to use the car competetively, it's key to make things as light as possible. 30+ lbs is a lot for the flat panel, before even adding brackets and hardware.

For reference, my flat underbody is 11 lbs including all hardware and brackets.
(I just did a redesign for the brackets and hardware to save weight - now <200 grams total)

Not trying to detract at all from what you're doing, I'm really encouraged to see people getting deep into aero development for miatas. Just trying to inspire you/everyone to try to make the best pieces they can.

-Ryan

Last edited by ThePass; 01-14-2013 at 03:42 AM.
ThePass is offline   Reply With Quote
Old 01-14-2013, 03:46 AM   #27
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by ThePass View Post
If you are going through the trouble to make a flat bottom, you're doing so to go fast in a competetive environment. If you want to go fast in a competetive environment, weight is the enemy. Therefore, it's key to make things as light as possible. 30+ lbs is a lot for the flat panel, before even adding brackets and hardware.

For reference, my flat underbody is 11 lbs including all hardware and brackets
(I just did a redesign for the brackets and hardware to save weight - now <200 grams total)

Not trying to detract at all from what you're doing, I'm really encouraged to see people getting deep into aero development for miatas. Just trying to inspire you/everyone to try to make the best pieces they can.

-Ryan
That is darn light. At lest it is at the lowest point. My goal is 2100 lbs w/driver. I will be making dry carbon wide body panels and a possible V8 swap, if you wanta know more click here ( https://www.miataturbo.net/general-m...her-car-61236/ ) for the specs I'm going with
1993ka24det is offline   Reply With Quote
Old 01-14-2013, 08:08 AM   #28
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

Quote:
Originally Posted by 1993ka24det View Post
I also have a 1" hood spacer with the rear hood seal removed.
This is a very bad idea that will hinder more than help. if you remove the rubber strip, the hood actually sucks air in and hinders flow through the rad.

All you need is a vent just in front of the engine.

Last edited by StarletRick; 01-15-2013 at 08:16 AM.
StarletRick is offline   Reply With Quote
Old 01-14-2013, 10:38 AM   #29
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Since the topic of aluminum is going on. Has anyone heard of 3003? I don't have much knowledge on metals. I bought a sheet of 3003 that I need bent and every fabrication shop I talk to has no clue what I'm talking about.
Dot3 is offline   Reply With Quote
Old 01-14-2013, 11:34 AM   #30
Newb

Join Date: Aug 2009
Location: Lodi, CA
Posts: 15
Total Cats: 1
Default

Quote:
Originally Posted by Dot3 View Post
Since the topic of aluminum is going on. Has anyone heard of 3003? I don't have much knowledge on metals. I bought a sheet of 3003 that I need bent and every fabrication shop I talk to has no clue what I'm talking about.
http://www.metalsuppliersonline.com/...metals/411.asp

Not nearly as popular as the 50xx, 60xx, and 70xx aluminums. "Applications: cooking utensils, decorative trim, awnings, siding, storage tanks, chemical equipment."
sterVin is offline   Reply With Quote
Old 01-14-2013, 12:57 PM   #31
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Quote:
Originally Posted by StarletRick View Post
This is a very bad idea that will hinder more than help. if you remove the rubber strip, the hook actually sucks air in and hinders flow through the rad.

All you need is a vent just in front of the engine.
+1 The air at the base of the windshield is very high pressure and will enter through the rear of the hood and into the engine bay. Look at race cars for inspiration and their outlets through the hood just behind the radiator. Ricer fanbois do many things wrong and lifting the rear of the hood is one of them. Don't use them for inspiration.
sixshooter is offline   Reply With Quote
Old 01-14-2013, 10:19 PM   #32
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

Quote:
Originally Posted by sixshooter View Post
Ricer fanbois do many things wrong and lifting the rear of the hood is one of them. Don't use them for inspiration.
Some people have them to lower their engine bay temps when they are having trouble melting ****. Not useful on a grip car, but maybe on a drift car.
Vilko is offline   Reply With Quote
Old 01-14-2013, 10:31 PM   #33
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by Vilko View Post
Some people have them to lower their engine bay temps when they are having trouble melting ****. Not useful on a grip car, but maybe on a drift car.
Then they need to properly isolate the parts that are melting from the heat source. By raising the rear of the hood, you increase pressure under the hood and decrease the amount of heat that can escape. Unless your firewall directly underneath the hood is the issue, it will hurt things.
rharris19 is offline   Reply With Quote
Old 01-14-2013, 10:45 PM   #34
Junior Member

Join Date: Dec 2012
Location: Indianapolis
Posts: 65
Total Cats: 35
Default

Quote:
Originally Posted by rharris19 View Post
Then they need to properly isolate the parts that are melting from the heat source. By raising the rear of the hood, you increase pressure under the hood and decrease the amount of heat that can escape. Unless your firewall directly underneath the hood is the issue, it will hurt things.

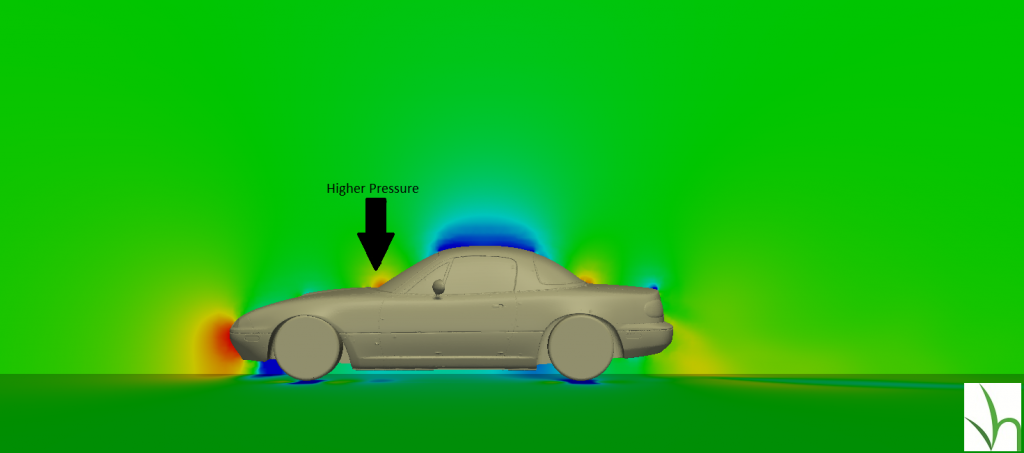

This. Higher pressure builds at the top of the hood at the windshield. Higher pressure areas are not where you should try to exit air; it is where you should have inlets. Looking below you can see the science...


Name:  pressure_hood_zps766e0f44.png
Views: 77
Size:  249.6 KB
plucas is offline   Reply With Quote
Old 01-14-2013, 11:36 PM   #35
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Good CAD model, do you have any more models or do you have the program
1993ka24det is offline   Reply With Quote
Old 01-14-2013, 11:50 PM   #36
Junior Member

Join Date: Dec 2012
Location: Indianapolis
Posts: 65
Total Cats: 35
Default

Quote:
Originally Posted by 1993ka24det View Post
Good CAD model, do you have any more models or do you have the program
It is my CAD model of the miata. I have more models of other vehicles. I use them for cfd.
plucas is offline   Reply With Quote
Old 01-15-2013, 02:29 AM   #37
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

How do so many aero theads divert into trying to explain to someone that hood risers are utterly useless? By how many times its been gone over by now, I'm surprised it even comes up any more.

-Ryan
ThePass is offline   Reply With Quote
Old 01-15-2013, 03:08 AM   #38
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by Vilko View Post
Some people have them to lower their engine bay temps when they are having trouble melting ****. Not useful on a grip car, but maybe on a drift car.
Ban. Just ban.
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-15-2013, 03:55 AM   #39
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by plucas View Post
It is my CAD model of the miata. I have more models of other vehicles. I use them for cfd.
I guessing its a 3D flow model. Do you have any CAD models of any Dive Planes (Canards). One other thing I was wondering is, If the Dive Plane is to low. Will the vortices shove more air under the car or will it do its job better by keeping the air from going under the car from the side?

Last edited by 1993ka24det; 01-15-2013 at 04:08 AM.
1993ka24det is offline   Reply With Quote
Old 01-15-2013, 01:25 PM   #40
Junior Member

Join Date: Dec 2012
Location: Indianapolis
Posts: 65
Total Cats: 35
Default

Quote:
Originally Posted by 1993ka24det View Post
I guessing its a 3D flow model. Do you have any CAD models of any Dive Planes (Canards). One other thing I was wondering is, If the Dive Plane is to low. Will the vortices shove more air under the car or will it do its job better by keeping the air from going under the car from the side?
I consider them cfd models since they are simplified models. I have not analyzed canards on a miata because I have never been ask to help design aero for a miata that wanted to use canards. I have done them before on another project.


"Will the vortices shove more air under the car or will it do its job better by keeping the air from going under the car from the side?"

It depends like all generic aerodynamic questions lol. You can design aero bits that can cause vortices that "seal" the sides to prevent air from spilling under the car. The vortices will act like skirts to seal the bottom If you have an actual design you are thinking of, I might be able to give you a better answer than depends.
plucas is offline   Reply With Quote
