Default Removal of Front Crossmember

Evening Peeps.


Does the front cross member have any impact on the rigidity of the car itself. For example will it effect handling. etc etc..

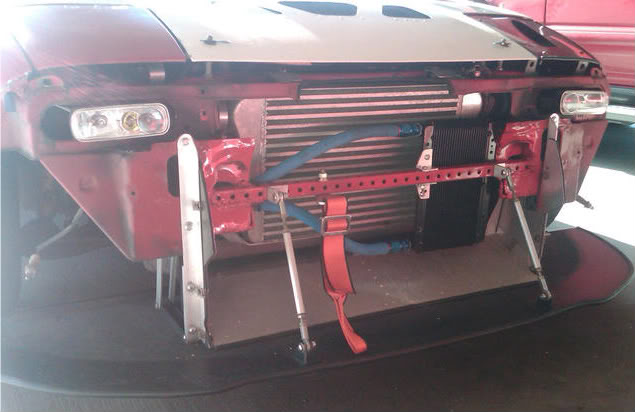

I am tempted to do something similar to the below.




Cheers ThePass for the photo.

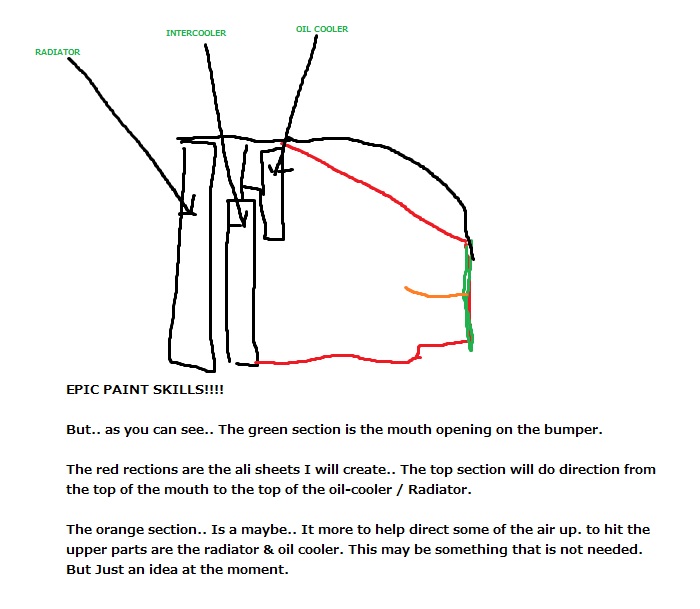

The plan is to run a larger intercooler. Get some aluminium sheeting and create some ducting.

If you look though the mouth of the bumper.. your see pretty much the crossmember & front support blocks a good potion of the oil cooler & rad.



Now.. I feel with the cross member removed (with a thin support bar in place) I can create some ducting from the top potion of the bumper mouth going to the top of the radiator.

see below for my idea.. lol...




rection * Section - do * Go

Man I need to read before I save.. annoying you cant edit a text in paint.

I posted this over @ mx5nutz but thought I give you give a shout as it seems to be you guys across the water who have done it the most.


Cheers,

Lawrence
Attached Thumbnails
Removal of Front Crossmember-img00144-20110329-1726.jpg   Removal of Front Crossmember-8933864369_89e4dfe1b8_o.jpg
Lawone is offline   Reply With Quote
Old 06-03-2013, 01:25 PM   #2
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Do some searching, its been covered before.

The quick answer is that it does affect rigidity, but if you replace it with something sufficiently rigid (i.e. DOM tubing) you will be fine.
Handy Man is offline   Reply With Quote
Old 06-06-2013, 09:32 PM   #3
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,894
Total Cats: 109
Default

I cut out the front crossmember and radiator support to replace them. When they were gone, I was surprised how much flex there was in the frame. I also had the K member removed which made it worse.
miata2fast is offline   Reply With Quote
Old 06-10-2013, 06:15 AM   #4
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 93
Total Cats: 6
Default

Well.. I did the job! thought I just update this thread.





-

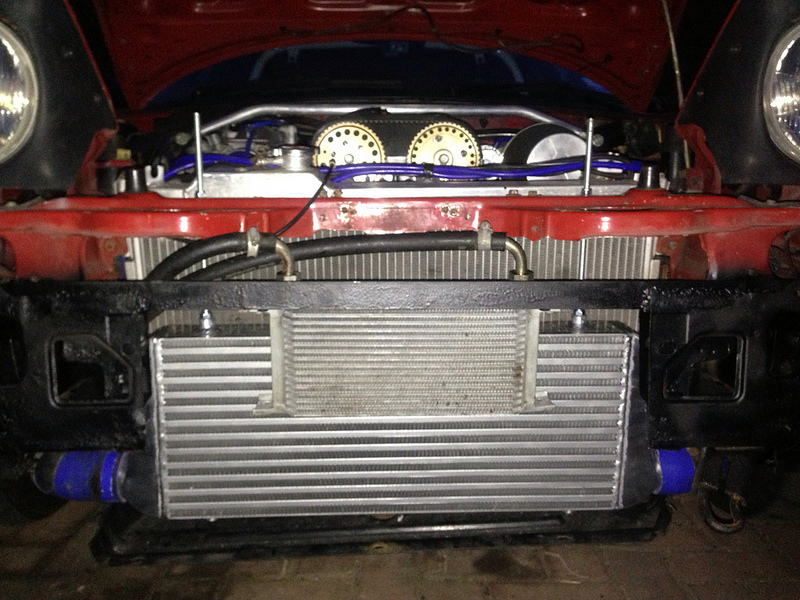

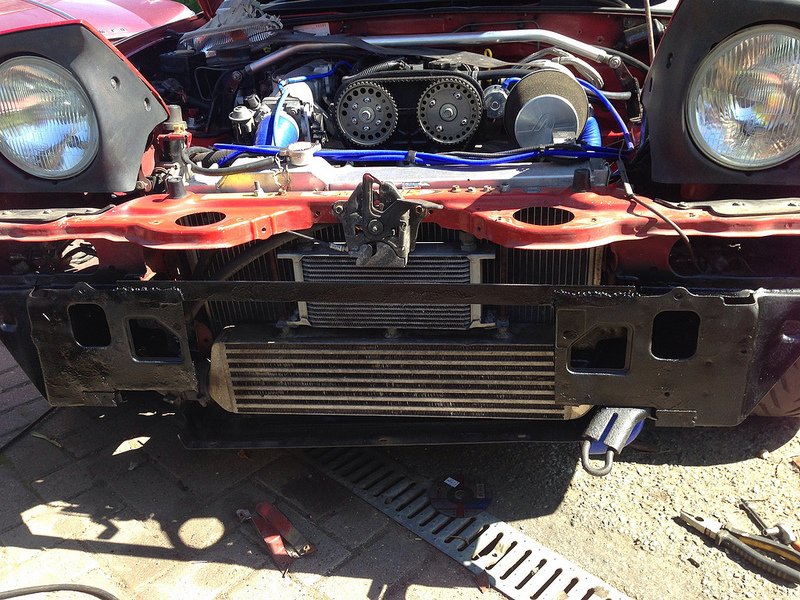

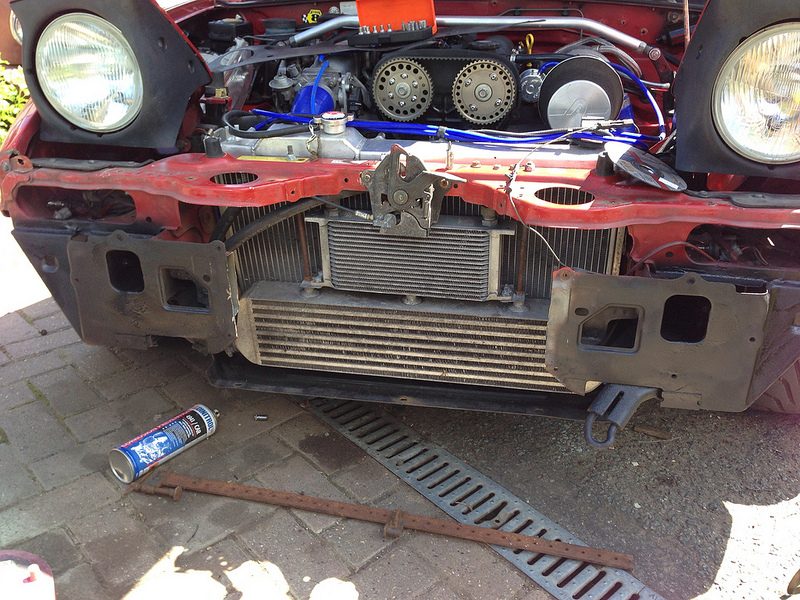

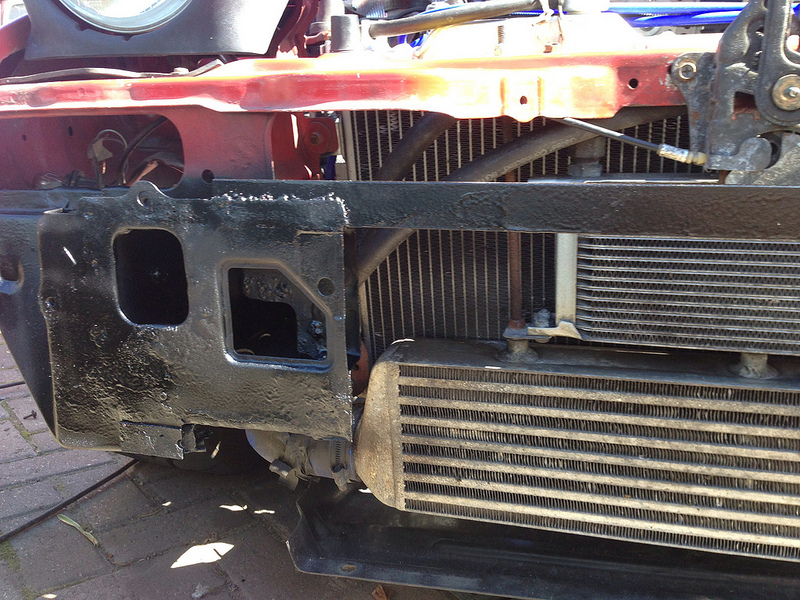

Fitted Larger FMIC

Attached Thumbnails
Removal of Front Crossmember-8937877169_46d1294aa8_c.jpg   Removal of Front Crossmember-8937846727_2eeaf80206_c.jpg   Removal of Front Crossmember-8937857627_648b80cc9c_c.jpg   Removal of Front Crossmember-8973060172_794971e4db_c.jpg
Lawone is offline   Reply With Quote
Old 06-11-2013, 01:27 AM   #5
Junior Member
iTrader: (2)

Join Date: Jun 2008
Posts: 121
Total Cats: 4
Default

That certainly does not look equally as rigid. Is that weldable 1/8" bar from the hardware store? Hmmm, I would revise if were me...
Mr. Wob is offline   Reply With Quote
Old 06-11-2013, 01:43 AM   #6
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

you could easily fit 1-1.5" DOM tubing there. would be much stronger.
motormechanic is offline   Reply With Quote
Old 06-11-2013, 04:20 AM   #7
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 93
Total Cats: 6
Default

It's a bit of right angled steel.. rather thick too.

It does not flex you can't even pull it about I would say it's pretty much solid.
Lawone is offline   Reply With Quote
Old 06-11-2013, 05:09 AM   #8
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Why not put the oil cooler between the IC and the rad?
triple88a is offline   Reply With Quote
Old 06-11-2013, 05:12 AM   #9
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 93
Total Cats: 6
Default

Quote:
Originally Posted by triple88a View Post
Why not put the oil cooler between the IC and the rad?
This was an idea. But since going to the larger IC. my intake temps are much much better.

Oil does not get above 100c on track. So can't see any point moving it.


It's kinda to much hassle for the gain I reckon.
Lawone is offline   Reply With Quote
Old 06-11-2013, 05:19 AM   #10
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Moving the oil rad will drop the ic temps, otherwise you're heating the intake temps in that area. Of course thats in exchange for increased temps of the oil by a bit since the the air flowing through it is a bit hotter.
triple88a is offline   Reply With Quote
Old 06-11-2013, 05:25 AM   #11
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 93
Total Cats: 6
Default

Quote:
Originally Posted by triple88a View Post
Moving the oil rad will drop the ic temps in exchange for increased temps of the oil.
I have a track day book in a weeks time. I will report back. But before I used to go from 13c to 45c which is a big big increase in air temp.

Since installing the bigger IC. I get around a 10c increase when really giving the girl some.

I see your idea.. But the plan is to create some ducting with some aluminium sheets which should help alot with the cooling.

Lucky over in England we don't get temps above 30c (85f) here.. lol.. Well if we do It be only for a few days.

So overall cooling isn't a big issue.

I also think due to the fact I'm running a TD04H-15G @ 16/17psi I feel it's creating quite abit of heat. due to being on the edge of efficiently if not slightly over. Which will not help towards intake temps.
Lawone is offline   Reply With Quote
Old 06-11-2013, 10:27 PM   #12
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

yea... a piece of angle iron is NOT what I was referring to when I said "replace it with something sufficiently rigid"
Handy Man is offline   Reply With Quote
Old 06-12-2013, 01:05 AM   #13
Junior Member
iTrader: (2)

Join Date: Jun 2008
Posts: 121
Total Cats: 4
Default

Quote:
Originally Posted by Lawone View Post
It's a bit of right angled steel.. rather thick too.

It does not flex you can't even pull it about I would say it's pretty much solid.
The human feats of strength test isnt very useful when it comes to track rigidity. I can barely push down on my cars big lb suspension but believe me the car leans in corners.

Ideally what would have been great would have been to engine crane the car on one side of the rail, jack it up and measure the droop on the other side of the rail. Then cut your cross member, then build your new one and remeasure. Its not great, but for back yard science it would at least give you base line. I would want that number to above the stock, regardless. Since we are past that, I would recommend what motormechanic said, something like DOM tubing.

Not to mention that if I have the chance to add some extra safety up front especially considering I have gutted bumper supports and such I would.

Anyone to each his own and credit given for putting a saw to your car, but I would still revise if I were you. right angle bar I can bend just fine if I use my leg...
Mr. Wob is offline   Reply With Quote
