Old 07-29-2015, 01:19 AM   #21
Senior Member

Join Date: Oct 2011
Location: Northridge, CA
Posts: 655
Total Cats: 282
Default

We make our own mounts for each customer and car, so I'm biased about what's good and what's not.
But the 2 biggest problems I see with all OTS mounts that offer enough adjustability to get the seat in the ball park on the X and Y axis, it's too far up on the Z axis, and more importantly, most (if not all) the bolts go into slots so nothing has 360 degrees of clamping.
Blackbird is offline   Reply With Quote
Old 07-29-2015, 11:37 AM   #22
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by Blackbird View Post
We make our own mounts for each customer and car, so I'm biased about what's good and what's not.
But the 2 biggest problems I see with all OTS mounts that offer enough adjustability to get the seat in the ball park on the X and Y axis, it's too far up on the Z axis, and more importantly, most (if not all) the bolts go into slots so nothing has 360 degrees of clamping.
i'll show you a Z axes.
OGRacing is offline   Reply With Quote
Old 07-29-2015, 12:47 PM   #23
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,805
Total Cats: 494
Default

Quote:
Originally Posted by concealer404 View Post
The PCI brackets worked. I'd like another inch lower but i pass a broomstick test now. I'll recline it one notch and get a 330mm wheel and it'll be pretty good.

The seats themselves, not a huge fan of. Too wide for me.
You wants to sell them?
Monk is online now   Reply With Quote
Old 07-29-2015, 01:11 PM   #24
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Possibru. You'll have to sit in them first and see if they're what you're looking for. I'd have to figure out what to replace them with as well. Braian's Sprints fit me ok, but are still a touch wide.
concealer404 is offline   Reply With Quote
Old 07-29-2015, 01:12 PM   #25
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Ultrashields. Easiest ******* things to mount in the world. Need a new spot for them? Drill new holes.</p>
aidandj is offline   Reply With Quote
Old 07-29-2015, 01:18 PM   #26
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I just wish Ultrashields didn't look like industrial ***. I know I fit in them but its a HUGE step away from a dual use car. For me anyway.
EO2K is offline   Reply With Quote
Old 07-29-2015, 01:21 PM   #27
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Have you looked closely at them? I recently did a trip to Thunderhill and really had no issues with them. Surprisingly my girlfriend loves them, and the shoulder supports make perfect head rests for sleeping when you are 5'1&quot;. I don't know how the hell she sleeps in my car with how loud it is but she manages.</p><p>I personally think they look great. My only complaint is the height of the side bolsters in a dual purpose car.</p>
aidandj is offline   Reply With Quote
Old 07-29-2015, 01:23 PM   #28
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

I actually like the Monacos, they're just too damn big for me. They'd be super awesome with a little more *** padding and about 4" less width.
concealer404 is offline   Reply With Quote
Old 08-03-2015, 01:35 PM   #29
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by aidandj View Post
<p>Ultrashields. Easiest ******* things to mount in the world. Need a new spot for them? Drill new holes.</p>
not 100% true. you shouldn't bolt them in like a FIA seat. they need to be built into your roll bar.
OGRacing is offline   Reply With Quote
Old 08-03-2015, 02:30 PM   #30
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

Quote:
Originally Posted by EO2K View Post
I just wish Ultrashields didn't look like industrial ***. I know I fit in them but its a HUGE step away from a dual use car. For me anyway.
Have you looked at the ones Track Dog Racing sells? That is what I have. He has them built with a nicer cover
tomiboy is offline   Reply With Quote
Old 08-07-2015, 12:55 AM   #31
Senior Member

Join Date: Oct 2011
Location: Northridge, CA
Posts: 655
Total Cats: 282
Default

Quote:
Originally Posted by OGRacing View Post
not 100% true. you shouldn't bolt them in like a FIA seat. they need to be built into your roll bar.
This.
It's the easiest install when it's done wrong.
Blackbird is offline   Reply With Quote
Old 08-10-2015, 10:55 AM   #32
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by OGRacing View Post
not 100% true. you shouldn't bolt them in like a FIA seat. they need to be built into your roll bar.
Quote:
Originally Posted by Blackbird View Post
This.
It's the easiest install when it's done wrong.
Can you guys be more specific? If I just have a bolt in roll bar, not a full cage, how does one accomplish this correctly?
hi_im_sean is offline   Reply With Quote
Old 08-10-2015, 11:33 AM   #33
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by hi_im_sean View Post
Can you guys be more specific? If I just have a bolt in roll bar, not a full cage, how does one accomplish this correctly?
Mini Stock Seat Install - Installing Safety Upgrades in Project City Boy - Circle Track Magazine

this is how aluminum seats need to be mounted.

remember a FIA seat will flex to reduce G forges on your body during an impact. Aluminum seats bend and need to be rigidly mounted.
OGRacing is offline   Reply With Quote
Old 08-10-2015, 11:35 AM   #34
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

So our single back brace should be replaced with a double back brace.
aidandj is offline   Reply With Quote
Old 08-10-2015, 01:39 PM   #35
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by aidandj View Post
So our single back brace should be replaced with a double back brace.

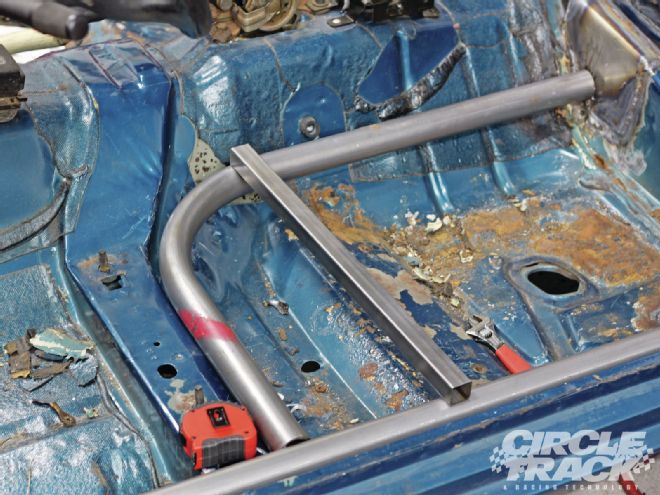

The aluminum seats need to be mounted into your cage. a floor will bend in a crash. It’s just 18ga steel sheet metal after all. Anyone that has drilled threw it will testify as to how soft it is. in a crash the floor will change shape, if the aluminum seat is mounted to the floor the seat will bend too. Mounting it to a cage will help prevent this, and help keep you located in the seat.

Attached Thumbnails
Seat mounting thread #194,324,111-ctrp-1108-13%252bmini-stock-seat-install.jpg
OGRacing is offline   Reply With Quote
Old 08-10-2015, 01:41 PM   #36
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Hmm, interesting.&nbsp;</p><p>Looking at how they did that loop around the bottom, I feel like I could do that pretty easily, maybe with some door bars connected to the roll bar.</p><p>Why can FIA seats be bolted to the floor?</p>
aidandj is offline   Reply With Quote
Old 08-10-2015, 01:56 PM   #37
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by aidandj View Post
<p>Hmm, interesting.&nbsp;</p><p>Looking at how they did that loop around the bottom, I feel like I could do that pretty easily, maybe with some door bars connected to the roll bar.</p><p>Why can FIA seats be bolted to the floor?</p>

FIA seat Won't distort, they will crack under severe loads. If a FIA seat sees enough loads to crack there is little chance for survival. We are talking near to +110gs

an aluminum seat will bend with a 150lb guy pushing on it.
OGRacing is offline   Reply With Quote
Old 08-10-2015, 02:03 PM   #38
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>I understand the bending, but you said the floor wasn't safe to bolt to.</p>
aidandj is offline   Reply With Quote
Old 08-10-2015, 02:24 PM   #39
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by aidandj View Post
<p>I understand the bending, but you said the floor wasn't safe to bolt to.</p>

fiberglass and carbon won't bend. Aluminum will.
OGRacing is offline   Reply With Quote
Old 08-10-2015, 02:26 PM   #40
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>So the fiberglass/carbon keeps the floor from bending?&nbsp;I'm a little lost right now.</p><p>MSPaint drawings would help.</p>
aidandj is offline   Reply With Quote
