Old 11-02-2012, 02:22 PM   #21
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by 18psi View Post
we already have Fae for that
He said drill not blow.
shuiend is offline   Reply With Quote
Old 11-02-2012, 02:52 PM   #22
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Sarah Palin's got your back



If you've got the stones to maybe ruin a block, go for it. I however will not be pioneering this technique.

Alternately: who has a broke *** BP block to cut up and show us whats inside?
Attached Thumbnails
Should I drill a hole in my engine block?-sarah-palin-drill-baby-drill.jpg
EO2K is offline   Reply With Quote
Old 11-02-2012, 05:07 PM   #23
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

All I can say is my current system is the best I have come up with yet at solving the breather issues with a 350+ HP track Miata that turns righteously quick lap times in a somewhat reliable and repeated manner. It has a hole drilled in the block to aid the breather system.
bbundy is offline   Reply With Quote
Old 11-02-2012, 05:30 PM   #24
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by bbundy View Post
All I can say is my current system is the best I have come up with yet at solving the breather issues with a 350+ HP track Miata that turns righteously quick lap times in a somewhat reliable and repeated manner. It has a hole drilled in the block to aid the breather system.

Would you happen to have pics?
concealer404 is offline   Reply With Quote
Old 11-02-2012, 09:30 PM   #25
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by bbundy View Post
I have the catch can setup where I can vent it to atmosphere or to a slash cut that has the exhaust flow pull a small vacuum on it. It works better and makes less mess to have the exhaust flow sucking the blow-by gas out the tailpipe though technically not legal pre SCCA GCR.

Bob
I didn't know that you were running a slash cut. Do you ever have smokey exhaust because of the slash cut? I do occasionally :(
Faeflora is offline   Reply With Quote
Old 11-02-2012, 11:07 PM   #26
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,328
Default

Quote:
Originally Posted by bbundy View Post
I have the catch can setup where I can vent it to atmosphere or to a slash cut that has the exhaust flow pull a small vacuum on it. It works better and makes less mess to have the exhaust flow sucking the blow-by gas out the tailpipe though technically not legal pre SCCA GCR.
And by "technically not legal" you mean "explicitly banned in its own rule", right?
Savington is offline   Reply With Quote
Old 11-03-2012, 12:14 AM   #27
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Faeflora View Post
I didn't know that you were running a slash cut. Do you ever have smokey exhaust because of the slash cut? I do occasionally :(
When I ran the vent line from the intake side PCV port it was a disaster after hard left hand turns. Blocked that off and it was fine. I know there is still some oil getting sucked out the tailpipe because of the residue that collects in the hose going back to the exhaust but I donít have oil smoke clouds following me around. Smoke problems I have had after this install were from failed o2 and running too rich. I safety wise or environmentally donít see the difference between vent to atmosphere and vent to atmosphere out the tailpipe. For some reason the people making competition rules donít like it though.
bbundy is offline   Reply With Quote
Old 11-03-2012, 12:19 AM   #28
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by concealer404 View Post
Would you happen to have pics?

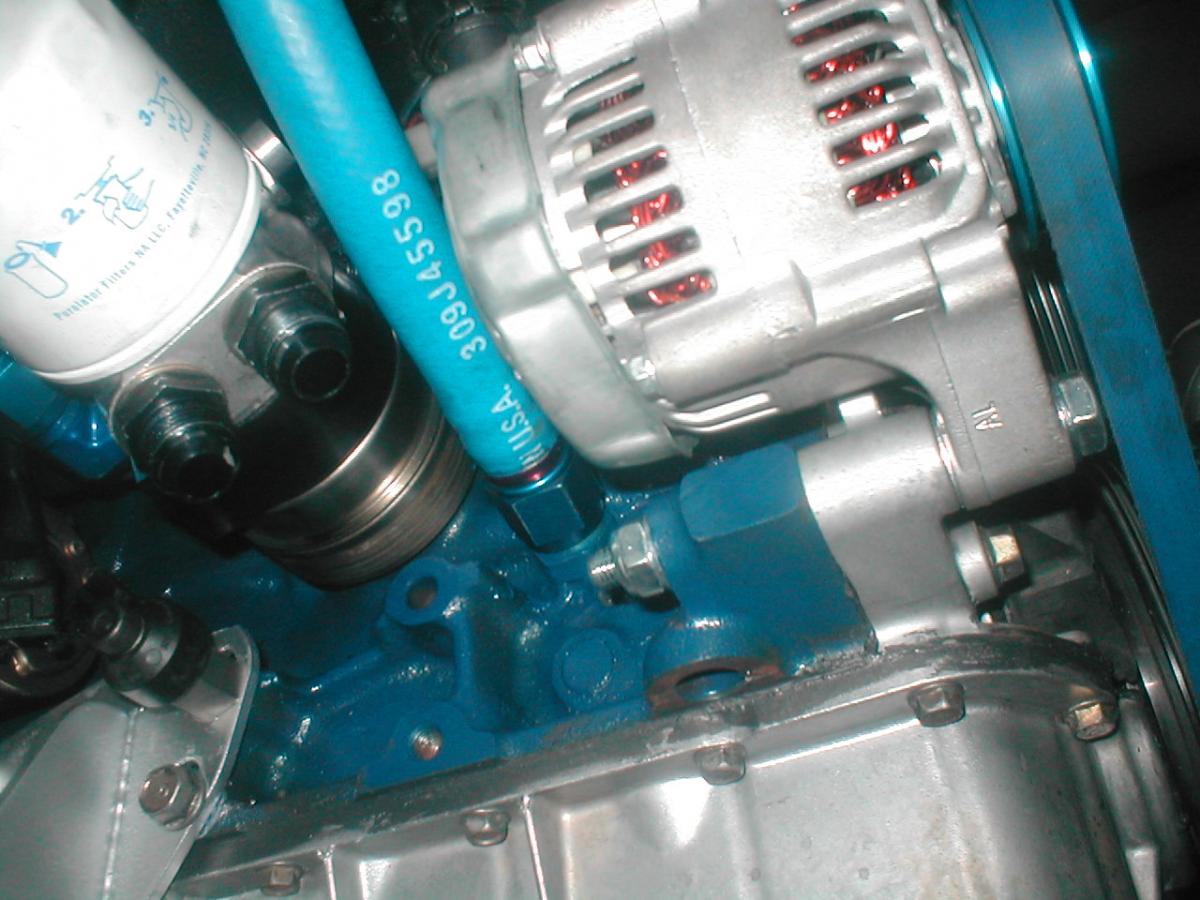

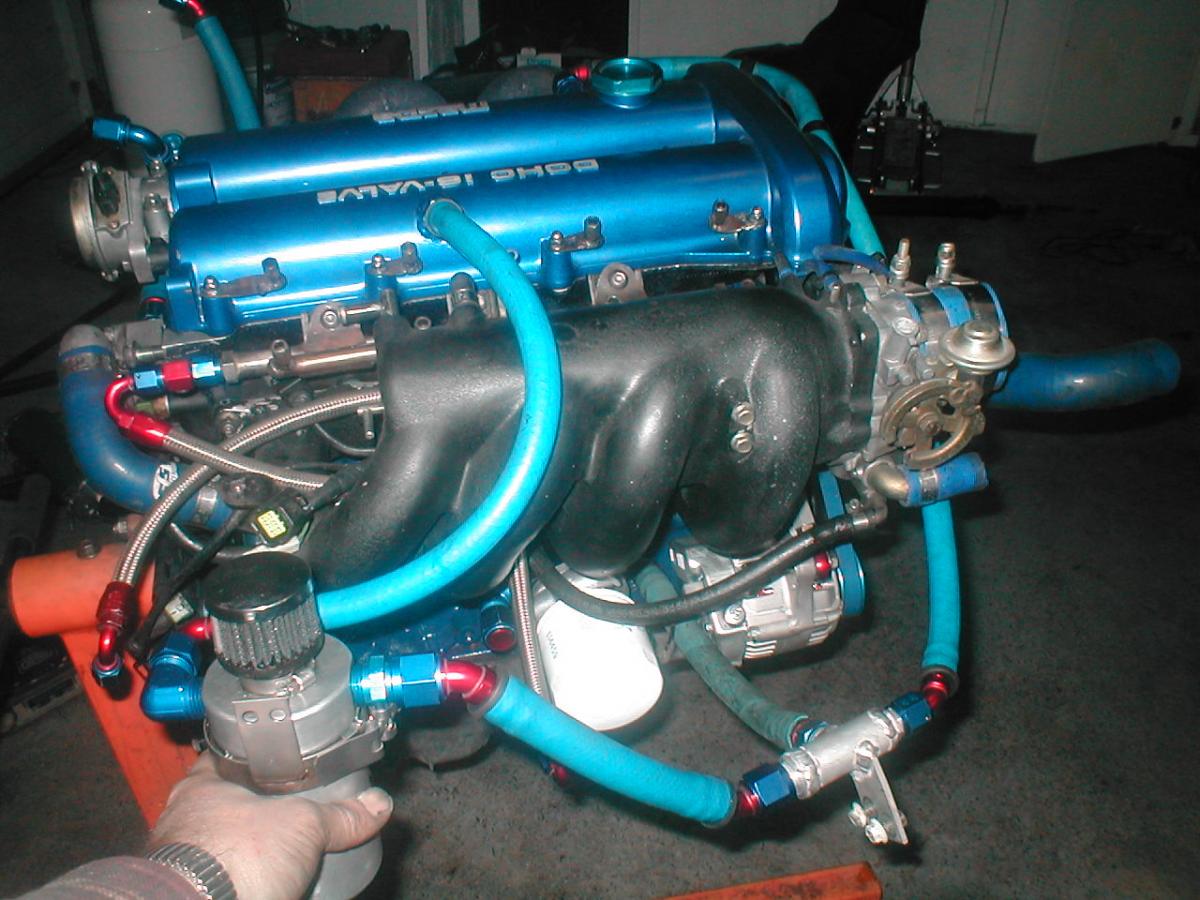

Hose shown going to the pcv port is blocked off now. Dont use that thing.
Attached Thumbnails
Should I drill a hole in my engine block?-p101d0005.jpg   Should I drill a hole in my engine block?-p1010007.jpg
bbundy is offline   Reply With Quote
Old 11-03-2012, 12:37 AM   #29
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Hey Bob, I don't mean to be "that guy" but are there 3 spacers under your oil filter? Looks like filter > mocal thermostat spacer > gauge and turbo feed spacer > OEM heat exchanger > block
EO2K is offline   Reply With Quote
Old 11-03-2012, 12:40 AM   #30
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

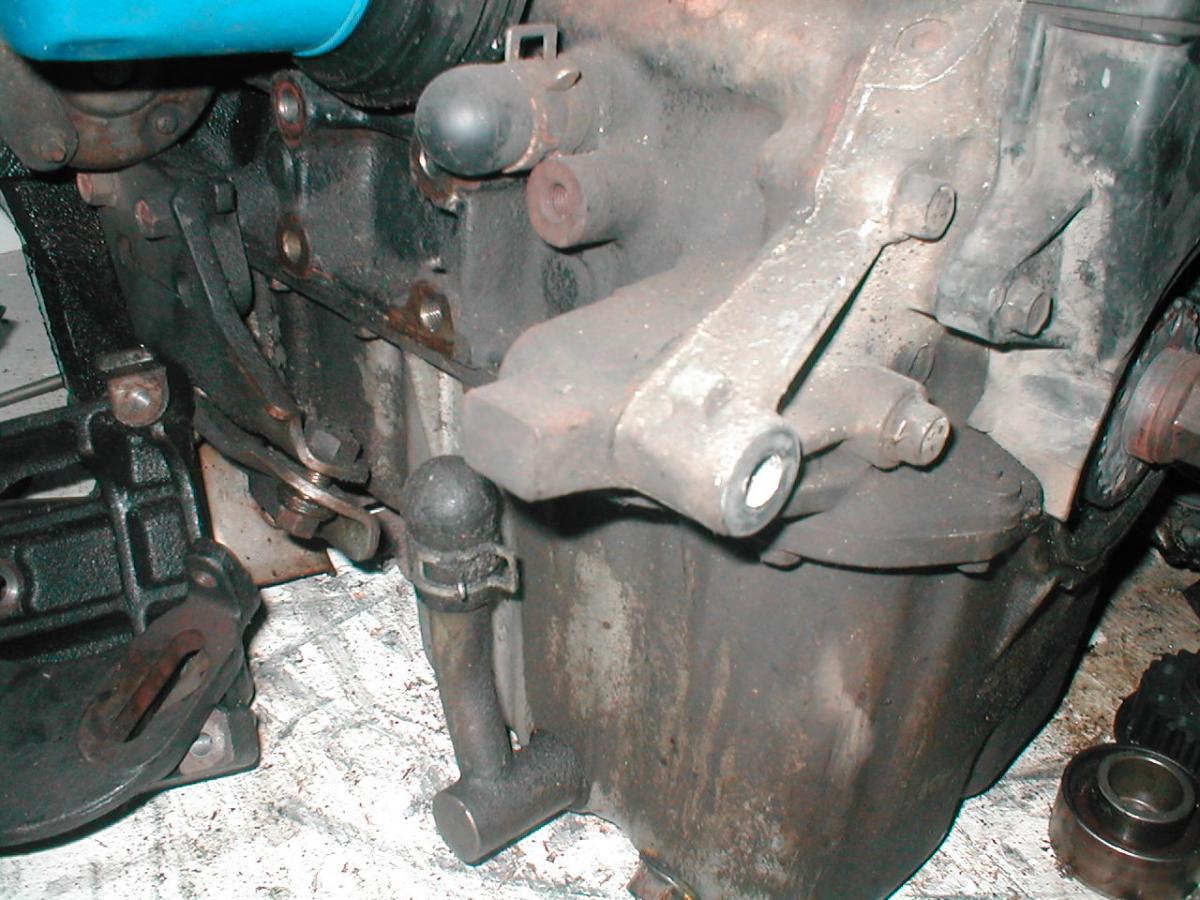

Mazda originally designed the B6-T with a Breather port in the block I have talked to some European Rally guys who ran the cars in factory support trim and said they came with a breather system with an oil separator that drained back into the bottom of the oil pan. I have never seen the system installed myself but if you had a US spec GTX it came with the breather and the return port blocked off as shown below.
bbundy is offline   Reply With Quote
Old 11-03-2012, 12:44 AM   #31
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by EO2K View Post
Hey Bob, I don't mean to be "that guy" but are there 3 spacers under your oil filter? Looks like filter > mocal thermostat spacer > gauge and turbo feed spacer > OEM heat exchanger > block
Factory oil to water heat exchanger
Accusump feed block
Mocal themostat for oil cooler
filter.
bbundy is offline   Reply With Quote
Old 11-03-2012, 12:55 AM   #32
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Christ, I knew that, thanks man. I think you told me about the Accusump mounting the last time I saw you at Laguna
EO2K is offline   Reply With Quote
Old 11-03-2012, 02:49 PM   #33
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,672
Total Cats: 1,561
Default

The guys road racing older GT-Rs with RB26's use a large diameter hose between the top end of the block and the back of the head to allow the gasses from blowby and pumping pulses to pass more readily to the valve cover area. The oil draining back to the pan is fighting the gasses coming upward from the other direction through the same small area and at high RPMs and high boost there is a lot of both. Increasing the flow area between the top and bottom of the engine reduces the speed of the gasses and creates less oil vapor as the two pass each other. Everything gets where it is going with less impediments.
sixshooter is online now   Reply With Quote
Old 11-03-2012, 07:17 PM   #34
Junior Member
iTrader: (11)

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 285
Total Cats: 7
Default

Quote:
Originally Posted by bbundy View Post
Mazda originally designed the B6-T with a Breather port in the block I have talked to some European Rally guys who ran the cars in factory support trim and said they came with a breather system with an oil separator that drained back into the bottom of the oil pan. I have never seen the system installed myself but if you had a US spec GTX it came with the breather and the return port blocked off as shown below.
Damn, you beat me to it. I was gonna run out and snap a picture of those fittings on my b6t.
iantboyd is offline   Reply With Quote
Old 11-03-2012, 07:25 PM   #35
Newb

Join Date: Nov 2012
Location: Minnesota
Posts: 21
Total Cats: -2
Default

i feel like maybe "you" shouldn't drill a hole in your block, id personally weld a bung to the valve cover if your intention is to avoid blow by... but realistically if u really need to in order to run 20+PSI id avoid DIY
GoriLlaWrench is offline   Reply With Quote
Old 11-03-2012, 09:16 PM   #36
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by GoriLlaWrench View Post
i feel like maybe "you" shouldn't drill a hole in your block, id personally weld a bung to the valve cover if your intention is to avoid blow by... but realistically if u really need to in order to run 20+PSI id avoid DIY
I run 40psi and two -12 fittings do the trick well enough.

Hondas/evos etc that run high boost frequently have 4x -8 fittings...

How much boost will you run?

A single -12 was fine for me at 25psi.
Faeflora is offline   Reply With Quote
Old 11-03-2012, 09:36 PM   #37
Newb

Join Date: Nov 2012
Location: Minnesota
Posts: 21
Total Cats: -2
Default

Quote:
Originally Posted by Faeflora View Post
I run 40psi and two -12 fittings do the trick well enough.

Hondas/evos etc that run high boost frequently have 4x -8 fittings...

How much boost will you run?

A single -12 was fine for me at 25psi.
I'm not as familiar with miatas, but id never intend on drilling a hole in a block, build vehicles so you can remove modifications without preeminently damaging your car.

if u ever wanna pull your turbo id prefer to just swap a stock valve cover instead
GoriLlaWrench is offline   Reply With Quote
Old 11-03-2012, 10:19 PM   #38
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by GoriLlaWrench View Post
I'm not as familiar with miatas, but id never intend on drilling a hole in a block, build vehicles so you can remove modifications without preeminently damaging your car.

if u ever wanna pull your turbo id prefer to just swap a stock valve cover instead
If you turbo as well as you grammar, you are already preeminently damaging your car.

There is always a point of no return. For me it was the third heater core that leaked. Now, my car will never return to a stock coolant system. That's just one example on my personal car.
baron340 is offline   Reply With Quote
Old 11-03-2012, 11:05 PM   #39
Newb

Join Date: Nov 2012
Location: Minnesota
Posts: 21
Total Cats: -2
Default

Quote:
Originally Posted by baron340 View Post
If you turbo as well as you grammar, you are already preeminently damaging your car.

There is always a point of no return. For me it was the third heater core that leaked. Now, my car will never return to a stock coolant system. That's just one example on my personal car.
troll
well i guess it reflects the fact that i never have 'turbo'ed" a car. hence NOOBIZM...

It all depends how far your willing to go, what i do know is simplicity in turn has always brought reliability. If you decide to drill into your block id recommend having a machine shop handle it.
GoriLlaWrench is offline   Reply With Quote
Old 11-03-2012, 11:23 PM   #40
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

just stop posting
