Old 12-05-2013, 08:20 PM   #81
Senior Member
Thread Starter
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Quote:
Originally Posted by Leafy View Post
There's also this one, which I was considering for the VC->intake connection. It'll be easier to fit into the car, and seem to cost about $45. Would probably T it into my turbo drain. Yes, yes I'm the biggest opponent of re-introducing pcv oil back into the crank case, BUT the PCV valve ends up sucking up the most of the really nasty things in street driving (in theory), and my car gets about 800 miles between oil changes.
Good find, this design has great possibilities. Do happen to know what BMW's to look at in the junk yard to find it on?
2manyhobyz is offline   Reply With Quote
Old 12-05-2013, 08:25 PM   #82
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by 2manyhobyz View Post
Good find, this design has great possibilities. Do happen to know what BMW's to look at in the junk yard to find it on?
Yes, anything with the S62 engine. So v8 E39 M5s and Z8s. But its plastic thats in the engine bay and only costs $45 new. Just buy a new one.
Leafy is offline   Reply With Quote
Old 12-05-2013, 08:36 PM   #83
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Little more restrictive than that. 98-03 M5 (20,482 worldwide) and 00-03 Z8 (5703 total). They also came in some Ascari supercars. You'll probably never find one in a junkyard. And if you do, "Oh, it's a part off of that M5? $100."

They're cheap new. Saw $38 + Shipping. Would love to see a cross section to see how easy it'd be to fab one up.
TheScaryOne is offline   Reply With Quote
Old 12-05-2013, 08:38 PM   #84
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by TheScaryOne View Post
Little more restrictive than that. 98-03 M5 (20,482 worldwide) and 00-03 Z8 (5703 total). They also came in some Ascari supercars. You'll probably never find one in a junkyard. And if you do, "Oh, it's a part off of that M5? $100."

They're cheap new. Saw $38 + Shipping. Would love to see a cross section to see how easy it'd be to fab one up.
Google it, someone cut one in half. Also google the crawford can x-ray and cut in half. They're similar.
Leafy is offline   Reply With Quote
Old 12-05-2013, 08:44 PM   #85
Senior Member
Thread Starter
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Quote:
Originally Posted by Sean View Post
I do not want to sound negative because this system looks like it will work and seems to be working for you, but I think it is way over complicated for a breather setup. I run a different engine in my car currently with two 10an lines one from each valve covet with a t fitting tying them together to a slash cut in the exhaust. This works fantastic no dirty catch can no dripping oil no blow by and my car only uses about 1/4 quart of oil over 3000 miles. Simple and effective.

I dont want you to think I am bashing you breather setup it is very nice but with a nice turbo kit and your engine bay looking nice I dont see why anyone would want to suck oil vapor back into your turbo. Maybe I missed something along the line but seems way way over kill.
The 2JZ must have a better oil drain back system from the head than the NB does. Although there is a sight glass on the catch can, I haven't seen anything on the sight glass in over 5000+ miles on the engine. The reasoning for getting vacuum from the turbo inlet is to try to simulate the vacuum generated by a dry sump system (10 - 15 inches of vac) according to my research, which equates to engine efficiency, which leads to horsepower.
Yeah, there is probably a little tiny bit of oil vapor getting through. So I added some pre-turbo water/meth which will probably clean any residue off.

I have a different turbo and exhaust in the works for the winter project. What size and how far down the down pipe should the slash be installed? Although the gasses are going by the slash very fast, I thought Jason measured some surprisingly high (15-20+psi) in the down pipe that would not support this as a good location?
2manyhobyz is offline   Reply With Quote
Old 12-05-2013, 08:53 PM   #86
Senior Member
Thread Starter
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Quote:
Originally Posted by TheScaryOne View Post
Little more restrictive than that. 98-03 M5 (20,482 worldwide) and 00-03 Z8 (5703 total). They also came in some Ascari supercars. You'll probably never find one in a junkyard. And if you do, "Oh, it's a part off of that M5? $100."

They're cheap new. Saw $38 + Shipping. Would love to see a cross section to see how easy it'd be to fab one up.
Crap, I thought they would be on more "average" BMW stuff. A lot of the junk yards around here have stupid pricing on stuff. This time of year you wear big baggy coats to the yard anyway.
2manyhobyz is offline   Reply With Quote
Old 12-05-2013, 09:22 PM   #87
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

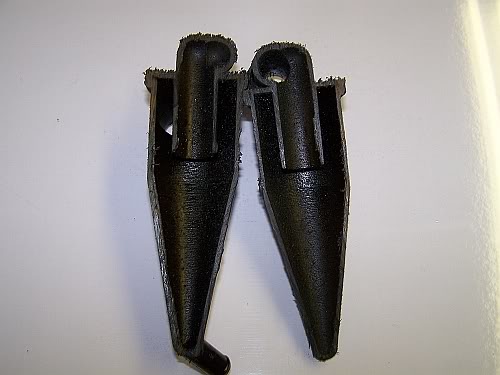

I posted a link to the Crawford Xray and Cutaway on the last page. Looked easy enough to fab.



Pfft. I wonder if that's crap from cutting it in half, or a textured surface to help catch oil.
Attached Thumbnails
Should I drill a hole in my engine block?-166681d1351179022-lets-talk-about-s62-pcv-system-m5os.jpg
TheScaryOne is offline   Reply With Quote
Old 12-06-2013, 12:10 AM   #88
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I haven't had the pleasure to take apart a miata block yet but how big is the oil passage connecting the head to the oil pan area?

IMO calling it a balance tube is fairly accurate as it balances the pressure between the valve cover and the oil pan. That said why do you want it to be balanced?
triple88a is offline   Reply With Quote
Old 12-06-2013, 01:07 AM   #89
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by triple88a View Post
I haven't had the pleasure to take apart a miata block yet but how big is the oil passage connecting the head to the oil pan area?

IMO calling it a balance tube is fairly accurate as it balances the pressure between the valve cover and the oil pan. That said why do you want it to be balanced?
Normally you have balance tubes between 2 heads on v or boxer engines to balance them. On Jeff's setup the "balance tube" is basically just letting the crank case gases get to the head without having to fight against the oil trying to drain back to the block. I guess it lets him pull that air out through the baffles in the valve cover without it potentially slowing the flow of the oil draining from the head.

When I do mine, if I end up with gallons of oil in that catch can, I'll try running it more like jeffs and see if that makes a difference.
Leafy is offline   Reply With Quote
Old 12-06-2013, 01:17 AM   #90
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Well if its just a tube that goes to the oil pan why even worry about a catch can on it?
triple88a is offline   Reply With Quote
Old 12-06-2013, 01:45 AM   #91
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Use the BMW part to be the balance chamber like 2manyhobyz has it between his drilled hole and the valve cover, with the vent port to the particulate filter, to the coalescing filter, then to an intake slashcut? Skip the exhaust slashcut entirely? Then PCV>Check Valve>Intake?

Edit: Or BMW part between the front block hole to the valve cover breather.

I mean, why mess with risking pulling oil in the turbo unless you're going all out. It'll pull more vacuum than the exhaust will. And if you double filter, you won't suck oil. You can upgrade to the fancy extruded housing for more volume, but it sounds like you spend some time under the hood and might not need the full oz. Besides, the clear filter will fill up before the opaque one.
TheScaryOne is offline   Reply With Quote
Old 12-06-2013, 09:33 AM   #92
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

How will the pre-turbo slash cut pull more vacuum than the exhaust slash cut? The exhaust one will have about the same strength Bernoulli effect. Remember exhaust gas velocity is going to be about the same as the intake, may a touch less. Also this is a compressible flow so density matters and exhaust gas also has a lower density, which increases the effect.

I dont think the BMW part will work in the balance chamber, it requires flow velocity to really work.
Leafy is offline   Reply With Quote
Old 12-06-2013, 10:48 AM   #93
Junior Member

Join Date: Dec 2010
Location: Greenville SC
Posts: 87
Total Cats: 0
Default

Quote:
Originally Posted by bbundy View Post
I have been running with a hole drilled in my block for a breather port for a couple years now. It works and was an improvement I believe.

I drilled up by the oil filter just behind the #1 squirter though. This is the same location that Mazda cast in a block breather port on 1.6l B6-T and early 1.6l Miata blocks but they never used it on cars imported to the US they just put a rubber cap over the nipple. They removed the port from the casting for the 1.8l blocks.

I Drilled and tapped to a NPT to -10 an and JB welded the fitting in the block. Runs up to a T with a line coming from the Exhaust side valve cover vent then to a catch can with oil separator. Intake side PCV port is blocked off.

I have the catch can setup where I can vent it to atmosphere or to a slash cut that has the exhaust flow pull a small vacuum on it. It works better and makes less mess to have the exhaust flow sucking the blow-by gas out the tailpipe though technically not legal pre SCCA GCR.

Bob
This seems the best option to me. Also, I can see merit in exhausting any blowby from block vs cam cover as oil is draining down while gases are going up. Only thing is, I wasn't sure if this port in the 1.6 block was a breather or an oil return drain for the turbo? I've never seen a 323GTX so can't say what they actually did.
Team DNR is offline   Reply With Quote
Old 12-06-2013, 12:40 PM   #94
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I was under the impression it was literally just a block vent, because as Bundy said, its next to the oil filter, so that would be the wrong side of the block for a turbo drain

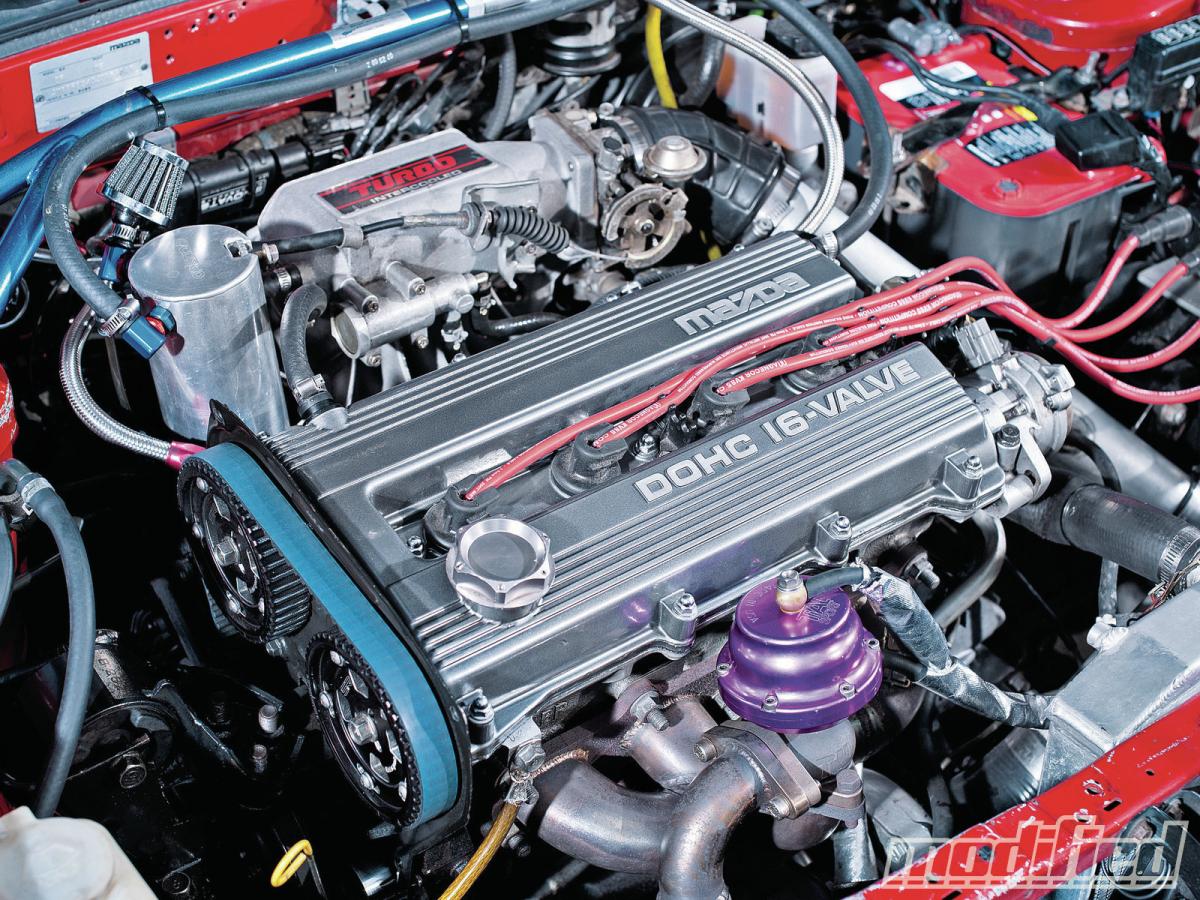

Google generated this for the 323GTX


Jesus, how do you even get to the filter on that thing? I bet that catchcan drains into that block port
Attached Thumbnails
Should I drill a hole in my engine block?-modp-1205-07%252b1988-mazda-323-gtx%252bengine.jpg
EO2K is offline   Reply With Quote
Old 12-06-2013, 12:47 PM   #95
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

Which filter?
concealer404 is offline   Reply With Quote
Old 12-06-2013, 12:51 PM   #96
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by EO2K View Post
Jesus, how do you even get to the filter on that thing?
From below. Same way you get to the filter on most cars.
Joe Perez is offline   Reply With Quote
Old 12-06-2013, 12:54 PM   #97
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by concealer404 View Post
Which filter?
Oil filter
Quote:
Originally Posted by Joe Perez View Post
From below. Same way you get to the filter on most cars.
Never owned a FWD/transverse car. RWDMasterRace checking in
EO2K is offline   Reply With Quote
Old 12-06-2013, 05:17 PM   #98
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Quote:
Originally Posted by Leafy View Post
How will the pre-turbo slash cut pull more vacuum than the exhaust slash cut? The exhaust one will have about the same strength Bernoulli effect. Remember exhaust gas velocity is going to be about the same as the intake, may a touch less. Also this is a compressible flow so density matters and exhaust gas also has a lower density, which increases the effect.

I dont think the BMW part will work in the balance chamber, it requires flow velocity to really work.
Under boost the turbo inlet will pull a vacuum without any slashcut. An intake slashcut could make more vacuum by compounding the drawing effect of the low pressure zone created by the air flowing around the end of the open slashcut tube (Bernoulli's?) with the already present vacuum source (turbo). Sticking a slashcut in the exhaust relies entirely on the drawing effect of the low pressure zone, as the system is free flowing from that point on. To get the most vacuum, maybe run an oversized air inlet tube to the turbo inlet, and use a reducer coupling, and put the slashcut directly in front of the reducer, to harness the Venturi effect and Bernoulli's principal (fluid flowing through restriction increases velocity/fluid with increased velocity creates a pressure drop).

I wonder if you used a tube shaped like an airfoil, with a slit along the top, mounted in the middle of the air inlet tube, if you could pull even more vacuum than with the slashcut. Kind of like a cheap nitrous plate fogger, but with airfoil shaped tube.

I wasn't intending the BMW part to be used as it was intended at all. I'd was thinking of connecting the bottom port as a drainback to the hole behind the starter, connected to the valve cover at the top. This would give a place for oil to drain back to the crankcase if it fills up, and act as a balance chamber between the valve cover and the block to prevent oil fighting with gas in the drainback holes. You could then pull vacuum from the side of the BMW part to pull vacuum on both the block and the valve cover.

And on the FWD Protege Oil filter: That's the worst car I've ever had to change a filter on. And of course, the last time an oil change was done it was done by a quicky lube and had the filter on so tight the gasket was totally compressed.
TheScaryOne is offline   Reply With Quote
Old 01-05-2014, 06:12 PM   #99
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Jeff, what did you do for fitting on that hole. I drilled and tapped mine, a straight NPT to AN fitting aint happening, the 90* looks good facing backwards. The straight might be ok if I could run the tap deeper and thread it in all the way, but the 90's still better. Still trying to decide what thread sealant to use.
Leafy is offline   Reply With Quote
Old 01-06-2014, 12:45 AM   #100
Senior Member
Thread Starter
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

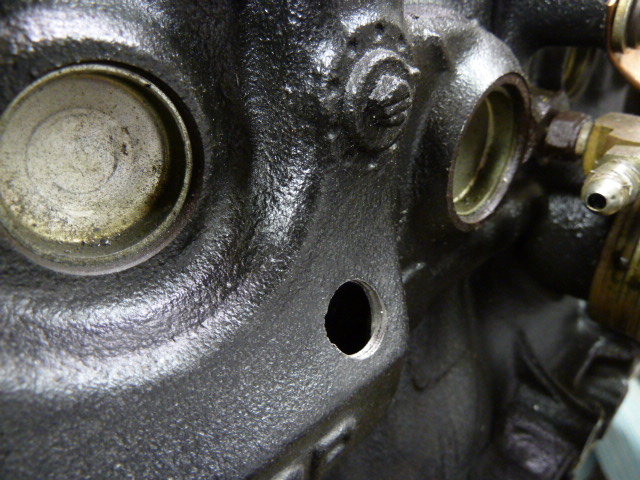

I originally tried a straight but it wouldn't clear the starter. I went with a 45 but I think I would try a 90 because you want to come out of the hole and try to go as close to straight up as possible to make it hard for any oil to make it into the hole.



After test fitting starter, intake, and where I wanted the hose to go, I used JB Weld on the threads.
Attached Thumbnails
Should I drill a hole in my engine block?-p1010091.jpg

Last edited by 2manyhobyz; 01-06-2014 at 12:47 AM. Reason: typo
2manyhobyz is offline   Reply With Quote
