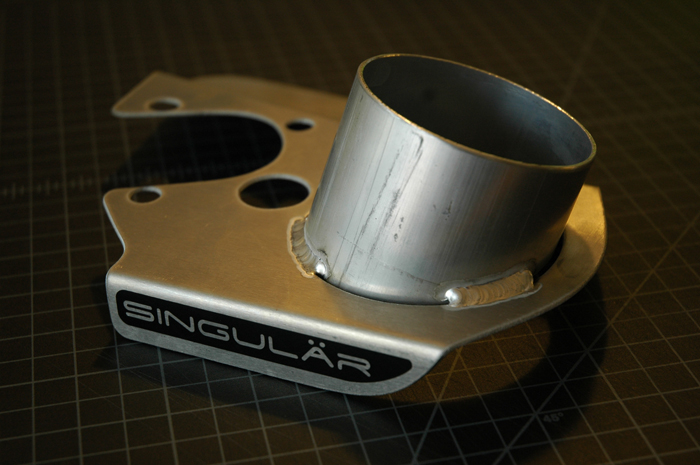

Default Singular Motorsports 2.5" & 3" Brake Ducts

These have been in the works for a while, I almost spilled the beans when everyone was talking about brake duct sizes a couple weeks back, but finally now I’m really pleased to offer 2.5” and 3” brake duct solutions to our community.

These are now in stock at Good-Win Racing and Trackspeed Engineering:

2.5" Brake Ducts @Good-Win & 3" Brake Ducts @Good-Win

2.5" Brake Ducts @TSE & 3" Brake Ducts @TSE

Andrew is also offering kits with hose of the appropriate size, clamps, and zip ties as an add-on.



Why 2.5” or 3” ducts?
By this point it’s well established that proper brake ducts are a key part to a track car’s braking system, and there are huge benefits to increased hose size - the airflow increases as a square of the diameter, so a ” increase in hose size actually produces a very significant difference.

This sums up the recent discussions that have been going on regarding brake duct size, and this is essentially the type of findings that started me down the path of developing these:

Quote:
Originally Posted by emilio700 View Post
We found the difference in velocity and volume from 2" to 2.5" to be huge, even with almost no bends. With a 90 bend the flow from the 2" dropped off to a bare fraction of the 2.5". The 3" was awesome even when kinked twice but just about impossible to fit in there with wide wheels. So we run 2.5" and aim it at the hub/center of rotor.
The largest difficulty that arises as hose size increases (especially with 3”) is getting the orientation just right between the wheel, spindle, sway bar, etc. since tolerances are slim - so a specialized part that locates the hose and its outlet position becomes more critical - and that is what these do for you.

But, these are not only for the extreme track crowd. It makes sense to use brake ducts on nearly ANY track-driven miata for two reasons:

A) Even if you aren’t at the limit of the brake pad/fluid’s operating temperature, decreasing the temps of the brakes can drastically increase their lifespan - in many cases pad life can nearly double (In other words, these pay for themselves over time)

B) A low-power car may be able to run track-only pads and avoid reaching the limits of the pad, but many people in the double-duty street/track category want to run a less than crazy aggressive pad. In these cases, really good brake ducting can be the key to keeping those pads within their operating temperature range and not destroying them.

3" vs. No Ducts test:

I recently ran the 3” version vs. no ducting at the track (taped over the duct inlet on one side of the car). Following a brief half-session, and after a cool down lap which allowed temps to come down and stabilize a bit, on the non-ducted side we saw caliper temps of 585*. For those of you keeping score, that’s just a breath away from the boiling point of the Motul RBF600.

On the ducted side of the car, the caliper was 445*. Perfectly happy.
I had intended to do more testing with the side that was blocked off, but after seeing those temps I aborted that plan and kept both sides ducted the rest of the day. I literally would not run my car without these.

I’m running the 3” on my car and Sean has the 2.5” on his, and these are already out there on a few member's cars - Keith Tanner is running the 3” units on the V8 Targa car, Martin has recently added 3” units to Lazarus, and Curly is running the 2.5" versions. I’ll welcome them to give any of their impressions and input if they’d like.

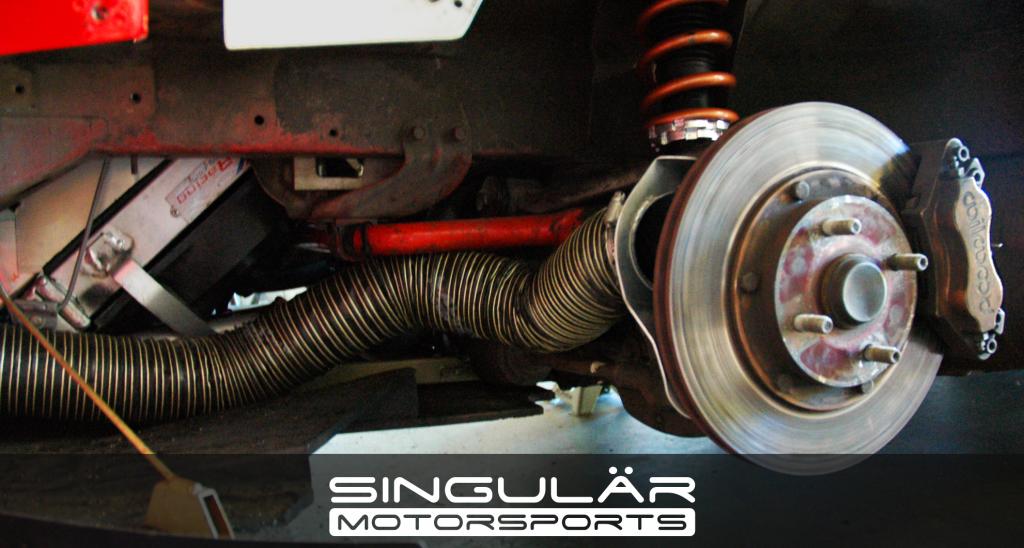

3" On my car:

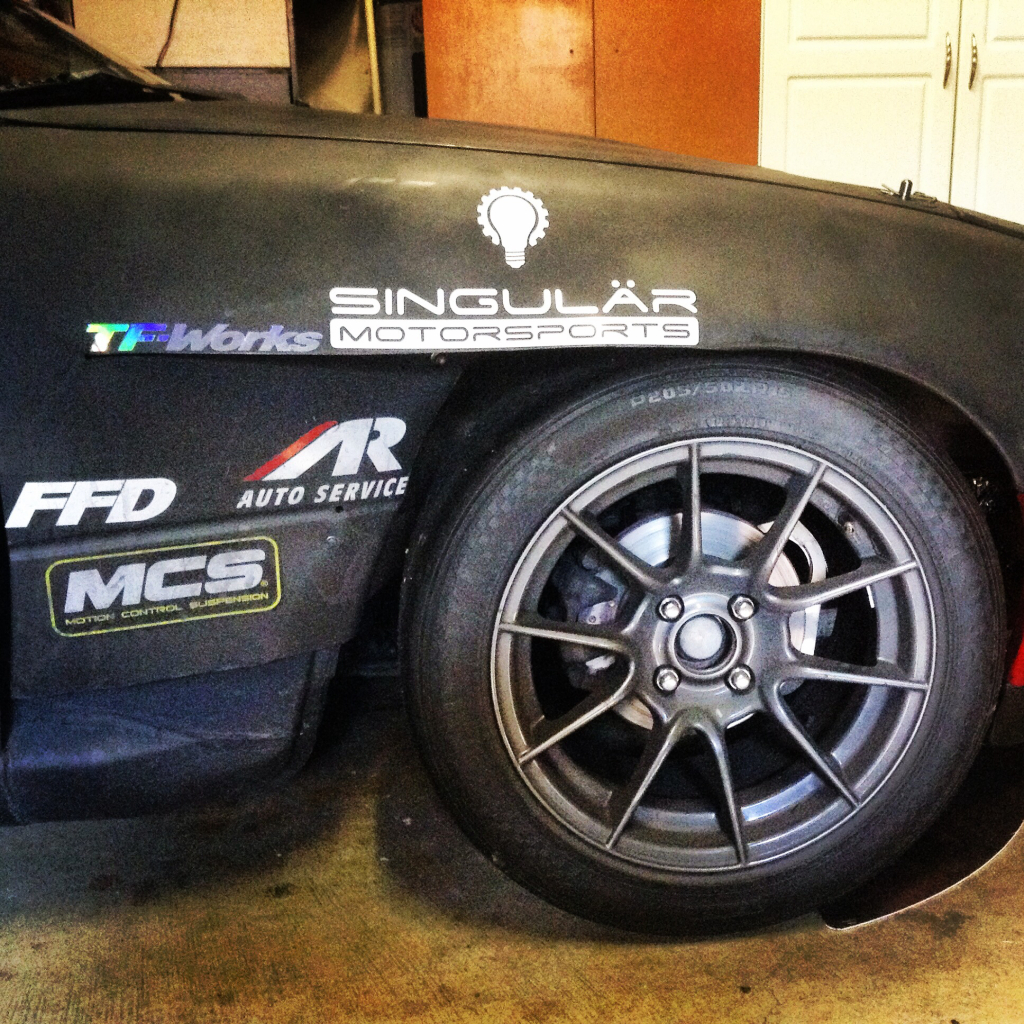

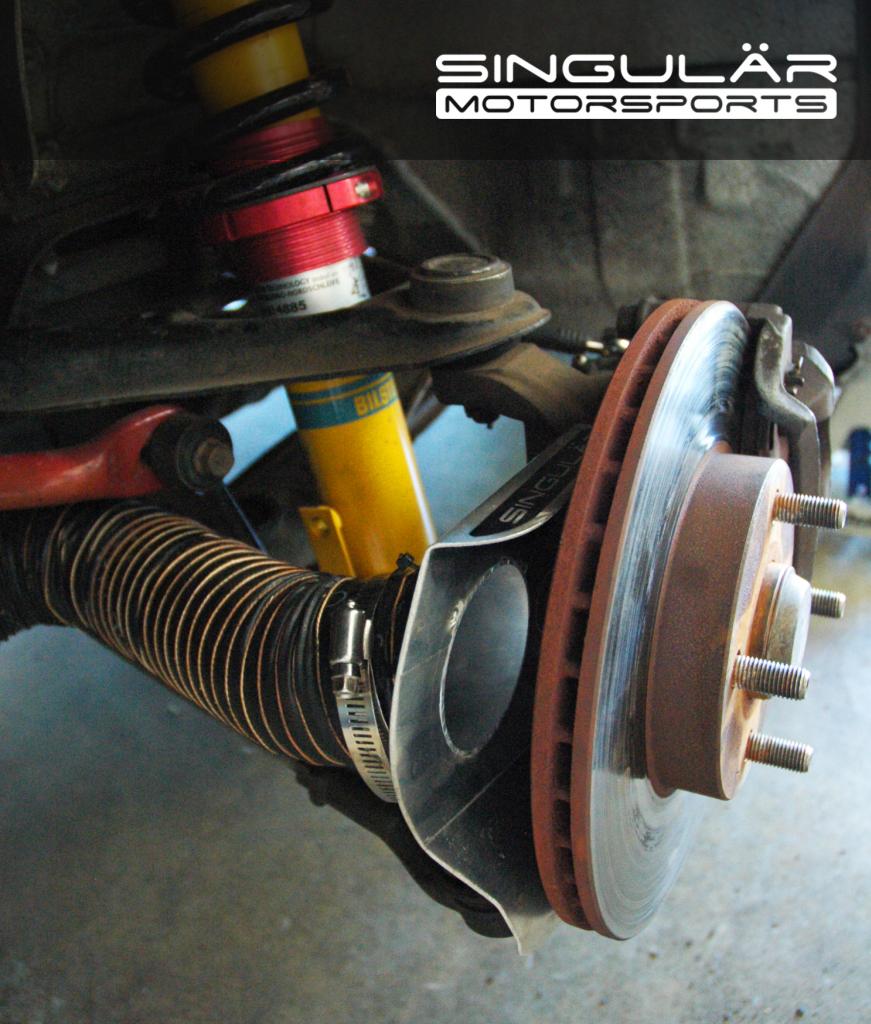

2.5" on Scooby (Sean's car):



I'm really excited to see and hear about you guys further raising the bar with your car's potential. It gives me a special kind of satisfaction to be able to have a hand in making that possible.

-Ryan
Attached Thumbnails
Singular Motorsports 2.5" & 3" Brake Ducts-3inchbd2_zps16cd6f10.jpg   Singular Motorsports 2.5" & 3" Brake Ducts-3inchinstalledwatermarked_zpsae51797e.jpg   Singular Motorsports 2.5" & 3" Brake Ducts-25inchinstalledwatermarked_zps7b7c8927.jpg   Singular Motorsports 2.5" & 3" Brake Ducts-3inchinstalledwatermarked_zpsf155bc02.jpg   Singular Motorsports 2.5" & 3" Brake Ducts-25inchinstalledwatermarked_zps203bfa6d.jpg


Last edited by ThePass; 08-30-2014 at 01:25 PM.
ThePass is offline   Reply With Quote
Old 08-30-2014, 11:07 PM   #2
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

I've got a request... make something similar that will fit the Kiesler drop spindles. I'll help with what I can to get you dimensions. I think those of us baller enough to run them deserve brake cooling awesomeness as well
What say you Mr. Pass?
GeneSplicer is offline   Reply With Quote
Old 08-31-2014, 12:48 AM   #3
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

I have nothing but good things to say. The 3 inch kit was easy to install and I'm successfully running my 1.6 brakes on a 230 whp track car on Hoosiers. Even on hot days I haven't had any issues with fading due to overheating the brakes. Great product guys.
greddygalant is offline   Reply With Quote
Old 08-31-2014, 02:45 AM   #4
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Quote:
Originally Posted by GeneSplicer View Post
I've got a request... make something similar that will fit the Kiesler drop spindles. I'll help with what I can to get you dimensions. I think those of us baller enough to run them deserve brake cooling awesomeness as well
What say you Mr. Pass?
I'm game. I'll send you a PM and we can look into it.

-Ryan

Last edited by ThePass; 08-31-2014 at 03:31 AM.
ThePass is offline   Reply With Quote
Old 08-31-2014, 03:35 AM   #5
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

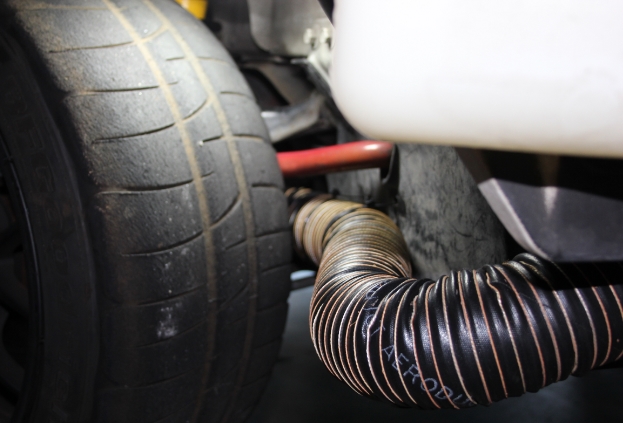

2.5" hose run alongside the factory plastic undertray - 15x9 wheel turned to full lock, no spacer (keep in mind you're never at full lock except for in the pits or parking lots). Plenty of room:

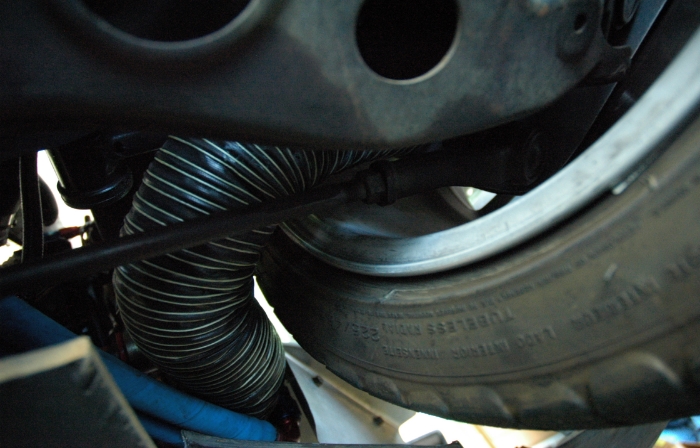

3" hose, factory undertray removed, 15x9 wheel with no spacers turned to full lock. Perfect fit:

Attached Thumbnails
Singular Motorsports 2.5" & 3" Brake Ducts-img_4449_zpsfd1228cb.jpg   Singular Motorsports 2.5" & 3" Brake Ducts-dsc_0053_zps0d3a7fca.jpg
ThePass is offline   Reply With Quote
Old 08-31-2014, 07:02 AM   #6
Junior Member
iTrader: (4)

Join Date: Sep 2010
Location: Australia
Posts: 168
Total Cats: 10
Default

I might be interested in a set for Keislers as well...

Have already ordered a 3" set for the moment though
zossy1 is offline   Reply With Quote
Old 08-31-2014, 01:45 PM   #7
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

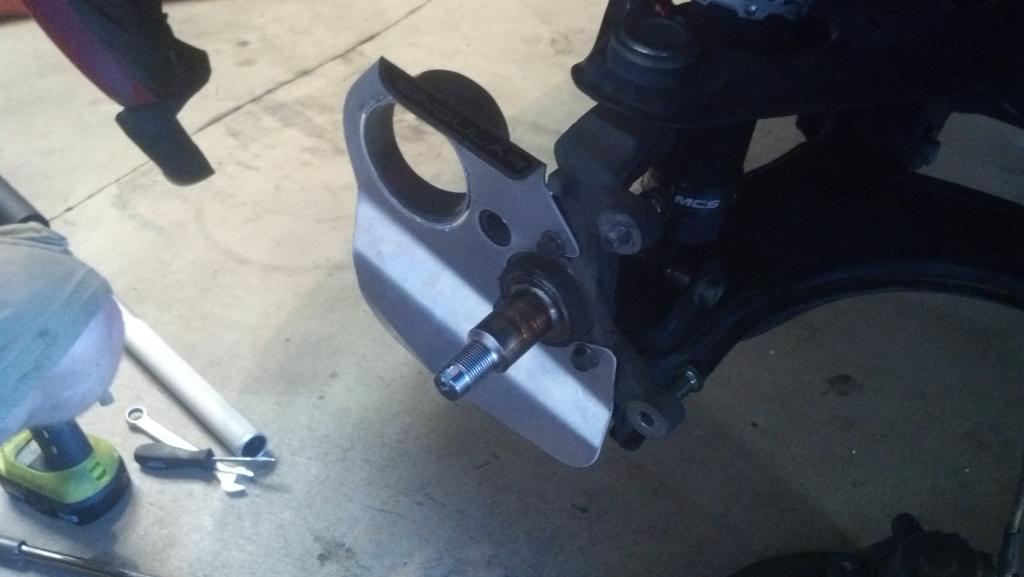

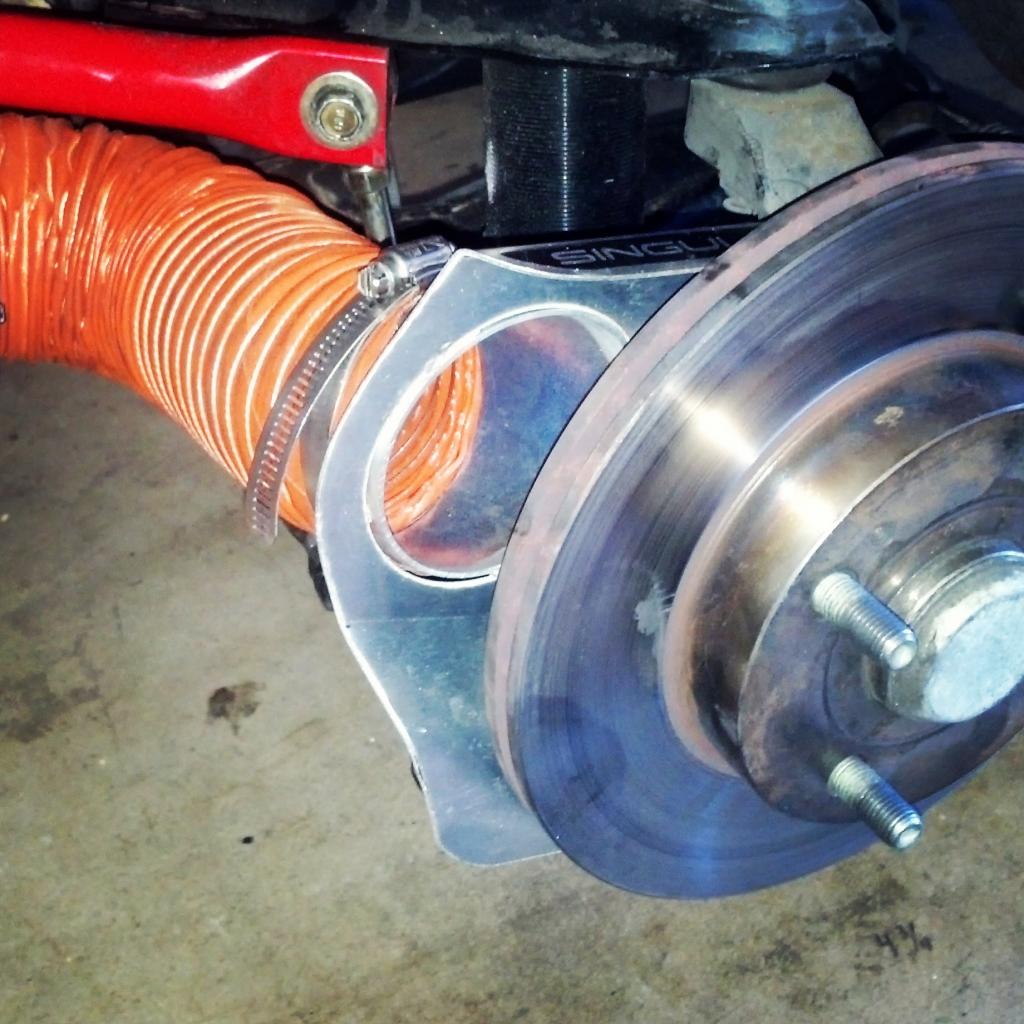

I should add that I am still running the stock undertray with the 3 inch ducting and have no issues with any rubbing. Wheels are 15x8 +32, some more photos


Attached Thumbnails
Singular Motorsports 2.5" & 3" Brake Ducts-img_20140809_110043_zpsxhp2zg42.jpg   Singular Motorsports 2.5" & 3" Brake Ducts-2014-08-09_09-42-03_238_zpsy7spsqr8.jpg   Singular Motorsports 2.5" & 3" Brake Ducts-022101adf5774fe51beae831948fc2e4_zps1a48e908.jpg
greddygalant is offline   Reply With Quote
Old 08-31-2014, 02:24 PM   #8
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Want!
Laur3ns is offline   Reply With Quote
Old 08-31-2014, 03:25 PM   #9
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 30
Default

Thanks for that pic Galant! 3" it is!
(Factory undertray plus 15x8s for meeeeee.)
SchmoozerJoe is offline   Reply With Quote
Old 08-31-2014, 08:55 PM   #10
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

I really wish someone would skip the ABS sensor mount and move the duct closer to the center of the hub where it belongs. Air needs to be directed into the cooling vanes not at one face of the rotor.
k24madness is offline   Reply With Quote
Old 09-01-2014, 10:36 AM   #11
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Quote:
Originally Posted by k24madness View Post
I really wish someone would skip the ABS sensor mount and move the duct closer to the center of the hub where it belongs. Air needs to be directed into the cooling vanes not at one face of the rotor.
or make the hose attachment have a "cutout" for the ABS sensor, it might like cooling as well

Sure the area would be a little smaller and the cost goes up, but it would satisfy some ---- theorists...

Keeping ABS and non-ABS versions in stock isn't cheaper either.
NiklasFalk is offline   Reply With Quote
Old 09-01-2014, 01:27 PM   #12
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

Ryan,

What's the difference between these and the ones that Trackspeed has had on the market for a long time now?
slmhofy is offline   Reply With Quote
Old 09-01-2014, 02:03 PM   #13
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

3>2.5>2"

Looks more "worked" than the TSE ones.
NiklasFalk is offline   Reply With Quote
Old 09-01-2014, 06:42 PM   #14
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Quote:
Originally Posted by k24madness View Post
I really wish someone would skip the ABS sensor mount and move the duct closer to the center of the hub where it belongs. Air needs to be directed into the cooling vanes not at one face of the rotor.
ABS sensor hole doesn't make any difference. The spindle is the limiting factor, and Mazda used the ABS-style spindle on every 94-05 car. It makes absolutely zero economic sense to produce a brake duct that only fits a 90-93 spindle (and for you NB guys, that means sourcing a new 90-97 UCA as well). BTDT.
Savington is offline   Reply With Quote
Old 09-01-2014, 07:26 PM   #15
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

Quote:
Originally Posted by Savington View Post
ABS sensor hole doesn't make any difference. The spindle is the limiting factor, and Mazda used the ABS-style spindle on every 94-05 car. It makes absolutely zero economic sense to produce a brake duct that only fits a 90-93 spindle (and for you NB guys, that means sourcing a new 90-97 UCA as well). BTDT.
No need of new spindles or UCA's. You just have to be willing to grind off the ABS mounting boss (assuming no ABS) on the NB spindle.

I understand the economic side of things. It's probably hard enough getting a ROI on such an item without making it more specialized than it already is. Requiring people to grind off the ABS boss will make it even more limiting.
k24madness is offline   Reply With Quote
Old 09-01-2014, 08:30 PM   #16
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Can I get a picture of where the air is being pulled from? I have ideas, and I've seen what Hornet has done, just wondering if yours was similar.
Jeffbucc is offline   Reply With Quote
Old 09-03-2014, 11:43 PM   #17
Junior Member
iTrader: (1)

Join Date: Jun 2014
Location: Metro Detroit
Posts: 270
Total Cats: 26
Default

These look great. I'll be getting a set when I redo my brake setup shortly, so this is perfect timing.

I'd also like to get ideas on where you guys are sourcing brake duct air.
Ryephile is offline   Reply With Quote
Old 09-04-2014, 12:54 AM   #18
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Lots of DIY solutions out there for the air source, and lots of universal inlets available on the market that you can get creative with. Any inlet on the front of the car will work to a degree. They will be more effective the closer to the center of the bumper you can put them. As you move away from center, the air is traveling sideways over the bumper, not straight on, so inlets further to the sides are less effective.

Lots of guys put together some form of duct on the backside of the R package lip holes, or put an inlet in the NB fog light hole.

One trick solution is to put the inlets inside the bumper mouth, on the vertical walls of the ducting forwards of the radiator - air pressure is very high there so this is both effective and efficient as it doesn't add additional openings on the front of the car which would add a bit more drag.

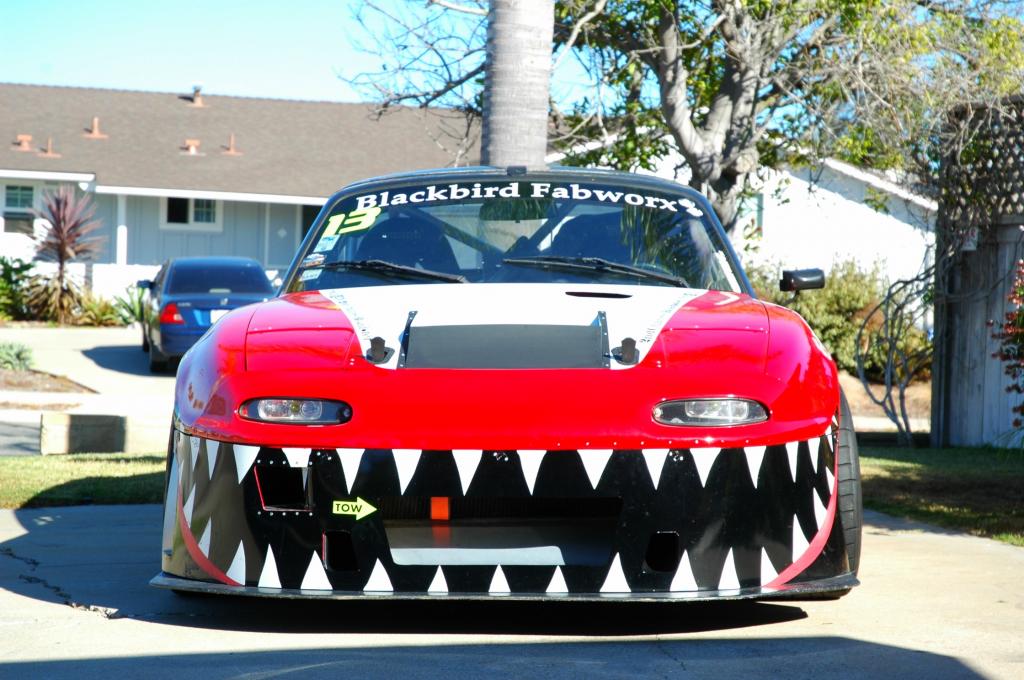

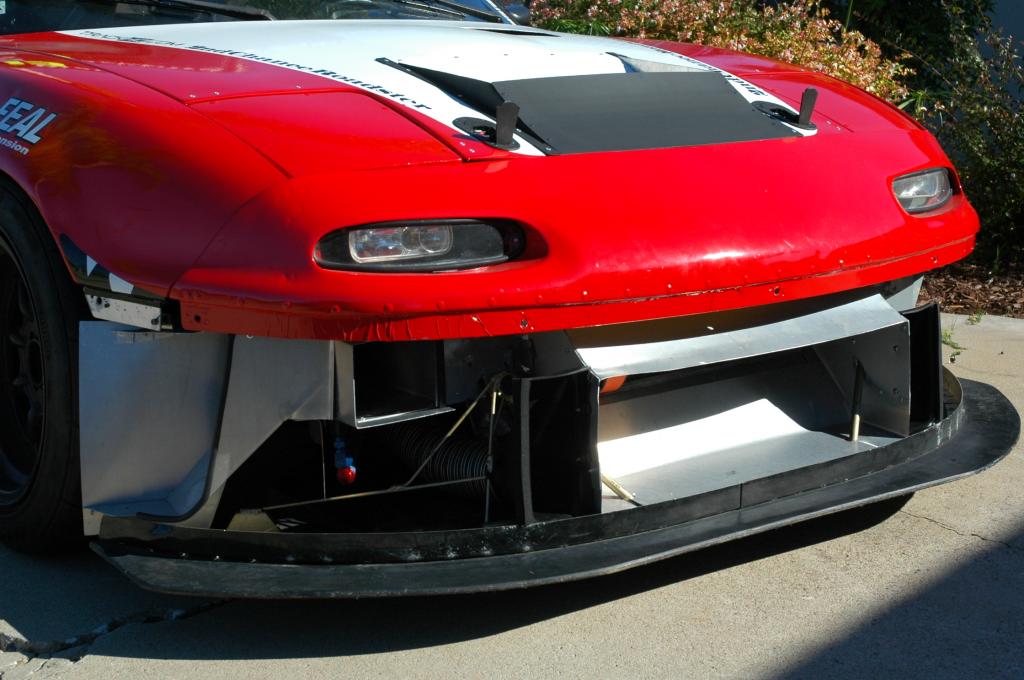

Lots of ways to skin that cat. Here's my solution: oversized duct behind the bumper skin, and I've yet to but plan to make an adjustable block-off plate that allows me to adjust the inlet size on the bumper skin so that I can trim the opening down for when I run at ACS (NASCAR oval + infield where you spend ~45 seconds flat out on the straight/banked turn and top speed is king):





-Ryan
Attached Thumbnails
Singular Motorsports 2.5" & 3" Brake Ducts-dsc_0029_zpsa73bcb9f.jpg   Singular Motorsports 2.5" & 3" Brake Ducts-dsc_0035_zps1656c9b9.jpg
ThePass is offline   Reply With Quote
Old 09-04-2014, 05:20 PM   #19
Newb

Join Date: Sep 2011
Posts: 2
Total Cats: 0
Default

It looks to me like there is going to be a hell of a lot of leakage with that sort of setup. Also, being a 'vented rotor' you want to feed all the air in to the eye of the rotor / bell, so the cooling air passes through the vanes at pressure cooling the rotor, not the surface of the disc/rotor!! Smallest gap possible so there's no leakage. Cools the bearing too (and the bell if you have them)

Obviously that setup works, but it can be optimized a bit more?
g0ddaz is offline   Reply With Quote
Old 09-06-2014, 04:02 AM   #20
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

You'll actually find if you look around at alternatives that this is the least "leaky" design out there for our cars

Sure, in perfect hypothetical dream land we'd all have hollow hubs with the brake duct passing through the center injecting air straight into the center of the rotor. Guess what, we don't have that. This is as close as a bolt-on option can get to the center of the rotor on a factory spindle. The only way to get closer is to grind down the spindle. And if you do go through that trouble, you only move it ~1" closer. It's still pointed right where it is.

It would be a mistake to think of the air as exiting the brake duct and then bam it does it's job and it's done when it contacts the rear surface of the rotor. For one, the duct outlet is angled towards the center of the rotor, so the air exits the duct and continues on a path towards the rotor center. Additionally, the top and bottom of the duct are angled towards the rotor (they get within ~1/8" to the rotor surface - you can't exactly seal against the rotating rotor any more than that) to channel the air towards the center of the rotor.

-Ryan
ThePass is offline   Reply With Quote
