Singular Motorsports 2.5" & 3" Brake Ducts
#44
that is a well used caliper hahah
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#47
Supporting Vendor
Thread Starter
iTrader: (3)
Join Date: Jul 2006
Location: San Diego
Posts: 3,303
Total Cats: 1,216
ABS with the big 3" brake ducts is a tight squeeze with the ABS sensor's wiring. Customer Russell Garner figured out that if you unbolt the sensors and swap the left sensor to the right side of the car and vice versa, they clear with room to spare:

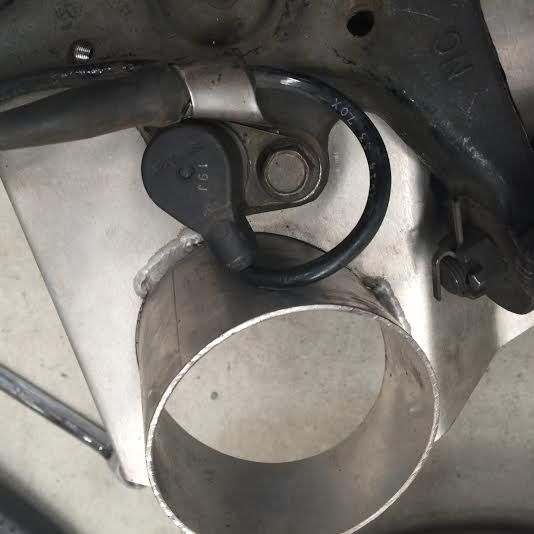

Sensor in its standard position with the 3" duct, wiring gets squeezed:

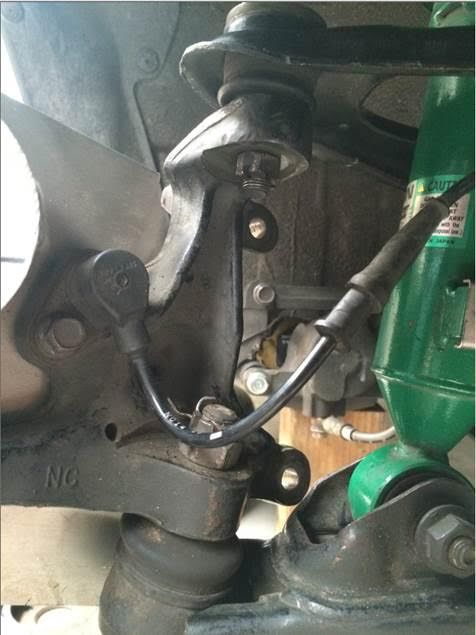

Left and Right sensors swapped:
Sensor in its standard position with the 3" duct, wiring gets squeezed:
Left and Right sensors swapped:
#50
Todd C from Texas has logged about 100 hours and counting with his endurance car using our 3″ brake ducts. After a “fair” test Todd reported the following:
I have been using your 3″ brake ducts now for about 2 years, and have logged ~100 hours on them endurance racing. Overall, I’m pretty happy with them. I went from melting XP12’s in 8 hours to having the ability to use brake pads for a few enduros if I wanted to. I recently ran the World Racing League race at COTA in February where we slowed from ~110 to ~40 mph 3 times approximately every 3 minutes plus the usual braking zones here and there to “keep the heat in”. I wanted to quantify the new braking system, so I placed brake temperature stickers at the back of the caliper, directly behind the piston. Based on the documentation on your website, I ran stickers that had a range of 390-450°F, but to my surprise, I was unable to activate the sticker on either day which means that the actual temp was some value less than 390°F. I must say I’m quite impressed with that result. I think your brake ducts give us a competitive advantage over some of the other cars we race against because we can deeper in the brake zones for the entire race without having to compromise during anyone’s stint.
#51
OOPS sorry for the aged bump....
Just what I was looking for.
Just what I was looking for.
ABS with the big 3" brake ducts is a tight squeeze with the ABS sensor's wiring. Customer Russell Garner figured out that if you unbolt the sensors and swap the left sensor to the right side of the car and vice versa, they clear with room to spare:
Sensor in its standard position with the 3" duct, wiring gets squeezed:
Left and Right sensors swapped:
Sensor in its standard position with the 3" duct, wiring gets squeezed:
Left and Right sensors swapped:
Last edited by Blkbrd69; 05-06-2019 at 08:24 PM. Reason: OOPs bad bump
