Default squeezing on 275/35/15's for autox

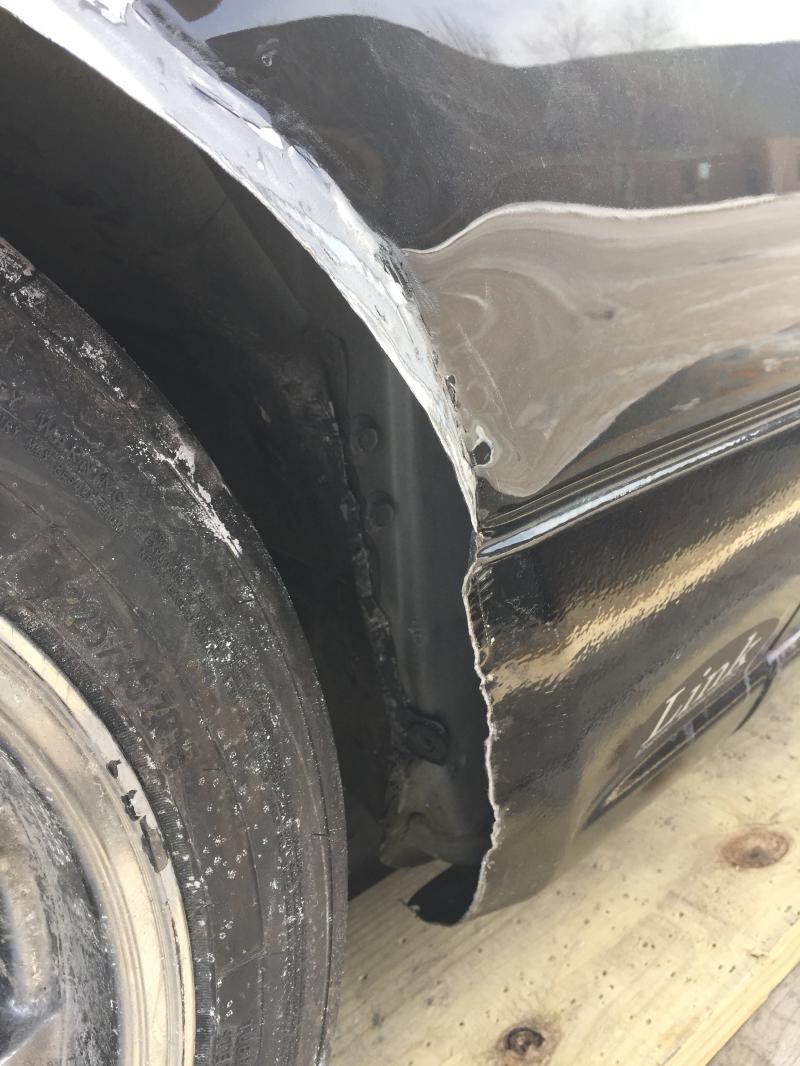

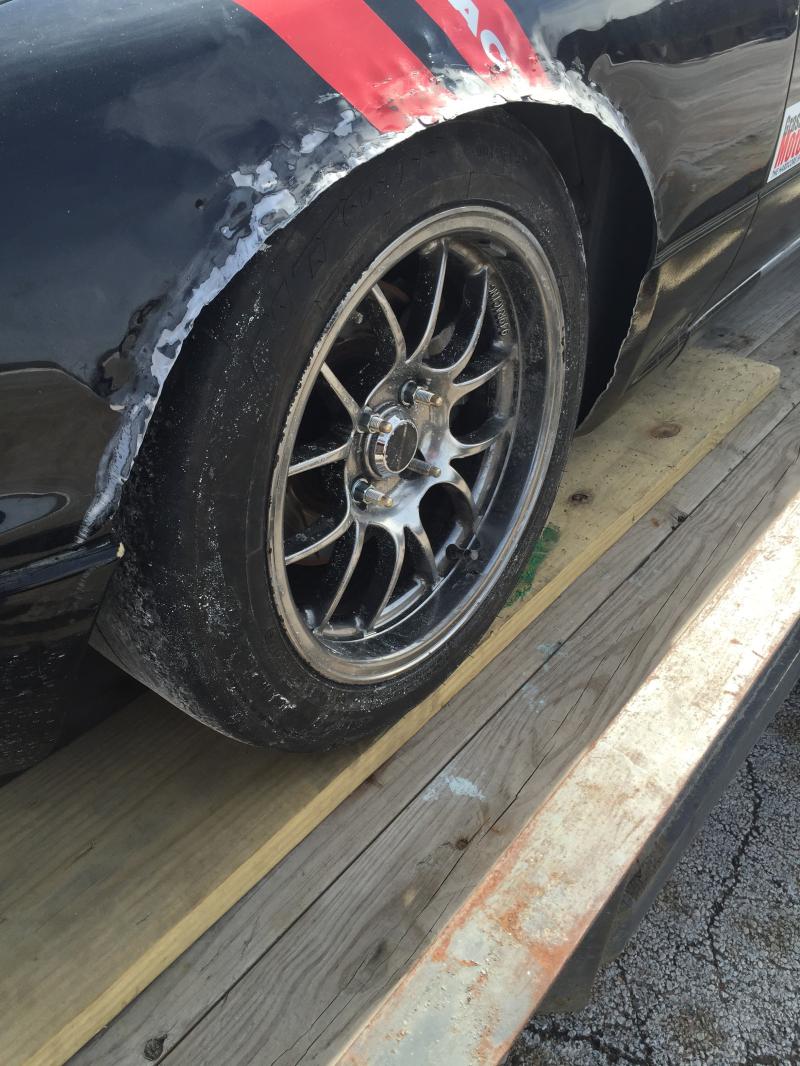

I'm planning to run this weekend's Blytheville Prosolo in SSM with my Miata Snoball. We cut the fenders and flared them, but the 15x10 Jongbloed's with 275/35/15 Hoosiers appear to rub on a ridge on the firewall, rear most area of the wheel well. We have tried both 5mm & 10mm spacers.

Do I just beat that back with a BFH (big friggin hammer) or am I missing something?



Attached Thumbnails
squeezing on 275/35/15's for autox-2d60466f-57a9-4fff-99aa-f1bec84cbc41_zpssalpp0c4.jpg   squeezing on 275/35/15's for autox-b8feb2b6-e466-46f3-acec-14cc4b84b3a6_zpscnmzoxxt.jpg
loudes13 is offline   Reply With Quote
Old 03-02-2015, 04:38 PM   #2
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 799
Total Cats: 175
Default

How much caster?
doward is offline   Reply With Quote
Old 03-02-2015, 04:48 PM   #3
Junior Member
Thread Starter

Join Date: Nov 2014
Posts: 55
Total Cats: -2
Default

I think both the front and rear adjusters are maxed for camber, so caster isn't maxed.
loudes13 is offline   Reply With Quote
Old 03-02-2015, 07:12 PM   #4
Junior Member
Thread Starter

Join Date: Nov 2014
Posts: 55
Total Cats: -2
Default

It actually looks like the crease where the wires come out of hitting. The ride height is closer to 4", so I'll raise it.
loudes13 is offline   Reply With Quote
Old 03-02-2015, 08:17 PM   #5
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

You need more back spacing, not less. A spacer is just making it worse.
guttedmiata is offline   Reply With Quote
Old 03-02-2015, 08:20 PM   #6
Junior Member

Join Date: Mar 2012
Posts: 322
Total Cats: 23
Default

There were two offsets available for the 15x10. 15 and 36 I believe.

You probably have the 15, and Miatas need the 36.
M.Adamovits is offline   Reply With Quote
Old 03-02-2015, 08:35 PM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by M.Adamovits View Post
There were two offsets available for the 15x10. 15 and <s>36</s> 25 I believe.

You probably have the 15, and Miatas need the <s>36</s> 25.
You really need +19ish. +19 is like perfect for the 15x10 and 275s, so the +25 juanlongdong with a 5-6mm spacer should be goldilocks. Gets you far enough away from the shock mount area but not so close to the fire wall with the inside wheel in a turn. I think the +15s should still work, they might rub once you hammer that thing over near full lock but I doubt they would on course. When I was ******* around with fitment I got my +19s with 13mm of spacer to the point where it would definitely hit the firewall while on course.
Leafy is offline   Reply With Quote
Old 03-03-2015, 01:45 PM   #8
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

^ yep ~20mm offset works. no room to diviate eather way by more than ~5mm.
bbundy is offline   Reply With Quote
Old 03-03-2015, 08:11 PM   #9
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by bbundy View Post
^ yep ~20mm offset works. no room to diviate eather way by more than ~5mm.
Unless you make room.
guttedmiata is offline   Reply With Quote
Old 03-03-2015, 08:14 PM   #10
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by guttedmiata View Post
Unless you make room.
But you cant make that room in street mod. lower offset requires moving the firewall a lot more than you can with a hammer, and higher offset just runs into parts of the chassis we cant cut.
Leafy is offline   Reply With Quote
Old 03-03-2015, 08:39 PM   #11
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by Leafy View Post
But you cant make that room in street mod. lower offset requires moving the firewall a lot more than you can with a hammer, and higher offset just runs into parts of the chassis we cant cut.
All I hear is blah blah wrong class blah blah wrong class
guttedmiata is offline   Reply With Quote
Old 03-04-2015, 12:49 AM   #12
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by guttedmiata View Post
All I hear is blah blah wrong class blah blah wrong class
I'm going XP next year.
