Old 08-12-2013, 08:50 PM   #41
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,345
Default

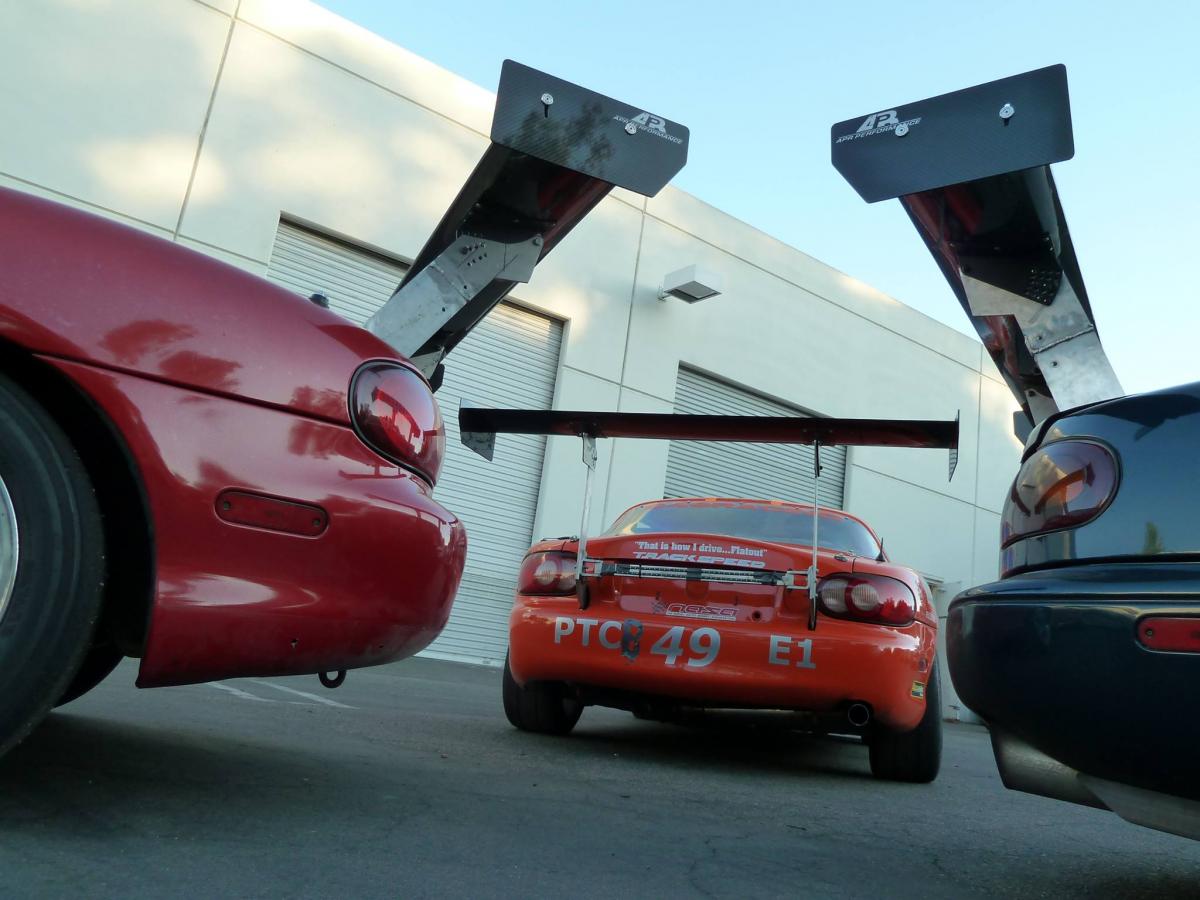

Attached Thumbnails

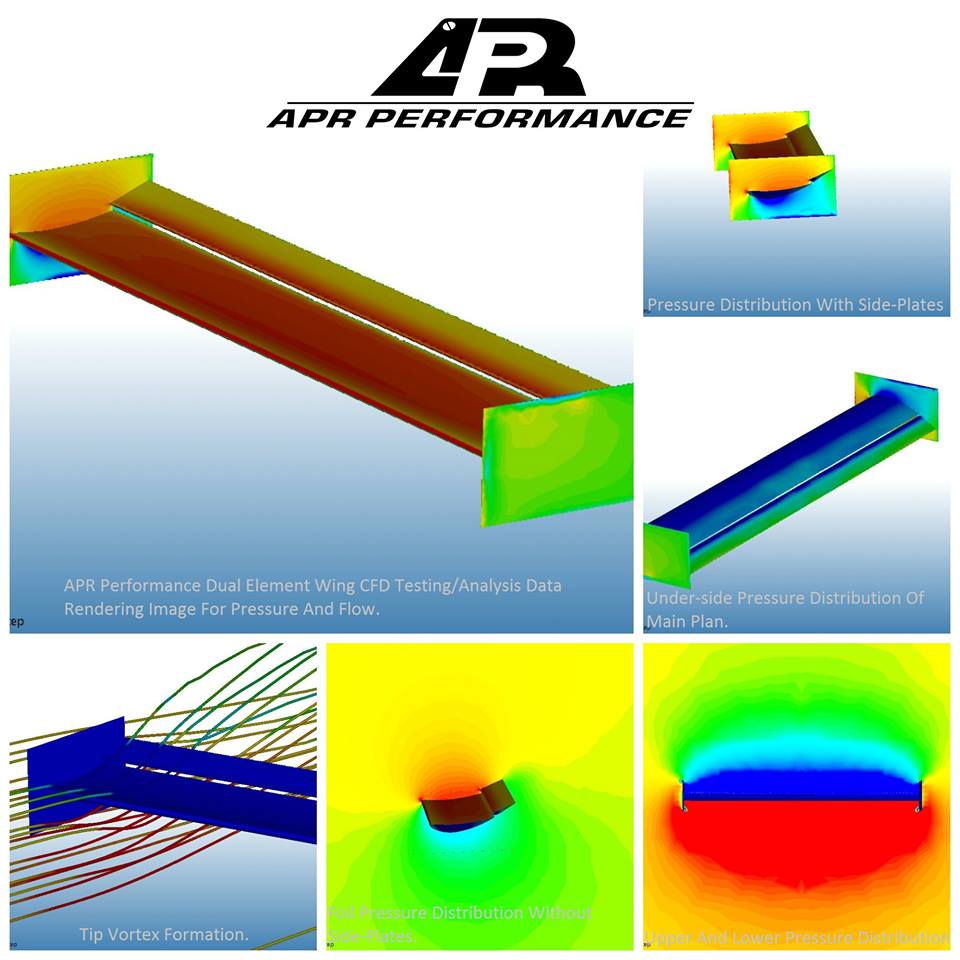

SuperMiata 2D wing-969841_558545437515880_379709324_n.jpg   SuperMiata 2D wing-735549_10100965983722735_1720483598_o.jpg
emilio700 is online now   Reply With Quote
Old 08-14-2013, 11:06 AM   #42
Junior Member

Join Date: Apr 2012
Posts: 65
Total Cats: -2
Default

Hungry-R is offline   Reply With Quote
Old 08-14-2013, 03:14 PM   #43
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Interesting that Ciro design has been using the APR double element for a while now.
The Nissan GTR that runs in my region has had it on since last year. and the RX7 is Andy McKee's XP car with it on.

Carbon fiber Uprights!

Ciro Design Racing Wing Packages and Parts
bbundy is offline   Reply With Quote
Old 08-15-2013, 02:02 AM   #44
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Attached Thumbnails
SuperMiata 2D wing-535858_570711569657821_1044706502_n.jpg
cyotani is offline   Reply With Quote
Old 08-16-2013, 06:06 PM   #45
Senior Member

Join Date: Oct 2011
Location: Northridge, CA
Posts: 655
Total Cats: 282
Default

Quote:
Originally Posted by bbundy View Post
Interesting that Ciro design has been using the APR double element for a while now.
Yeah, I didn't realize this was news myself.. I have those very same CFD drawings including the full analysis on my computer since 2011.
Blackbird is offline   Reply With Quote
Old 08-27-2013, 02:00 PM   #46
Junior Member

Join Date: Jan 2008
Location: Sparta, NJ
Posts: 96
Total Cats: 0
Default

Emilio,
Any ETA on the full kits for these wings?
I was tempted to buy the wing and fab up the legs but I'll wait if the full kit is coming soon.

Thanks
avante43 is offline   Reply With Quote
Old 08-27-2013, 03:46 PM   #47
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,345
Default

Quote:
Originally Posted by avante43 View Post
Emilio,
Any ETA on the full kits for these wings?
I was tempted to buy the wing and fab up the legs but I'll wait if the full kit is coming soon.

Thanks
no e.t.a at all. Sorry.
emilio700 is online now   Reply With Quote
Old 02-21-2014, 10:44 PM   #48
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,345
Default 2D FRP back in stock

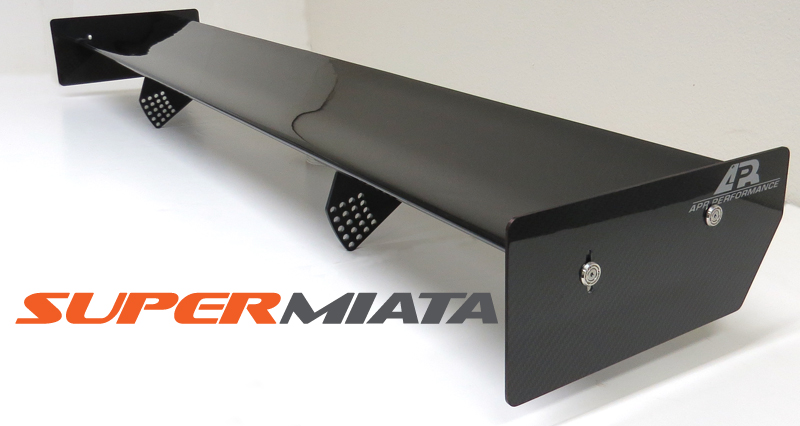

So we have a surprise batch of the 2D FRP foils available again. Same spec as the last shipment but.. even lower cost. $799 + shipping until they are gone.

DIY install, no body mounts included
Bracket is riveted and bonded to underside of foil
End plate included
Drilling template for your DIY mounts included
64" width standard. That's just under OEM NA body width so, legal for NASA.
48" available upon request for SCCA
Brackets attached on 31" center to line up with Miata frame rails in or behind trunk

Attached Thumbnails
SuperMiata 2D wing-supermiata_gt250_800px.jpg
emilio700 is online now   Reply With Quote
Old 02-21-2014, 11:10 PM   #49
Junior Member
iTrader: (1)

Join Date: Aug 2013
Posts: 224
Total Cats: 13
Default

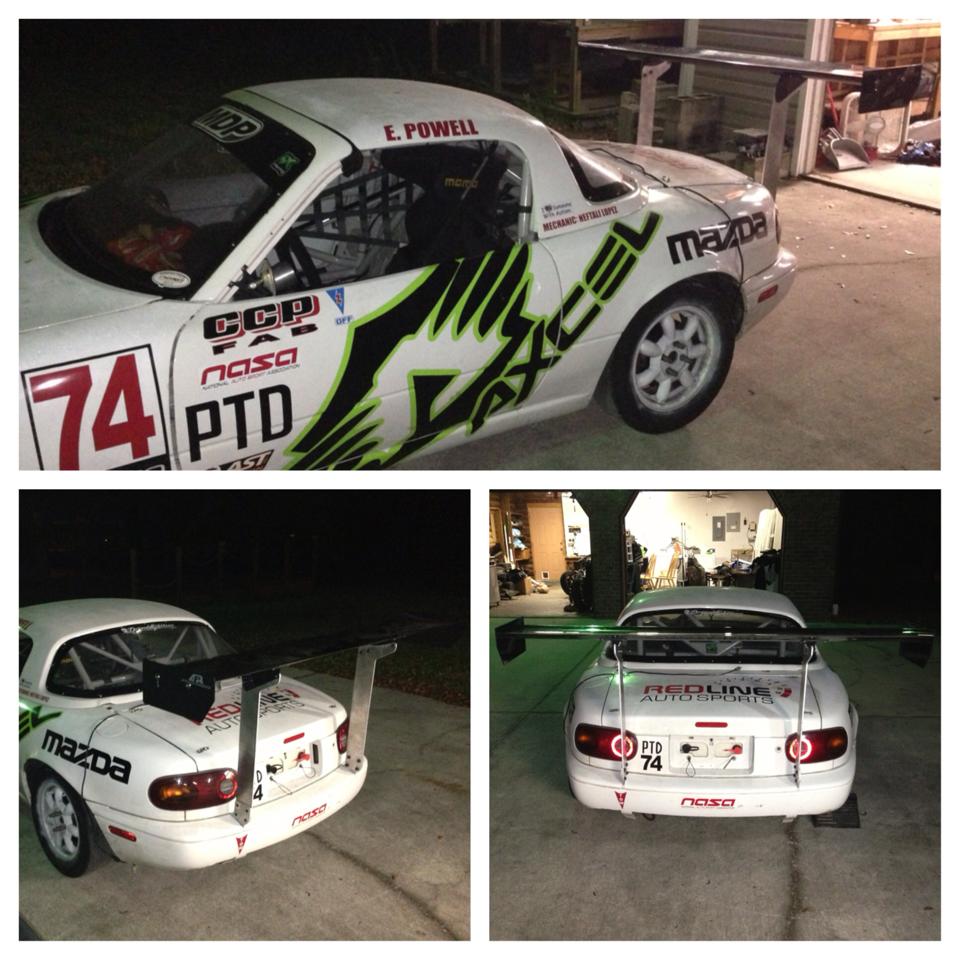

Finally Got mine mounted. Well mostly. I need to make something to Brace it from lateral movement. It Appears very high in the pics but the top of the wing is level with roof height.

Attached Thumbnails
SuperMiata 2D wing-1958287_510659425722225_1889172808_n_zps9e3fa190.jpg
circuitmstr74 is offline   Reply With Quote
Old 02-22-2014, 12:07 AM   #50
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,345
Default

Quote:
Originally Posted by circuitmstr74 View Post
Finally Got mine mounted. Well mostly. I need to make something to Brace it from lateral movement. It Appears very high in the pics but the top of the wing is level with roof height.
Keep your braces below the level of the trunk if you can. Just stiffening the section where it attaches to the tub is all you need. Cables up high= bad.
emilio700 is online now   Reply With Quote
Old 02-22-2014, 12:49 AM   #51
Junior Member
iTrader: (1)

Join Date: Aug 2013
Posts: 224
Total Cats: 13
Default

copy that. Nothing will be in free stream. What we are planning is an aluminum bar with flanges bolted in between the stanchions. If that isn't strong enough then we can brace it to the license plate area as well.
Does it look too high? like I said, when the wing is at 0degrees AOA the wing is level with roof height
circuitmstr74 is offline   Reply With Quote
Old 02-22-2014, 01:39 AM   #52
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,345
Default

Level with roof is perfect.
emilio700 is online now   Reply With Quote
Old 02-25-2014, 03:30 PM   #53
Junior Member
iTrader: (1)

Join Date: Aug 2013
Posts: 224
Total Cats: 13
Default

Btw. We still have all this programmed into the laser cutter if anyone where to want these pieces. It's built off a NB aluminum bumper
circuitmstr74 is offline   Reply With Quote
Old 07-01-2014, 08:26 PM   #54
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,345
Default

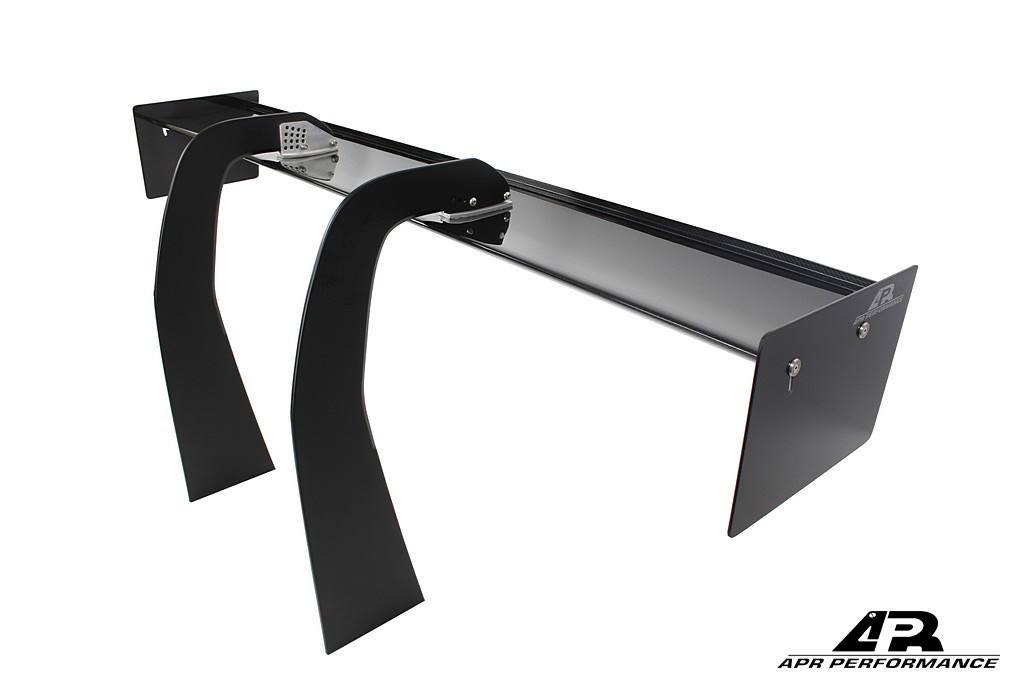

Attached Thumbnails
SuperMiata 2D wing-10496126_702282036475552_1834378022819510551_o.jpg
emilio700 is online now   Reply With Quote
Old 07-01-2014, 10:36 PM   #55
Junior Member
iTrader: (1)

Join Date: Aug 2013
Posts: 224
Total Cats: 13
Default

Sick! I did it wrong...
circuitmstr74 is offline   Reply With Quote
Old 07-02-2014, 03:58 AM   #56
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Oscar, way back in the days View Post
Swan neck or bust
Quote:
Originally Posted by emilio700 View Post
Glad to see you wised up
Oscar is offline   Reply With Quote
Old 07-04-2014, 02:04 AM   #57
Junior Member
iTrader: (2)

Join Date: May 2007
Location: Tulsa, OK
Posts: 182
Total Cats: 4
Default

What's the true advantage of the gooseneck? effectively two flow straighteners?
ILoveOffRamps is offline   Reply With Quote
Old 07-04-2014, 06:22 AM   #58
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by ILoveOffRamps View Post
What's the true advantage of the gooseneck? effectively two flow straighteners?
In simplest terms, the airflow under the airfoil is more important than the air on top. Think of it also in terms of downforce is created by: fast air under, slow air over. Conventional bottom-mount uprights disrupt a portion of the flow in the most critical area whereas swan neck mounts do so to a lesser degree.

-Ryan
ThePass is offline   Reply With Quote
Old 07-04-2014, 09:14 AM   #59
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by ThePass View Post
In simplest terms, the airflow under the airfoil is more important than the air on top. Think of it also in terms of downforce is created by: fast air under, slow air over. Conventional bottom-mount uprights disrupt a portion of the flow in the most critical area whereas swan neck mounts do so to a lesser degree.

-Ryan
Thats pretty much what I was going to post. The goose neck mounts do have some downsides like being more complex and having to be a good bit heavier to get the same stiffness of mount.
Leafy is offline   Reply With Quote
Old 07-04-2014, 09:28 AM   #60
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Dunno... reminds me of:

Attached Thumbnails
SuperMiata 2D wing-b1104ef4b63c6dfcdfa801ac08b63162.jpg
GeneSplicer is offline   Reply With Quote
