Default Track duty exh hangers?

I broke an exhaust hanger (it took a nickel sized piece of pipe with it) off my 3" enthuza exhaust. I'm wondering if there is something special track guys are using? It was right at the bend to go behind the diff and I had been noticing vibrations against the longitudinal sub frame bracing prior to this in hard rights.

The only way I can envision to spread the load is to have a band clamp (or extra pipe welded between the hanger and pipe) to attach the hanger to the pipe.

Thoughts?
inferno94 is offline   Reply With Quote
Old 06-24-2011, 08:29 PM   #2
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

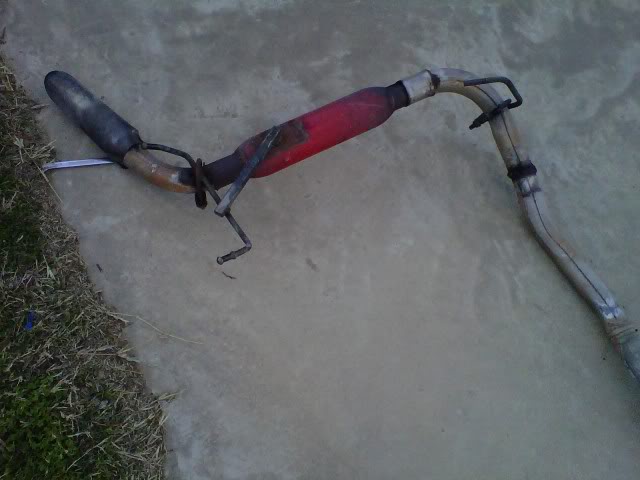

Re-weld it so it doesn't rub on the subframe. Add some bracing, maybe even an exhaust clamp to hold it all down. Looks ghetto but it will work.

Check out my POS:

Name:  IMG00087-20110303-1616.jpg
Views: 3
Size:  37.8 KB
Bond is offline   Reply With Quote
Old 06-24-2011, 08:30 PM   #3
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Have any pictures? So you broke the actual metal 3/8 rod part off the exhaust?
wittyworks is offline   Reply With Quote
Old 06-24-2011, 08:42 PM   #4
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

Quote:
Originally Posted by wittyworks View Post
Have any pictures? So you broke the actual metal 3/8 rod part off the exhaust?
Yep it's off (it rotated out of the way) with a bit of pipe attached to it.

I figured I'd weld a patch over it then weld the hanger back to that but if the hanger is taking all the stress of holding the exh away + the weight I might need something a wee but more heavy duty. Maybe another piece of rod welded to the pipe over the top and welded to the actual hanger to spread the load like bond did?

If it wasn't between a bend and the muffler, I'd weld a 2" section of pipe the same id as the od of the exhaust over it to attach the hanger to.

Hard rights have always been an issue with this car and it's different exhaust systems.
inferno94 is offline   Reply With Quote
Old 06-24-2011, 08:59 PM   #5
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

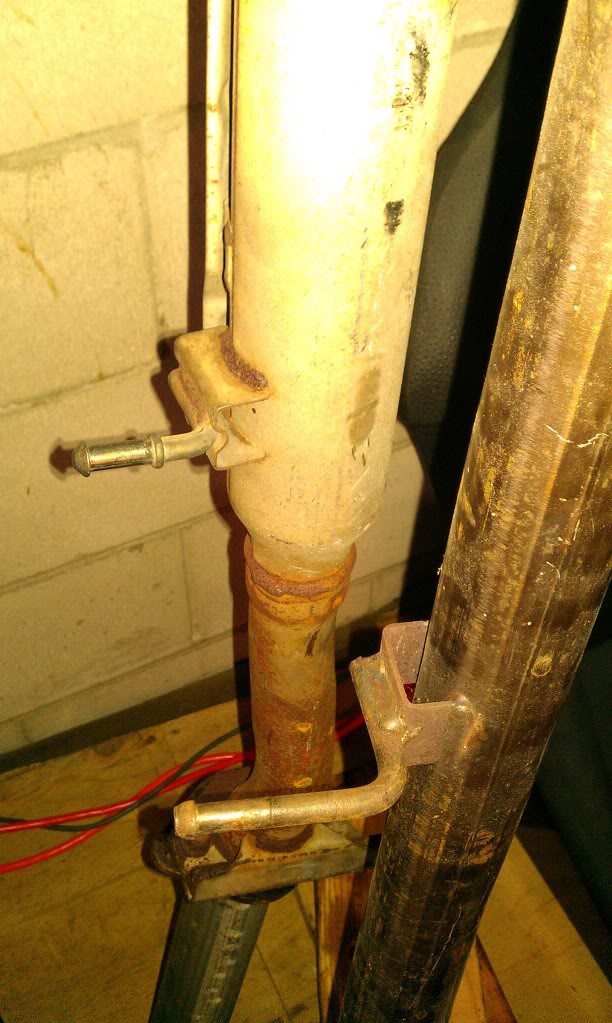

FYI this is what Mazda does. Far exhaust is OEM Miata, close one is a Mazdacomp exhaust.

Name:  IMAG0075.jpg
Views: 3
Size:  117.0 KB
crashnscar is offline   Reply With Quote
Old 06-24-2011, 09:16 PM   #6
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

Mazda comp welds with mild steel wire while factory uses ss wire?

I appreciate the pics, they anchor much more metal to the pipe than my enthuza had. I think adding a brace will likely do the trick for me, should give the same effect.
inferno94 is offline   Reply With Quote
Old 06-24-2011, 10:54 PM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

My "track hangers" consist of hose clamps around the stock hangers. No rattling whatsoever.
falcon is offline   Reply With Quote
Old 06-24-2011, 11:01 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I paid a guy to triangulate all of mine and they quit breaking off after that. I also safety-wired my exhaust (swage/clamp) to the rear subfram to keep it from flying around back there.
hustler is offline   Reply With Quote
Old 06-25-2011, 12:06 AM   #9
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

What about a solid mounting point on the PPF? Seen it done before.
rccote is offline   Reply With Quote
Old 06-25-2011, 12:12 AM   #10
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

My old exhaust had a J - hanger bolted to the subframe between the lower and upper A-arms

falcon is offline   Reply With Quote
Old 06-25-2011, 12:13 AM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

You can install those silicone hangers to keep it in place too, once it's fixed of course.
curly is offline   Reply With Quote
Old 06-25-2011, 12:21 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
You can install those silicone hangers to keep it in place too, once it's fixed of course.
The hanger orientation only controls front to rear movement, I was still melting my bumper and rubbing the diff case before I safety-wired it. It's crazy to see how much I stretch that safety-wire. I'd like to semi-hard-mount it.
hustler is offline   Reply With Quote
Old 06-25-2011, 12:26 AM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

i would avoid the urethane exhaust hangers. they seem to creep over time and be more prone to tearing.
y8s is offline   Reply With Quote
Old 06-25-2011, 01:51 AM   #14
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Hmm I have some urethane ones that have survived.

I say worm gear them down. Or worm gear plus rubber mount. Or just clamp your hangers directly onto one another?
Faeflora is offline   Reply With Quote
Old 06-25-2011, 04:05 AM   #15
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I melted a large portion of my bumper, and was always rattling on the PPF. Once I threw worm clamps on all the rubber hangers, nothing. No more melting (and I've done two track days since then). Poor man's fix.
