Old 11-23-2011, 12:50 AM   #41
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

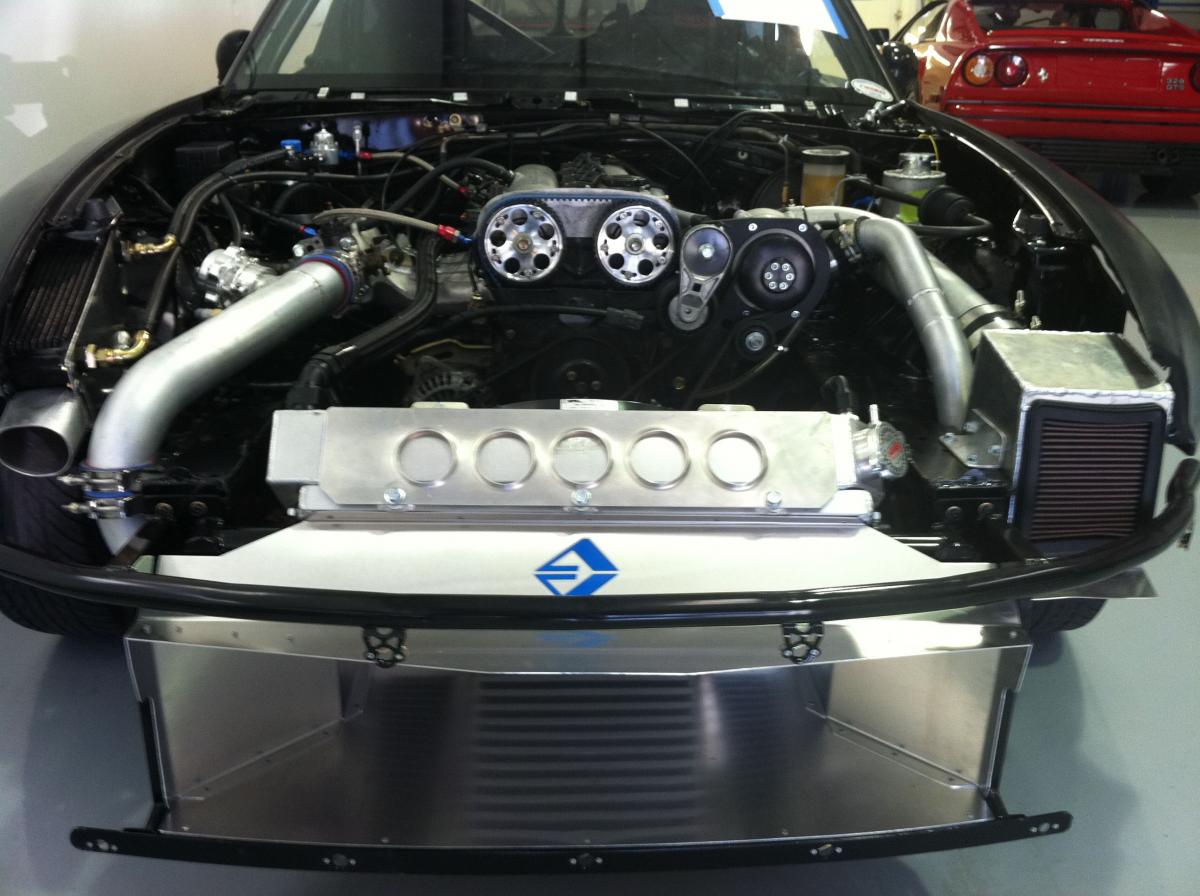

How is pressure being relieved from the crankcase when the engine is in boost?
chpmnsws6 is offline   Reply With Quote
Old 11-23-2011, 12:58 AM   #42
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

Quote:
Originally Posted by rlogan View Post
Can you get a couple of pics of the radiator setup by chance. I am rebuilding the front end of my car and it might help in some of the plans I had. Everything between my frame rails is already removed so this might be an option for me
Quote:
Originally Posted by rlogan View Post
Nevermind, hadn't seen the whole thread
This might help.
Attached Thumbnails

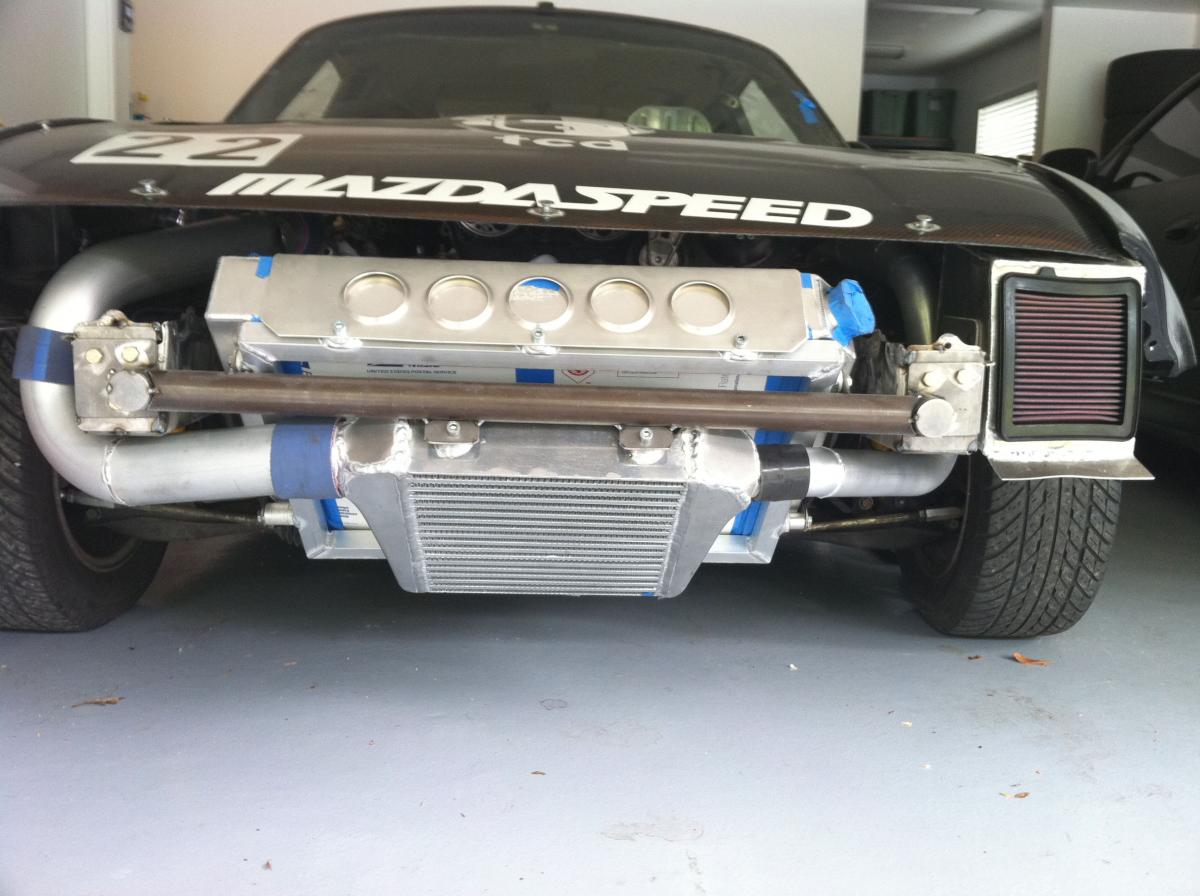

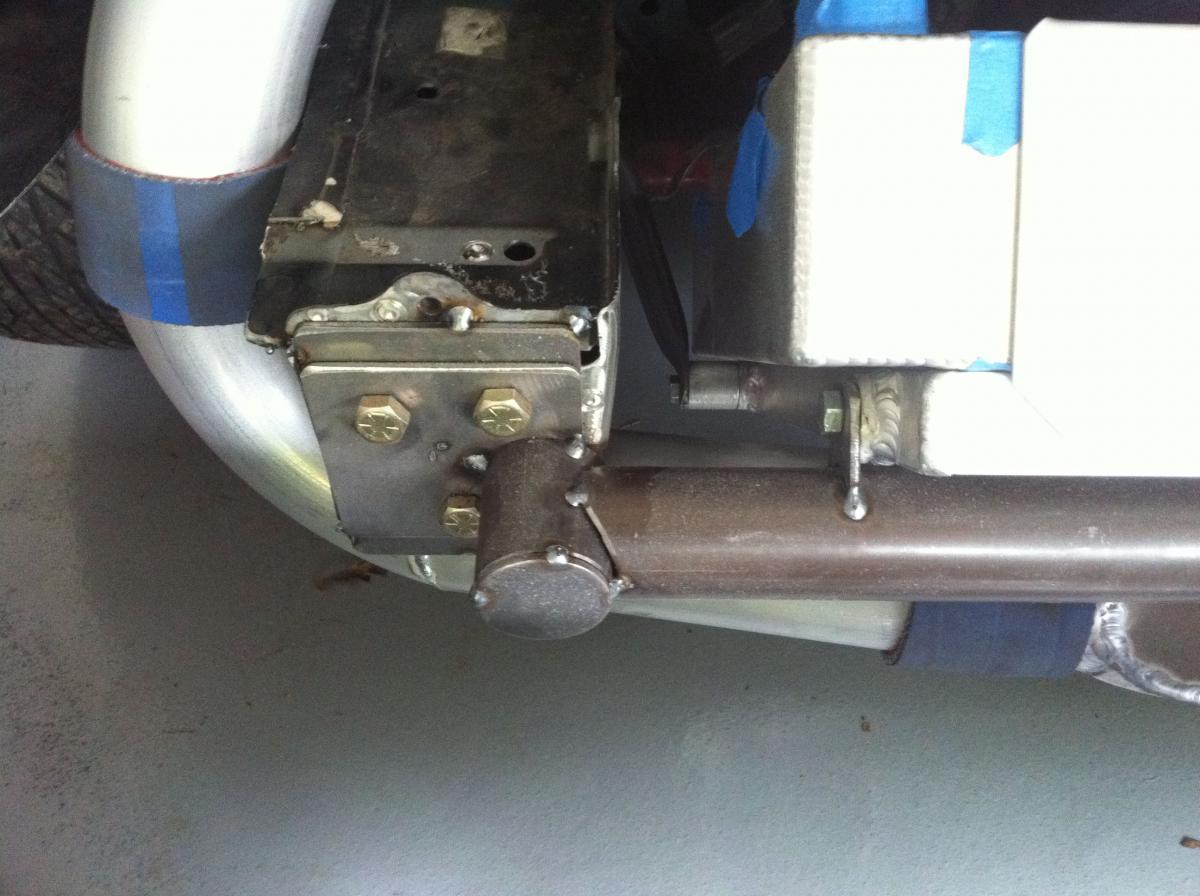

Track prepped Rotrex Supercharged Miata-img_2124-2.jpg   Track prepped Rotrex Supercharged Miata-img_2118-2.jpg
k24madness is offline   Reply With Quote
Old 11-23-2011, 01:09 AM   #43
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

Quote:
Originally Posted by chpmnsws6 View Post
How is pressure being relieved from the crankcase when the engine is in boost?
Good question. I assume it's being pushed out the open vent on the drivers side of the valve cover.
k24madness is offline   Reply With Quote
Old 11-23-2011, 04:05 AM   #44
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

WOW, That is my dream car. I love the autokonection fast back kit......I would have that in a heartbeat if they were available here !! (New Zealand)

Stunning.
mx5-kiwi is offline   Reply With Quote
Old 11-25-2011, 05:49 AM   #45
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by chpmnsws6 View Post
How is pressure being relieved from the crankcase when the engine is in boost?
That's the first think I noticed when I looked at the engine photo.
falcon is offline   Reply With Quote
Old 11-29-2011, 06:59 PM   #46
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

I spy red prancing horse:
Seefo is offline   Reply With Quote
Old 11-29-2011, 07:55 PM   #47
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

prancing red horse, timing belt[s] exchange
Attached Thumbnails
Track prepped Rotrex Supercharged Miata-miata-5-11-11-024.jpg
mx594m is offline   Reply With Quote
Old 12-01-2011, 01:30 PM   #48
Junior Member

Join Date: Nov 2010
Location: Winchester, VA
Posts: 302
Total Cats: 3
Default

There's something entirely fucked up and wildly appropriate about a Ferrari engine sitting on an old, greasy wooden rolling dolly.
stinkycheezmonky is offline   Reply With Quote
Old 12-01-2011, 03:09 PM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

Quote:
Originally Posted by Track View Post
I spy red prancing horse:

ZOMG! that's win. Such a shame it's torqueless.
Braineack is online now   Reply With Quote
Old 12-01-2011, 03:16 PM   #50
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by stinkycheezmonky View Post
There's something entirely fucked up and wildly appropriate about a Ferrari engine sitting on an old, greasy wooden rolling dolly.
You're right, it should be in the ******* dumpster.
hustler is offline   Reply With Quote
Old 05-01-2012, 12:32 AM   #51
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

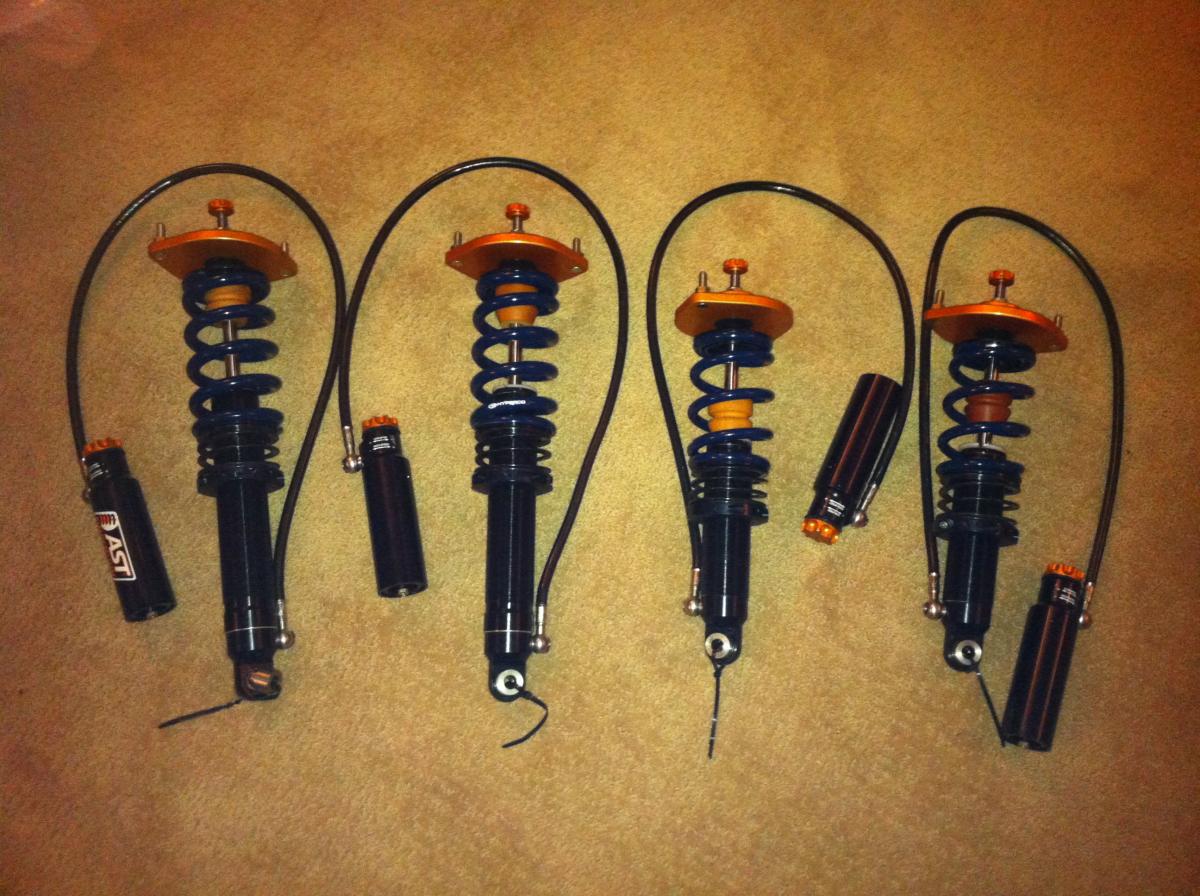

Stepping up the game a bit with some AST5220's. After selling my Koni Race suspension the total out of pocket was 2k. Too good of a situation to let pass so I jumped on it.


The car worked so well with the Koni Race setup I was reluctant to make the change. I opted to keep the spring rates the same as before (850/500). This should make for a well controlled test since it's the only thing being changed.

I added the zero rate helpers after the purchase.
Attached Thumbnails
Track prepped Rotrex Supercharged Miata-ast-5220s.jpg
k24madness is offline   Reply With Quote
Old 05-02-2012, 11:34 PM   #52
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Why didn't you do tender springs instead of zero-rate helpers?
Savington is offline   Reply With Quote
Old 05-02-2012, 11:53 PM   #53
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

Quote:
Originally Posted by Savington View Post
Why didn't you do tender springs instead of zero-rate helpers?
That is a can of worms I would rather not open. I looked at the pros and cons of each then ran it by Tony. We arrived at the same conclusion. Not sure if it was for the same reasons because I did not ask.

The scary part of the change is the possibility of going backwards. This thing worked so well with the previous suspension Dean felt I maybe making a mistake changing it. When I bought the car I asked Tony what would be the one thing he would like to change. He said the suspension with AST/Xida. Got to say you played a role in pushing me over the edge.

My goal is to make it a ST2 class winner. Track record at Thunderhill for ST2 is a 1:50.8 using the bypass. Assuming the bypass is worth 2 seconds we are within 1-2 seconds of it before this last round of changes. It's all about the free HooHoo's.

Last edited by k24madness; 05-03-2012 at 12:52 AM.
k24madness is offline   Reply With Quote
Old 05-03-2012, 09:02 AM   #54
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

People do crazy things for that purple crack
Handy Man is offline   Reply With Quote
Old 05-03-2012, 08:11 PM   #55
I'm Miserable!

Join Date: Dec 2011
Posts: 346
Total Cats: -223
Default



BTW....this looks like 2 b-series forged at the hip......
Boost Joose is offline   Reply With Quote
Old 11-23-2013, 07:56 AM   #56
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

New motor with forged internals, 11:1 CR, E85, Ported head, ATI Damper, oversize supertech valves, Supertech SUB, custom web cams and supertech heavy doubles.

Rebello ported the head and assembled the motor. Trackspeed supplied the supertech valve parts. I spec out the cams, Tony at TC Design fabricated the plumbing, Intercooler, radiator mounts, air filter housing, Skunk 2 intake and tuned the car.

Attached Thumbnails

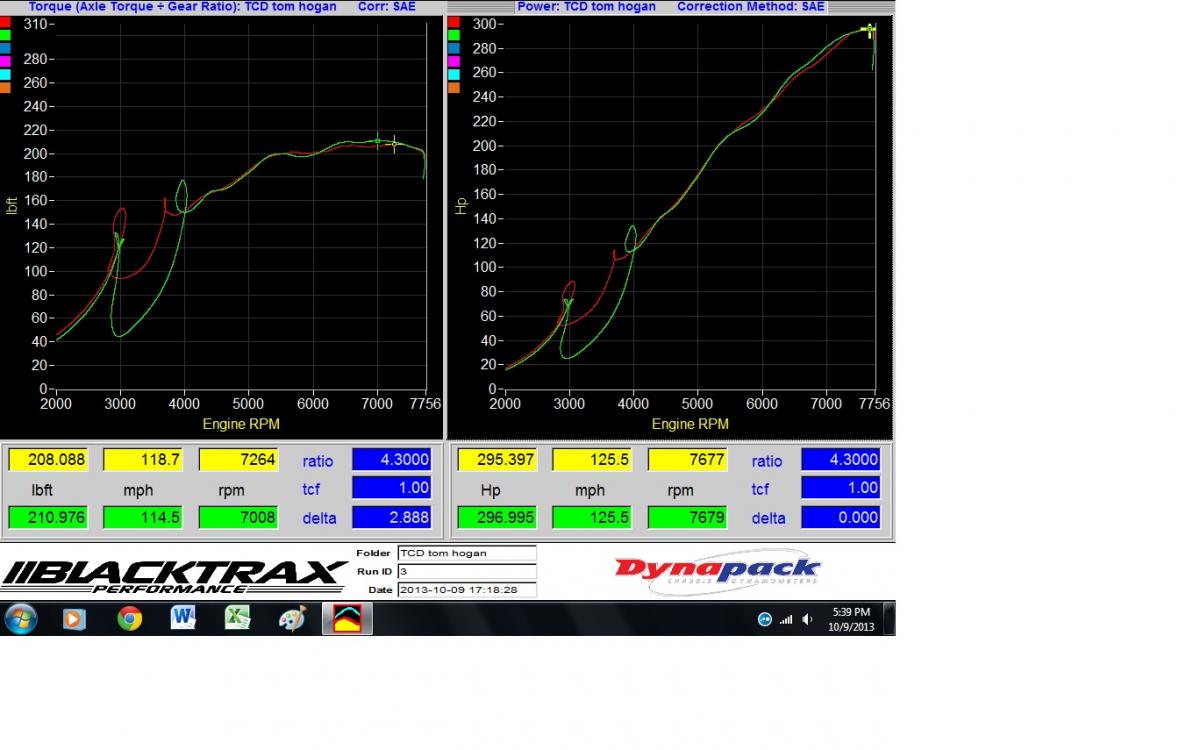

Track prepped Rotrex Supercharged Miata-295-whp-dyno-2.jpg

Last edited by k24madness; 11-25-2013 at 03:39 AM.
k24madness is offline   Reply With Quote
Old 11-25-2013, 12:02 AM   #57
Senior Member

Join Date: Sep 2013
Posts: 903
Total Cats: 59
Default

Looks like somebody wants to race from a roll.
Dunning Kruger Affect is offline   Reply With Quote
Old 11-25-2013, 12:09 AM   #58
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

It's not a autocross car. It's a ST2 car that lives between 5,200 and 7,700 RPM's. With 4:10's and 6 speed it always in the meat of the power band.
k24madness is offline   Reply With Quote
Old 11-25-2013, 12:25 AM   #59
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Looks like fun

What's with the loopy plot in the lower rpm? I haven't seen that before. I'd almost guess wheelspin..

-Ryan
ThePass is offline   Reply With Quote
Old 11-25-2013, 12:31 AM   #60
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

The loops are gear changes. The light 5.5" unsprung carbon Tilton clutch is a PITA on the dynapac dyno. You can't really slip it underload and high gear.
k24madness is offline   Reply With Quote
