Default Wiring Schematic for a track car- faults?

You guys are a smart group. Well, there are some smart folks here anyway.

This is the schematic for the LFX track car I'm building. No real electronics (radio, heat, air etc all gone) and the only optional wiring will be some sort of driving lights so if I'm stuck out at dusk... anyway, I'm not an expert. Before I start running wires tell me what's wrong with this. I have amp loads for the fan, fuel pump etc and will be running the appropriate size wire and fuses. The engine harness is complete.

Attached Thumbnails
Wiring Schematic for a track car- faults?-5f680b1f-1364-4155-87cf-1cbabd9a05fd_zpsyzokzyiw.jpg
carnut169 is offline   Reply With Quote
Old 03-31-2015, 06:30 PM   #2
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

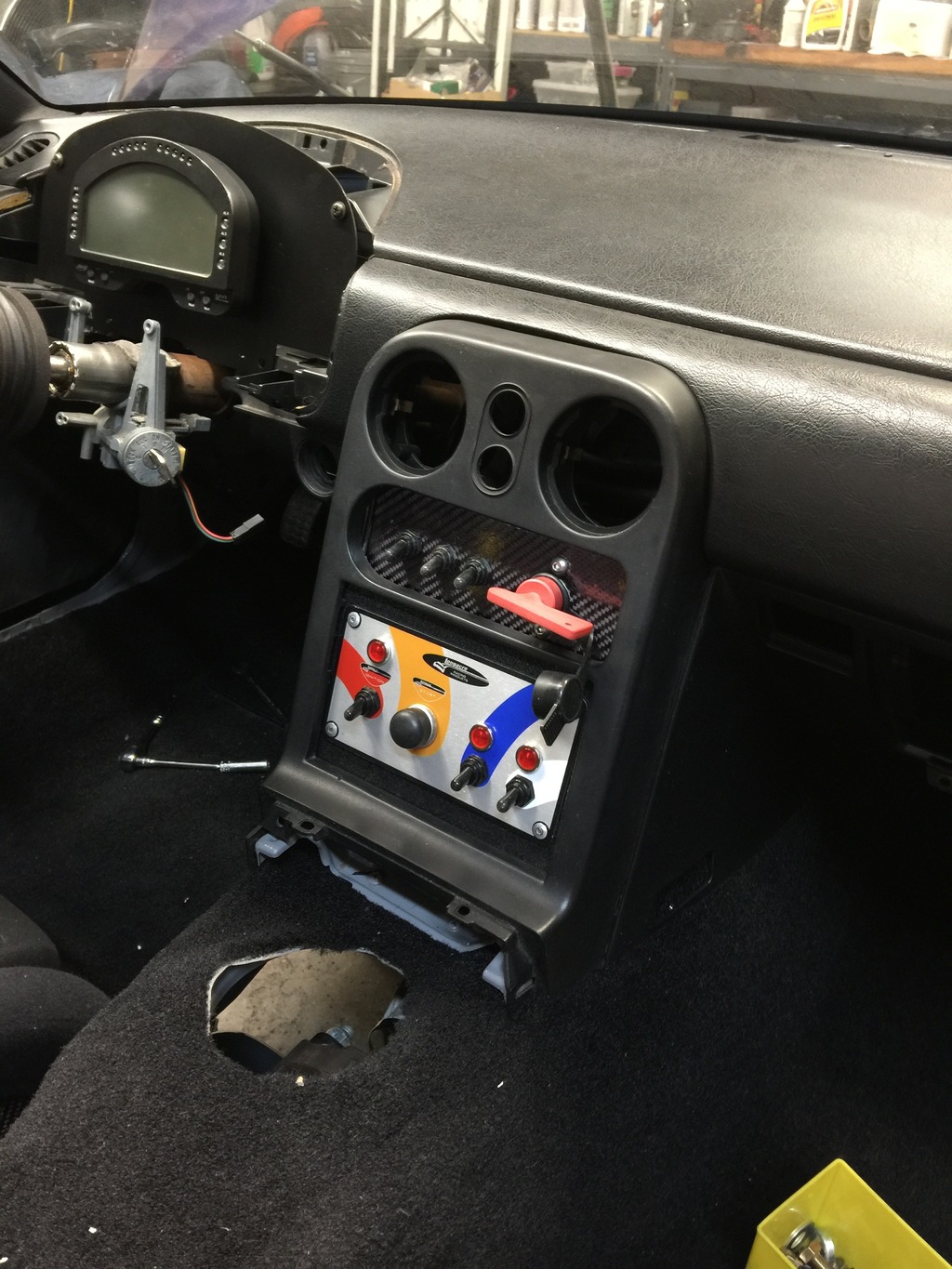

Oh, the two boxes below the battery are these panels:

Name:  EB2F5147-8B44-4D41-A6A7-BB03DA9DA2BD_zpselsxyfto.jpg
Views: 141
Size:  345.4 KB
carnut169 is offline   Reply With Quote
Old 03-31-2015, 07:35 PM   #3
Junior Member

Join Date: Apr 2010
Location: Los Feliz
Posts: 84
Total Cats: 16
Default

Quick notes.

Your master kill switch should completely remove the battery from the rest of the car. In a crash you want that to eliminate all the sparks that could cause a fire.

Alternator needs to run through the kill switch. I think this way if the throttle got pinned wide open the kill switch would not shut down the car. Part of tech here is to hold it at about 5k rpm and flip the switch. If it doesn't die, it doesn't pass. The corner workers will look for that switch first. We use a 4 post switch for this. Make sure the kill switch is rated for the correct amperage.
Satisaii is offline   Reply With Quote
Old 03-31-2015, 09:36 PM   #4
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Thanks. I got a good switch from Pegasus and it does have a diode and instructions for wiring which I'll follow.

good spot!
carnut169 is offline   Reply With Quote
Old 04-01-2015, 12:38 AM   #5
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

The only advice I'd give is to wire the fuel relay directly to the battery, and put it in the trunk. Stock Miata fuel pump wiring is like 18ga.
soviet is offline   Reply With Quote
Old 04-01-2015, 09:17 AM   #6
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Why avoid the master for the fuel pump?
carnut169 is offline   Reply With Quote
Old 04-01-2015, 09:52 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by soviet View Post
The only advice I'd give is to wire the fuel relay directly to the battery, and put it in the trunk. Stock Miata fuel pump wiring is like 18ga.
I think it's closer to 20 or 22g.
Braineack is offline   Reply With Quote
Old 04-01-2015, 11:56 AM   #8
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Quote:
Originally Posted by carnut169 View Post
Why avoid the master for the fuel pump?
I guess you don't have to avoid it, but you should replace the wiring with something heavier gauge.
soviet is offline   Reply With Quote
Old 04-01-2015, 12:44 PM   #9
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Whole car is being rewired. I'll use 10g for the fuel pump.
carnut169 is offline   Reply With Quote
