359rwhp/279rwtq


Old 03-29-2014, 05:55 PM
  #1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default 359rwhp/279rwtq

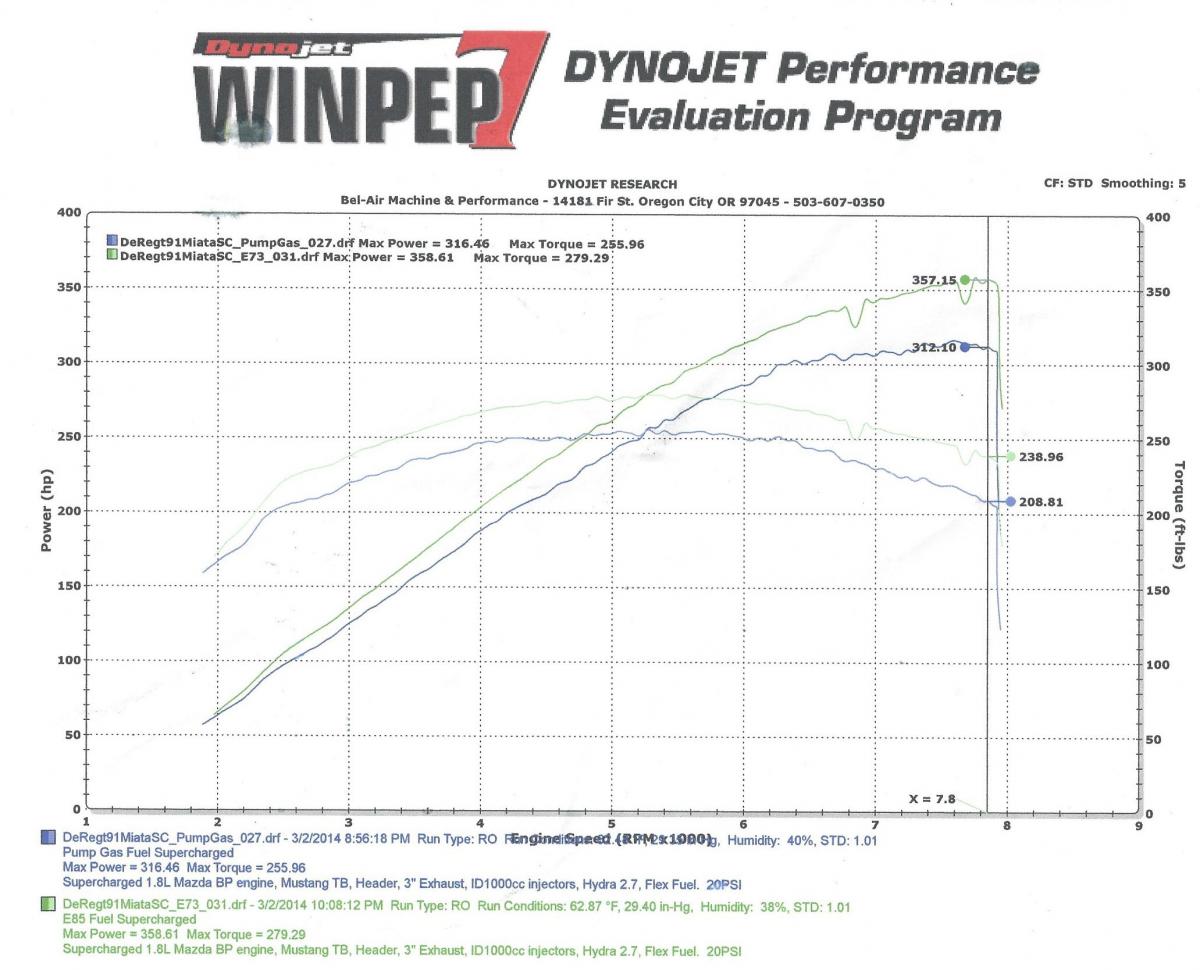

Just because I like fanning the flames of all the SC haters, here's my latest dyno on my supercharger setup, with E85/Pump gas results:

Attached Thumbnails 359rwhp/279rwtq-miatadyno_20140302.jpg
codingparadox is offline
Old 03-29-2014, 06:07 PM
  #2
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,494
Total Cats: 261
Default

ewwwww Hydra

do you have the dyno files?
soviet is offline
Old 03-29-2014, 06:09 PM
  #3
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,494
Total Cats: 261
Default

your car is a dream - all the things I want (minus the supercharger)

ABS, traction control, yellow paint
soviet is offline
Old 03-29-2014, 06:10 PM
  #4
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Originally Posted by soviet View Post
ewwwww Hydra

do you have the dyno files?
Better than the AEM I used to run. ;-)

Nope, it was 11pm in Portland when we finished up and I had to drive back to Seattle that night. Getting the dyno files was last on my priority list.
codingparadox is offline
Old 03-29-2014, 06:12 PM
  #5
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,494
Total Cats: 261
Default

Well, can you have the shop email them to you? thats what I've always done!
And I thought everyone loves AEM. Do you run a flex fuel sensor?
soviet is offline
Old 03-29-2014, 06:13 PM
  #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Hated the AEM...

Yeah, flex fuel sensor. I put whatever gas in I can find and the car just works. It's a pretty noticeably huge bump when I go from 92 to E85 though...
codingparadox is offline
Old 03-29-2014, 06:22 PM
  #7
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,141
Default

very nice.

one of the few sc setups worth talking about.

you're not fanny any flames btw, since this is one of like 5* setups ever that makes this sorta power.

*: or whatever the tiny number is
18psi is offline
Old 03-29-2014, 06:37 PM
  #8
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,494
Total Cats: 261
Default

Originally Posted by codingparadox View Post
Hated the AEM...

Yeah, flex fuel sensor. I put whatever gas in I can find and the car just works. It's a pretty noticeably huge bump when I go from 92 to E85 though...
Do you blend between 2 maps or just linear fuel/spark adjustment?
soviet is offline
Old 03-29-2014, 06:50 PM
  #9
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

The Hydra just linearly interpolates between the two maps depending on what the flex fuel sensor is going through the fuel system. So I have the pump map at E11 or so, and then the high map at E73.
codingparadox is offline
Old 03-29-2014, 11:30 PM
  #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,716
Total Cats: 658
Default

Damn, you were 5 minutes from me. Still haven't been to that dyno, how was it? Nice guys? Good prices? Reasonably smart tuners?
curly is offline
Old 03-30-2014, 03:15 AM
  #11
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

So the dyno is owned by a nice old guy, but Kris Osheim (KORacing) was the tuner who was working on my car. He has an arrangement with the dyno operator where he can rent it out and tune on it. Kris knows a lot, especially if you're on a Hydra -- he's been a Hydra dealer for MR2s for over 10 years.
codingparadox is offline
Old 03-30-2014, 06:07 PM
  #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,220
Total Cats: 1,976
Default

Originally Posted by codingparadox View Post
Hated the AEM....
...and the last Hydra I played with had an intermittent misfire we traced back to the box itself, and it was only solved when we dumped the system for an EMS-4. Different people have different experiences
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 03-30-2014, 07:00 PM
  #13
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,735
Total Cats: 192
Default

^^I could be wrong, but I thought I read his issues had more to do with getting a trigger wheel to work with the AEM, than the AEM itself per se.
good2go is offline
Old 03-30-2014, 07:19 PM
  #14
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Well, I not only hated how the AEM just refused to work with the trigger wheel, and I just had no recourse, but I really didn't like their software either.
codingparadox is offline
Old 03-30-2014, 10:25 PM
  #15
Senior Member
iTrader: (1)

TNTUBA's Avatar

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,137
Total Cats: 221
Default

You need to quit making me spend money on my car. My kids aren't going to be able to go to college.
TNTUBA is offline
Old 04-01-2014, 12:45 PM
  #16
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,347
Total Cats: 85
Default

I saw the title and was expecting a rotrex setup.
Leafy is offline
Old 04-01-2014, 12:46 PM
  #17
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Nope, just a nice flat torque curve, not the utterly and completely useless garbage that is a centrifugal.
codingparadox is offline
Old 04-01-2014, 01:02 PM
  #18
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,350
Total Cats: 68
Default

Originally Posted by codingparadox View Post
Nope, just a nice flat torque curve, not the utterly and completely useless garbage that is a centrifugal.
Easy fella.....

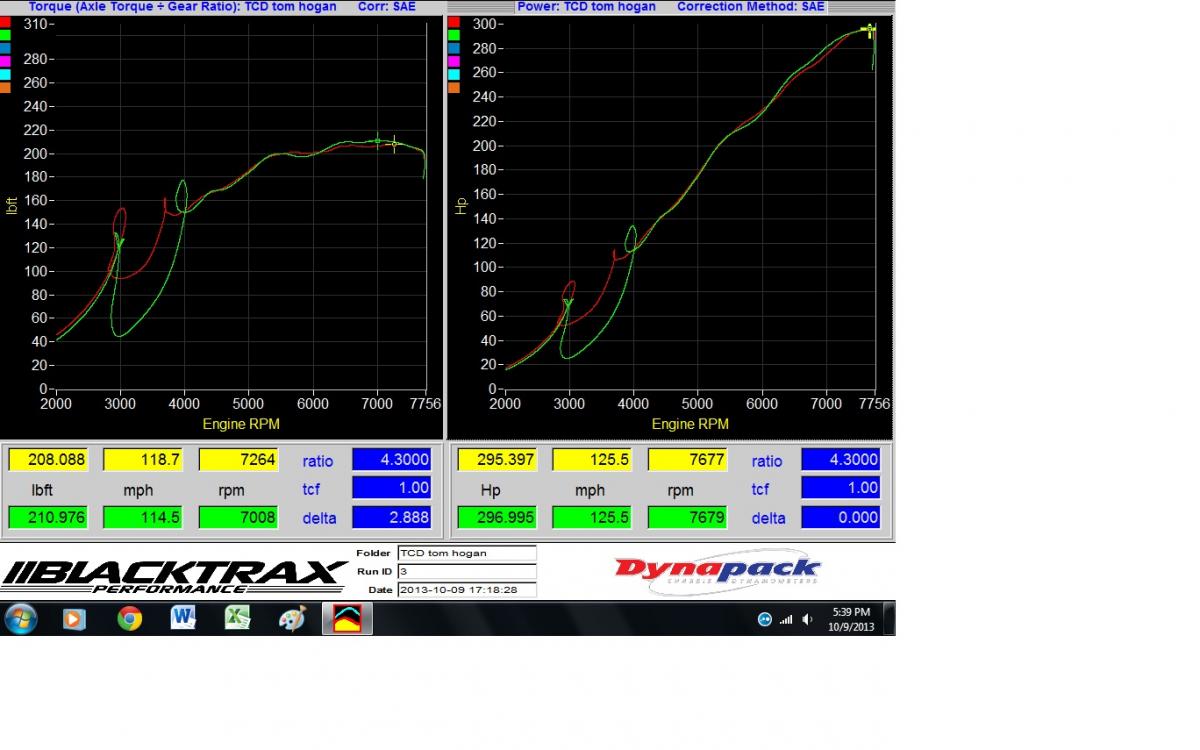

Attached Thumbnails 359rwhp/279rwtq-295-whp-dyno-2.jpg
k24madness is offline
Old 04-01-2014, 01:05 PM
  #19
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

For a track only car, and if you can make sure the car lives at the very top end (as in, you have a non-factory transmission with close ratios), go for it, though on a track I'd still take a turbo over it. For anything else, your torque below 5k isn't super awesome.
codingparadox is offline
Old 04-01-2014, 01:29 PM
  #20
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,350
Total Cats: 68
Default

Originally Posted by codingparadox View Post
For a track only car, and if you can make sure the car lives at the very top end (as in, you have a non-factory transmission with close ratios), go for it, though on a track I'd still take a turbo over it. For anything else, your torque below 5k isn't super awesome.
Motor never sees sub 5k on the track. Most times it's above 5.5k. Clearly the Rotrex can have a "nice flat torque curve" and is not "completely useless garbage that is a centrifugal"
k24madness is offline
