Default Electronic Boost Solenoid (Controller)

Ok Guys,

So I have a M45 set up on a 96 miata. I am using a Megasquirt, and want to use a 3 port electronic boost solenoid. I am trying to keep my bypass valve closed at launch, via TPS rather then load. I am hoping this will get rid of the lag while using the launch control. I know this will be a fairly easy setup to map out, but I was wondering if anyone has done this and has advise. Pictures would definitely be welcome.

Thanks.
verch101 is offline   Reply With Quote
Old 04-27-2014, 09:18 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

what lag exactly?
Braineack is offline   Reply With Quote
Old 04-27-2014, 12:20 PM   #3
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

Kind of hard to explain, but I'll try. It almost feels like the by-pass actuator is slow to close at certain RPMs. I bought a new by-pass, and still have the same problem. Its like the the bypass actuator is fluttering for a second before it fully closes. IDK if this is a vacuum problem, or the fact that I run AC. I should probably bypass the bypass actuator (sounds stupid I know), and see if my problem is still there.

I was just thinking for 40$ I could get an EBC, and use TPS to close the actuator a little quicker.
verch101 is offline   Reply With Quote
Old 04-27-2014, 11:52 PM   #4
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Is there an orifice plug in the bypass valve port? Pull it out.
BarbyCar is offline   Reply With Quote
Old 04-27-2014, 11:54 PM   #5
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

Quote:
Originally Posted by BarbyCar View Post
Is there an orifice plug in the bypass valve port? Pull it out.
You mean like a boost pill in the line?
verch101 is offline   Reply With Quote
Old 04-28-2014, 11:32 AM   #6
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Quote:
Originally Posted by BarbyCar View Post
Is there an orifice plug in the bypass valve port? Pull it out.
I thought miata drivers liked plugs in their orifices?
mlev is offline   Reply With Quote
Old 04-29-2014, 12:54 PM   #7
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

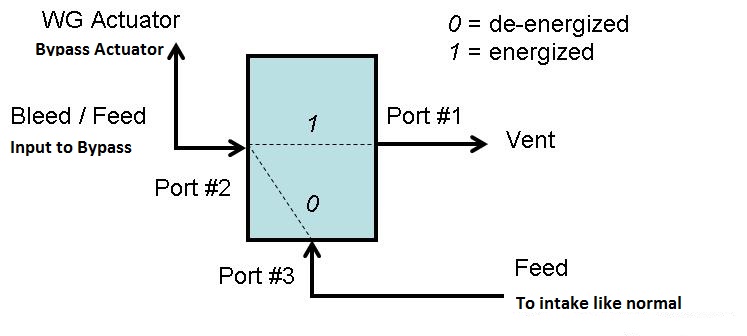

Ok I realize I did a bad job of explaining my goal. Here is a little diagram of what I am thinking. This way I can let the actuator operate like normal for most cases most importantly at idle. Then I can vent the actuator to atmostphere if the TPS is over 80% (or some other value i'll have to play around).
Attached Thumbnails
Electronic Boost Solenoid (Controller)-uvyrq3u.jpg
verch101 is offline   Reply With Quote
Old 05-01-2014, 04:49 PM   #8
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Quote:
Originally Posted by verch101 View Post
You mean like a boost pill in the line?
Sorry, away a while. But yes.

Quote:
Originally Posted by mlev View Post
I thought miata drivers liked plugs in their orifices?
Well yes, but not all the time.

Last edited by BarbyCar; 05-01-2014 at 04:51 PM. Reason: Edited to make a clarifying remark :)
BarbyCar is offline   Reply With Quote
Old 05-02-2014, 09:46 AM   #9
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

Hey Guys,
Thanks for all the help. I kept playing around with the car, and it seems like I found the problem. It was a vacuum routing issue. I moved the Bypass actuator's vacuum line from right in front of the throttle body, to be on the intake manifold. This really helped with the fluttering, and the hesitation at certain RPMs.
verch101 is offline   Reply With Quote
Old 05-02-2014, 10:55 AM   #10
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Quote:
Originally Posted by verch101 View Post
Hey Guys,
... I moved the Bypass actuator's vacuum line from right in front of the throttle body, to be on the intake manifold. .....
For future searches:

You mean right behind the throttle, yes? In front of would mean it will not see vacuum when the throttle closes.

(i.e. downstream of the throttle and not upstream)
BarbyCar is offline   Reply With Quote
Old 05-02-2014, 10:57 AM   #11
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

Quote:
Originally Posted by BarbyCar View Post
For future searches:

You mean right behind the throttle, yes? In front of would mean it will not see vacuum when the throttle closes.

(i.e. downstream of the throttle and not upstream)
Attached Thumbnails
Electronic Boost Solenoid (Controller)-violetcrawley1.gif
verch101 is offline   Reply With Quote
Old 05-02-2014, 12:14 PM   #12
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Quote:
Originally Posted by verch101 View Post
Best....Reply....Evah
BarbyCar is offline   Reply With Quote
