Old 08-27-2011, 02:31 AM   #21
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Quote:
Originally Posted by 90R View Post
don't care about V8's in the least bit.
hahahahaha
pusha is offline   Reply With Quote
Old 08-27-2011, 02:43 AM   #22
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by 90R View Post
10:1ish and cams on a 1.6.
Couldn't be much different than blowing a VVT motor
Uhm, ok. I was picturing something a bit more radical when you claimed 140HP.


Quote:
Originally Posted by 90R View Post
got nothing against turbos. I've just done a decent amount of development to get my exhaust where it is. That would mean starting over
Well, to be painfully honest, the motor you have now isn't exactly ideal for forced-induction of any kind. And a 10:1 engine is going to be even less tolerant of the scorching-hot output from an M45 than a stock engine.

That said, basing your turbo vs. SC decision on the fact that you already have a fancy exhaust manifold seems a bit short-sighted to me. I see no reason why you couldn't sell the manifold you have now to some kid over at CR.net, and that would eliminate your barrier to entry.


I'm trying to be objective here. You're starting with a worst-case-scenario engine (a high-compression 1.6 with unknown and presumably high-overlap cams) and saying you want to make more power on it with an M45 than a typical NB engine equipped with an MP62.

If I were you, I would seriously consider selling the entire engine and picking up a used stock 1.8 engine, preferably an NB. If you find the right buyer, you could probably break even on the deal.
Joe Perez is offline   Reply With Quote
Old 08-27-2011, 02:46 AM   #23
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

El oh ******* el at nitrus pic hahahahhahahaahahhah
Faeflora is offline   Reply With Quote
Old 08-27-2011, 03:02 AM   #24
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Could always swap in a rotary.


Anyway, Good luck. You'll need it.
elesjuan is offline   Reply With Quote
Old 08-27-2011, 08:29 AM   #25
90R
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
Uhm, ok. I was picturing something a bit more radical when you claimed 140HP.


Well, to be painfully honest, the motor you have now isn't exactly ideal for forced-induction of any kind. And a 10:1 engine is going to be even less tolerant of the scorching-hot output from an M45 than a stock engine.

That said, basing your turbo vs. SC decision on the fact that you already have a fancy exhaust manifold seems a bit short-sighted to me. I see no reason why you couldn't sell the manifold you have now to some kid over at CR.net, and that would eliminate your barrier to entry.


I'm trying to be objective here. You're starting with a worst-case-scenario engine (a high-compression 1.6 with unknown and presumably high-overlap cams) and saying you want to make more power on it with an M45 than a typical NB engine equipped with an MP62.

If I were you, I would seriously consider selling the entire engine and picking up a used stock 1.8 engine, preferably an NB. If you find the right buyer, you could probably break even on the deal.

The overlap isn't that radical. Besides the gears can dial some of that out. If not an M45. What turbo will start into positive pressure around 15-1800 and not run out of breath @7500

what do NB M62's make?
90R is offline   Reply With Quote
Old 08-27-2011, 12:25 PM   #26
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

Quote:
Originally Posted by 90R View Post
The overlap isn't that radical. Besides the gears can dial some of that out.
Let me spell this out, cuz you aren't getting the hint. YOU AREN'T MAKING 140WHP
tasty danish is offline   Reply With Quote
Old 08-27-2011, 12:28 PM   #27
90R
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by tasty danish View Post
Let me spell this out, cuz you aren't getting the hint. YOU AREN'T MAKING 140WHP

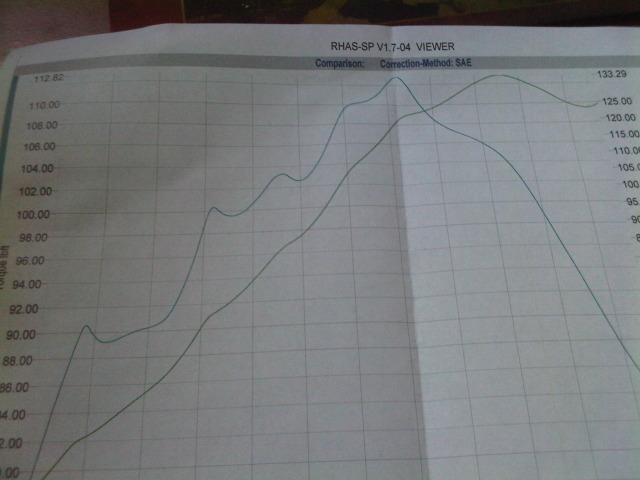

really?


that was with stock electronics and an AFM

so now the question at hand. What's the most cost effective way to force feed this thing with 6-10# of positive pressure
Attached Thumbnails
I think I want a blow job-img00579-20110818-1116.jpg
90R is offline   Reply With Quote
Old 08-27-2011, 01:23 PM   #28
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

^With a turbo. And you only made 130whp, on a dynojet.
Bond is offline   Reply With Quote
Old 08-27-2011, 02:06 PM   #29
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

With a turbo. You will not make 200whp on an M45, it simply does not move enough air. I'd find a GT2554R, but even then you're not going to be making power at 7500rpm.
Savington is offline   Reply With Quote
Old 08-27-2011, 02:09 PM   #30
90R
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
With a turbo. You will not make 200whp on an M45, it simply does not move enough air. I'd find a GT2554R, but even then you're not going to be making power at 7500rpm.
what speed does the 2554 start falling off?
90R is offline   Reply With Quote
Old 08-27-2011, 02:23 PM   #31
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

A little past 7k at best. It's a small compressor. It won't feel like a big turbo up top - my 2871R feels like a god damn freight train up top compared to this.

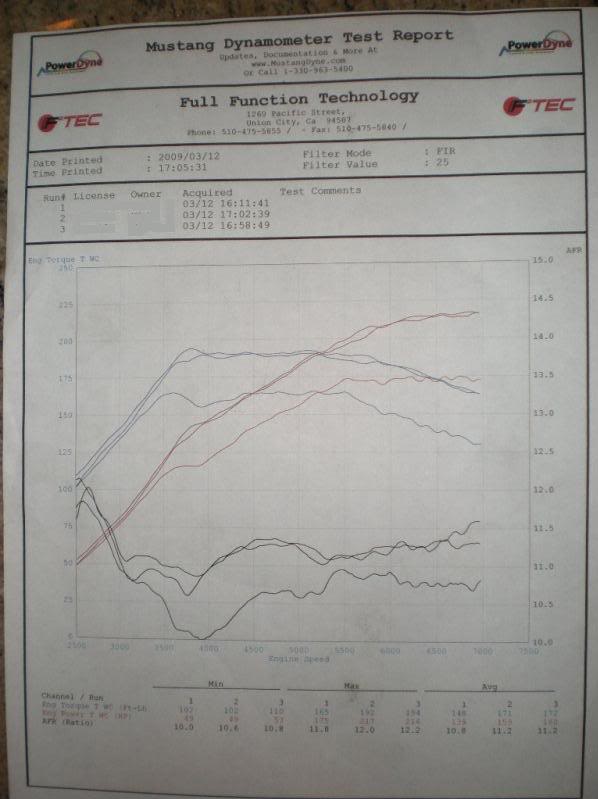

edit: This is my old setup, so
'99 longblock
BEGi mani/DP
stock IM w/ VICS switchover at ~5400
genuine GT2554R
eBay IC
MSPNP
Rx7 460s
~15psi
Attached Thumbnails
I think I want a blow job-dscn1328.jpg
Savington is offline   Reply With Quote
Old 08-27-2011, 02:31 PM   #32
90R
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
A little past 7k at best. It's a small compressor. It won't feel like a big turbo up top - my 2871R feels like a god damn freight train up top compared to this.
how badly does it fall of between 7k-8k? I need to be able to get to 8k(gearing limitations) without loosing too much power after the peak.
90R is offline   Reply With Quote
Old 08-27-2011, 02:49 PM   #33
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Don't know, never had the desire to spin my motor that hard. Could be doable, could fall off like a rock.

Be realistic with your expectations - you aren't going to find some random turbo that makes boost at 1500rpm but still pulls hard at 8k+. The 2554R will give you near-flawless response and still pull fairly well up top - everything bigger will give you a little more top end but impact the low-end and response in exchange.
Savington is offline   Reply With Quote
Old 08-27-2011, 02:53 PM   #34
90R
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Don't know, never had the desire to spin my motor that hard. Could be doable, could fall off like a rock.

Be realistic with your expectations - you aren't going to find some random turbo that makes boost at 1500rpm but still pulls hard at 8k+. The 2554R will give you near-flawless response and still pull fairly well up top - everything bigger will give you a little more top end but impact the low-end and response in exchange.
I'm not asking for boost at 1500. Just positive flow to negate my vacuum. and get back towards atmospheric. (yes I know it's technically boost)
The engine base should be able to fill in the bottom grunt some. So running a slightly larger turbo that didn't go positive until 2500ish would be alright. I just don't want to deal with an engine that all of a sudden "comes on" like Vtec.
I guess my main realistic power band is 4k-8k
90R is offline   Reply With Quote
Old 08-27-2011, 03:07 PM   #35
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by 90R View Post
The overlap isn't that radical. Besides the gears can dial some of that out. If not an M45. What turbo will start into positive pressure around 15-1800 and not run out of breath @7500
Unfortunately, you just can't have everything.

I'm not entirely certain that you understand the dynamics of how a supercharger works, so forgive me if I'm being obtuse, but I need to make sure we're all on the same page here.

Any given supercharger is capable of supporting a certain amount of HP. I think you may be under the impression that installing, say, an M45 on any engine will automatically raise that engine's output by 60HP or so, and that's completely inaccurate. A much less inaccurate (though still vastly oversimplified) explanation would that an engine with an M45 on it will make about 160 HP, regardless of what the engine started with. You take a 100 HP engine and put an M45 on it, you'll get 160 HP. You take a 250 HP engine and put an M45 on it, and power will actually drop to 160 HP.

Why is this?

Horsepower is made by burning fuel. And to burn a certain amount of fuel, you need a certain amount of air. If you move more air, you can burn more fuel and make more HP. Broadly speaking, it takes about 150 CFM of airflow (measured at atmospheric pressure) for every 100 HP you want to make.

Now, positive-displacement superchargers (and, to a slightly lesser extent, centrifugals and turbochargers) have a hard upper limit on how much air they can flow. For every rotation of the screw they move a certain volume of air, and just like piston engines, they have a redline. An M45 moves 0.75l (0.0265 CFM) of air per revolution, and it redlines at about 14,000 RPM. So that's a theoretical output of about 371 CFM. Unfortunately, Roots-style blowers in general are massively inefficient. You might get 70% efficiency out of the compressor itself at the flow levels you're talking about, plus another 30-35 HP in parasitic load just to turn the thing.

That's fine and well for relatively small, low-output engines turning at low RPM. But if (hypothetically) you were to put one of those on a 250HP V6, it would actually be a restriction.


The MP62 is better in all regards, but the combination of it and your engine still isn't going to make 200 HP. You are going to be detonation-limited by your high CR, and boost-limited by your cams. IOW, a lot of that air/fuel mixture that we worked so had to squeeze into the engine is going to blow right out your exhaust valves during the overlap period, and what's left is going to detonate.


Quote:
what do NB M62's make?
FastForward, which is considered by the supercharger-fanboys to be the pinnacle of forced induction technology, claims 190 HP on an NB.



Quote:
Originally Posted by 90R View Post
really?

(dyno)
No offense, but I don't believe that dyno chart for a moment.


Quote:
so now the question at hand. What's the most cost effective way to force feed this thing with 6-10# of positive pressure
Cost effective meaning cheapest? That's easy. A Bell "Shangahi-S" turbo kit. $1,435 with the Chinese knockoff "T25/T28" turbo if you provide your own engine management (which you said you already had handled) plus whatever it costs you to hang an intercooler. And subtract whatever you sell your fancy header for.
Joe Perez is offline   Reply With Quote
Old 08-27-2011, 03:20 PM   #36
90R
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
Why is this?

Horsepower is made by burning fuel. And to burn a certain amount of fuel, you need a certain amount of air. If you move more air, you can burn more fuel and make more HP. Broadly speaking, it takes about 150 CFM of airflow (measured at atmospheric pressure) for every 100 HP you want to make.

Now, positive-displacement superchargers (and, to a slightly lesser extent, centrifugals and turbochargers) have a hard upper limit on how much air they can flow. For every rotation of the screw they move a certain volume of air, and just like piston engines, they have a redline. An M45 moves 0.75l (0.0265 CFM) of air per revolution, and it redlines at about 14,000 RPM. So that's a theoretical output of about 371 CFM. Unfortunately, Roots-style blowers in general are massively inefficient. You might get 70% efficiency out of the compressor itself at the flow levels you're talking about, plus another 30-35 HP in parasitic load just to turn the thing.
If the theoretical output is 371cfm and 70% would be 259cfm. That seems to make the available power I need

100% VE = Ci x RPM/3456 (correct formula?)

so for me 1639cc = 100.01 Ci

rounding 100 x 7950 (potential RPM) / 3456 = 230.04

seems like it's on the edge of maxed out, but potentially viable

Quote:
No offense, but I don't believe that dyno chart for a moment.
:shrug: nothing I can do about that

Quote:
Cost effective meaning cheapest? That's easy. A Bell "Shangahi-S" turbo kit. $1,435 with the Chinese knockoff "T25/T28" turbo if you provide your own engine management (which you said you already had handled) plus whatever it costs you to hang an intercooler. And subtract whatever you sell your fancy header for.
nice
90R is offline   Reply With Quote
Old 08-27-2011, 03:27 PM   #37
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by 90R View Post
If the theoretical output is 371cfm and 70% would be 259cfm. That seems to make the available power I need
Don't interpret what I wrote literally. I was mostly just pulling round numbers out of the air from memory for the purposes of illustration, and the reality of a running engine never matches what's on paper.

There is a sufficiently large body of empirical evidence to support the fact that an M45 is not capable of making 200 HP that you simply need to forget about it. You might be able to hit your power goals with an MP62 (emphasis on might) but it's very iffy, and would certainly not be cheap or simple.
Joe Perez is offline   Reply With Quote
Old 08-27-2011, 03:32 PM   #38
90R
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
Don't interpret what I wrote literally. I was mostly just pulling round numbers out of the air from memory for the purposes of illustration.

There is a sufficiently large body of empirical evidence to support the fact that an M45 is not capable of making 200 HP that you simply need to forget about it. You might be able to hit your power goals with an MP62 (emphasis on might) but it's very iffy, and would certainly not be cheap or simple.
ok

I need to find the numbers. I do remember the 70% drop as a "standard"

using your numbers and this equation
REQUIRED AIRFLOW (scfm) = 2.723 x HP x BSFC

190hp with .5 BSFC would need 258.69 CFM. (still pondering)

these seem to agree with your memory (sort of)
http://www.rbracing-rsr.com/turbo/TurboMaps/M45flow.gif

http://www.rbracing-rsr.com/turbo/Tu...s/M45power.gif
90R is offline   Reply With Quote
Old 08-27-2011, 05:13 PM   #39
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

benchtop racer... if you don't want to accept what people with experience and knowledge are trying to tell you... you'll just end up with a M45 and a detonating engine.
ThePass is offline   Reply With Quote
Old 08-27-2011, 05:36 PM   #40
90R
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by ThePass View Post
benchtop racer... if you don't want to accept what people with experience and knowledge are trying to tell you... you'll just end up with a M45 and a detonating engine.
it'll be fun to blow up
90R is offline   Reply With Quote
