Default Info on older SC unit

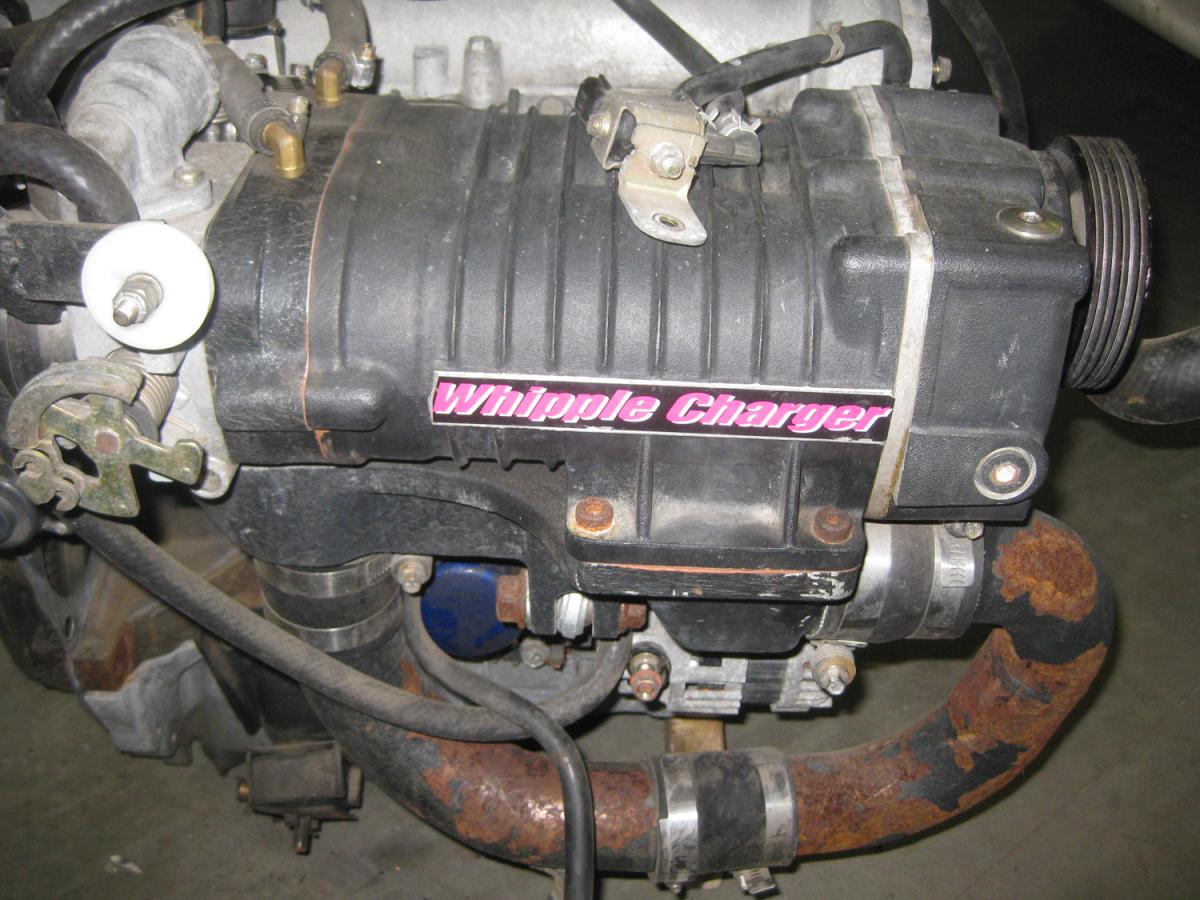

I found a 99 Mazda Miata engine for sale. This engine has a Whipple Charger bolted on it and I would like to find out more about it since the present owned was not much help, he bought the car for parts. Please see photo attachments.

1. Does anyone recognize it, the model, how old and is there a manual available online or hard copy?
2. This engine has been sitting for 4 yrs. Is this a concern for the sc unit, what maintenance will be required?

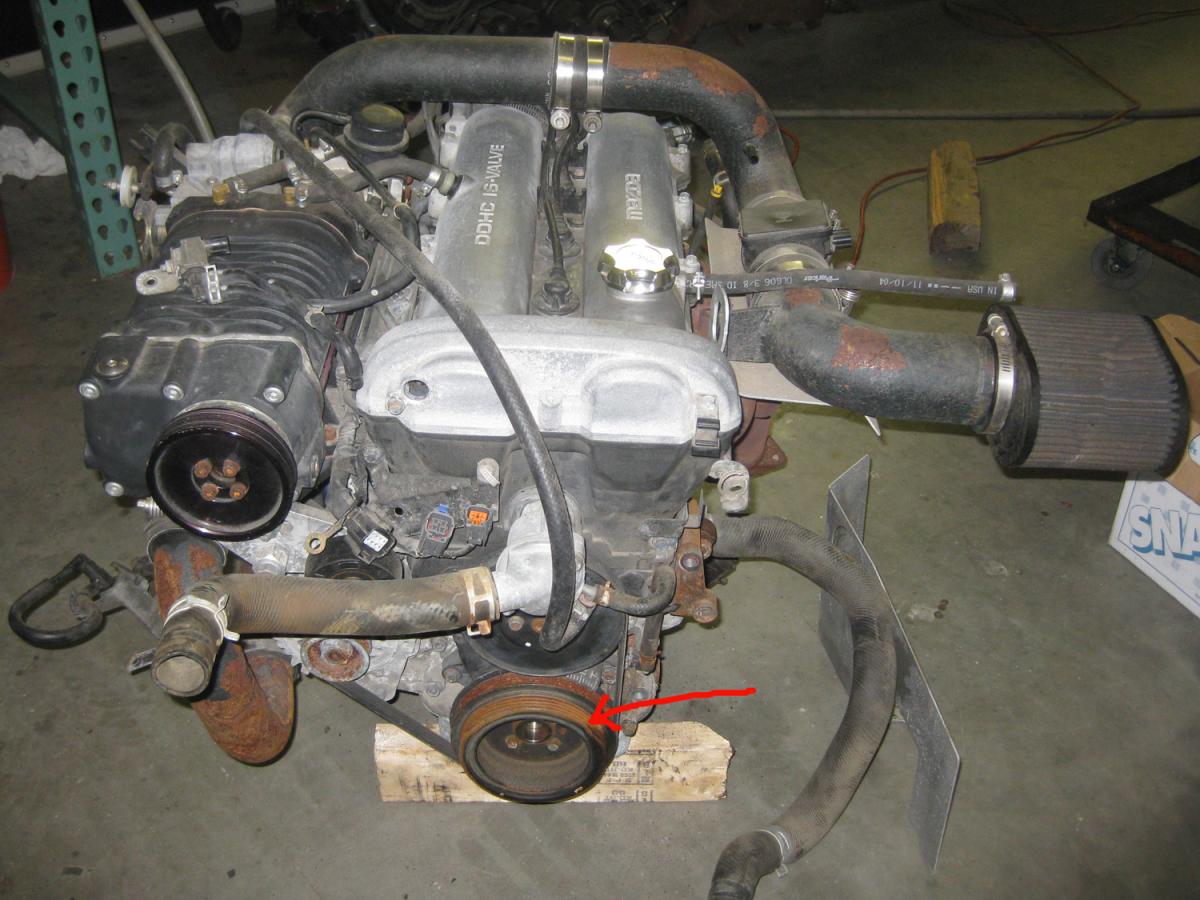

3. The engine came out of a wrack. The bottom poly on the crank was damaged during the impact. I didnít see it, itís not on it, but the engine poly looks fine (see photo marked w/red arrow). Is a replacement poly available?
4. No ECU on it. Can a standalone unit like Megasquirt, etc do this? No Cam Position Sensor, did the car run like that through whatever was controlling ignition? Boost control, and many other questions on what to do before firing it up.
I have no experience with FI engines. Can anyone help????
Thank you.

Cris
Attached Thumbnails
Info on older SC unit-whipple-sc1.jpg   Info on older SC unit-whipple-sc3.jpg   Info on older SC unit-whipple-sc4.jpg
globodj is offline   Reply With Quote
Old 03-13-2011, 02:18 PM   #2
Junior Member

Join Date: Jun 2007
Location: Grayslake IL
Posts: 410
Total Cats: 2
Default

It looks like a Flyin Miata Ubercharger kit. http://www.flyinmiata.com/projects/ubercharger.asp

Email someone over there and they might be able to help you out.
Aricjm15 is offline   Reply With Quote
Old 03-13-2011, 04:29 PM   #3
Newb

Join Date: Nov 2010
Posts: 9
Total Cats: 0
Default

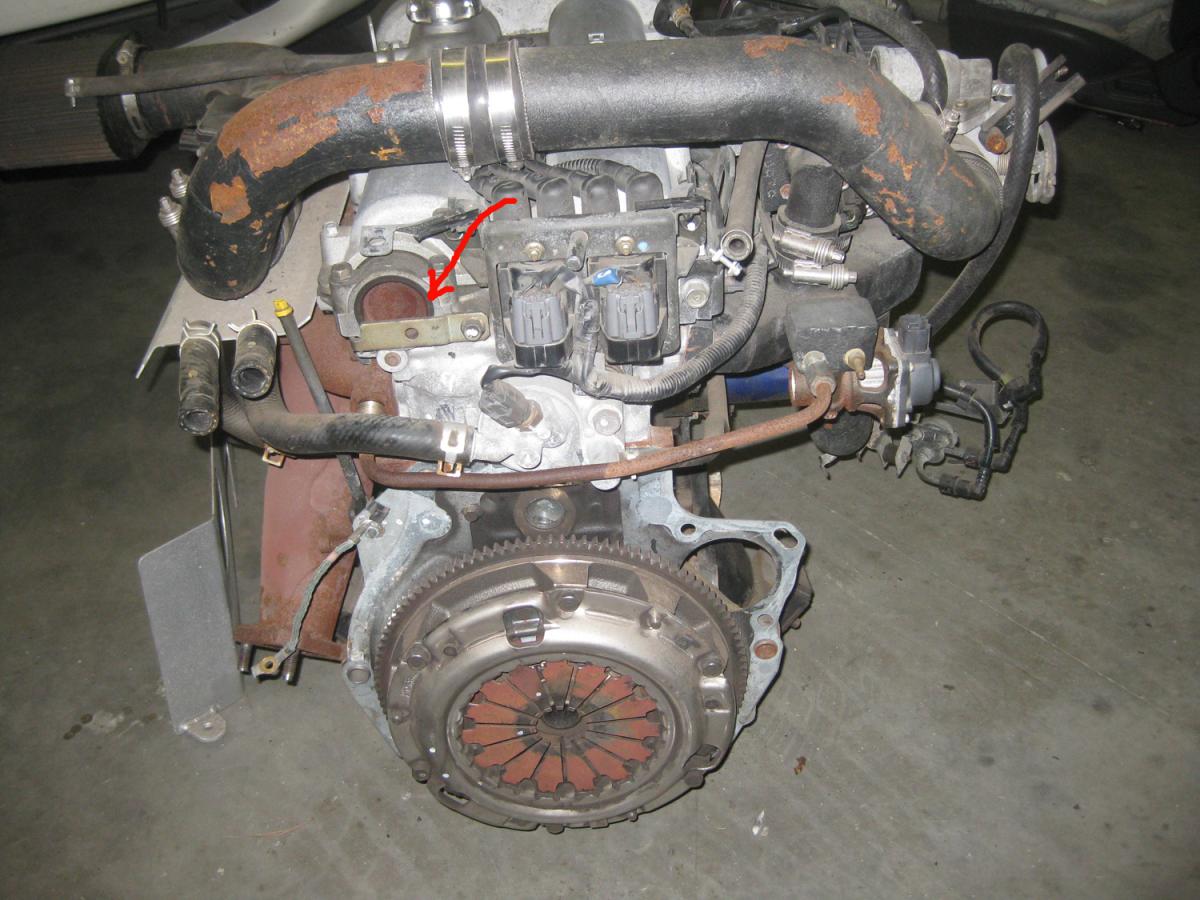

Unless you're getting it for next to nothing I don't think that's too great of a starting point when you don't know anything about the internals of the engine. To return it to stock you're probably looking at around 300$, to get it running with the supercharger you're probably going to break 800$ if you don't already have a standalone to run it with. Just based on the hole drilled in the valve cover it looks like they used a trigger off of the front of the intake camshaft to replace the CAS.

The issue is that you've no idea if they've been running it super lean or over 7,500 rpm for an extended time so you don't know if the engine's already at the end of its life.
craig588 is offline   Reply With Quote
Old 03-13-2011, 06:25 PM   #4
Newb
Thread Starter

Join Date: Feb 2010
Posts: 10
Total Cats: 0
Default

All he could tell me was that the odometer reading was 64k miles, my 94 has 140k but it's running strong. I really want a 99 engine in my 94 chassis though. I drove one last year and really enjoyed it. But you're correct; I have no idea on the condition of the internals. He's asking $1,500.00 for the whole package.
globodj is offline   Reply With Quote
Old 03-13-2011, 06:29 PM   #5
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I may be mistaken, but the 99 does not have a CAS from the factory.
I got my 99 engine which was in good condition, for 500.

I vote nay.
FRT_Fun is offline   Reply With Quote
Old 03-13-2011, 06:38 PM   #6
Newb

Join Date: Nov 2010
Posts: 9
Total Cats: 0
Default

Oh yeah, my bad, you're right, the sensor's on the front of the camshaft on the 99. I'd still stay away for 1,500$ though.
craig588 is offline   Reply With Quote
Old 03-13-2011, 07:26 PM   #7
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,687
Total Cats: 560
Default

Agreed, 1500 is too much.
rleete is offline   Reply With Quote
Old 03-13-2011, 07:31 PM   #8
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

begi may be of some help as well. I think this was done back when FM & begi were working together. FM has discontinued the uber but BEGI is still developing their version I think.
TurboTim is offline   Reply With Quote
Old 03-13-2011, 10:24 PM   #9
Newb
Thread Starter

Join Date: Feb 2010
Posts: 10
Total Cats: 0
Default

Must do some thinking and decide. Thank you all for the info and advice.
globodj is offline   Reply With Quote
Old 03-15-2011, 10:09 AM   #10
Newb
Thread Starter

Join Date: Feb 2010
Posts: 10
Total Cats: 0
Default

Well, the unit is in fact a discontinued Flyin Miata Ubercharger kit produced by BEGI. The unit was originally released in 2004 and was short lived due to reliability issues. So, as much as I would like to bolt on an extra 50 hp at a cost I can afford, I'm walking away from this one.
Plan B is to install a 99 head on my 94. (i know here I can get one). My motor is nearly at 140k and since the head work will be done it is a good time to refresh the motor, correct? Can anyone suggest a guide for me to read and familiarize myself on what should be done at this point. I want to build up some knowledge before I see the mechanic.
Also, is a exhintake cam swap advisable?
Thanks for all the help.

Last edited by globodj; 03-15-2011 at 04:43 PM.
