Default M45 w/megasquirt dyno sheet/video

Hi,
I just got a megasquirt installed to go with my M45 and took it to the dyno for some fine tuning and dyno numbers.

Just wanted to share my numbers. The video pretty much says it all...
Feel free to ask if u got any questions...

143HP AND 133 TQ



VIDEO

http://www.youtube.com/watch?feature...&v=Ph0hwSdXSO8
Attached Thumbnails

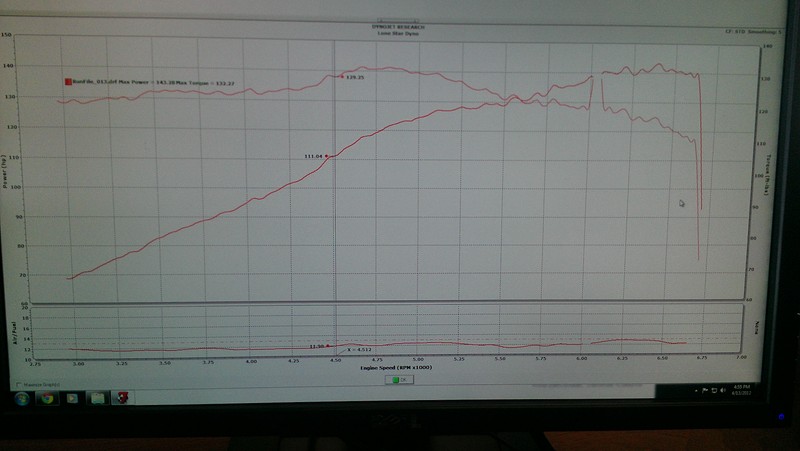

M45 w/megasquirt dyno sheet/video-20120413165612.jpg
oscargarza88 is offline   Reply With Quote
Old 04-14-2012, 10:37 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

looks like it would be a pleasure to drive, just a nice little bump to the tq curve.
Braineack is offline   Reply With Quote
Old 04-14-2012, 11:03 AM   #3
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Nice numbers man, congrats. The car looks great too.
pdexta is offline   Reply With Quote
Old 04-14-2012, 02:21 PM   #4
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Seriously, that car looks so damn clean....Got some more pics for us?

The M45's can be great fun. I was able to get mine to just under 170whp and I had a blast autocrossing that setup.
viperormiata is offline   Reply With Quote
Old 04-14-2012, 02:49 PM   #5
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Man, your car looks a LOT like mine.

That's a great torque curve for DD and autox.

I was always worried about adding the load of a SC to the small-nose crankshaft. One of the main reasons I went turbo. Do you still have a small-nose, or have you moved on from that issue?

Ever make it up to MSR-C? I'd love to see your car.
hornetball is offline   Reply With Quote
Old 04-15-2012, 01:27 PM   #6
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: SA, Tx
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by pdexta View Post
Nice numbers man, congrats. The car looks great too.
thank you!

Quote:
Originally Posted by Braineack View Post
looks like it would be a pleasure to drive, just a nice little bump to the tq curve.
Yes i know not a big bump in power but enough for my needs for now, its a blast to drive, instant power mid corner on demand

Quote:
Originally Posted by hornetball View Post
Man, your car looks a LOT like mine.

That's a great torque curve for DD and autox.

I was always worried about adding the load of a SC to the small-nose crankshaft. One of the main reasons I went turbo. Do you still have a small-nose, or have you moved on from that issue?

Ever make it up to MSR-C? I'd love to see your car.
Small-nose crank still there... im sure there are tons of info on how to "deal" with this problem but if u could narrow it down to one option what would it be to "fix" this? i kinda have the mentality that if it goes i'll just get a 1.8...

And no i havent gone to MSR, ive wanted to go though...
and thanks

This is the latest pics i have until i can detail it and take some proper pics:


By oscargarza88 at 2012-04-15


By oscargarza88 at 2012-04-15


By oscargarza88 at 2012-04-15


By oscargarza88 at 2012-04-15


By oscargarza88 at 2011-11-17
Attached Thumbnails
M45 w/megasquirt dyno sheet/video-20502383818208447525420.jpg   M45 w/megasquirt dyno sheet/video-26408788795308798525420.jpg   M45 w/megasquirt dyno sheet/video-27118388794046827525420.jpg   M45 w/megasquirt dyno sheet/video-29024310100104717572195.jpg   M45 w/megasquirt dyno sheet/video-33535710100106207216935.jpg

oscargarza88 is offline   Reply With Quote
Old 04-15-2012, 01:28 PM   #7
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: SA, Tx
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by viperormiata View Post
Seriously, that car looks so damn clean....Got some more pics for us?

The M45's can be great fun. I was able to get mine to just under 170whp and I had a blast autocrossing that setup.
170 is quite a bit.. im guessing you had injectors, fuel pump, smaller pulley to pull this off? if so which injectors because this is the next engine step i want to do, but for now, after this i am planning on getting my 21 yo suspension caught up.
oscargarza88 is offline   Reply With Quote
Old 04-16-2012, 06:06 PM   #8
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I did the Locktite thing on mine. That was about 50K miles ago (I'm about due to swap the timing belt again). Cheap and easy to do whenever you change your TB.

Love the picture under the trailer.
hornetball is offline   Reply With Quote
Old 04-18-2012, 09:35 PM   #9
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Great DD setup. Good job
leatherface24 is offline   Reply With Quote
Old 04-19-2012, 02:50 AM   #10
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: SA, Tx
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by hornetball View Post
I did the Locktite thing on mine. That was about 50K miles ago (I'm about due to swap the timing belt again). Cheap and easy to do whenever you change your TB.

Love the picture under the trailer.
Cool, i will look into it thank you.

Quote:
Originally Posted by leatherface24 View Post
Great DD setup. Good job
Thanks, itll do for now
oscargarza88 is offline   Reply With Quote
Old 05-09-2012, 05:07 PM   #11
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

oscar: I am going through a rebuild of my M45 right now as well, adding a MS to it and looking to get msq files to get me in the ballpark. Any chance you could send me yours to take a look at? Thanks.
comradefks is offline   Reply With Quote
Old 05-11-2012, 10:35 PM   #12
Junior Member
iTrader: (1)

Join Date: Oct 2010
Posts: 58
Total Cats: 0
Default

Nice fender mirrors. What mirrors did you use?
mazdaspeeder86 is offline   Reply With Quote
Old 05-17-2012, 02:35 AM   #13
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: SA, Tx
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by comradefks View Post
oscar: I am going through a rebuild of my M45 right now as well, adding a MS to it and looking to get msq files to get me in the ballpark. Any chance you could send me yours to take a look at? Thanks.
Yes i can do that, sorry its been a while ive just been busy. also not too familiar with the sortware or the MS for that matter so ill give it a shot

Quote:
Originally Posted by mazdaspeeder86 View Post
Nice fender mirrors. What mirrors did you use?

Thanks
I used the MR 300 Raydot Mirror. I would look a little harder if done all over again since once you tighten these you cant adjust them. So u kinda have to get it right the first time.
oscargarza88 is offline   Reply With Quote
Old 05-28-2012, 03:51 PM   #14
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

I also have a 1.6 with the M45 blower (Silverstone as well ) Mine made 140 hp with AFPR and JR Boost/Timing retard unit. Granted, the Dynodynamics dynamometer is said to read 10%~15% lower than a Dynojet.

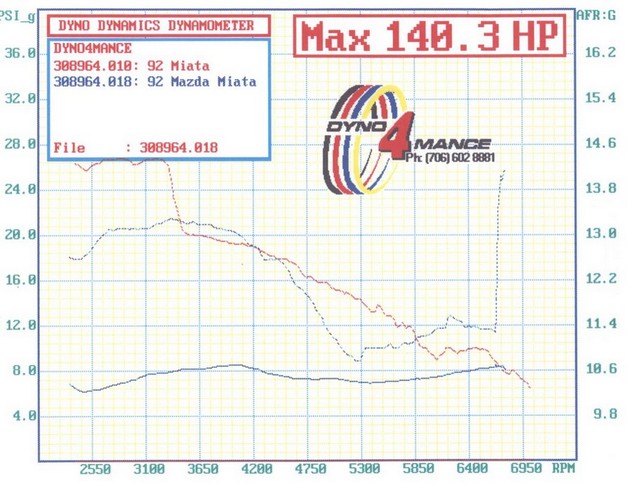

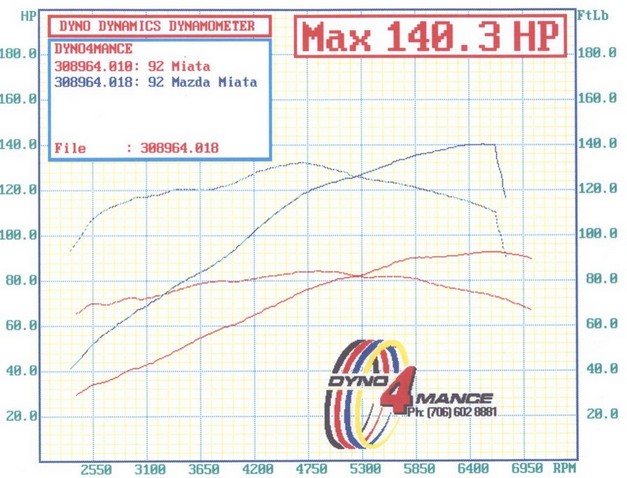

The charts show the before and after the supercharger installation.





I want to go with the MSpnp to see what I can get powerwise and to optimize my fuel delivery/use.

I know that I'm going to have to get injectors and I was looking at the Mazda #195500-2150, 326cc (Probe turbo/B2600 truck) injectors. I found some in the used parts for as little a $50 but who knows if they are the right ones? I found a website where they can be purchased for $253 (reconditioned). I don't know if this is a good idea or not.

I would love to hear some suggestions or ideas about this too....





Attached Thumbnails
M45 w/megasquirt dyno sheet/video-jrscdynosheet1.jpg   M45 w/megasquirt dyno sheet/video-jrscdynosheet2.jpg   M45 w/megasquirt dyno sheet/video-ifoh2.jpg   M45 w/megasquirt dyno sheet/video-ifoh.jpg   M45 w/megasquirt dyno sheet/video-mamitas.jpg

silver92b is offline   Reply With Quote
Old 05-28-2012, 06:34 PM   #15
Newb

Join Date: Jan 2012
Location: NYC
Posts: 7
Total Cats: -1
Default

If you are under 7lb of boost (I assume) you could just use Supra injectors, 305cc, which are direct plug and play...
Achman is offline   Reply With Quote
Old 05-28-2012, 07:05 PM   #16
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by Achman View Post
If you are under 7lb of boost (I assume) you could just use Supra injectors, 305cc, which are direct plug and play...
My blower makes 9 psi. I have been told I need 320cc injectors. The Mazda #195500-2150, 326cc are supposed to be plug and play as well (assuming I use an EMS of some sort). I'm thinking MS pnp....
silver92b is offline   Reply With Quote
Old 05-29-2012, 10:25 AM   #17
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: SA, Tx
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by silver92b View Post
I also have a 1.6 with the M45 blower (Silverstone as well ) Mine made 140 hp with AFPR and JR Boost/Timing retard unit. Granted, the Dynodynamics dynamometer is said to read 10%~15% lower than a Dynojet.
The charts show the before and after the supercharger installation.

I want to go with the MSpnp to see what I can get powerwise and to optimize my fuel delivery/use.

I know that I'm going to have to get injectors and I was looking at the Mazda #195500-2150, 326cc (Probe turbo/B2600 truck) injectors. I found some in the used parts for as little a $50 but who knows if they are the right ones? I found a website where they can be purchased for $253 (reconditioned). I don't know if this is a good idea or not.

I would love to hear some suggestions or ideas about this too....
First of all nice looking car!! it looks great all around! what side skirts are those?

And yes, thats the main reason why i went with the MS, not as much to get more power but just to keep the SC under full control an not have to worry about engine mismanagement or knocking, which in the heat it did alot of...

Quote:
Originally Posted by Achman View Post
If you are under 7lb of boost (I assume) you could just use Supra injectors, 305cc, which are direct plug and play...
havent heard about supra injectors, but i was recommended rx7 ones, don't remember which generation Rx7 though...

Quote:
Originally Posted by silver92b View Post
My blower makes 9 psi. I have been told I need 320cc injectors. The Mazda #195500-2150, 326cc are supposed to be plug and play as well (assuming I use an EMS of some sort). I'm thinking MS pnp....
Wow you are running 9psi with stock injectors? and stock fuel pump?
I thought my injectors were pretty much 100% duty cycle, i didnt know they could handle more psi.

Next step for me down the road after i mess with suspension is to do fuel pump, injectors and then be able to add a smaller pulley to get around 10psi mark, im really happy with the amount of power right now though, it will do for a while.
oscargarza88 is offline   Reply With Quote
Old 05-29-2012, 10:44 AM   #18
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Thanks for the compliment Oscar. Those side skirts are from RSpeed and I like them a lot.

I'm running stock 1.8 injectors. They are 15% larger than the stock 1.6 injectors. Also, I am running the AFPR which allows them to run a lot more fuel. At 96 psi and 6 lb of boost they will deliver 396cc. Take a look at this link. Now, if you are not running larger injectors or an AFPR with your system, you cannot make very much power and risk engine damage. Do you have an AFPR?

If you do not have an AFPR you must hurry and get some 320cc injectors. Don't worry about the fuel pump. The stock pump is quite sufficient for the HP you will make. This explains why your power output is modest from a intercooled SC with MS ems.... I would expect to see around 160 whp or better from a car like yours (unless the dyno reads very low)
silver92b is offline   Reply With Quote
Old 05-29-2012, 10:54 AM   #19
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: SA, Tx
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by silver92b View Post
Thanks for the compliment Oscar. Those side skirts are from RSpeed and I like them a lot.

I'm running stock 1.8 injectors. They are 15% larger than the stock 1.6 injectors. Also, I am running the AFPR which allows them to run a lot more fuel. At 96 psi and 6 lb of boost they will deliver 396cc. Take a look at this link. Now, if you are not running larger injectors or an AFPR with your system, you cannot make very much power and risk engine damage. Do you have an AFPR?

If you do not have an AFPR you must hurry and get some 320cc injectors. Don't worry about the fuel pump. The stock pump is quite sufficient for the HP you will make. This explains why your power output is modest from a intercooled SC with MS ems.... I would expect to see around 160 whp or better from a car like yours (unless the dyno reads very low)
I thought about going with 1.8 injectors but figured if im going to upgrade might as well upgrade once and get bigger ones.
I do have a AFPR, its a BEGI unit which is a old one and came with the car, but it works good enough i think.

What are your afr's at WOT? seems like mine could be leaned out a bit more to get more power, im averaging 12 at wot.
oscargarza88 is offline   Reply With Quote
Old 05-29-2012, 11:39 AM   #20
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by oscargarza88 View Post
I thought about going with 1.8 injectors but figured if im going to upgrade might as well upgrade once and get bigger ones.
I do have a AFPR, its a BEGI unit which is a old one and came with the car, but it works good enough i think.

What are your afr's at WOT? seems like mine could be leaned out a bit more to get more power, im averaging 12 at wot.
I can't remember off hand but if you look in the pictures of the Dyno sheets I posted you can see them. They are very rich.
A/Fs in the 12's is supposed to be pretty good from what I hear, but I don't know enough to opine intelligently.
Do not waste time and money with 1.8 injectors since you have the MS. Just go with 320cc and ditch the AFPR
silver92b is offline   Reply With Quote
