Default Miata scroll supercharger (homemade setup)

Hi everyone,

I'm Marc, 25 years old.

I came here to find some good informations to transform an atmo 1.6L 1991 miata to a supercharged version.

I started a rare project: install a VW G60 supercharger


My Car:




What the engine look likes:

phenixmt is offline   Reply With Quote
Old 10-10-2011, 05:38 AM   #2
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

I got 10.5 psi at 4500rpm but my manifold air temp reach more than 210F (ambient 77F).
I'm planning now to install a intercooler before engine failure...

What would be a good air temp target?
phenixmt is offline   Reply With Quote
Old 10-10-2011, 06:49 AM   #3
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Haven't you already got a thread on this?

Ambient is a good target.....but as I said in your other thread 210DegF isn't that high in my experience, you can safely drive at those IAT's if your tuning is appropriate.

Fitting an IC isn't going to be a big deal on your setup anyway, as you blow through your throttle, no long intake tracts, so get to it and bask in the lovely cold(er) air.
richyvrlimited is offline   Reply With Quote
Old 10-10-2011, 07:06 AM   #4
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

I worried about one thing:

My MSPnP can't read over 210F so I think it cannot adjust fuel very well.

What do you think?

(I recreate my thread here because it must be the best place )
phenixmt is offline   Reply With Quote
Old 10-10-2011, 07:59 AM   #5
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

I think you can modify the code to 'shift' the reading higher (or just use DegC :P)

If you can afford the few hundred $ an IC will cost you then you should do it. There's no downsides for your setup.
richyvrlimited is offline   Reply With Quote
Old 10-10-2011, 09:12 AM   #6
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

I'm already in Celcius :(

I will search in megasquirt if I can set up the limit temp of IAT.

Thanks
phenixmt is offline   Reply With Quote
Old 10-17-2011, 05:42 AM   #7
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

I'm on my way to install an intercooler.

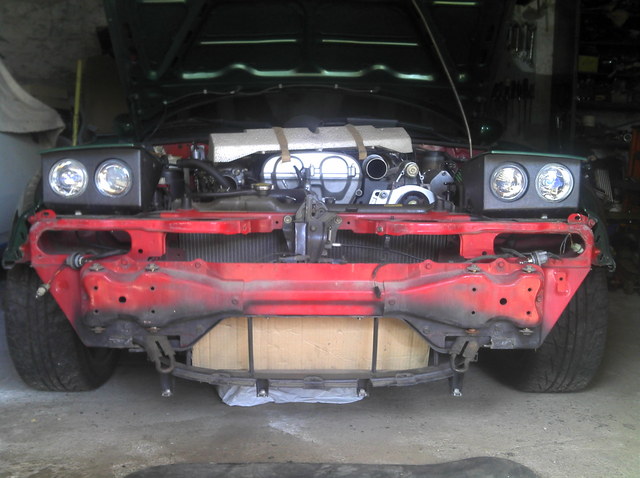

The cardboard represent the future intercooler's core size.




I have removed the OEM fan to put the pipe between radiator and anti sway bar.

Attached Thumbnails
Miata scroll supercharger (homemade setup)-20111016153800500.jpg
phenixmt is offline   Reply With Quote
Old 10-17-2011, 02:22 PM   #8
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Very cool, but hot damn those are some high IATs

The IC will have dramatic effects.
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-17-2011, 02:36 PM   #9
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

You will need fans. Try routing hotside through fender.
Bond is offline   Reply With Quote
Old 10-17-2011, 02:48 PM   #10
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

I have two 10" fans and I'll try to put them between the IC and the radiator.
phenixmt is offline   Reply With Quote
Old 10-17-2011, 03:31 PM   #11
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Pushers or pullers? Get some french ducting going asswell.
Bond is offline   Reply With Quote
Old 10-17-2011, 04:04 PM   #12
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

They are universal type. I can return the blades and switch polarity.

I'm planning right now (in my head) on fresh air feeding.
I will try to make a heatshield box for the air filter or, change the air filter (maybe a mushroom) and bring some air from the outside to it.
phenixmt is offline   Reply With Quote
Old 10-17-2011, 04:24 PM   #13
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Cold air intake< ducted and and sealed IC and radiator.
Bond is offline   Reply With Quote
Old 10-17-2011, 05:39 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Coming from the land of VW I can say that you picked the least reliable supercharger on Earth. However, it's nice to see the fab work on this.
hustler is offline   Reply With Quote
Old 10-17-2011, 05:42 PM   #15
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by Bond View Post
Cold air intake< ducted and and sealed IC and radiator.
Cold air intakes are worthless on a FI car. Unless your sucking sub 0 temp air the iat coming out the blower will be the same regardless. And if you are sucking air that cold you will cause problems in the blower.
jeff_man is offline   Reply With Quote
Old 10-17-2011, 05:50 PM   #16
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

I dont think I agree with that. The temperature at the outlet of the compressor is a product of the compressors efficiency and the inlet temperature.

Will a CAI make a big difference. No. But I think there should be a difference.
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-17-2011, 05:53 PM   #17
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Small difference in temperature. Not enough to notice though. What full tilt said.
Bond is offline   Reply With Quote
Old 10-17-2011, 05:54 PM   #18
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I dont think I agree with that. The temperature at the outlet of the compressor is a product of the compressors efficiency and the inlet temperature.

Will a CAI make a big difference. No. But I think there should be a difference.
Not saying 100% sciences it will do nothing. Compared to ducting it will do nothing. Ducting will drop your iat astronomically compared to a cai.
jeff_man is offline   Reply With Quote
Old 10-17-2011, 06:08 PM   #19
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Quote:
Originally Posted by jeff_man View Post
Not saying 100% sciences it will do nothing. Compared to ducting it will do nothing. Ducting will drop your iat astronomically compared to a cai.
While this is true, the temp at the end of the system (throttle body) will be proportionally cooler as the temp at the beginning of the system (filter) drops. Compressing the air increases the temp by a ratio of compressor efficiency and inlet temperature. Thus if inlet temp drops 30 degrees, then outlet temp drops 30 degrees.
vehicular is offline   Reply With Quote
Old 10-17-2011, 06:30 PM   #20
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by vehicular View Post
While this is true, the temp at the end of the system (throttle body) will be proportionally cooler as the temp at the beginning of the system (filter) drops. Compressing the air increases the temp by a ratio of compressor efficiency and inlet temperature. Thus if inlet temp drops 30 degrees, then outlet temp drops 30 degrees.
But you see my dear Watson if your charger is 200* and your sucking 70* air verse 100* air the air coming out of the blower is going to be ~200* regardless of the air going in. Could be a little cooler but still hotter then a 30* difference between having a cai and no cai.
jeff_man is offline   Reply With Quote
