Old 10-17-2011, 06:37 PM   #21
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

That 30 degrees absolutely DOES matter, because the intercooler works the same way as the compressor (given identical conditions), only cooling the air X total number of degrees, so if the compressor outlet temp is 30 degrees cooler, the intercooler outlet temp will be 30 degrees cooler.

This is assuming that the intercooler isn't over sized for the application and that the charge isn't approaching ambient temp already. If you're already approaching ambient IATs, obviously you're not going to see a drastic temp drop. I'm in no way saying that OP shouldn't duct his intercooler/ rad. Merely pointing out that it's foolish to say that drawing cooler air doesn't have an effect on IATs.
vehicular is offline   Reply With Quote
Old 10-17-2011, 08:51 PM   #22
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Attached Thumbnails
Miata scroll supercharger (homemade setup)-roflbot-zjmh.jpg
jeff_man is offline   Reply With Quote
Old 10-17-2011, 08:56 PM   #23
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

^^lmao!!!
johnwag is offline   Reply With Quote
Old 10-17-2011, 09:37 PM   #24
Newb

Join Date: Apr 2011
Posts: 18
Total Cats: 1
Default

Colder air before the supercharger will have a direct effect on the air coming out. This is for a turbo but it's pretty much the same deal.
Tout = (Tin + Tin x [-1+(Pout/Pin)0.263]) / efficiency


Tin: temperature before compressor (In Rankin)
Tout: temprature coming out of the compressor (in Rankin)
Pin: pressure in (asbolute, in psi. ~14.7 psi)
Pout: pressure out (absolute, in psi. ~14.7+boost, ~25.2 in this case)
efficiency: I don't know the % for these, say 0.6

For my turbo setup, at 10C in, out at 54.5C. At 40C in, out at 89.3C. So delta in, 30. Delta out 34.8C. The lower the efficiency, the higher the "out" delta becomes.

So cool air intake doesn't matter, or does it ?
answ3r is offline   Reply With Quote
Old 10-17-2011, 09:44 PM   #25
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by answ3r View Post
So cool air intake doesn't matter, or does it ?
It does not because like everything on the internet you missed the point of the discussion. Ducted fmic > fmic > ---- rape in prison > cai
jeff_man is offline   Reply With Quote
Old 10-17-2011, 09:48 PM   #26
Newb

Join Date: Apr 2011
Posts: 18
Total Cats: 1
Default

I never did say ducting is not important, it is.

The point is that you cannot, in any point of view, say that cai doesn't matter, because it does.

If you think I took that stuff out of some creepy internet website, I'm a mechanical engineer and design vehicles for a living.
answ3r is offline   Reply With Quote
Old 10-17-2011, 09:58 PM   #27
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Ambient temps of 77 and IAT of 210. Lets assume the temps at compressor inlet were elevated quite a bit by being drawn from inside the bay, like perhaps 100 degrees?
10.5 psi of boost
77 F = 298 K
100 F = 305 K
210 F = 372 K

((25.2psi / 14.7psi)^0.2857)-1
__________________________ = 84.9%
(372K / 311K)-1

((25.2psi / 14.7psi)^0.2857)-1
__________________________ = 84.9%
(xK / 298K)-1

x=356.435

So if you were to get the compressor inlet temp down to ambient (77F or 298K) you would be rewarded by having the compressor outlet temps drop to 356K, or 181 degrees Fahrenheit.
Thats a 29 degree drop in temp at the outlet from a 23 degree drop in temp at the inlet
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-17-2011, 10:45 PM   #28
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Quote:
Originally Posted by jeff_man View Post
It does not because like everything on the internet you missed the point of the discussion. Ducted fmic > fmic > ---- rape in prison > cai
This is you dancing around the subject. Processed carbohydrate helms or no, cooler intake charge is better than hotter intake charge, and the temperature when it enters the compressor absolutely has an effect on temperature when it leaves it.
vehicular is offline   Reply With Quote
Old 10-18-2011, 04:25 AM   #29
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Thanks guys for debating

Form my point:

-CAI is not enough efficient to drop down the air temp entering in the engine. That's why IC must be installed.

But,
-feed the supercharger with fresh air (high O2 concentration)will give you hot air with high O2 concentration at the oulet and give you a better efficient supercharger.

Actually, my air filter takes underhood air (so, more than ambient, maybe more than 100F) :(

IC + CAI, is the dream team to give a good gain of horsepower.
I will need bigger injectors to follow the gain of O2 entering in combustion chamber.
I planning on 600cc running E85, sounds good?

Last edited by phenixmt; 10-18-2011 at 04:57 AM.
phenixmt is offline   Reply With Quote
Old 11-02-2011, 05:14 AM   #30
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

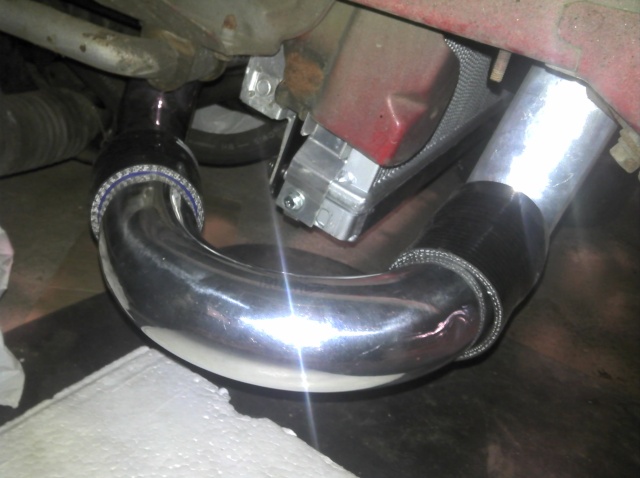

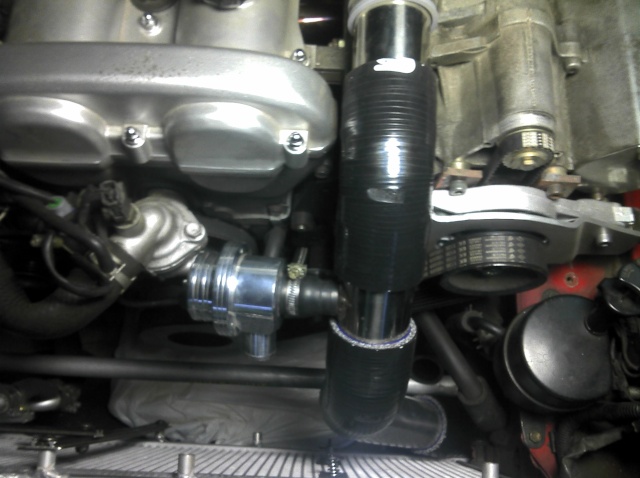

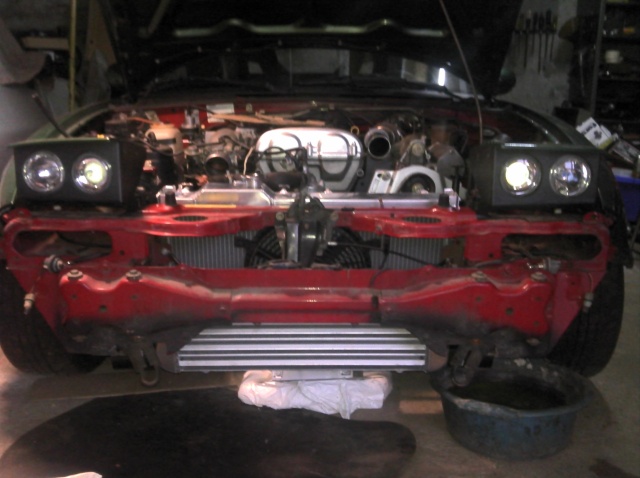

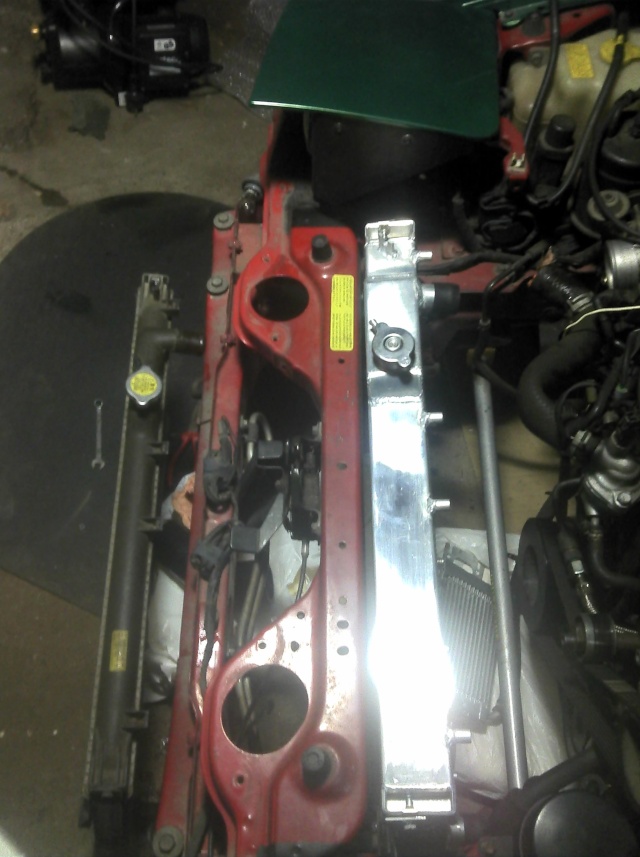

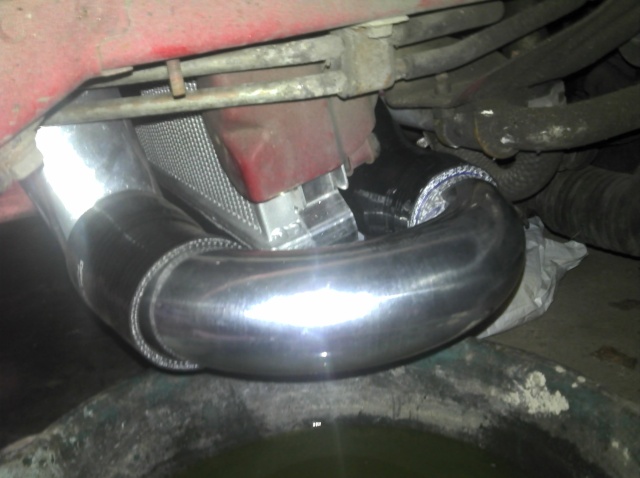

New radiator, new fan


Piping supercharger side finished (except clamps)




New intercooler


Work in progress...
Attached Thumbnails
Miata scroll supercharger (homemade setup)-2011-116.jpg   Miata scroll supercharger (homemade setup)-2011-117.jpg   Miata scroll supercharger (homemade setup)-2011-118.jpg   Miata scroll supercharger (homemade setup)-2011-119.jpg
phenixmt is offline   Reply With Quote
Old 11-02-2011, 01:38 PM   #31
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

The new setup looks good. Just don't forget the sealed ducting as has been previously mentioned, which ought to begin inside the bumper cover mouth and extend to the radiator to be effective.

As for E85, yes, 600cc injectors ought to be enough to handle it with your setup. However, I have no idea how much airflow that supercharger can produce (and can't find it in a quick search), so what you need to do is some math related to actual airflow you are measuring vs fuel needed to support it. Here is a handy rule-of-thumb list that can help you see some injector sizes and what they can theoretically support in terms of airflow in lb/min. Do keep in mind that when you use E85, you'll also need to increase your fuel pump capacity by up to 30% just to maintain current power levels without running too lean.
matthewdesigns is offline   Reply With Quote
Old 11-15-2011, 03:50 AM   #32
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

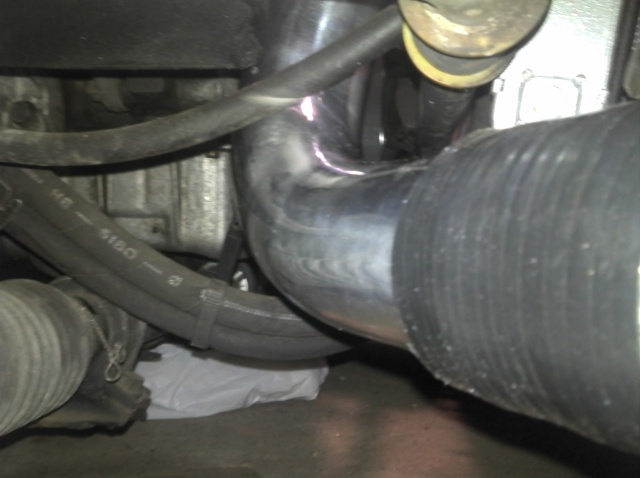

Last part of the piping on intake's side

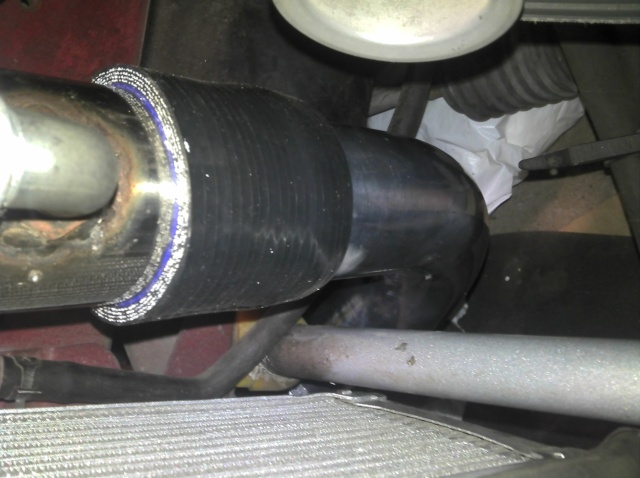

Attached Thumbnails
Miata scroll supercharger (homemade setup)-2011-120.jpg   Miata scroll supercharger (homemade setup)-2011-121.jpg   Miata scroll supercharger (homemade setup)-2011-126.jpg   Miata scroll supercharger (homemade setup)-2011-127.jpg
phenixmt is offline   Reply With Quote
Old 11-16-2011, 08:23 PM   #33
Junior Member

Join Date: Jul 2008
Location: Bergen County NJ
Posts: 103
Total Cats: 0
Default

I would move that IAT sensor, many people have heat soak problems in that area behind the radiator. I would suggest putting it on that U looking piece after the IC(first picture of "the last of the IC piping")
Slacker2223 is offline   Reply With Quote
Old 11-17-2011, 03:51 AM   #34
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Thanks for the advice.

I'm afraid that the U piece is too exposed to water on wet road. But I will think about something to resolve this threat.
phenixmt is offline   Reply With Quote
Old 11-17-2011, 02:30 PM   #35
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

What's the little heat exchanger adjacent to the IAT?
vehicular is offline   Reply With Quote
Old 11-17-2011, 02:39 PM   #36
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

It's a oil radiator from a renault r5 turbo2
phenixmt is offline   Reply With Quote
Old 11-28-2011, 04:08 AM   #37
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

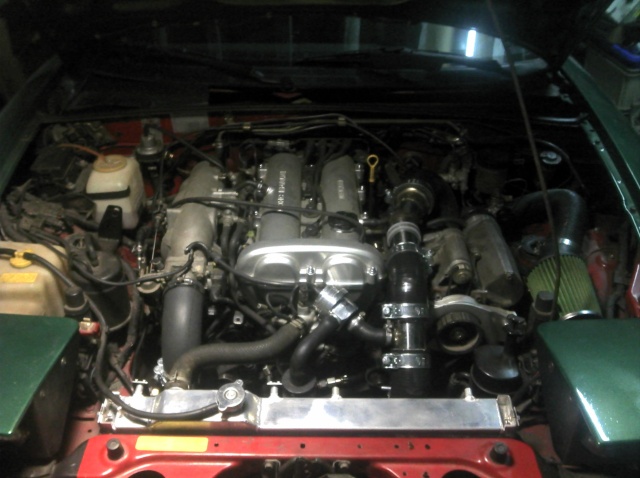

Update:

Intercooler tighted up, clamps on, BOV connected, IAT wire lengthen.



Still to do: Wiring for radiator fan and refill of engine coolant.
Attached Thumbnails
Miata scroll supercharger (homemade setup)-2011-131.jpg
phenixmt is offline   Reply With Quote
Old 12-13-2011, 01:54 PM   #38
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Hi everyone,

I have goal in sight :

Last things are done, I think I'm gonna stay with this setup.





I have a ride last sunday. Results of the FMIC was there!

In full throttle from 3500rpm to 4500rpm:
Manifold air temp was 64F (Unfortunatly, I didn't remember the outside air temp)
Boost was at a constant 8 psi

I'm pretty satisfied of the results.

I'm gonna rebuild my B6 this winter and then I will go further in rpm.

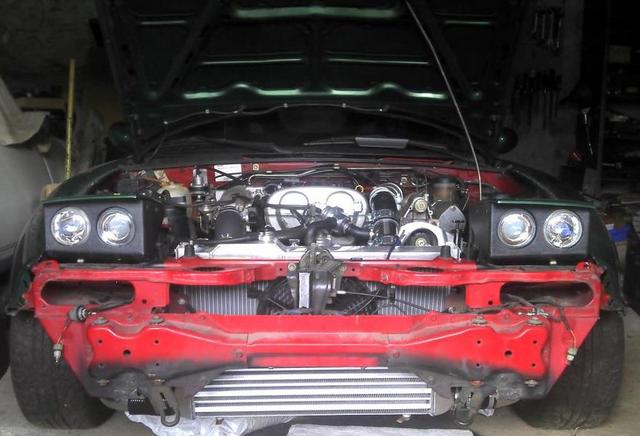

Attached Thumbnails
Miata scroll supercharger (homemade setup)-38453426961396833551252.jpg
phenixmt is offline   Reply With Quote
Old 12-21-2011, 09:53 AM   #39
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

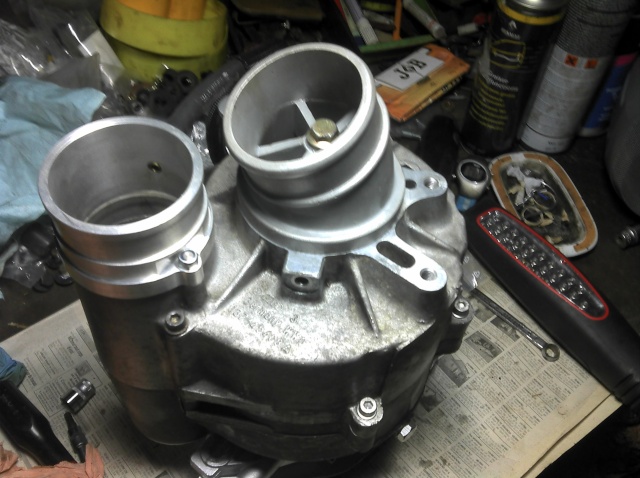

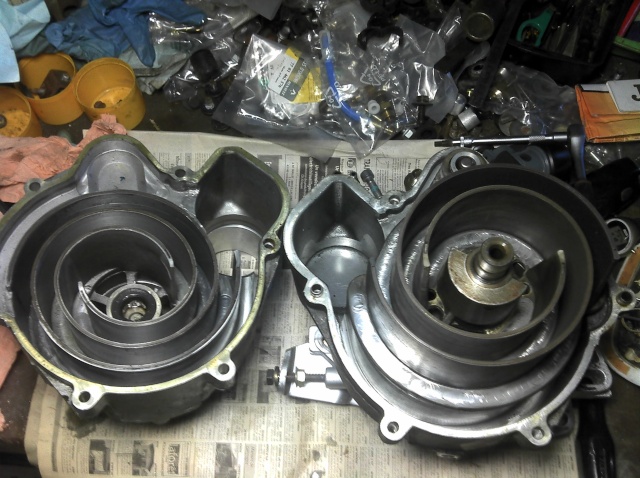

G supercharger check done.

Everythings seems fine.

I have used the same oil feed than B6 turbo engine. the pressure didn't blow out internal gasket of the G



Attached Thumbnails
Miata scroll supercharger (homemade setup)-2011-132.jpg   Miata scroll supercharger (homemade setup)-2011-133.jpg
phenixmt is offline   Reply With Quote
Old 12-21-2011, 01:54 PM   #40
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by hustler View Post
Coming from the land of VW I can say that you picked the least reliable supercharger on Earth. However, it's nice to see the fab work on this.
Yeah I read the first post and this was my immediate thought...

Any power figures yet?
falcon is offline   Reply With Quote
