Old 12-21-2011, 02:18 PM   #41
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Not yet...
I will make a dyno run in spring time. Then we will can compare to roots and rotrex 's boost, Hp and torque curves.

my boost is not reaching more than 8psi because I must have a leak in my new piping setup. I will fix this later.

I've started my engine rebuild during this winter.
phenixmt is offline   Reply With Quote
Old 12-22-2011, 12:29 AM   #42
Junior Member

Join Date: May 2007
Location: Toronto Area, Ontario
Posts: 139
Total Cats: 29
Default

Quote:
Originally Posted by phenixmt View Post
my boost is not reaching more than 8psi because I must have a leak in my new piping setup. I will fix this later.
Seeing less boost, is normal when you add an intercooler(with a SC). When the air cools the density goes up, and the pressure goes down. Check your datalogs for injector pulse width. If your pulse widths have stayed the same, or increased, without a change in AFR, then you don't have a leak.
oreo is offline   Reply With Quote
Old 12-22-2011, 07:51 AM   #43
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

With all those couplers I would still do a leak test. I have piping routed almost the same with a ton of couplers and I was leaking a tiny tiny bit and never knew it until I did a boost leak test.
falcon is offline   Reply With Quote
Old 12-22-2011, 10:45 AM   #44
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Quote:
Originally Posted by oreo View Post
Seeing less boost, is normal when you add an intercooler(with a SC). When the air cools the density goes up, and the pressure goes down. Check your datalogs for injector pulse width. If your pulse widths have stayed the same, or increased, without a change in AFR, then you don't have a leak.
Yes, before IC installed, I was running 10psi at 5000rpm. Now I've got 8psi. I'm aware about air pressure loss. But I've check my piping after a drive and I find "condensation" on some edges of couplers.
phenixmt is offline   Reply With Quote
Old 12-22-2011, 12:07 PM   #45
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

After looking at some photos... you need to invest in t-bolt clamps. The worm drive clamps are useless.
falcon is offline   Reply With Quote
Old 12-22-2011, 12:22 PM   #46
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Well, I bought some T clamps.

But at the intake manifold, I have a silicon hose (grey) and it is more slim than the others and my T clamp can hold it tight enough. So I've put a worm clamp.
I need a smaller T clamp or a new silicon hose (4 ply or something) for it.

You're right, I will go full T clamp in the future
phenixmt is offline   Reply With Quote
Old 01-24-2012, 10:07 AM   #47
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

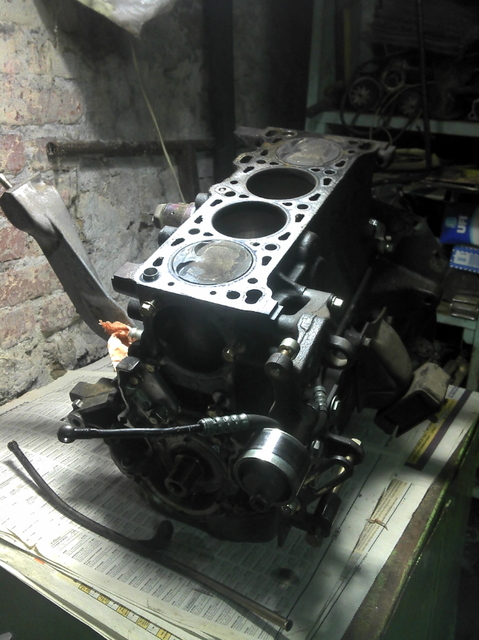

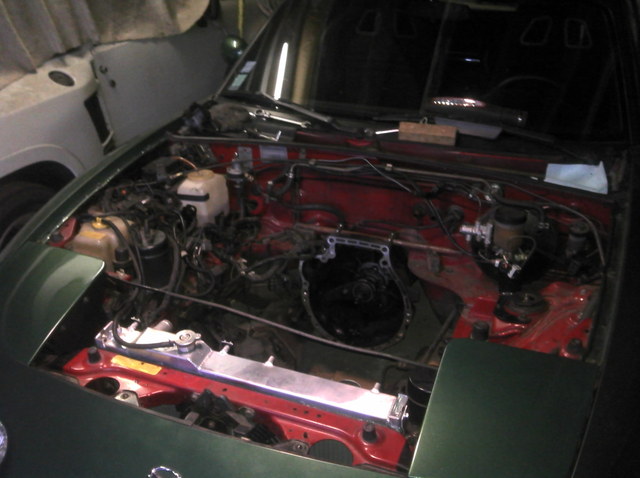

Engine is out for rebuild!




Attached Thumbnails
Miata scroll supercharger (homemade setup)-20120122170148101.jpg   Miata scroll supercharger (homemade setup)-image1yq.jpg
phenixmt is offline   Reply With Quote
Old 01-29-2012, 05:37 AM   #48
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

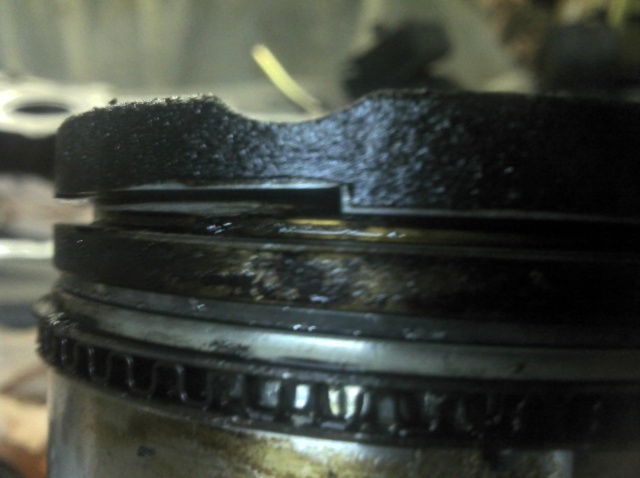

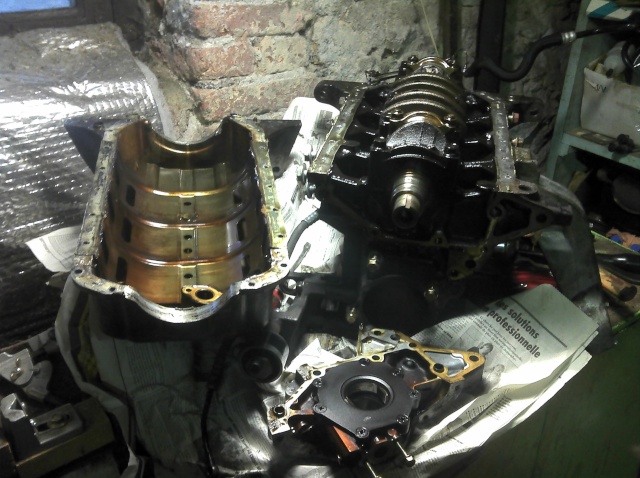

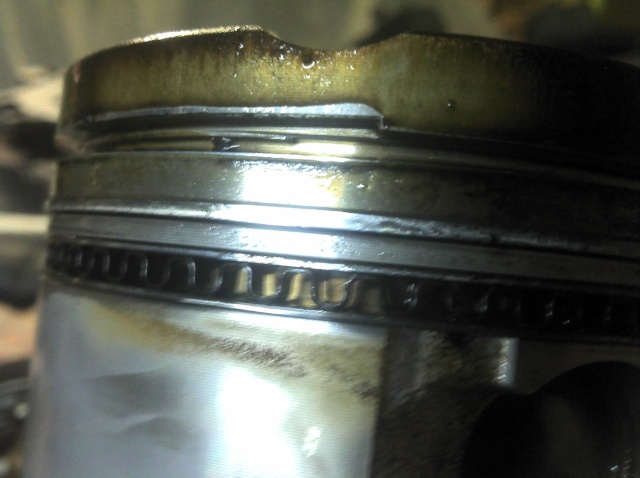

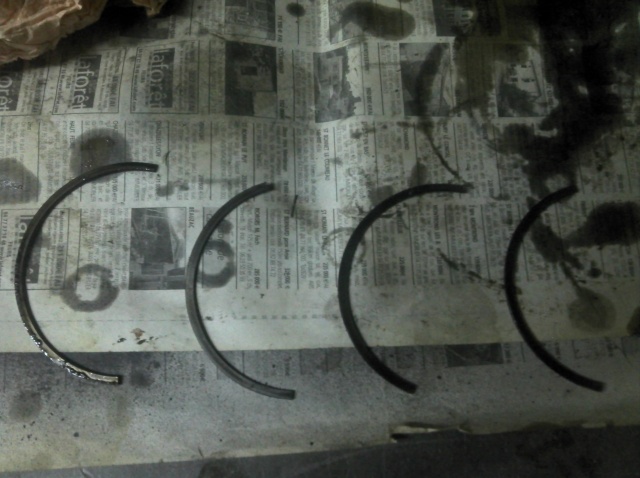

Engine open but big surprise...



rings broken



And 3 pistons damaged





I was planning to keep the OEM pistons for the rebuild... :(
Attached Thumbnails
Miata scroll supercharger (homemade setup)-2012-011.jpg   Miata scroll supercharger (homemade setup)-2012-012.jpg   Miata scroll supercharger (homemade setup)-2012-013.jpg   Miata scroll supercharger (homemade setup)-2012-014.jpg
phenixmt is offline   Reply With Quote
Old 01-29-2012, 12:35 PM   #49
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

That is so strange looking... Your secondary compression rings show much less damage, and no extruding the groove out as in the top ring. Its probably a lean condition with some deto causing that.
TravisR is offline   Reply With Quote
Old 01-29-2012, 02:21 PM   #50
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Quote:
Originally Posted by TravisR View Post
That is so strange looking... Your secondary compression rings show much less damage, and no extruding the groove out as in the top ring. Its probably a lean condition with some deto causing that.
Thanks for you analyse

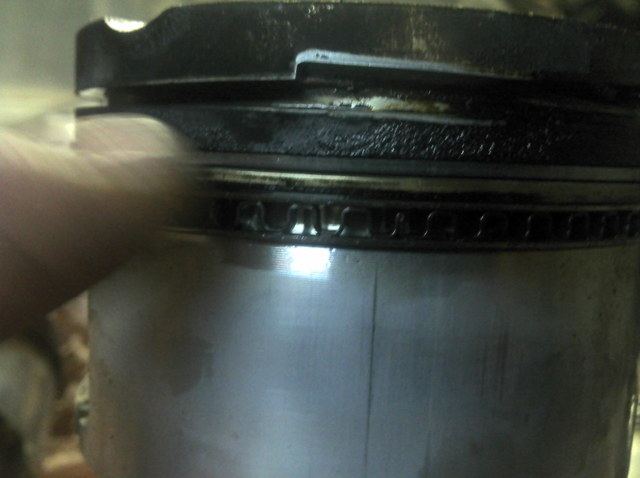

Here's another picture




For Info:
-rev limiter set at 5000rpm
-100miles done with the supercharger
-max boost 8psi
-AFR 10 at full throttle

Maybe rings were like this for before...
Attached Thumbnails
Miata scroll supercharger (homemade setup)-20120128181320109.jpg
phenixmt is offline   Reply With Quote
Old 01-29-2012, 02:35 PM   #51
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Picture of top of pistion? It looks like you can see some pocking of the aluminum near the top on the side which would indicate the piston was overheated. Again excessive lean condition indication. Still I've never seen piston ring do that to the top Lan. My first thought was who assembled this thing, but from your post it looks like Mazda did it!
TravisR is offline   Reply With Quote
Old 01-29-2012, 02:41 PM   #52
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

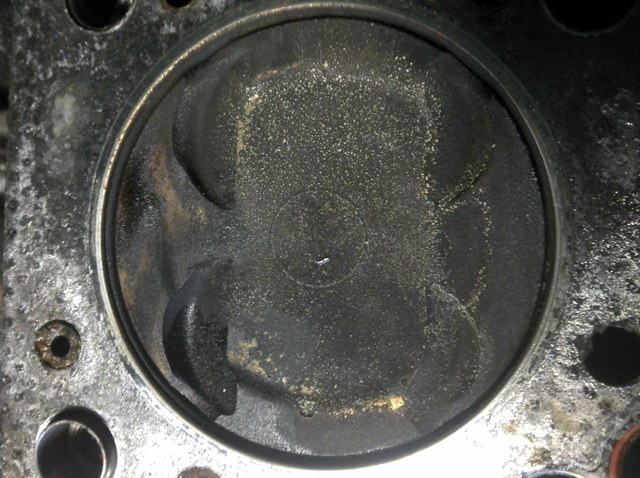

Piston n1 (ring OK)

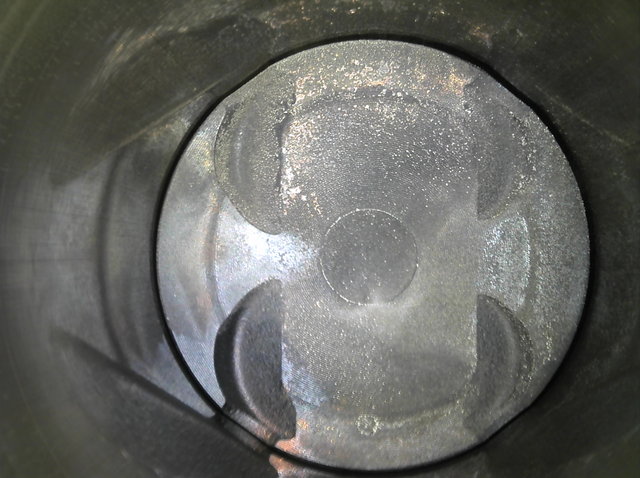

Piston n2 (ring KO)



Uploaded with ImageShack.us
Attached Thumbnails
Miata scroll supercharger (homemade setup)-20120110155521304.jpg   Miata scroll supercharger (homemade setup)-20120110155526999.jpg
phenixmt is offline   Reply With Quote
Old 01-29-2012, 06:29 PM   #53
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Those little light colored spots indicate detonation. What were you using to control the spark timing when the engine was in boost?
sixshooter is offline   Reply With Quote
Old 01-29-2012, 07:36 PM   #54
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

nice. but why,.. on my golf 2 rallye, it was removed and a autorotor screw type sc installed instead. much better(but noisy as nothinge else)
hf-mx5t is offline   Reply With Quote
Old 01-30-2012, 04:30 AM   #55
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Quote:
Originally Posted by sixshooter View Post
Those little light colored spots indicate detonation. What were you using to control the spark timing when the engine was in boost?
detonations... maybe when I was running without intercooler. Manifold's air intake was so hot.
I use 98 octane gasoline but it was not enough to prevent detonations at this time.
phenixmt is offline   Reply With Quote
Old 01-30-2012, 04:39 AM   #56
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Temp is pretty irrelevant, you should still be able to tune the car to not det.

I've had extended 150degC intake temps on track, pulled the head and not a hint of detonation.
richyvrlimited is offline   Reply With Quote
Old 01-30-2012, 04:53 AM   #57
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Well, I'm confused.

I though I was running in a kind of secure mode (8psi, 10 AFR, 5000rpm, 10 BTDC). So I don't know why.

Any ideas?
phenixmt is offline   Reply With Quote
Old 01-30-2012, 05:27 AM   #58
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

I realise that my spakplugs maybe a bit responsible, they're maybe too hot.
I will order NGK bkr7e-11
phenixmt is offline   Reply With Quote
Old 01-30-2012, 07:11 AM   #59
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by phenixmt View Post
Well, I'm confused.

I though I was running in a kind of secure mode (8psi, 10 AFR, 5000rpm, 10 BTDC). So I don't know why.

Any ideas?
Did you tune whilst listening for det? Or just assume that it was all OK?
richyvrlimited is offline   Reply With Quote
Old 01-30-2012, 08:49 AM   #60
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

I didn't make any tuning yet. Only use theory.
I though old engine could handle 100miles like this.

Here, was the plan:

-Finish the install of the supercharger,
-rebuild the engine before going further. (it was needed...)
-make fuel and spark tuning

Maybe engine was "fragile" before supercharging it
phenixmt is offline   Reply With Quote
