Old 06-21-2013, 01:18 AM   #1
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default Need help getting fuel with a power card

Hey guys, just bought a 96 miata with a jackson racing m45 on it. I guess its the gen 3 eaton because the front spacer from the nose to the housing is 1 inch thick.

Anyways, I have the stock pulleys on the kit. I put a new bypass valve on the car, and ordered a bypass check valve. Im looking to get a little more out of the kit. I was thinking about going to a bigger nose pulley, but am scared i'll run lean. Can I just get a vortech FMU (8:1), and run it along with the powercard? Will the power card be able to calculate the duty cycles quick enough with an FMU attached?

For reference I am only looking at running a nose pulley that is 65.5mm, which should be a total ratio of 1.99:1 for the pulley set ups.
verch101 is offline   Reply With Quote
Old 06-21-2013, 01:46 AM   #2
Junior Member

Join Date: Jul 2011
Location: Vancouver, BC
Posts: 50
Total Cats: 0
Default

First post... you have a supercharger and a powercard? Brave man.
Screaming04 is offline   Reply With Quote
Old 06-21-2013, 01:53 AM   #3
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

Quote:
Originally Posted by Screaming04 View Post
First post... you have a supercharger and a powercard? Brave man.
Well if I was afraid of people being dicks, I wouldn't be on the internet.
verch101 is offline   Reply With Quote
Old 06-21-2013, 01:55 AM   #4
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Why not sell the kit and get a basic turbo setup w/ proper engine management like a real man? Either way I hope you have a wb02 hooked up.
FRT_Fun is offline   Reply With Quote
Old 06-21-2013, 01:56 AM   #5
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

**** that, I'd by a fox body before doing all that.

(**** now I'm even trolling, but really FMU and power card?)
verch101 is offline   Reply With Quote
Old 06-21-2013, 08:24 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by verch101 View Post
Well if I was afraid of people being dicks, I wouldn't be on the internet.




Why not the FMU and NO Powercard? seriously.
Braineack is offline   Reply With Quote
Old 06-21-2013, 09:15 AM   #7
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post



Why not the FMU and NO Powercard? seriously.
Im open to this idea if you think it is a better solution. Is there a reason you suggest going that route?
verch101 is offline   Reply With Quote
Old 06-21-2013, 09:25 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

no fmu
no powercard
smallest sc pulley
largest crank pulley overlay
??????
disregard females acquire currency
18psi is offline   Reply With Quote
Old 06-21-2013, 09:35 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by verch101 View Post
Im open to this idea if you think it is a better solution. Is there a reason you suggest going that route?
which powercard do you even have?
Braineack is offline   Reply With Quote
Old 06-21-2013, 09:41 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

it doesn't matter bro

just tell him to raise the boostz
18psi is offline   Reply With Quote
Old 06-21-2013, 09:48 AM   #11
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Is there some reason you want to throw money at **** bandaids instead of a real tuning solution?

I hope it's emissions related.
thenuge26 is offline   Reply With Quote
Old 06-21-2013, 08:04 PM   #12
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

Quote:
Originally Posted by thenuge26 View Post
Is there some reason you want to throw money at **** bandaids instead of a real tuning solution?

I hope it's emissions related.
Yup emissions, and the fact that I have to have an operating ODBII port here.
verch101 is offline   Reply With Quote
Old 06-21-2013, 08:10 PM   #13
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

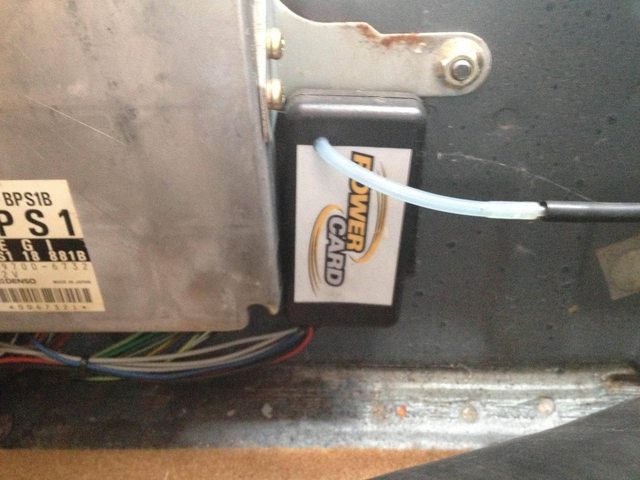

IDK what gen, I'll look it up. But here is a photo of it, until I write back.

Attached Thumbnails
Need help getting fuel with a power card-yldgorcl.jpg
verch101 is offline   Reply With Quote
Old 06-21-2013, 11:26 PM   #14
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

How do y'all feel about the AEM FIC?
verch101 is offline   Reply With Quote
Old 06-21-2013, 11:38 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by verch101 View Post
How do y'all feel about the AEM FIC?
About the same as we feel about being raped by a bear with AIDS.

List of "acceptable" piggybacks, in descending order of preference:


Well, that's not entirely true. The Greddy eManage Ultimate and the Xede are not horrible.
Joe Perez is offline   Reply With Quote
Old 06-22-2013, 02:24 AM   #16
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Well played.
nitrodann is offline   Reply With Quote
Old 07-09-2013, 09:53 PM   #17
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

What kind of gains do people usually see going to the mega squirt (or any other stand alone). I started looking into the DIY pnp mega squirt. As far as the electronics go, it seems really easy. I am just a little on edge about tuning it.

Can someone who has maybe been on the edge about this, maybe help convince me...


The plan so far, or what I acquired cheap on craigslist.
1. 190LPH fuel pump
2. 315 supra injectors
3. mazda speed miata inter-cooler
4. 62.5mm pulley


The other option is to just go with the fuel pump, intercooler, pull timing, and run the power card.
verch101 is offline   Reply With Quote
Old 07-09-2013, 09:57 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

No one is going to convince you. If the numerous threads and posts on here from people switching and being happy are not convincing enough you just never will be convinced.

That said, I personally tuned a few setups that switched from band aids to full EMS and the results were good. No record breaking power gains, but torque and smoothness was picked up just about everywhere. More control and precision means the car will be more enjoyable and efficient if tuned correctly.
18psi is offline   Reply With Quote
Old 07-09-2013, 10:00 PM   #19
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

How hard is it to figure out the fuel maps, working off of the base map? I know they provide the spark tables, so thats nice. But I am worried about getting the tune right. I already plan to buy a wide band. I just know nothing past tuning a carb.
verch101 is offline   Reply With Quote
Old 07-09-2013, 10:17 PM   #20
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Get used rx7 460cc injectors for $50 and you can copy my fuel map for starters. It is nice to have a little headroom. The autotune feature of TunerStudio tunes your MegaSquirt fuel map for you so you don't have to be adept at anything. It really is so easy that I could do it.

The Mazdaspeed intercooler is so small that it isn't worth it. You need three of them to almost make a cheap chinese ebay intercooler.

Before you jump off and buy a MSPNP, though, I would seriously consider the MS3 Basic being custom built by Reverent. SO NICE! Especially for the money. I'll look for the link on this forum.


Edit: here it is https://www.miataturbo.net/ms-labs-m...ms-labs-69930/

Reverent will install and ship it with a base map to match the size of your injectors of choice.
sixshooter is online now   Reply With Quote
