Old 02-21-2009, 02:39 AM   #1
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default Rotrex anyone?

Oscar Jackson, who started Jackson racing, then sold it to Moss Motors, is now selling the Rotrex SC. Has anyone put one of these SC's in their car ?
drgoodwrench is offline   Reply With Quote
Old 02-21-2009, 02:42 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

I just dont see the point in putting any supercharger on our cars when turbo's are so cheap
18psi is offline   Reply With Quote
Old 02-22-2009, 07:35 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default Miata Rotrex You Tube Dyno Video

drgoodwrench is offline   Reply With Quote
Old 02-22-2009, 08:00 PM   #4
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
I just dont see the point in putting any supercharger on our cars when turbo's are so cheap

The point is to make less power for more money! Don't you get it?!?

183hp at 10psi? I made 241 on a Mustang dyno at 10.5 psi with my BEGI S4 system.
cueball1 is offline   Reply With Quote
Old 03-31-2009, 04:11 PM   #5
Junior Member
iTrader: (11)

Join Date: Oct 2006
Location: Petaluma, California
Posts: 166
Total Cats: -3
Default

I got a ride in the Rotrex car @ [email protected] and it pulls VERY nicely - WAY stronger than the JRSC and more than the FFSC. Of course it was intercooled, but it was still very impressive (and quiet if that matters to you). It would be my first choice for supercharging a 99-05 and I might end up going that route after I swap out my LE's 1.6 for the '99 I have sitting in my backyard
minime is offline   Reply With Quote
Old 03-31-2009, 04:49 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Talk to Emilio.

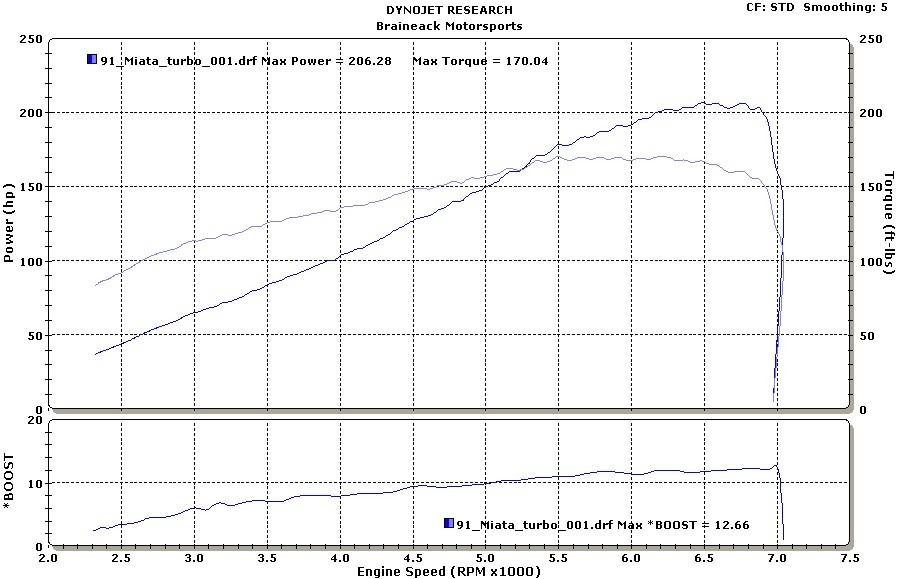

here's my rotrex:

Name:  wastegatge.jpg
Views: 25
Size:  89.5 KB




ps. not really


But here's the reason that for most intents and purposes superchargers are FTL:

Name:  wastegate_vs_solenoid1.jpg
Views: 22
Size:  96.4 KB
Braineack is offline   Reply With Quote
Old 03-31-2009, 04:53 PM   #7
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by minime View Post
I got a ride in the Rotrex car @ [email protected] and it pulls VERY nicely - WAY stronger than the JRSC and more than the FFSC. Of course it was intercooled, but it was still very impressive (and quiet if that matters to you). It would be my first choice for supercharging a 99-05 and I might end up going that route after I swap out my LE's 1.6 for the '99 I have sitting in my backyard

Impressive, yes, quiet, no. It was just about the only car breaking the LS sound rules. Very fast though, I rode with Savington for a few laps chasing that thing.
kotomile is offline   Reply With Quote
Old 03-31-2009, 05:46 PM   #8
Junior Member
iTrader: (11)

Join Date: Oct 2006
Location: Petaluma, California
Posts: 166
Total Cats: -3
Default

I meant the blower sound and the reason his exhaust was so loud was just that - his exhaust.
minime is offline   Reply With Quote
Old 03-31-2009, 06:01 PM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Ahh, gotcha.
kotomile is offline   Reply With Quote
Old 04-12-2009, 03:51 PM   #10
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

The graphs show the exact reason why I have been working with Oscar to change the way SC boost is managed. We have come up with a simple way to improve "spool up" dramatically while still limiting top end boost to a reasonable number. I will post some graphs soon.
I put 600 miles on the test car at California Speedway over three days, with the only problem occuring under high lateral G load all the fuel went to the right side of the stock tank (only 1/8th on the gauge when level), and we fueled starved under full boost!! Detonated the spark plug electrode and insulator into a bizzilion pieces.
Will drop a fresh crate motor in and be back at Buttonwillow for a three hour endurance race at the end of this month for further testing, but this time with a fuel pressure safety kill loop in the ECU.
drgoodwrench is offline   Reply With Quote
Old 05-26-2009, 11:46 PM   #11
Newb

Join Date: May 2009
Location: Queensland Australia
Posts: 23
Total Cats: 0
Default Rotrex

Yes, I have recently fitted A Rotrex 74,crank pulley 150mm SC pulley 95mm
intercooled,xede ecu.180rwhp
Cheers
OD
overdrawn is offline   Reply With Quote
Old 05-27-2009, 03:55 AM   #12
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

need pics ^^
richyvrlimited is offline   Reply With Quote
Old 05-27-2009, 05:39 PM   #13
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Read the 949racing site: super reliable, upgrades for >200whp available, no overheating. If it is all true and I would start over it'd be a serious candidate.
Laur3ns is offline   Reply With Quote
Old 05-27-2009, 05:57 PM   #14
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

One of the local shops here in Huntsville does modified BRP MP62 kits on S2000s and Miatas, and they flat haul ***. In kill mode, the shop manager's Miata makes ~240 wheel and more torque, and it makes that torque from idle to redline. I've autocrossed it some, and the thing is simply disgusting. It'll blow 225/60-14 Hoosiers off at will at essentially any reasonable autocross speed.

That said, big power centrifugals are... a pain in the *** at best. My buddy's 97 Cobra makes 600+ through a C4 and a 9", and it was nigh un-drivable. It made so much power on the top end that you couldn't shift it fast enough with the 5 speed to stay out of the limiter, and every time you hit the limiter it would toss/ shred the belt (10 rib aftermarket setup, aftermarket tensioners, etc). For a medium power setup, I could see it being fun, but I can't ever see it being economical...
vehicular is offline   Reply With Quote
Old 05-27-2009, 09:05 PM   #15
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by vehicular View Post
One of the local shops here in Huntsville does modified BRP MP62 kits on S2000s and Miatas, and they flat haul ***. In kill mode, the shop manager's Miata makes ~240 wheel and more torque, and it makes that torque from idle to redline. I've autocrossed it some, and the thing is simply disgusting. It'll blow 225/60-14 Hoosiers off at will at essentially any reasonable autocross speed.

That said, big power centrifugals are... a pain in the *** at best. My buddy's 97 Cobra makes 600+ through a C4 and a 9", and it was nigh un-drivable. It made so much power on the top end that you couldn't shift it fast enough with the 5 speed to stay out of the limiter, and every time you hit the limiter it would toss/ shred the belt (10 rib aftermarket setup, aftermarket tensioners, etc). For a medium power setup, I could see it being fun, but I can't ever see it being economical...
Begin threadjack

You've got to give me a ride in your miata. Joined the army haven't seen mine in almost 7 months, and now I'm stationed at Redstone in Huntsville.

/threadjack.
KPLAFIN is offline   Reply With Quote
Old 05-27-2009, 09:08 PM   #16
Newb

Join Date: May 2009
Location: Queensland Australia
Posts: 23
Total Cats: 0
Default did you get the photo

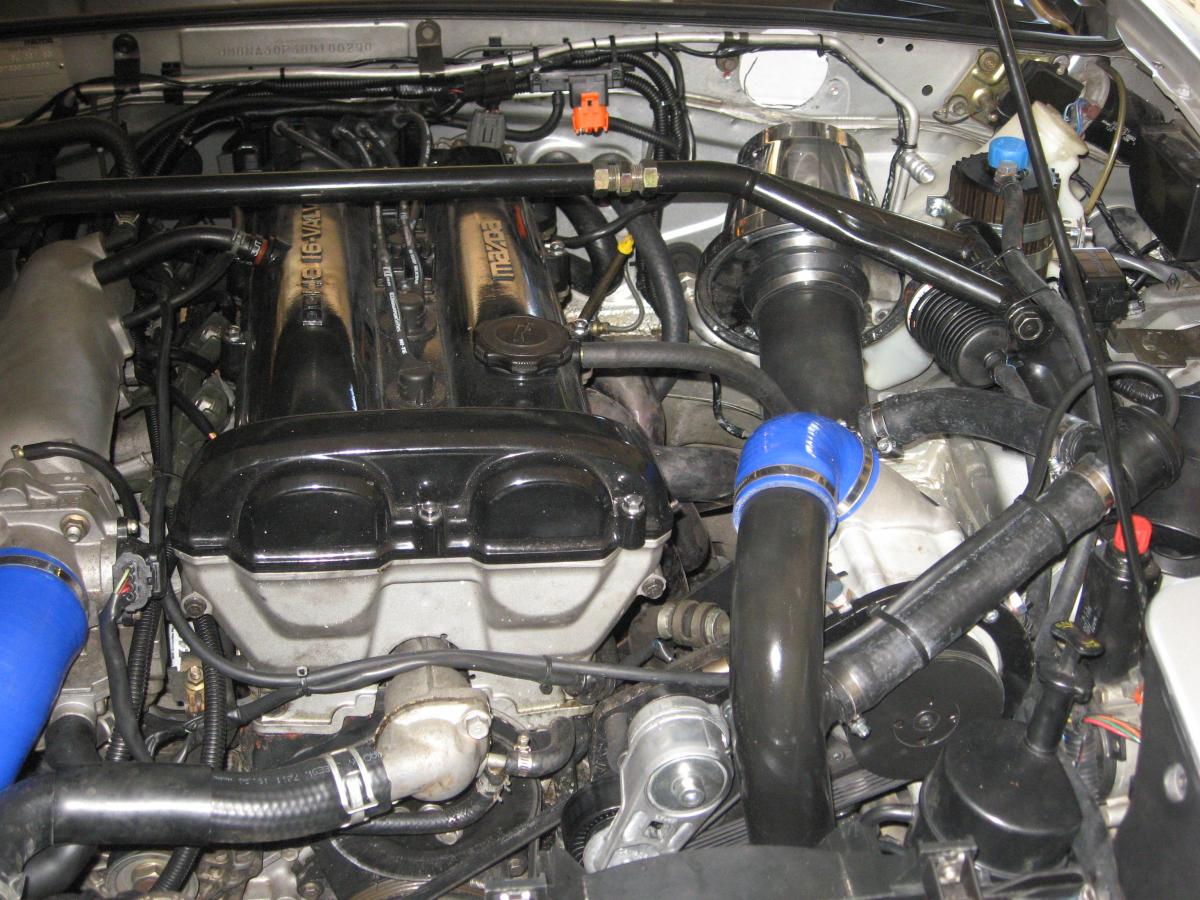

Rotrex[
Attached Thumbnails
Rotrex anyone?-bullet-004.jpg

Last edited by overdrawn; 06-19-2009 at 03:14 AM. Reason: poor photo
overdrawn is offline   Reply With Quote
Old 05-27-2009, 09:20 PM   #17
Newb

Join Date: May 2009
Location: Queensland Australia
Posts: 23
Total Cats: 0
Default Photo

Sorry about the poor photo if you go to Bullet Cars: Supercharger Kits & Installation, Performance Parts, and manufacturers of the Bullet V8 Supercar, while it is not my car, mine has 3 more KW's and more torque,you will find a better photo and dyno sheet.
OD
overdrawn is offline   Reply With Quote
Old 05-28-2009, 04:20 PM   #18
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by vehicular View Post
That said, big power centrifugals are... a pain in the *** at best. My buddy's 97 Cobra makes 600+ through a C4 and a 9", and it was nigh un-drivable. It made so much power on the top end that you couldn't shift it fast enough with the 5 speed to stay out of the limiter, and every time you hit the limiter it would toss/ shred the belt (10 rib aftermarket setup, aftermarket tensioners, etc). For a medium power setup, I could see it being fun, but I can't ever see it being economical...
Are you talking about 2 different transmission setups in your buddys Cobra? A C4 is a 3 speed automatic...
Rennkafer is offline   Reply With Quote
Old 05-28-2009, 04:53 PM   #19
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Quote:
Originally Posted by Rennkafer View Post
Are you talking about 2 different transmission setups in your buddys Cobra? A C4 is a 3 speed automatic...

Sorry I was unclear. He had a TKO600RR and a Spec twin plate, but swapped to the C4 so that he could get the thing down the street. When I say it was undriveable, I mean you could barely get it to the store without tossing the belt unless you absolutely babied it... It was a blast if it didn't belong to you, though, lol.
vehicular is offline   Reply With Quote
Old 05-28-2009, 04:56 PM   #20
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

BTW, we used a Rotrex on an FSAE engine project in ~2005, and while the engine package sucked, the blower sounded siiiiiick.
vehicular is offline   Reply With Quote
