Old 04-18-2017, 10:26 PM   #21
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 557
Total Cats: 42
Default

The outlet for that traction fluid line, is it free of kinks and stuff? It looks like it could be in that one pic.
mmmjesse is offline   Reply With Quote
Old 04-19-2017, 07:56 AM   #22
Newb
Thread Starter

Join Date: Nov 2014
Posts: 16
Total Cats: 1
Default

The kit does come with a restrictor. It is the black circular thing next to the pulley in the kit overview photo further up. It is required to have the restrictor fitted, for the kit to be legal in Denmark. Somehow I must have forgotten to put it in. Let's hope I don't keep forgetting it

I haven't done any boost leak testing. I'll try to make a tool, and get it done.
Delaney is offline   Reply With Quote
Old 04-19-2017, 07:58 AM   #23
Newb
Thread Starter

Join Date: Nov 2014
Posts: 16
Total Cats: 1
Default

Quote:
Originally Posted by mmmjesse View Post
The outlet for that traction fluid line, is it free of kinks and stuff? It looks like it could be in that one pic.
You're right, in one of the pictures, the outlet hose looks squashed. That's not the case, there is a nice gap between the charger and the bracket
Delaney is offline   Reply With Quote
Old 04-21-2017, 10:07 AM   #24
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 300
Total Cats: -25
Default

Any chance your belt has become glazed? Or your pulleys?
huesmann is offline   Reply With Quote
Old 04-22-2017, 11:32 AM   #25
Newb
Thread Starter

Join Date: Nov 2014
Posts: 16
Total Cats: 1
Default

Quote:
Originally Posted by huesmann View Post
Any chance your belt has become glazed? Or your pulleys?

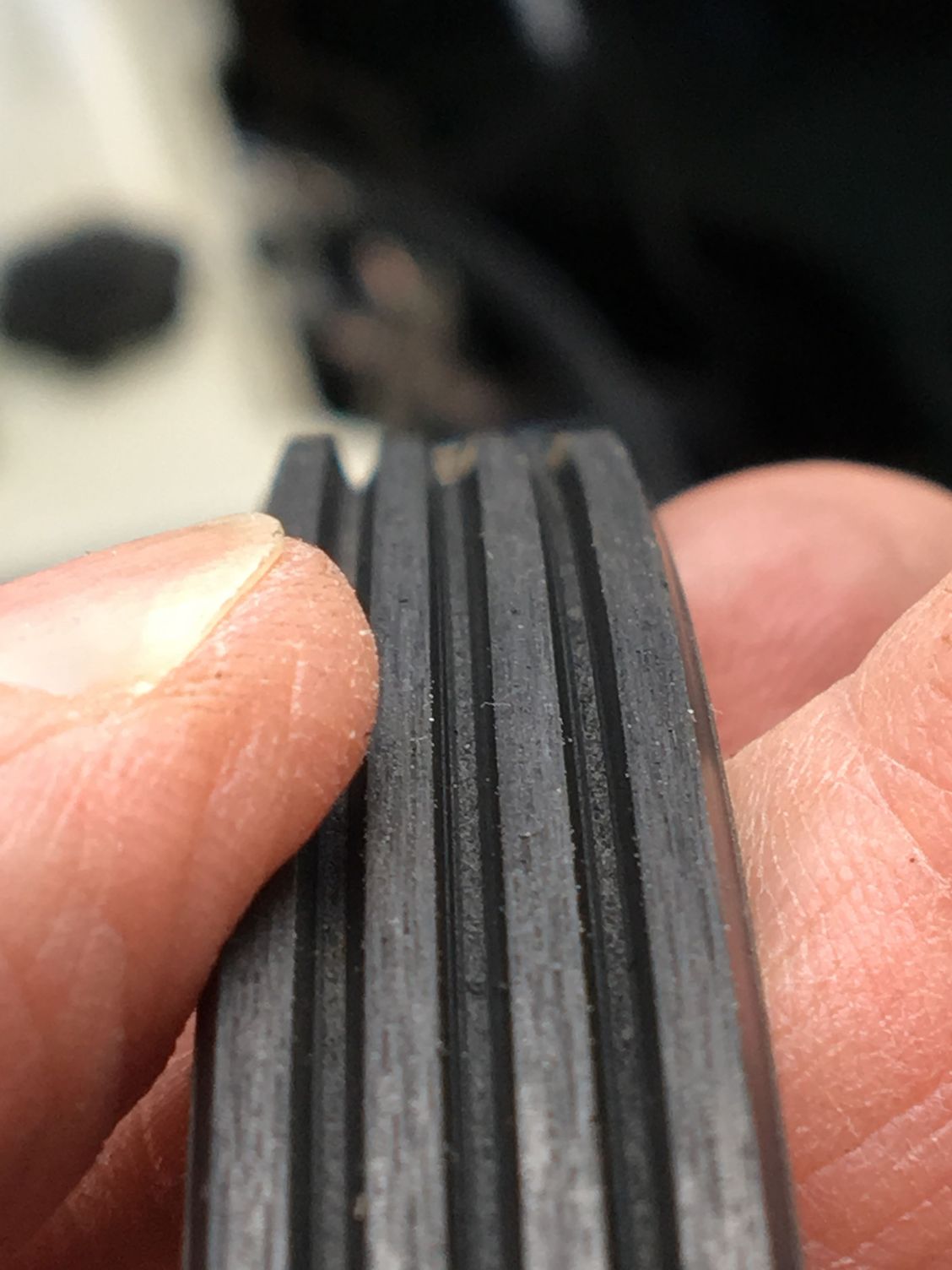

i took off the belt to check. This is how it looks after 200-300 miles

That looks very worn, doesn't it? Almost like the teeth have been ground down.

I've indicated the belt routing in this photo. Note that the three center pulleys are flat, and the belt runs teeth in on two of the three pulleys. That's probably not ideal, but would it cause belt slip? I've also indicated the tensioner direction with an arrow.


Any suggestions?
Delaney is offline   Reply With Quote
Old 04-22-2017, 01:13 PM   #26
Mr Broke Pants
iTrader: (8)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,484
Total Cats: 62
Default

I have no experience with this, but maybe switching the bottom smooth pulley with the center ribbed pulley would help? Just a thought.
thumpetto007 is offline   Reply With Quote
Old 04-22-2017, 02:16 PM   #27
Newb
Thread Starter

Join Date: Nov 2014
Posts: 16
Total Cats: 1
Default

All three pulleys in the center of the photo are flat. Only the charger and the crank pulleys are ribbed.
Delaney is offline   Reply With Quote
Old 04-22-2017, 06:23 PM   #28
Junior Member

Join Date: Nov 2012
Location: Netherlands, Europe
Posts: 66
Total Cats: 6
Default

Quote:
Originally Posted by Delaney View Post
All three pulleys in the center of the photo are flat. Only the charger and the crank pulleys are ribbed.
That might be part of your problem.
Flat pulleys are OK on the outside of your belt, but not really on the inside I think.
The important thing here is belt tension: you need tension to prevent the belt to slip.
I am afraid the flat idler pulleys sort of squash the high ribs of the belt and prevent you from getting proper tension.
DaWaN is offline   Reply With Quote
Old 04-23-2017, 02:27 AM   #29
Mr Broke Pants
iTrader: (8)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,484
Total Cats: 62
Default

without any prior knowledge, that sounds right.
thumpetto007 is offline   Reply With Quote
Old 05-16-2017, 02:07 PM   #30
Newb
Thread Starter

Join Date: Nov 2014
Posts: 16
Total Cats: 1
Default

I have tried changing the belt routing by rotating the mounting of the tensioner, so the tensioner movement is more downwards. Illustrated here.



This setup also doesn't seem to work, since the tensioner doesn't move sufficiently down to take out the slack, even with the shortest possible belt.

I'm lost here. Help.
Delaney is offline   Reply With Quote
Old 05-18-2017, 06:25 AM   #31
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,393
Total Cats: 54
Default

Quote:
Originally Posted by 18psi View Post
I'd be really surprised if a 180hp Miata would be huffing enough air to collapse a silicone inlet, but maybe
If it's a cheap hose, a stock Miata at idle will collapse a silicone inlet. My old MP62 setup used to do it. I would hope the kit the OP has included a quality hose.


Something's really weird here. Did you buy this kit new or used? It almost seems like the bracket and tensioner system is not compatible with your setup...like the kit is for AC or No AC and you have the opposite.

Last edited by Enginerd; 05-18-2017 at 06:38 AM.
Enginerd is offline   Reply With Quote
Old 05-22-2017, 03:46 PM   #32
Newb

Join Date: Nov 2016
Posts: 3
Total Cats: 0
Default

Do you have proper check valves on all the vac lines? Could have one going bad that burps at ~6.5psi

Also, what kit is this? Every other one I've ever seen has the SC mounted significantly higher, plus I notice the one tensioner pulley in your system seems to be a good 6-7cm below the main crank pulley...
themonkeyman is offline   Reply With Quote
Old 05-22-2017, 11:14 PM   #33
Mr Broke Pants
iTrader: (8)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,484
Total Cats: 62
Default

All the charge tubing and intake are silicone. Looking back over this thread, I'm still sayin its those hoses collapsing at 6000rpm.
thumpetto007 is offline   Reply With Quote
Old 05-23-2017, 09:11 AM   #34
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 984
Total Cats: 41
Default

Do you, or someone you know, have a go-pro or something similar? Would be easy to see if it is the hoses that way.
x_25 is offline   Reply With Quote
Old 05-23-2017, 09:40 AM   #35
Newb
Thread Starter

Join Date: Nov 2014
Posts: 16
Total Cats: 1
Default

Quote:
Originally Posted by Enginerd View Post
If it's a cheap hose, a stock Miata at idle will collapse a silicone inlet. My old MP62 setup used to do it. I would hope the kit the OP has included a quality hose.

Something's really weird here. Did you buy this kit new or used? It almost seems like the bracket and tensioner system is not compatible with your setup...like the kit is for AC or No AC and you have the opposite.
Kit was bought new, some 25-30 cars run this kit in Denmark. However, almost all run with a chunky restrictor in the inlet, and noone is facing the same issues. The charger is mounted in place of the AC compressor. So no mixups there. But the setup is probably not ideal for belt wear, given that the belt ribs are running on the flat pulleys in two locations.

Quote:
Originally Posted by themonkeyman View Post
Do you have proper check valves on all the vac lines? Could have one going bad that burps at ~6.5psi

Also, what kit is this? Every other one I've ever seen has the SC mounted significantly higher, plus I notice the one tensioner pulley in your system seems to be a good 6-7cm below the main crank pulley...

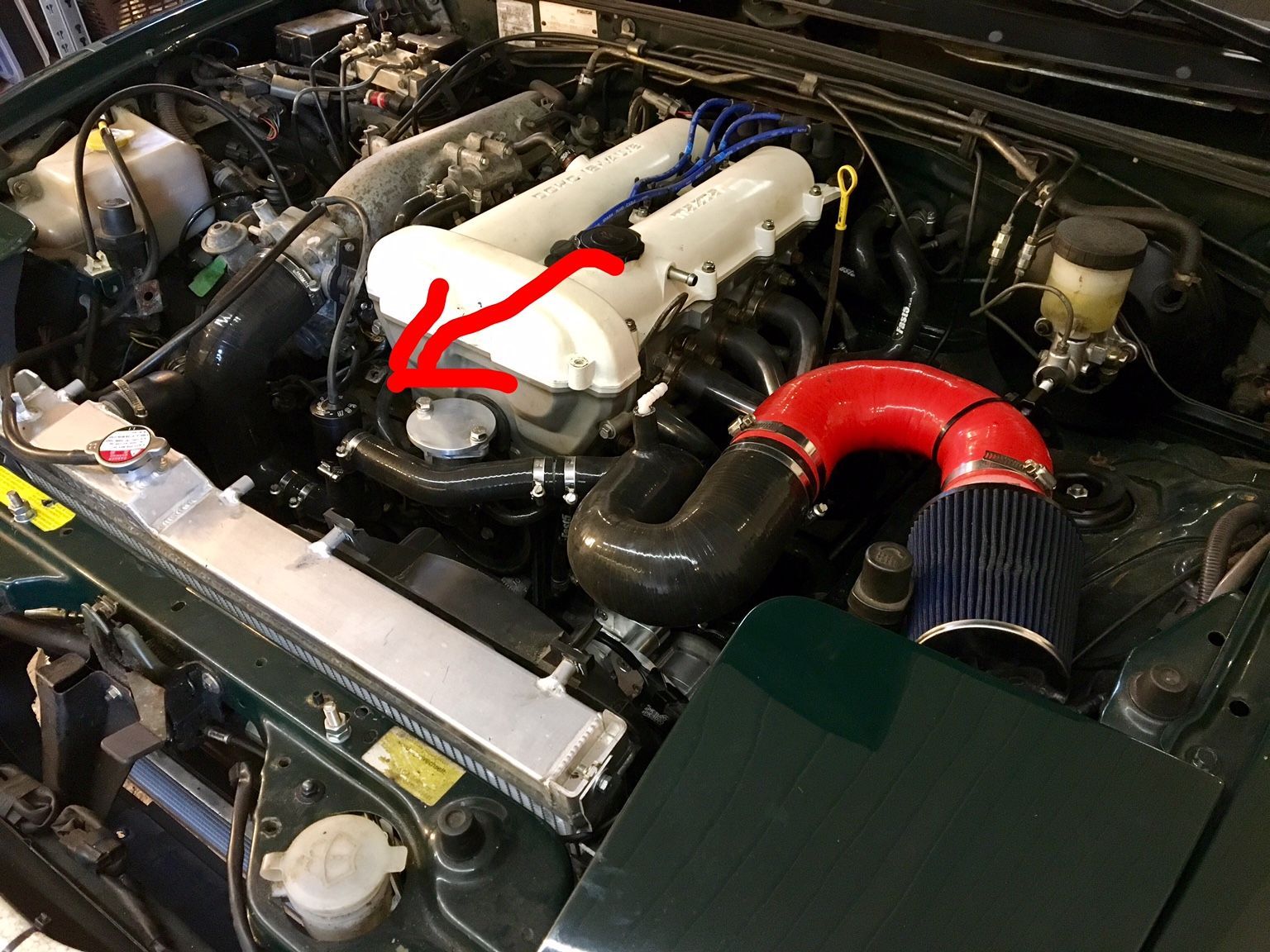

I have no valves in the system, except for the recirc valve seen in the photo below. Which vac line would I be concerend about?
The kit is a Danish offering from small company CCR Racing. You are right, it is a very low mount. The tentioner pulley is the top one in the photo above, with the tensioning direction marked with an arrow.

Quote:
Originally Posted by thumpetto007 View Post
All the charge tubing and intake are silicone. Looking back over this thread, I'm still sayin its those hoses collapsing at 6000rpm.
Just so we are on the same page here, only the hose between the filter and the charger would be capable of collapsing at full boost right?

Quote:
Originally Posted by x_25 View Post
Do you, or someone you know, have a go-pro or something similar? Would be easy to see if it is the hoses that way.
I have a gopro, I guess I could fit it and see what happens. Are you suggesting I remove the hood for the trial? Or put some light under there?
Delaney is offline   Reply With Quote
Old 05-23-2017, 11:08 AM   #36
Mr Broke Pants
iTrader: (8)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,484
Total Cats: 62
Default

Quote:
Originally Posted by Delaney View Post
Just so we are on the same page here, only the hose between the filter and the charger would be capable of collapsing at full boost right?
Nope, pretty sure it could happen on any of them. Not likely in the charge pipe, but if there is some issue with supercharger response... who knows.

honestly why would you run without the restrictor if thats how its supposed to be installed?

Put it on, no more hose collapse. I cant believe this problem has persisted so long lol.

I also cant believe a company can sell a kit of such terrible quality. When i first saw this thread, i thought you had cobbled together random cars silicone inlets, and done a diy bracket and pulley setup.
thumpetto007 is offline   Reply With Quote
Old 05-23-2017, 11:24 AM   #37
Newb

Join Date: Nov 2016
Posts: 3
Total Cats: 0
Default

Quote:
Originally Posted by Delaney View Post
Kit was bought new, some 25-30 cars run this kit in Denmark. However, almost all run with a chunky restrictor in the inlet, and noone is facing the same issues. The charger is mounted in place of the AC compressor. So no mixups there. But the setup is probably not ideal for belt wear, given that the belt ribs are running on the flat pulleys in two locations.

I have no valves in the system, except for the recirc valve seen in the photo below. Which vac line would I be concerend about?
The kit is a Danish offering from small company CCR Racing. You are right, it is a very low mount. The tentioner pulley is the top one in the photo above, with the tensioning direction marked with an arrow.
I would think that you'd need check/one-way valves on most of your vac lines and PCV, otherwise when the manifold goes into boost, you'll be pressurizing the entire vac system and the crankcase. Plus, you are missing the crankcase vent hose in this picture, so you're boost is probably just getting blown through the valvecover. I'm guessing right around the 6k mark is where the SC just runs out of puff after pressurizing the charge pipe, intercooler, manifold, crankcase, and the whole vac system. Try capping off the vac lines and the PCV port and I bet it fixes your issues.

Quote:
I also cant believe a company can sell a kit of such terrible quality. When i first saw this thread, i thought you had cobbled together random cars silicone inlets, and done a diy bracket and pulley setup.
Also this, I can't believe they would decide to mount the SC so low, when 1)everyone else mounts it much higher and 2) the company themselves stress the importance of having the SC be the highest point in an oiling system that is critical to its function.
themonkeyman is offline   Reply With Quote
Old 05-23-2017, 02:43 PM   #38
Newb
Thread Starter

Join Date: Nov 2014
Posts: 16
Total Cats: 1
Default

Background info: In Denmark we have this lovely rule, than any changed component on a car is illegal, unless it has been verified by the German testing lab TÜV. And I mean everything, wheels, air filters, steering wheels. The lot. For example, I run 1.8 brakes on my 1.6 car = illegal. As you can appreciate, running a boosted car in Denmark is not easy. CCR has put the kit together and has had it tested at TÜV at great effort and cost. As such, this one kit is the only legal way to boost a Miata in Denmark.

For the TÜV approval to be valid, the car has to run with the restrictor, the stock ECU and the stock injectors. This gives a lift of 116->150 flywheel hp. This of course sucks. Therefore, I have chosen to run this kit without the restrictor using a ms2 and bigger injectors. It will then look legal, but I can hope to make maybe 210 fly hp when everything is tuned properly.

I appreciate your comments about the kit, but they only add to my frustration about the Danish laws.

I never came across anybody mentioning the need to run additional valves even with high boost Rotrex installs. I don't believe the come supplied with the American kits? The photo above was from when I was finishing the install. The crankcase line was connected before first start of the car with the kit. Looks like this now:


Last edited by Delaney; 05-23-2017 at 03:10 PM.
Delaney is offline   Reply With Quote
Old 05-23-2017, 03:45 PM   #39
Mr Broke Pants
iTrader: (8)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,484
Total Cats: 62
Default

^ah ok. But I still feel like there was more than one reason they used the restrictor. Did you try running with it back in to see if the problem persisted? You could still tune it for more than the kit legally can make, even with the restrictor.
