Default Supercharger + Bov

I am trying to find some info on this, but just can't find enough.

I want to make a dual TB setup.
For this i need a BOV.

Could you guys tell me what kind of BOV i need, and how to connect it?
My setup is running on 12PSI (0.6 Bar)


Would this be a good BOV for the setup?

http://auto-onderdelen.marktplaats.n...k-edition.html

More info: http://www.templetuning.co.uk/hks-ss...ion-5602-p.asp

Or would you guys recommend a different one? I do not want to much noise though, since tis is my dialy...


Hope i get more response like this...

Here is my topic on the dual TB setup:
http://www.mx5nutz.com/forum/index.php?showtopic=65080
Lazy_g is offline   Reply With Quote
Old 01-21-2011, 10:40 AM   #2
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,074
Total Cats: 253
Default

There is no specific blow off valve for a supercharger. Any one will work. All you need to do is install it and hook up a boost/vacuum line to a port on your intake manifold.

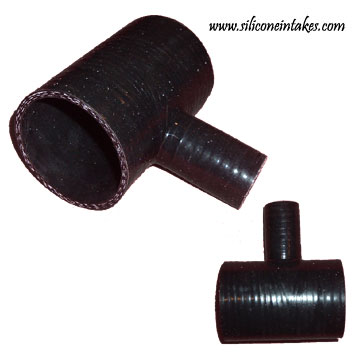

The HKS needs a flange adapter to work, I would recommend something like this from silicone intakes (dot) com


In my opinion, it would be easiest to just cut a section of your cross over tube and just slip this coupler over it. There are a plethora of blow off valves that can work with that piece.

There is even a HKS adapter that will work, if you have your heart set on it. However, the HKS is LOUD.
viperormiata is offline   Reply With Quote
Old 01-21-2011, 10:51 AM   #3
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

The BOV you show will be fine. You'll need to connect it by tee-ing off the intake, preferably, between the output from the intercooler and the throttle body you are going to install on the intake. You can install it before the intercooler if you have to.
Since this is a daily driver you want to be quiet, use the supplied recirculating adapter to plumb the BOV outlet back to the supercharger inlet before the supercharger throttle body.

IIRC, the 1.6 and 1.8 throttle bodies have different mounting patterns. You should be able to use a NB or NB2 (Mk2 or Mk2.5) TB, just remember that the IAC will have to be removed or capped on the supercharger inlet TB (unless you can make them both work in parallel). You only need one throttle position sensor on the intake manifold TB.

Here is why you want a sequential BOV for your supercharger application: http://www.hksusa.com/products/more.asp?id=792
BarbyCar is offline   Reply With Quote
Old 01-21-2011, 11:43 AM   #4
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 101
Total Cats: 0
Default

Ok thank, great info!

What do you mean with supercharger inlet before the supercharger throttle body?
And this would make the HKS BOV more silent?
Lazy_g is offline   Reply With Quote
Old 01-22-2011, 12:40 PM   #5
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Lazy_g, these questions make me a little worried about your ability to successfully pull this off. Time for you to do some research on your own.

To answer your questions however.

1. You will have two throttle bodies when you are finished.
One will be on the inlet to the intake manifold just like an unmodified engine. This TB should have the Idle Air Control (IAC) and the Throttle Position Sensor (TPS) attached to it (just like stock). The other TB will be mounted to the inlet of your supercharger.
I'll assume that you can mount the Blow Off Valve (BOV), on a tee of some description (like viperormiata posted), between the outlet of the intercooler and the TB on the intake manifold. The BOV has a recirculation adapter which takes the dumped air (instead of venting it to atmosphere). You would connect a hose to this adapter and connect the other end to another tee which you would fit between the Air Filter (or MAF if you still have it) and the TB mounted on the inlet of the supercharger.

2. Recirculating the BOV in this way makes less noise than dumping the air to atmosphere.
BarbyCar is offline   Reply With Quote
Old 01-22-2011, 08:22 PM   #6
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 101
Total Cats: 0
Default

Quote:
Originally Posted by BarbyCar View Post
Lazy_g, these questions make me a little worried about your ability to successfully pull this off. Time for you to do some research on your own.

To answer your questions however.

1. You will have two throttle bodies when you are finished.
One will be on the inlet to the intake manifold just like an unmodified engine. This TB should have the Idle Air Control (IAC) and the Throttle Position Sensor (TPS) attached to it (just like stock). The other TB will be mounted to the inlet of your supercharger.
I'll assume that you can mount the Blow Off Valve (BOV), on a tee of some description (like viperormiata posted), between the outlet of the intercooler and the TB on the intake manifold. The BOV has a recirculation adapter which takes the dumped air (instead of venting it to atmosphere). You would connect a hose to this adapter and connect the other end to another tee which you would fit between the Air Filter (or MAF if you still have it) and the TB mounted on the inlet of the supercharger.

2. Recirculating the BOV in this way makes less noise than dumping the air to atmosphere.
Well i am doing my research, but i think it is the language difference wich makes it difficult for me. Since i am dutch, and my technical english is not that great... And most of the info is in english....

but thanks for explaining, i fully understand now!
Lazy_g is offline   Reply With Quote
Old 01-23-2011, 01:39 AM   #7
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Quote:
Originally Posted by Lazy_g View Post
Well i am doing my research, but i think it is the language difference wich makes it difficult for me. Since i am dutch, and my technical english is not that great... And most of the info is in english....

but thanks for explaining, i fully understand now!
Then please accept my apologies, your English far exceeds my Dutch.
BarbyCar is offline   Reply With Quote
Old 03-20-2011, 08:48 PM   #8
Newb

Join Date: Mar 2010
Posts: 26
Total Cats: 0
Default

Is a BOV even needed.

I run dual throttles, and 9PSI on my mini mp45 supercharged car, and don't have one.

Ran it for the past year, no issues...

Over here in the uk most of us have 2 throttles, some run BOV's, but a lot don't. I have never heard a compelling argument to fit one.
My supercharger has a bypass, so this does the same job surely?
oakesy2001uk is offline   Reply With Quote
Old 03-20-2011, 10:44 PM   #9
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Quote:
Originally Posted by oakesy2001uk View Post
Is a BOV even needed.

I run dual throttles, and 9PSI on my mini mp45 supercharged car, and don't have one.

Ran it for the past year, no issues...

Over here in the uk most of us have 2 throttles, some run BOV's, but a lot don't. I have never heard a compelling argument to fit one.
My supercharger has a bypass, so this does the same job surely?
I'm not running a Bov on my MP62 after dicking around for several months thinking I needed one. I figure that as long as the bypass has no orifice to slow it's action my low boost (6psi) application works just fine with no bov.
BarbyCar is offline   Reply With Quote
Old 03-21-2011, 01:51 AM   #10
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

I heard about the saying of the HKS valve being loud.... If you take the whistler out of it... (looks like a mercedes sign) it is actually very quiet, and you don't sound like a gianormous ricer.

Edit: 12 psi is like .8something bar.

Last edited by chicksdigmiatas; 03-21-2011 at 02:01 AM.
chicksdigmiatas is offline   Reply With Quote
Old 03-21-2011, 04:51 AM   #11
Newb

Join Date: Mar 2010
Posts: 26
Total Cats: 0
Default

Quote:
Originally Posted by BarbyCar View Post
I'm not running a Bov on my MP62 after dicking around for several months thinking I needed one. I figure that as long as the bypass has no orifice to slow it's action my low boost (6psi) application works just fine with no bov.
I know, as I say, I'm yet to hear a reasn other than people assuming you need one because turbo's do (well they dont have a bypass). Or "its a cool noise".

There are a couple of people who say it had a negative effect!
oakesy2001uk is offline   Reply With Quote
Old 09-14-2011, 11:21 AM   #12
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 101
Total Cats: 0
Default

It has been some time since my last post.

Some final movies from the road trip:
[youtube]http://www.youtube.com/watch?v=RCyKPXeqwA4[/youtube]
For more movies click here

After this we started on big maintenance and cleaning. This did give a lot of problems for a few weeks...

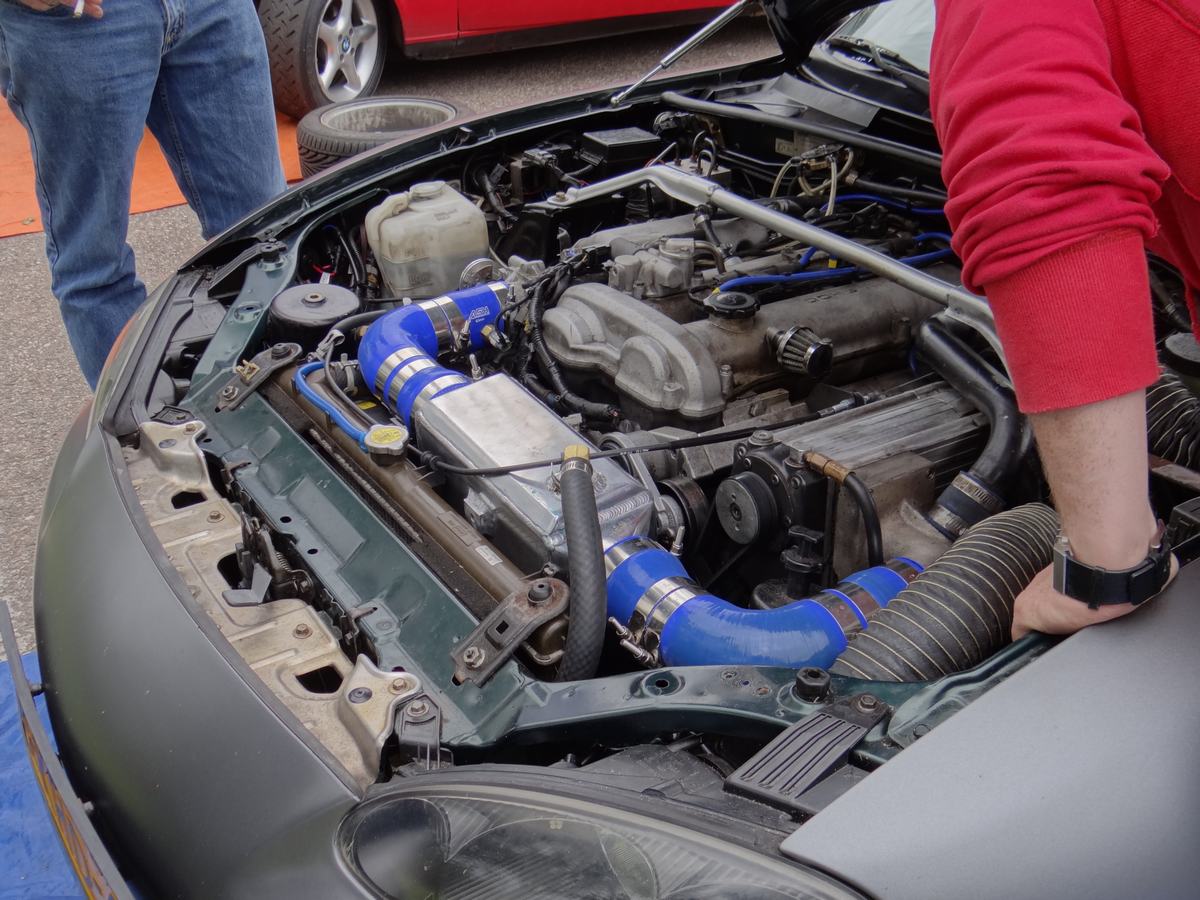

This is what she looked like first:



Cleaning part 1 click here
Cleaning part 2 click here

Ok now the good and the bad news:
For full story click here

Last but not least, i finally got a dyno run!
Result 181,2 RWHP en 234Nm torque!

Not bad, but we can do better! So new to do list:
- 550CC injectors (now 450CC)
- new exhaust system
- new downpipe
- VVT Controler
- a good tuning session.

200RWHP should be possible i guess...

Full story click here!!! including end result pictures of cleaning





Ok i think you guys are fully up to date now!

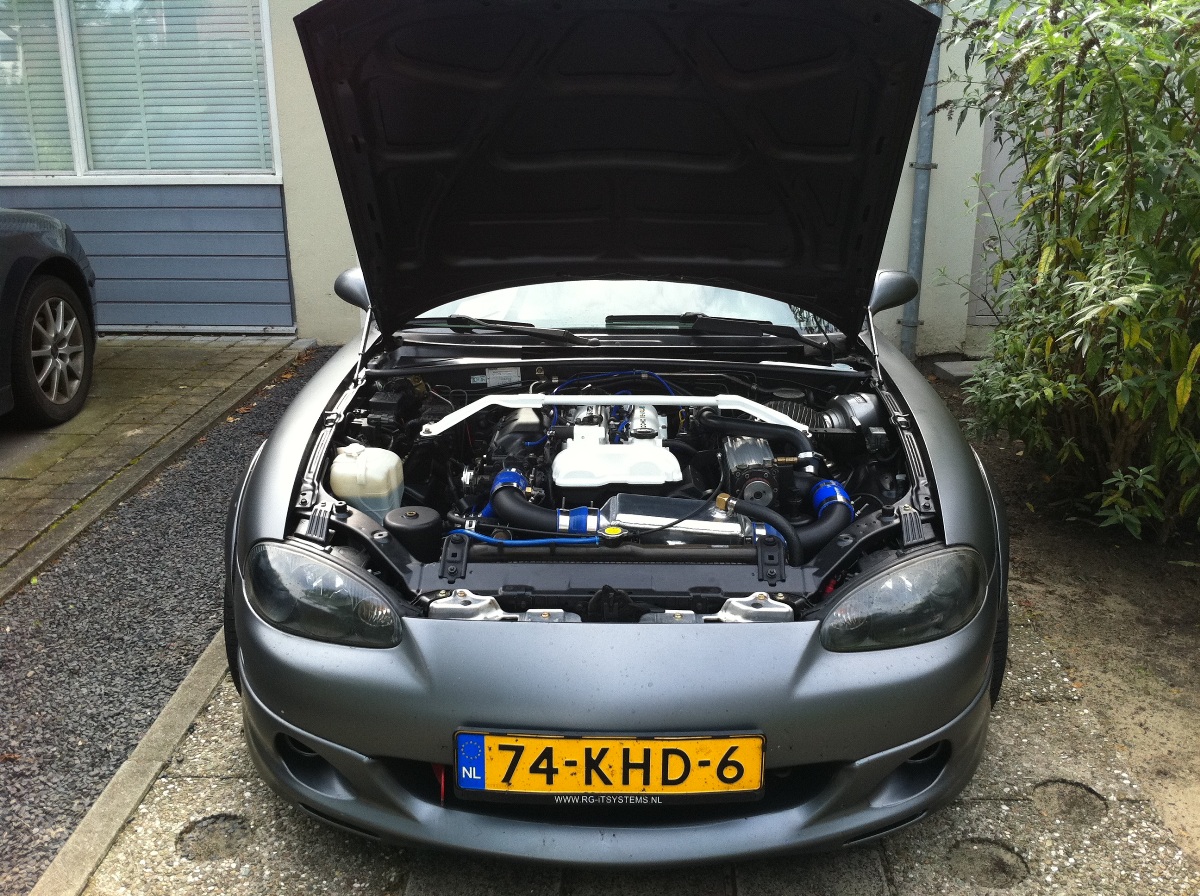

Attached Thumbnails
Supercharger + Bov-wimedo_02-07-2011%2520%252858%2529.jpg   Supercharger + Bov-dyno_day%2520%25288%2529.jpg   Supercharger + Bov-dyno_supercharged_miata.jpg
Lazy_g is offline   Reply With Quote
Old 09-14-2011, 11:27 AM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

Looks like a healthy and torquey setup.
That AFR plot is TERRIBLE though. I hope you're not driving around with it like that.
18psi is offline   Reply With Quote
Old 09-14-2011, 11:36 AM   #14
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 101
Total Cats: 0
Default

well it is my dialy drive. This AFR is only at full throttle. since on daily drive, i almost do not use any boost, should be fine right?

Do still have to look into that AFR line though...
Lazy_g is offline   Reply With Quote
Old 09-14-2011, 11:45 AM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

It looks completely untuned. Not only is it inefficient but it could be knocking. If your WOT afr is that wavy then I doubt your part throttle AFR is any better. I would get that fixed asap if I were you.
18psi is offline   Reply With Quote
Old 09-14-2011, 11:58 AM   #16
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 101
Total Cats: 0
Default

it is now untuned. Still have to do that properly.

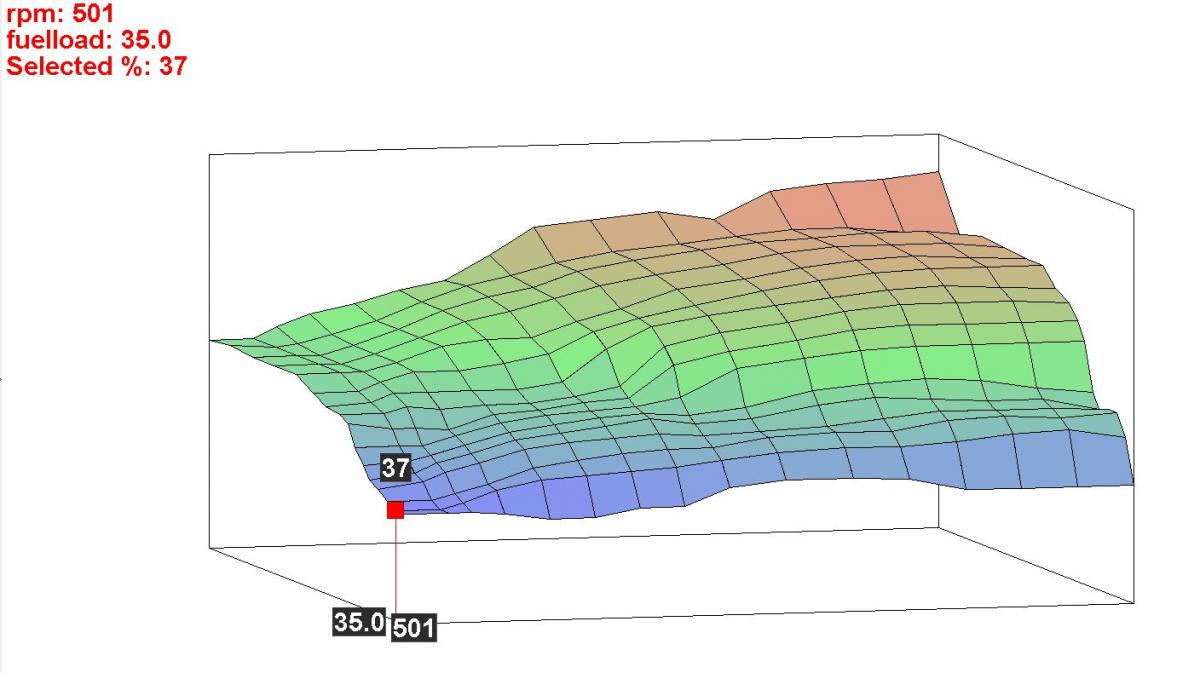

This is my map now:


Any tips?
Attached Thumbnails
Supercharger + Bov-fuelmap.jpg
Lazy_g is offline   Reply With Quote
Old 09-14-2011, 12:09 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

There's really not much to tuning fuel: make sure you're smooth and consistant with kpa/rpm increase.

I'd start by taking out those 2 ugly *** dips up top. Then add fuel in boost pretty much everywhere since you're damn lean. Then start tuning cruise cells such that you're in the 14.7-13.5 depending on load and rpm under 100kpa and redline.


you need to start reading up on tuning asap
18psi is offline   Reply With Quote
Old 09-14-2011, 01:11 PM   #18
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 101
Total Cats: 0
Default

ok thanx! guess i need to do some homework...

do yu mybe know some good reading material?
Lazy_g is offline   Reply With Quote
Old 09-14-2011, 02:25 PM   #19
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Makes me sad to be a supercharger guy.
jeff_man is offline   Reply With Quote
Old 09-14-2011, 02:36 PM   #20
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 101
Total Cats: 0
Default

? Care to explain?
Lazy_g is offline   Reply With Quote
