Default TDR tensioner vs PS tube/hose?

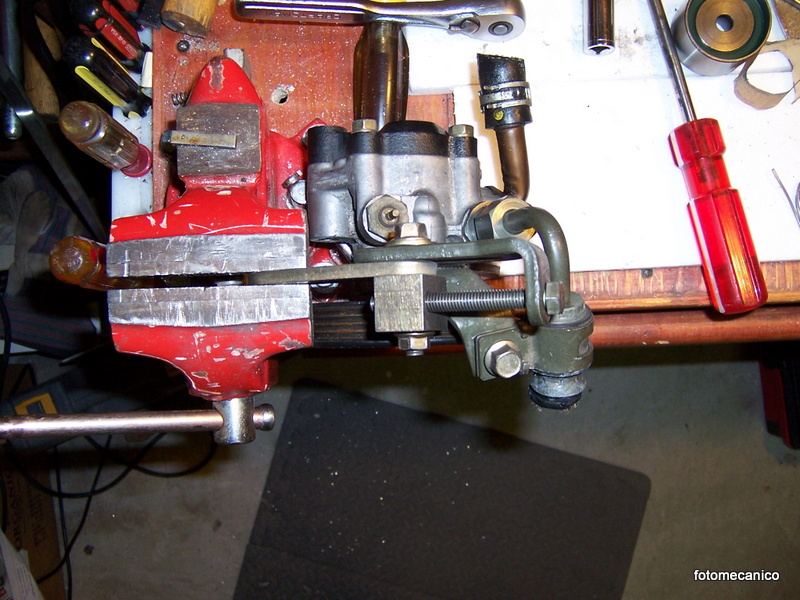

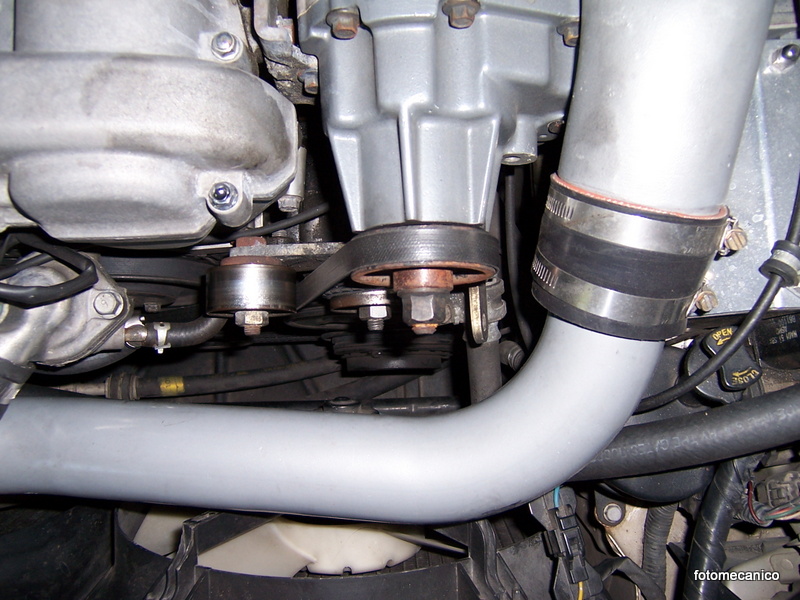

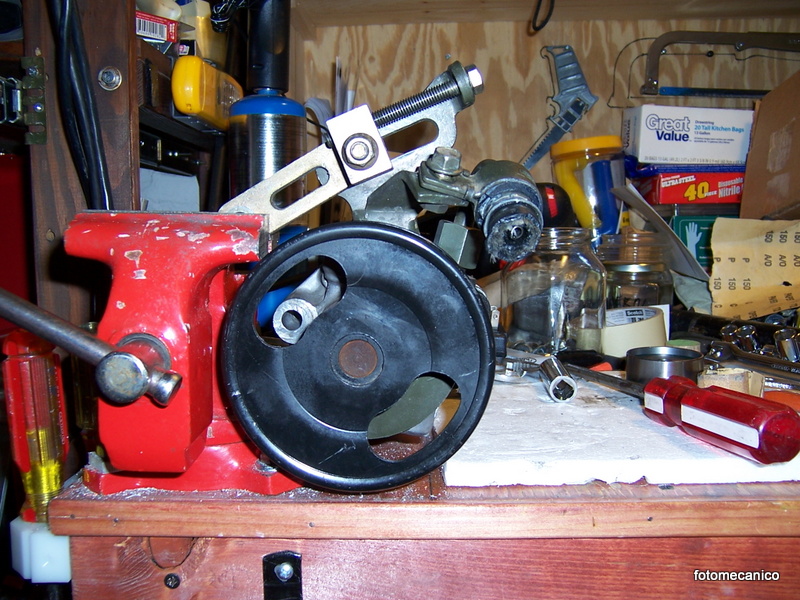

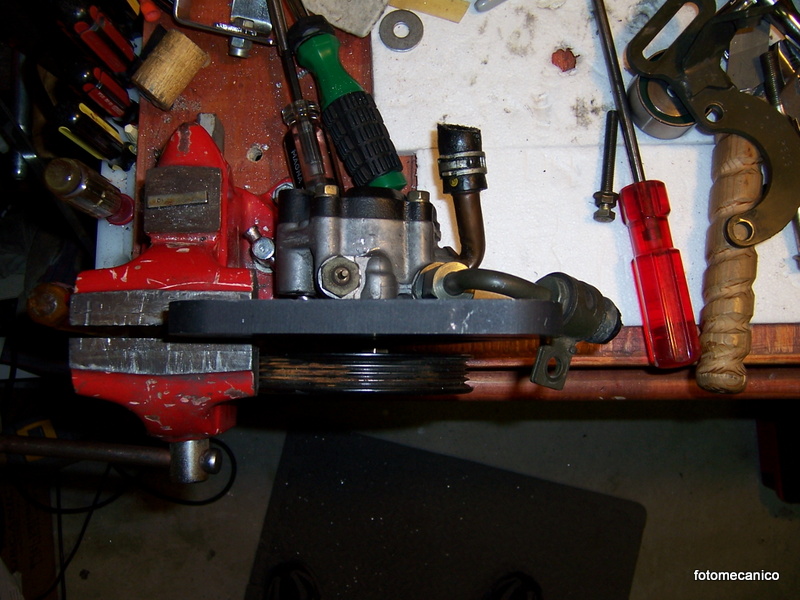

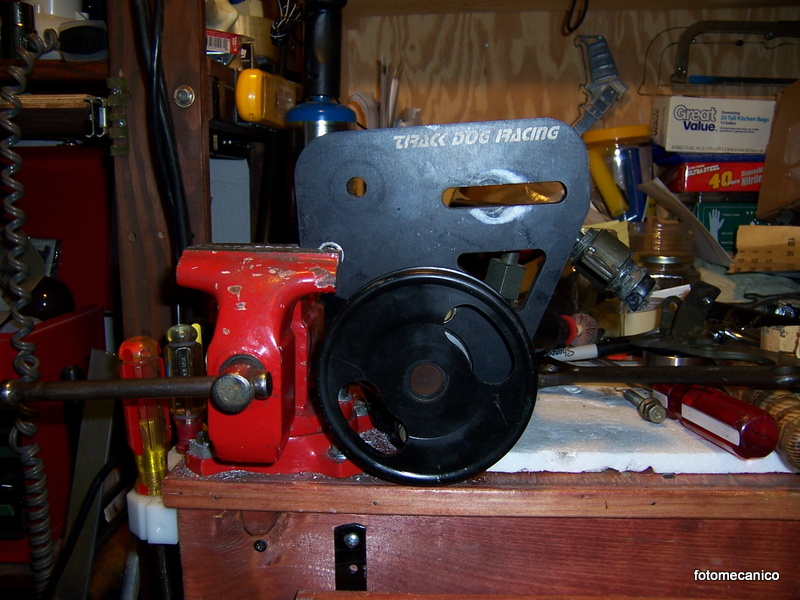

I located and obtained a TDR pulley tensioner for my 1.6 with A/C, P/S and a M45 JRSC. I don't think I have all the pieces for it for before going further, I did a test assembly with a P/S pump and noticed that the tube/hose off the top of the pump interferes with the TDR bracket... I loosened the fitting and rotated it to clear, but this puts the hose about 90 degrees off the *normal* position... I wonder if this will cause a problem or if I have missed something, although there seems to be only one way for the pump and bracket to assemble.... Here are some pictures of the pump assembled to the TDR bracket and to the stock bracket so you can see the difference.
Thanks for any help/advise.









Attached Thumbnails
TDR tensioner vs PS tube/hose?-tdr1.jpg   TDR tensioner vs PS tube/hose?-tdr2.jpg   TDR tensioner vs PS tube/hose?-tdr3.jpg   TDR tensioner vs PS tube/hose?-tdr4.jpg   TDR tensioner vs PS tube/hose?-tdr5.jpg

silver92b is offline   Reply With Quote
Old 06-18-2012, 12:45 AM   #2
Junior Member

Join Date: Mar 2009
Location: Raleigh NC
Posts: 110
Total Cats: 2
Default

Give TDR a call/email, they will get back to you quickly. Great folks!

Last edited by demoniam; 06-18-2012 at 12:47 AM. Reason: too much beer makes the fingers go slidey
demoniam is offline   Reply With Quote
Old 06-18-2012, 12:51 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by demoniam View Post
Give TDR a call/email, they will get back to you quickly. Great folks!
I already emailed Gary at TDR. I was hoping to get some info quicker. Thanks anyway.
silver92b is offline   Reply With Quote
Old 06-18-2012, 03:19 PM   #4
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Yes, it's fine. Rotate hose so it isn't kinked funny or rubbing on something. It doesn't matter which way it points. I understand CR.net isn't usually the most credible source for good advice, but was it really necessary to ask the same question here too? It's just a hose, it carries fluid, it doesn't matter how it flows, so long as it gets from point A to point B without leaking or otherwise being impeded.
baron340 is offline   Reply With Quote
Old 06-18-2012, 03:48 PM   #5
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

y u no depower steering rack?
EO2K is offline   Reply With Quote
Old 06-18-2012, 04:24 PM   #6
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

stupid double post

Last edited by EO2K; 06-18-2012 at 10:12 PM.
EO2K is offline   Reply With Quote
Old 06-18-2012, 09:53 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by baron340 View Post
Yes, it's fine. Rotate hose so it isn't kinked funny or rubbing on something. It doesn't matter which way it points. I understand CR.net isn't usually the most credible source for good advice, but was it really necessary to ask the same question here too? It's just a hose, it carries fluid, it doesn't matter how it flows, so long as it gets from point A to point B without leaking or otherwise being impeded.
Thank you for the information. I really appreciate it. I don't mean to make a problem by posting the question on different forums. I just figured that I would be more likely to get more answers quicker. I was in a hurry because I thought I would install it today while other work was being done. Also, one often gets conflicting answers in these forums and amongst them are some more clear and cogent (such as yours, thank you).



Quote:
Originally Posted by EO2K View Post
y u no depower steering rack?
Thanks for the answer, but there is nothing to be gained by de-powering the steering rack. In this case it would involve a lot of work and I would have to make even more modifications to the set up such as adding another idler pulley to replace the PS pulley. Also, the steering would be quicker, but also take 26% more effort to turn. At low speeds (which I drive every time I get behind the wheel) this would be a PITA.
silver92b is offline   Reply With Quote
Old 06-18-2012, 10:11 PM   #8
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Sorry for the double post, dunno wtf with that.

Does the TDR setup require that you have the PS delete idler in place if not running power steering? I just checked the install instructions on TDR's website and if I'm understanding the routing, it appears you can just run a shorter belt, or possibly the same belt, if you have AC but no PS.

Also: lol @ instructions?
http://www.trackdogracing.com/inst/p...structions.pdf
Quote:
Originally Posted by TDR/BRP Instructions
INSTALLING THE BRP PULLEY BRACKET
1. Loosen the power steering hose fitting as shown in Photo 2-A.
2. Pulley the power steering hose off to the side a little and insert the new pulley bracket as shown
in Photo 2-B.
3. ????
4. Profit
EO2K is offline   Reply With Quote
Old 06-18-2012, 10:39 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by EO2K View Post
Sorry for the double post, dunno wtf with that.

Does the TDR setup require that you have the PS delete idler in place if not running power steering? I just checked the install instructions on TDR's website and if I'm understanding the routing, it appears you can just run a shorter belt, or possibly the same belt, if you have AC but no PS.

Also: lol @ instructions?
http://www.trackdogracing.com/inst/p...structions.pdf

Yeah, I did find those instructions too. My confusion arose from the fact that my PS pump fitting is not like the one in their pictures. There are at least 2 different types of fittings in the PS pumps. Some are like the one in the instructions and the tube will actually fit around the bracket after it's located. You can swing it back to its normal position. The early cars however have a a different setup with a short steel tube that comes straight up out of the pump and immediately turns 90 deg or so towards the front of the car. This is the fitting I have and it must be turned almost 90 deg off its normal position to allow the bracket to be installed. I was afraid that turning the tube/hose might created stress or kinks that would damage the hose...

It might be that the belt would run directly from the tension pulley and do a good enough wrap around the AC pulley. However, I found a post where this particular setup created an issue which the OP solved by adding an idler 4 rib pulley, roughly positioned where the PS pulley would have been.

I guess I could have just turned the tube/hose, tightened it again and mounted everything. But I was afraid to make the assumption that everything would work out fine. I just wanted to play it safe
silver92b is offline   Reply With Quote
Old 06-18-2012, 11:05 PM   #10
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by silver92b View Post
Thank you for the information. ...
Don't get me wrong, I wasn't trying to be hateful (I know, weird for this forum). I take any advice I get on CR.net with a grain of salt too. As for deleting the PS, my 2 cents says do it, but do it right. I DD my JRSC with no PS and it's no problem at all. It's not a huge effort turning without moving, but you quickly get used to start rolling and then turn, reducing the effort monumentally. Ask around and see if you can snag a drive in someone's car that has properly removed the seal in the rack.
baron340 is offline   Reply With Quote
Old 06-18-2012, 11:32 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by baron340 View Post
Don't get me wrong, I wasn't trying to be hateful (I know, weird for this forum). I take any advice I get on CR.net with a grain of salt too. As for deleting the PS, my 2 cents says do it, but do it right. I DD my JRSC with no PS and it's no problem at all. It's not a huge effort turning without moving, but you quickly get used to start rolling and then turn, reducing the effort monumentally. Ask around and see if you can snag a drive in someone's car that has properly removed the seal in the rack.
I totally understand. I actually only post here with trepidation and reluctance because although some folks here have great knowledge, one can get insulted and ridiculed more than helped. So thank you for your feedback. Not hating or anything, but many folks in other forums will offer a lot of hearsay and plain myths as solid, bona fide information. I just have to check things out or risk failure.

I did research on de-powering the rack and read about removing the seals, etc. I also found and bought a manual rack that the guy wanted as trade for this TDR tensioner. I used to drive a '95R with no power anything so I'm familiar with that. That manual steering is a bit slower than the PS rack but also requires a bit less effort. Back then I had some shoulder problems and I really wanted PS and power windows, etc. LOL! My shoulders are better now, but I still like my PS and rather keep it if possible.
