Old 01-12-2016, 04:03 PM   #21
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

most plots on this site are on a jet, so I'd agree with a jet. they all read really close to one another and aren't as easy to alter as the others
18psi is offline   Reply With Quote
Old 01-12-2016, 04:06 PM   #22
Junior Member

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

VD can be plenty accurate if you input all the info correct ie actually weigh the car ect. It is as reliable as any other dyno considering there is such a large swing dyno to dyno. Unless coming dyno jet to dyno jet...those will throw down the most reliable back to back out puts dyno to dyno.

But still track is where its at.
Judging by that 1/8th mile the car most likely is a 120mph high 11 second car given that 25 in the back half is average or so for most cars 30+ would be solid but i doubt a supercharged miata will back half well.
Shortpersonbk is offline   Reply With Quote
Old 01-12-2016, 04:08 PM   #23
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Shortpersonbk View Post
VD can be plenty accurate if you input all the info correct ie actually weigh the car ect. It is as reliable as any other dyno considering there is such a large swing dyno to dyno. Unless coming dyno jet to dyno jet...those will throw down the most reliable back to back out puts dyno to dyno.

But still track is where its at.
Judging by that 1/8th mile the car most likely is a 120mph high 11 second car given that 25 in the back half is average or so for most cars 30+ would be solid but i doubt a supercharged miata will back half well.
Agreed. The car rips out of the hole with the SC, but it doesn't have the top end of a strong turbo car. It's not bad but it's not a turbo car up top.
patsmx5 is offline   Reply With Quote
Old 01-12-2016, 04:12 PM   #24
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

if its making 350whp then I agree it will trap 120

and yes 120 trap is (IMO) fast in a Miata
18psi is offline   Reply With Quote
Old 01-12-2016, 07:22 PM   #25
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

DynoJets are inertial dynos, so they're simple and cheap to buy. This means that they're usually the most prevalent, the cheapest to rent, and also the most consistent from location to location. This makes them good for "I'm going to get a dyno sheet to post on mt.net to shut everyone there up".

If you want to tune it to find MBT, then a load-holding dyno like a Dynapack gives more flexibility in the speed at which the RPM moves through cells. It costs more to rent per hour, but you'll spend fewer hours at it than with a Dynojet.

--Ian
codrus is online now   Reply With Quote
Old 01-12-2016, 07:30 PM   #26
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,461
Default

Quote:
Originally Posted by codrus View Post
DynoJets are inertial dynos, so they're simple and cheap to buy. This means that they're usually the most prevalent, the cheapest to rent, and also the most consistent from location to location. This makes them good for "I'm going to get a dyno sheet to post on mt.net to shut everyone there up".

If you want to tune it to find MBT, then a load-holding dyno like a Dynapack gives more flexibility in the speed at which the RPM moves through cells. It costs more to rent per hour, but you'll spend fewer hours at it than with a Dynojet.

--Ian
I'm gonna bug the hell out of you when I get my car back together for the dyno. Found a Dynapack and a tuner that is willing to help do more than just all out pulls.
aidandj is offline   Reply With Quote
Old 01-13-2016, 10:27 PM   #27
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

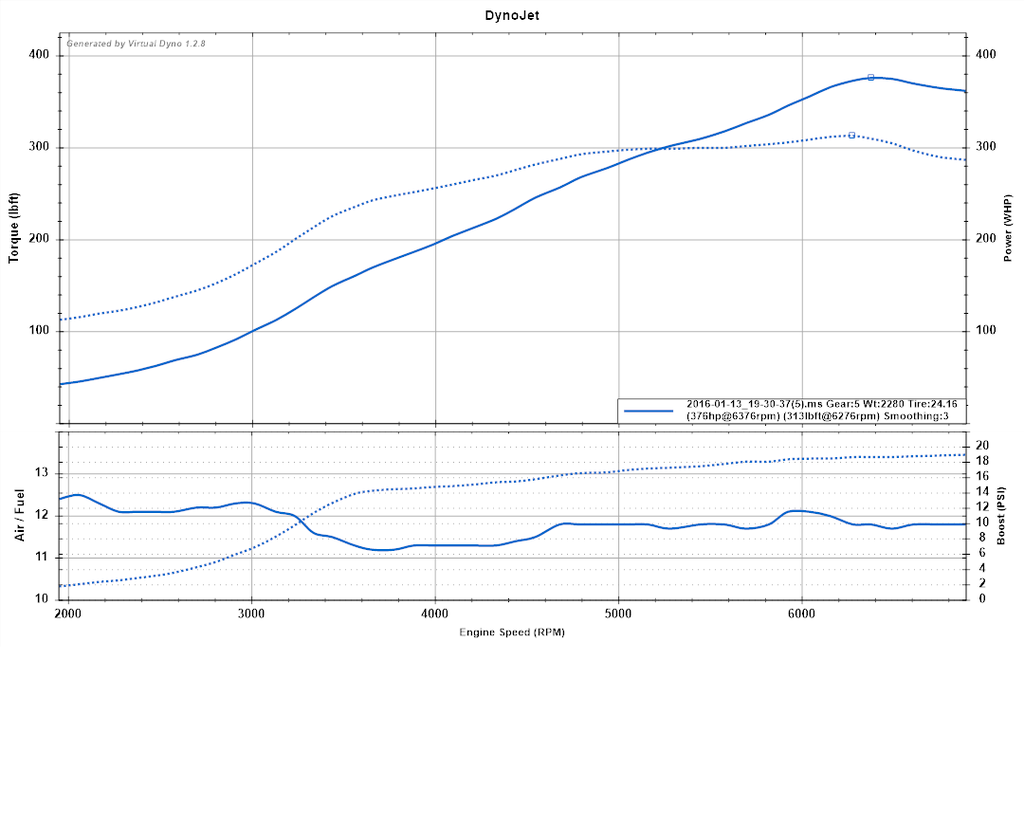

Any chance to do a full pull in a higher gear? I made a 5th gear pull tonight and ran it through the VD. I'd like to see how our plots would overlay.

Attached Thumbnails
Whipple Virtual Dyno Results-11.13.15.pull.png
pdexta is offline   Reply With Quote
Old 01-14-2016, 02:16 AM   #28
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

/\ that creep is actually really cool, don't see that on miata's much: it's keeping the torque down and helping the drivetrain and still making good topend for racing
18psi is offline   Reply With Quote
Old 01-14-2016, 09:45 AM   #29
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Quote:
Originally Posted by 18psi View Post
/\ that creep is actually really cool, don't see that on miata's much: it's keeping the torque down and helping the drivetrain and still making good topend for racing
Yeah, it's a crappy wastegate setup. I fought with it for a while, tried to take care of it with EBC but couldn't get it working consistently. I finally decided to just embrace the creep.

Low end is weak, but the only time I'm down there is in low gears when I'm having trouble with traction anyway. Plus like you said, it keeps torque down which will hopefully keep my half-assed setup in one piece.
pdexta is offline   Reply With Quote
Old 01-14-2016, 10:11 AM   #30
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Quote:
Originally Posted by 18psi View Post
/\ that creep is actually really cool, don't see that on miata's much: it's keeping the torque down and helping the drivetrain and still making good topend for racing
**** you.
nitrodann is offline   Reply With Quote
Old 01-14-2016, 10:33 AM   #31
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 303
Total Cats: 17
Default

SO ANGRY
glade is offline   Reply With Quote
Old 01-14-2016, 02:41 PM   #32
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

18psi is offline   Reply With Quote
Old 01-14-2016, 04:53 PM   #33
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,325
Default

Quote:
Originally Posted by 18psi View Post
/\ that creep is actually really cool, don't see that on miata's much: it's keeping the torque down and helping the drivetrain and still making good topend for racing
There's a Rotrex joke to be made here somewhere.
Savington is offline   Reply With Quote
Old 01-14-2016, 05:02 PM   #34
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Quote:
Originally Posted by Savington View Post
There's a Rotrex joke to be made here somewhere.
Attached Thumbnails
Whipple Virtual Dyno Results-463.jpg
mgeoffriau is offline   Reply With Quote
Old 01-14-2016, 06:14 PM   #35
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

Attached Thumbnails
Whipple Virtual Dyno Results-1287666826226.png
18psi is offline   Reply With Quote
Old 01-14-2016, 07:22 PM   #36
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Great MT discussion.

Talking **** about a 300ish WHP car because Super.

Calling a 75-100 Lb TQ advantage over a ~3000RPM band sad.

Lots of mention of VD.

All joking aside, I don't really give 2 half-hearted ***** about boost pressure. If the system can supply it reliably, with low IATs, with good powerband, it can be 50 psi for all I care.

I don't know much about VD () but does it need to know gear ratios to calculate things out? I would think so, and an error there seems like a logical explanation of different power levels in different gears?
Sparetire is offline   Reply With Quote
Old 01-14-2016, 07:23 PM   #37
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,461
Default

Until you start blowing headgaskets and whatnot at 50psi.
aidandj is offline   Reply With Quote
Old 01-14-2016, 07:41 PM   #38
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Hence the 'reliability' metric.

But good point. 50 is taking that thought to a ridiculous extreme.

If the car sees 30psig all the time and is not under-valve-sprung or lifting the head though? Sweet.
Sparetire is offline   Reply With Quote
Old 01-14-2016, 07:47 PM   #39
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Sparetire View Post
Great MT discussion.

Talking **** about a 300ish WHP car because Super.

Calling a 75-100 Lb TQ advantage over a ~3000RPM band sad.

Lots of mention of VD.

All joking aside, I don't really give 2 half-hearted ***** about boost pressure. If the system can supply it reliably, with low IATs, with good powerband, it can be 50 psi for all I care.

I don't know much about VD () but does it need to know gear ratios to calculate things out? I would think so, and an error there seems like a logical explanation of different power levels in different gears?
Yeap! I've come to accept and even expect 1/2 the responses to be crap when I post something about a SC car here.

While I haven't kept my build thread here up to date, I did start one here and I listed out my goals at the beginning. It took longer/costed more than I wanted it to, but the goals have been achieved. 350whp with instant response, no lag, torque everywhere and daily driver reliability.
patsmx5 is offline   Reply With Quote
Old 01-14-2016, 07:50 PM   #40
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Sparetire View Post
Hence the 'reliability' metric.

But good point. 50 is taking that thought to a ridiculous extreme.

If the car sees 30psig all the time and is not under-valve-sprung or lifting the head though? Sweet.
I built the head for this car back in 2013. It's seen 8,800 RPM many times, and lots of boost. Last time I had the head off, every valve clearance was at the exact clearance I set it at within 1/2 a thousandth, and every valve sealed perfectly filling the ports with brake parts cleaner. It's solid. Also has ARP's torqued to 65 with a calibrated that-day torque wrench. So far it's working great.
patsmx5 is offline   Reply With Quote
