Old 11-09-2014, 03:57 PM   #41
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

all TQ figures I'll ever state are at the wheels, since we dyno at the wheels and dont typically pull the motor to do so.
Braineack is online now   Reply With Quote
Old 11-09-2014, 05:58 PM   #42
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Quote:
Originally Posted by Braineack View Post
I've seen the Exedy Stage 1 hold over 220tq fine.

I wouldn't get the Pro-kit one you linked, but the Stage 1.
I hate to be retardedly redundant, but stage 1 as in this feller here...

Exedy Racing Stage 1 Organic Clutch Kit 1990 1993 Mazda Miata 1 6L I4 DOHC B6 ZE | eBay

If it holds till rod breaking territory then slips and still drives mostly stock, I think I might like that thing. Seems a cheap choice with my stock FW...
deezums is offline   Reply With Quote
Old 11-10-2014, 08:40 AM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

Not sure if it was a 1.8L or 1.6L clutch but I always recommend putting in a 1.8L sized clutch anyway--it will always hold more TQ all other things being equal.

It's $310 from the same seller. The FM STG1 is $350. and the ACT ZM2-HDSS is $460.

Dont see the 949 on their website anymore.
Braineack is online now   Reply With Quote
Old 11-10-2014, 09:50 AM   #44
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

My car's previous owner had a 1.8 flywheel with oem clutch on my 1.6L JRSC, it lasted about 10000 miles and it started slipping. That was at 8psi
btabor is offline   Reply With Quote
Old 11-10-2014, 12:19 PM   #45
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I need me a 1.8 FW still I guess. Ebay lists the 1.6 stage 1 at 210ftlbs, but everywhere else is 130ftlbs or so...

Getting back to FM prices again, may as well just do it right I guess.
deezums is offline   Reply With Quote
Old 11-10-2014, 12:36 PM   #46
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by deezums View Post
I need me a 1.8 FW still I guess. Ebay lists the 1.6 stage 1 at 210ftlbs, but everywhere else is 130ftlbs or so...

Getting back to FM prices again, may as well just do it right I guess.
Yes do the clutch the right way, mostly because it is a PITA to pull the trans and replace the clutch after you go cheap and then something ***** up.
shuiend is offline   Reply With Quote
Old 11-10-2014, 02:06 PM   #47
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

When you go from a 200mm ACT HD to a 215mm the TQ load goes from 195 to 245. That's about 20% better with the same level PP and clutch disc.

here's directly from Exedy:

Quote:
Originally Posted by 1.6L STG1
Disc Size 200mm
Spline Teeth / Major Dia 22T / 24.3mm
Clamping Force/Load exerted (lbs) 1169
Disc Material Organic
Number of Disc Single
Type (Push/Pull) Push
Sprung Center (D-core) Yes
Clutch Torque 204
Torque Capacity at Wheels 131
Torque Capacity at Flywheel 163
Quote:
Originally Posted by 1.8L STG1
Disc Size 215mm
Spline Teeth / Major Dia 22T / 24.3mm
Clamping Force/Load exerted (lbs) 1322
Disc Material Organic
Number of Disc Single
Type (Push/Pull) Push
Sprung Center (D-core) Yes
Clutch Torque 256
Torque Capacity at Wheels 164
Torque Capacity at Flywheel 204
a 20% increase in TQ as well.

I just wouldn't use a 1.6L sized clutch for boost unless you get a super heavy PP with higher clamping loads. If you look at the difference in the diaphragm springs, it's apparent why:

teeny tiny:

vs.

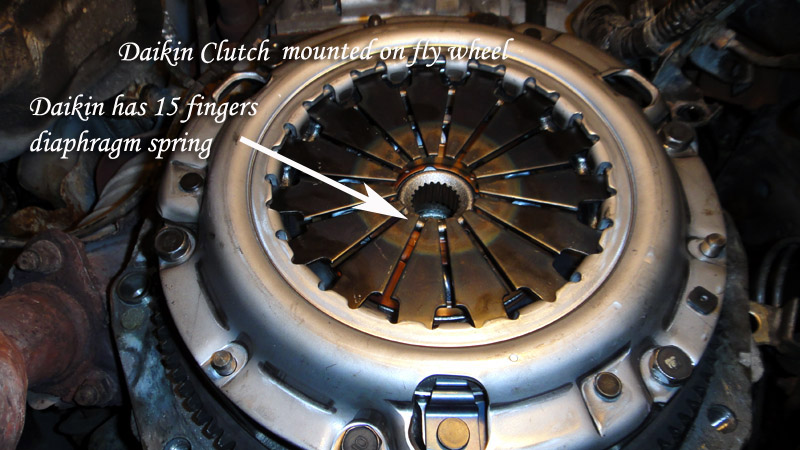

large and in charge:
Attached Thumbnails
1.6 to 1.8 clutch and flywheel upgrade-stock_miata_clutch.jpg   1.6 to 1.8 clutch and flywheel upgrade-miata_clutch_daikin_1.jpg
Braineack is online now   Reply With Quote
Old 11-10-2014, 02:11 PM   #48
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

The light weight FX 4140 CHROMOLY FLYWHEEL is worth it. I have been running one with a 949 sport clutch for a month now and don't have any complaints. I would not cheap out on the clucth kit, but the flywheel works.
Rallas is online now   Reply With Quote
Old 11-10-2014, 03:30 PM   #49
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I'd like a light flywheel, and I'd order a ebay one, but I'm still thinking about trying to find a cheap stock 1.8 wheel. ~$400 bucks with the FM stage 1, hopefully.
deezums is offline   Reply With Quote
Old 11-10-2014, 04:14 PM   #50
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

there's like 20-40 of them avaiable for less than $40 on car-part.com
Braineack is online now   Reply With Quote
Old 11-10-2014, 08:19 PM   #51
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

I have the lightweight chromoly f1 flywheel and track the **** out of it with no complaints. It's very easy to DD as well. It's one of the best mod I've done.
hi_im_sean is offline   Reply With Quote
Old 11-10-2014, 08:38 PM   #52
Newb

Join Date: Apr 2011
Location: Venezuela
Posts: 18
Total Cats: 0
Default Interesting

Quote:
Originally Posted by Braineack View Post
When you go from a 200mm ACT HD to a 215mm the TQ load goes from 195 to 245. That's about 20% better with the same level PP and clutch disc.

here's directly from Exedy:





a 20% increase in TQ as well.

I just wouldn't use a 1.6L sized clutch for boost unless you get a super heavy PP with higher clamping loads. If you look at the difference in the diaphragm springs, it's apparent why:

teeny tiny:

vs.
large and in charge:





The new 1.8 flywheel is bolt on direct on 1.6 models?

Any problem with the starter or gearbox case?
mx5venezuela is offline   Reply With Quote
