Default 6 speed swap turret fitment

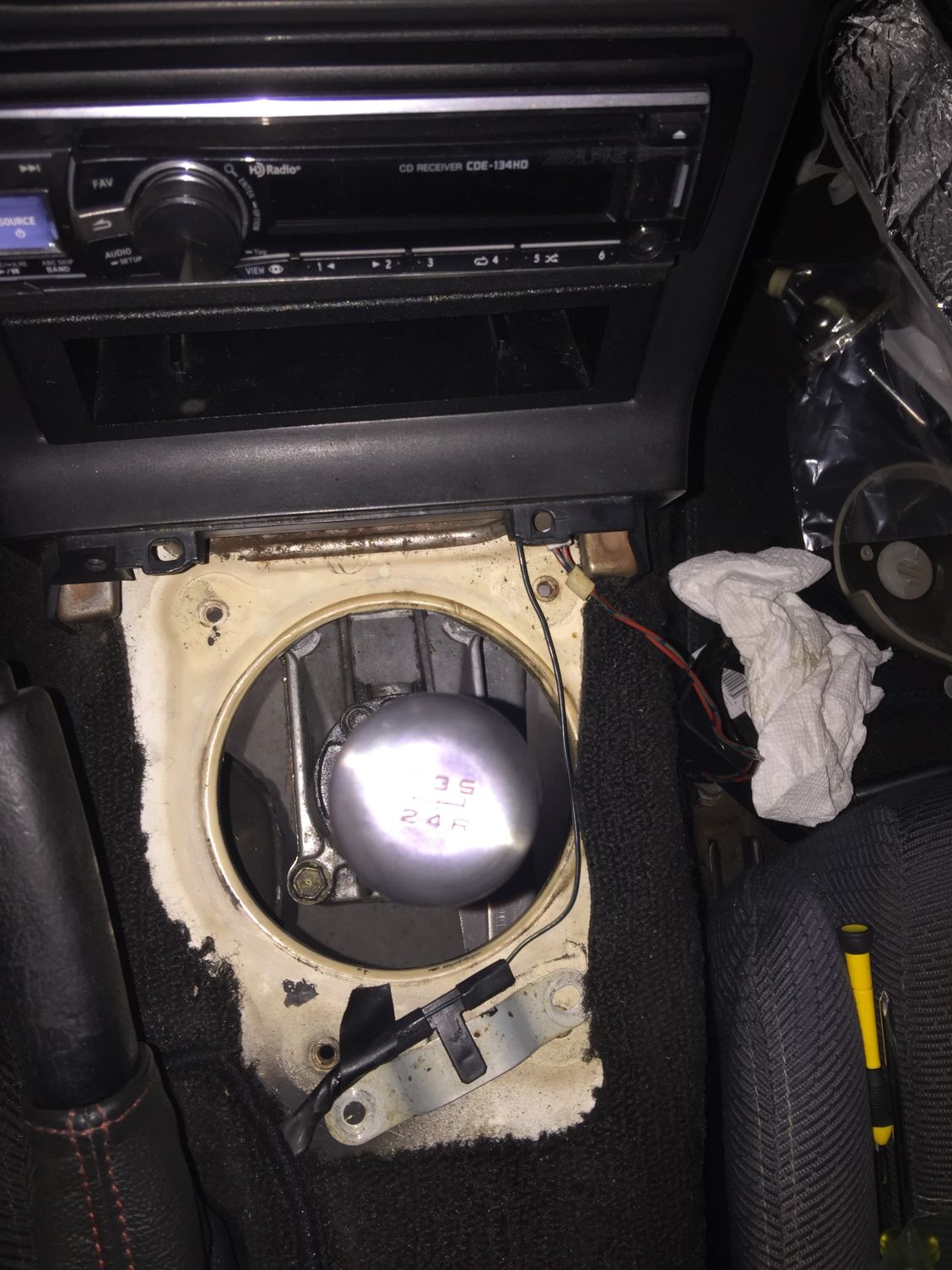

so I'm getting close to buttoning everything up after an extensive tear down for some oil leaks(turned 6speed swap). I noticed the forward two bolts for the turret arnt accessible. Everything else seems great. No issues other than this small hicup. It's a 1992 with a 95 block and 02 6 speed. Someone has had to run into this here id imagine.

On mobile. Sorry if this pic is huge
Attached Thumbnails
6 speed swap turret fitment-80-image_26fa4f69668becddce7939f5bcb9721b9dd695be.jpeg
rnepmc is offline   Reply With Quote
Old 06-29-2016, 02:26 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

they are, you just have to work a wrench in there
why are you trying to access them?
18psi is offline   Reply With Quote
Old 06-29-2016, 02:38 PM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

It seems a a bit off. You should be able to get to the front to bolts with a normal socket. I will get some pictures tonight of my 6 speed in a 94 chassis tonight.
shuiend is offline   Reply With Quote
Old 06-29-2016, 02:55 PM   #4
Newb
Thread Starter

Join Date: Mar 2014
Location: Austin, TX
Posts: 12
Total Cats: -4
Default

the trans was installed without that piece. so next step would be to install the turret piece. outside of it not lining up, the bolts for it are way too long to squeeze in the space between the tunnel and the turret. now im sure i can make it work, its all still loose. i can just pull the trans down a bit sand squeeze them in. i just wanted to make sure this is a normal thing. that im not missing something here. all signs to me say full steam ahead. everything is center like it belongs there. i just think it may be a small generational issue, a minute change happened. but sometimes it best to ask those who have been there before you.
rnepmc is offline   Reply With Quote
Old 06-29-2016, 03:10 PM   #5
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

I mean I have used 3 different 6 speeds on multiple blocks in multiple NA's with out every having this issue.
shuiend is offline   Reply With Quote
Old 06-29-2016, 03:18 PM   #6
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 51
Default

Looks completely normal to me.

http://miataroadster.net/MRshifterinstall.pdf
jpreston is offline   Reply With Quote
Old 06-29-2016, 03:32 PM   #7
Newb
Thread Starter

Join Date: Mar 2014
Location: Austin, TX
Posts: 12
Total Cats: -4
Default

I think you sold me Jpreston. Looks like an oddity but normal
rnepmc is offline   Reply With Quote
Old 06-29-2016, 03:36 PM   #8
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 324
Total Cats: -26
Default

Looks like you have 2 choices: break out a grinder and grind yourself some more clearance, or use a tool that will give you better access to those bolts, like maybe a crows foot or a ratcheting box end.
huesmann is offline   Reply With Quote
Old 06-29-2016, 04:16 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

easy peasy with a ratcheting box end
18psi is offline   Reply With Quote
Old 06-29-2016, 06:06 PM   #10
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

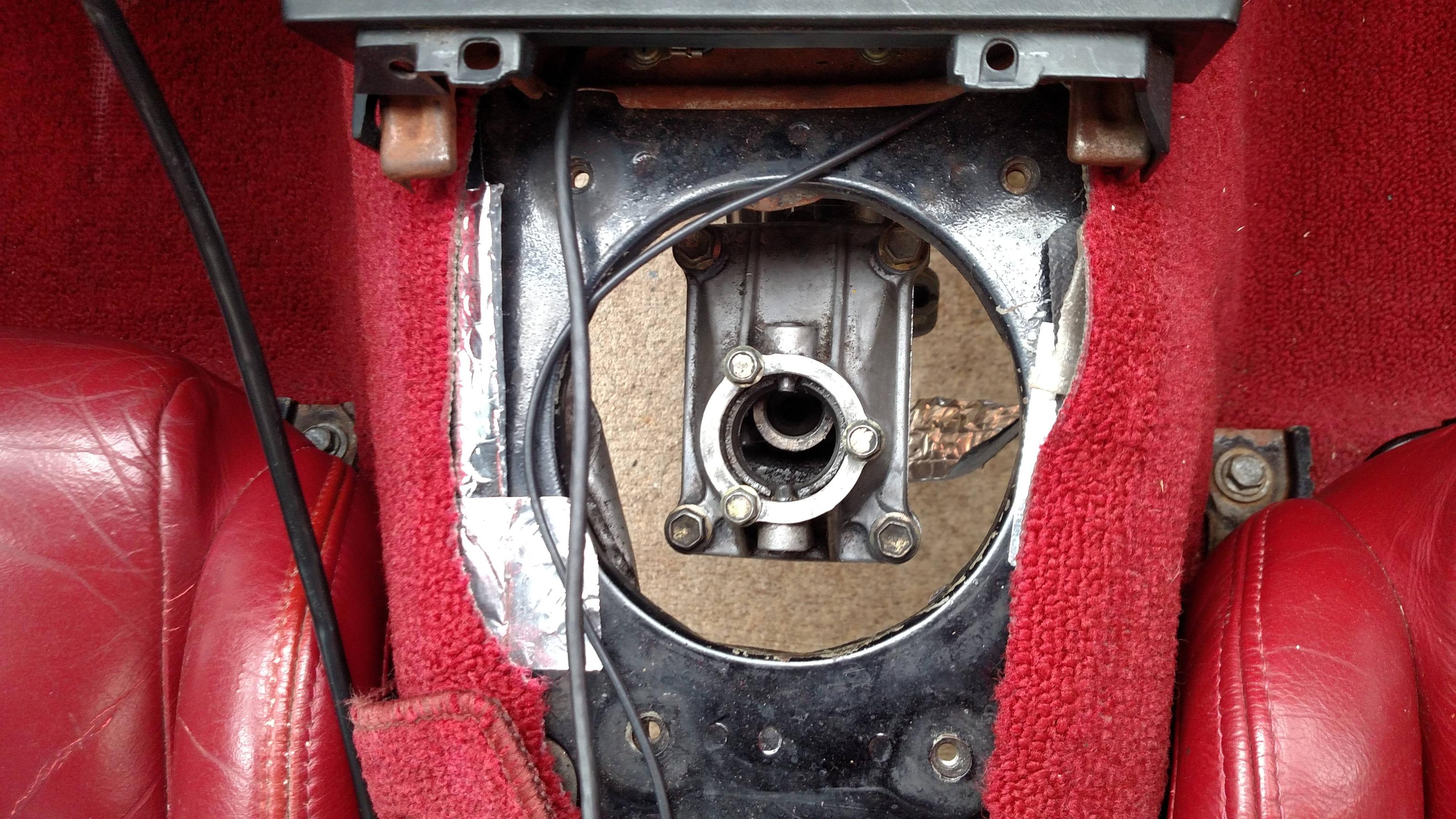

This is what mine looks like.

Attached Thumbnails
6 speed swap turret fitment-ngimdx6.jpg
shuiend is offline   Reply With Quote
Old 06-29-2016, 06:10 PM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Mine also reach just fine. 90 chassis. I know because I was able to replace them at the track when they fell out instead of dropping the trans down.
aidandj is offline   Reply With Quote
Old 06-30-2016, 12:17 AM   #12
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Am I the only one around here who's never touched those bolts? I only ever do the 3 bolts that hold the shifter in, I didnt think anyone else took the turret apart unless the're doing something fucky.
Leafy is offline   Reply With Quote
Old 06-30-2016, 11:28 AM   #13
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by Leafy View Post
Am I the only one around here who's never touched those bolts? I only ever do the 3 bolts that hold the shifter in, I didnt think anyone else took the turret apart unless the're doing something fucky.
I don't ever touch them, I did not realize that is what he was talking about the first time I read the thread. I only use the 3 bolts that hold the shifter in every time I need to do something with the shifter.
