about to install a 6 speed. Some questions - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Suspension, Brakes, Drivetrain discuss the wondrous effects of boost and your miata...

Reply



LinkBack Thread Tools Search this Thread
Old 03-02-2010, 03:49 PM   #1
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default about to install a 6 speed. Some questions

So, my second 6 speed transmission is about to arrive (don't ask).

Here are a couple of questions:

1) What transmission fluid are you guys using?
2) I read somewhere that I have to exchange the sensor connectors. Can someone clarify this?
3) This is the list of parts RotorNut posted as needed to get the speed to read accurately in another thread:

"I used an M502-17-441 gear as I read that the M503 is good for larger wheels, such as 17". But it probably doesn't make a huge difference overall.

This is what I used to build the gear setup:

1011-17-442A - This is the sleeve/housing that will position the gear in the proper location to engage the gear within the transmission. If the sleeve that comes in a 5-speed transmission is used, the smaller 6-speed gear will be free-floating and will not engage. Thus, no readings.
M502-17-441 - This is the actual gear.
9922-20-214 - Spring Pin for holding the gear in the sleeve.
9958-60-8166 - Oil Seal for inside the sleeve.
1011-17-443 - O-Ring for the outside of the sleeve."

Is anyone able to buy them for me? I'd be willing to pay an extra fee for your help.

And btw; I use 16" wheels instead of the common 15" ones. Would that make a lot of difference in my speed readings?

Thanks
Rafa is offline   Reply With Quote
Old 03-02-2010, 04:03 PM   #2
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

1) I was using MT-90
2) You'll need to splice/connect your neutral and reverse switch wires into the neutral and reverse switches into the transmission. It's only 4 wires.
3) I put an email out to my Mazda parts guy for you.

The M502 gear is 19 teeth and is better for taller tires. On my 205/50/15 tires the speedo was off 3-4 mph because I was supplied the M502. ZX-Tex used the M503 (20-tooth gear) and with his 205/50/15 tires he said his speedo was only off 1-2mph. I think you would be better off with the M502.
RotorNutFD3S is offline   Reply With Quote
Old 03-02-2010, 04:05 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

I'm on that Motorcraft stuff everyone was raving about for the past 6 months. So for its great, and it got noticeably smoother after a couple hundred miles. For a 6 speed my transmission shifts smooth as butter.

I'm on the 4.10 torsen rear end with 16" wheels and the speedo is only off by like 2mph or so. Definitely not bad.

My only gripe about this setup is that 1st gear is USELESSS.. Anything above 50% throttle and it spins and hits the rev limiter so fast I jerk forward like a noob
18psi is offline   Reply With Quote
Old 03-02-2010, 04:18 PM   #4
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by RotorNutFD3S View Post
1) I was using MT-90
2) You'll need to splice/connect your neutral and reverse switch wires into the neutral and reverse switches into the transmission. It's only 4 wires.
3) I put an email out to my Mazda parts guy for you.

The M502 gear is 19 teeth and is better for taller tires. On my 205/50/15 tires the speedo was off 3-4 mph because I was supplied the M502. ZX-Tex used the M503 (20-tooth gear) and with his 205/50/15 tires he said his speedo was only off 1-2mph. I think you would be better off with the M502.
Many thanks Eric!
Rafa is offline   Reply With Quote
Old 03-02-2010, 04:19 PM   #5
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by 18psi View Post
I'm on that Motorcraft stuff everyone was raving about for the past 6 months. So for its great, and it got noticeably smoother after a couple hundred miles. For a 6 speed my transmission shifts smooth as butter.

I'm on the 4.10 torsen rear end with 16" wheels and the speedo is only off by like 2mph or so. Definitely not bad.

My only gripe about this setup is that 1st gear is USELESSS.. Anything above 50% throttle and it spins and hits the rev limiter so fast I jerk forward like a noob
You guys don't use any ATF fluid right?

I don't have the 1st gear problem. I have 3.63 gears installed.
Rafa is offline   Reply With Quote
Old 03-02-2010, 04:30 PM   #6
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by Rafa View Post
Many thanks Eric!
No problem! I'll write myself a note to take some pictures of my 6-speed tonight with the modified wires so you'll know what needs to go where so that you can make everything plug in like OEM.
RotorNutFD3S is offline   Reply With Quote
Old 03-02-2010, 05:36 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I like AMSoil MTG because I'm the **** and get tons of bitches. I luvs it.
hustler is offline   Reply With Quote
Old 03-02-2010, 06:06 PM   #8
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by RotorNutFD3S View Post
No problem! I'll write myself a note to take some pictures of my 6-speed tonight with the modified wires so you'll know what needs to go where so that you can make everything plug in like OEM.
Again. Many thanks Eric!
Rafa is offline   Reply With Quote
Old 03-02-2010, 06:06 PM   #9
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
I like AMSoil MTG because I'm the **** and get tons of bitches. I luvs it.
And we love you hustler
Rafa is offline   Reply With Quote
Old 03-02-2010, 10:08 PM   #10
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

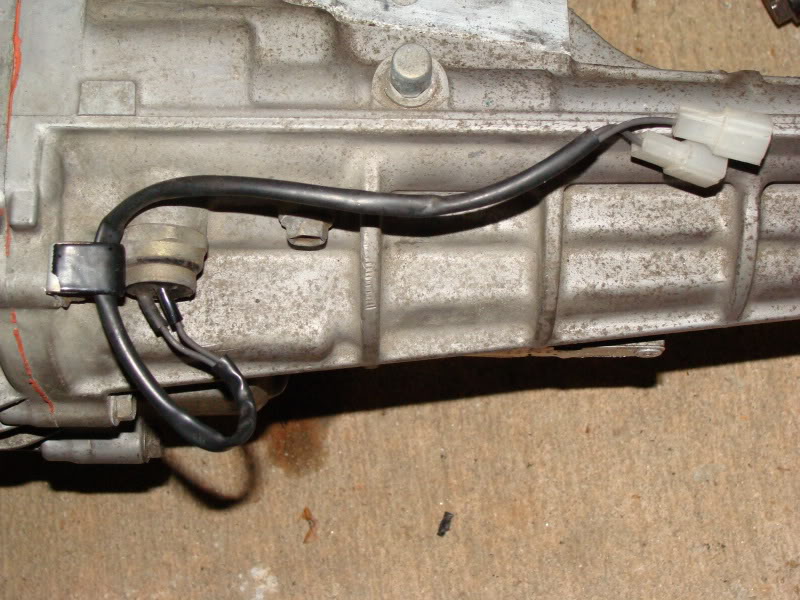

This is the sensor that's on the driver's side of the 6-speed, you don't have to do anything with it except plug it into the harness that's hanging under the car:

Name:  DSC05543.jpg
Views: 4
Size:  122.9 KB

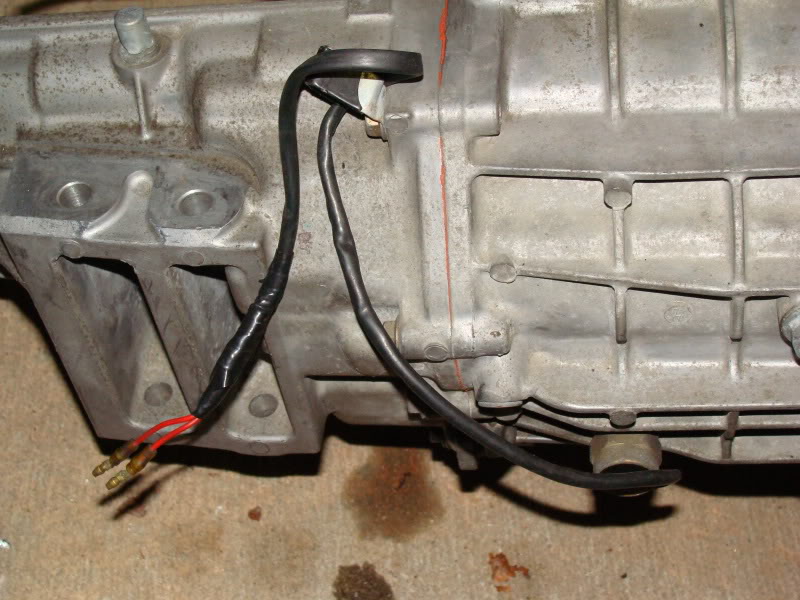

This is the one on the passenger's side. I cut the bullet connectors off of the switch wiring on the 5-speed and connected them to the 6-speed's switch wiring. Polarity does not matter.:

Name:  DSC05544.jpg
Views: 4
Size:  112.1 KB
RotorNutFD3S is offline   Reply With Quote
Old 03-02-2010, 10:26 PM   #11
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Many, many, many thanks!!!!!!!!!!!!!!!!!!!!




I'm still waiting for you to come down and visit!
Rafa is offline   Reply With Quote
Old 03-02-2010, 11:19 PM   #12
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

No problem sir, anything to help out! I really want to take another trip to the Caribbean. It's been 10 years this summer since I've been there, far too long for such a nice place.
RotorNutFD3S is offline   Reply With Quote
Old 03-10-2010, 06:07 PM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

wtf is the neutral switch for again? I didn't connect any of that **** under the car, lol.
hustler is offline   Reply With Quote
Old 03-10-2010, 07:09 PM   #14
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
wtf is the neutral switch for again? I didn't connect any of that **** under the car, lol.
LMAO. Seriously? I think its so you dont shift into reverse while your in 5th or 6th gear and think you have another gear to go. I think i may be wrong someone told me once but i forgot...
stranges12712 is offline   Reply With Quote
Old 03-10-2010, 07:34 PM   #15
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by hustler View Post
wtf is the neutral switch for again? I didn't connect any of that **** under the car, lol.
As it was explained to me the neutral switch tells the ECU when to start closed loop idle timing and air control. Is that fact? IDK.

Quote:
Originally Posted by Snake333 View Post
I have you fucken dumb *** I cant find, one you think i would be posting so much if i didnt know that already
You don't have to quote/post the same question repeatedly in the same thread. Try posting a Want to Buy thread.
RotorNutFD3S is offline   Reply With Quote
Old 03-11-2010, 01:47 PM   #16
Junior Member

Join Date: Jun 2009
Location: Lancaster, PA
Posts: 240
Total Cats: -2
Default

Quote:
Originally Posted by magnamx-5 View Post
go get 1k dollars from the bank and buy one **** isnt cheap but it sure isnt hard to find.
Speaking of which OP if you dont mind sharing how much did you pick it up for? and some details
TimR is offline   Reply With Quote
Old 03-15-2010, 05:55 PM   #17
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Quote:
Originally Posted by hustler View Post
I like AMSoil MTG because I'm the....... I luvs it.
Tell me more about the MTG? Have you tried the motocraft as well to compare with or MTL/MT-90?
Landrew is offline   Reply With Quote
Old 03-16-2010, 07:38 PM   #18
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Interesting on the drive gears. I just got the one someone else had bought with this 3.63 rear end. I guess I'll see if it's off and try it.

Of course, what matters, Rafa, is not the rim size, but the overall rolling diameter (rim size + tire width * profile * fudge factor since manufacturers all lie). Measure the diameter of the tire, and that'll tell you if you need to change the gear. The 3.63 is a much bigger factor.

I'm excited about doing my own.
AbeFM is offline   Reply With Quote
Old 03-17-2010, 07:01 PM   #19
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by AbeFM View Post
Interesting on the drive gears. I just got the one someone else had bought with this 3.63 rear end. I guess I'll see if it's off and try it.

Of course, what matters, Rafa, is not the rim size, but the overall rolling diameter (rim size + tire width * profile * fudge factor since manufacturers all lie). Measure the diameter of the tire, and that'll tell you if you need to change the gear. The 3.63 is a much bigger factor.

I'm excited about doing my own.
Hey Abe; Eric (RotorNut) was kind enough to assemble mine. I'll keep you posted.
Rafa is offline   Reply With Quote
Old 03-17-2010, 07:03 PM   #20
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default 6 speed short shifter install

Ok guys, I got my 6 speed. We should be mounting it Friday so I have a new question:

I bought a 6 speed short shifter and would like to know what kind of issues I may face when I install it. I remember reading somewhere about problems when installing 5 speed short shifters but I can't find the thread.

Does anyone have additional info in this regard?

Thanks
Rafa is offline   Reply With Quote
