Old 11-11-2013, 06:28 PM   #241
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,204
Total Cats: 1,226
Default

Quote:
Originally Posted by kaisersoze View Post
Many have pointed out that most of the tranny swap options have shitty ratios, so what would your ideal ratios be?
Using 3.636/3.909s depending on power (3.909s up to ~350whp, 3.636s above that), something along the lines of:

1.5 (5.5/5.9)
1.2 (20% drop)
1.0 (~17% drop)
.85 (15% drop)

If those ratios come in the form of a 5-speed with a short 1st, or a 6-speed with two useless ratios above and/or below, or even in the form of a T101A with the 0.85:1 ratio in the "1st" position, that's all fine with me.
Savington is offline   Reply With Quote
Old 11-11-2013, 06:47 PM   #242
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by Savington View Post
Using 3.636/3.909s depending on power (3.909s up to ~350whp, 3.636s above that), something along the lines of:

1.5 (5.5/5.9)
1.2 (20% drop)
1.0 (~17% drop)
.85 (15% drop)

If those ratios come in the form of a 5-speed with a short 1st, or a 6-speed with two useless ratios above and/or below, or even in the form of a T101A with the 0.85:1 ratio in the "1st" position, that's all fine with me.
You could also have the T101A with a gear venders overdrive to get the final gear on there. It would also give you a gear between gears that you can clutchless no-lift shift to if you only needed a bit more speed in a certain section. I havent been able to get an actual weight out of gear venders but it looks like its in the 20 pound range.
Leafy is offline   Reply With Quote
Old 11-11-2013, 08:19 PM   #243
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,204
Total Cats: 1,226
Default

Quote:
Originally Posted by Leafy View Post
You could also have the T101A with a gear venders overdrive to get the final gear on there. It would also give you a gear between gears that you can clutchless no-lift shift to if you only needed a bit more speed in a certain section. I havent been able to get an actual weight out of gear venders but it looks like its in the 20 pound range.
35+lbs, last time I checked, and requires a custom driveshaft, and likely won't allow use of a PPF. Terrible idea.

Last edited by Savington; 11-11-2013 at 08:35 PM.
Savington is offline   Reply With Quote
Old 11-11-2013, 10:06 PM   #244
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

Quote:
Originally Posted by Savington View Post
Using 3.636/3.909s depending on power (3.909s up to ~350whp, 3.636s above that), something along the lines of:

1.5 (5.5/5.9)
1.2 (20% drop)
1.0 (~17% drop)
.85 (15% drop)

If those ratios come in the form of a 5-speed with a short 1st, or a 6-speed with two useless ratios above and/or below, or even in the form of a T101A with the 0.85:1 ratio in the "1st" position, that's all fine with me.
With the pending introduction of the 3.308 R&P from MiataRoadster, the use of a 4 speed without overdrive is feasible and opens up cheaper options.

You proposed: (w/3.9)

1.5 (5.85)
1.2 (4.68)
1.0 (3.9)
.85 (3.31)

"Hypothetical" Ratios: (w/3.308)
1.8 (5.95) (Same as 3rd with 3.63)
1.45 (4.80)
1.2 (3.97)
1.0 (3.31)
Sokool is offline   Reply With Quote
Old 11-11-2013, 10:17 PM   #245
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 798
Total Cats: 25
Default

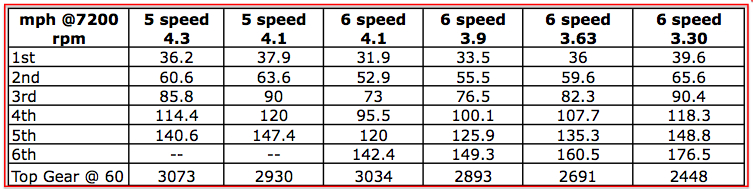

Here are OEM gear boxes with different rear ends for people who don't like the graphical representations already posted:

Attached Thumbnails
Another 6 speed bites the dust.-miatagears.jpg
mr_hyde is offline   Reply With Quote
Old 11-12-2013, 02:37 AM   #246
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

Quote:
Originally Posted by Sokool View Post
That is good to know now... I bought an MSM tranny with a 3rd gear grind. I've got it torn down and have a 3rd gear, synchro and 3-4 hub sleeve on order. I had a hell of a time getting the 6th hub off and actually destroyed my HB puller. Ended up buying a Snap-on puller off of the truck to get it off. I have a feeling it will be a bear to get back on too. My parts should come in tomorrow, I'll let you know if I come up with a way to get it to go on. I have a 6ft name brand 20 ton press so I shouldn't have trouble getting the whole tranny in the press.

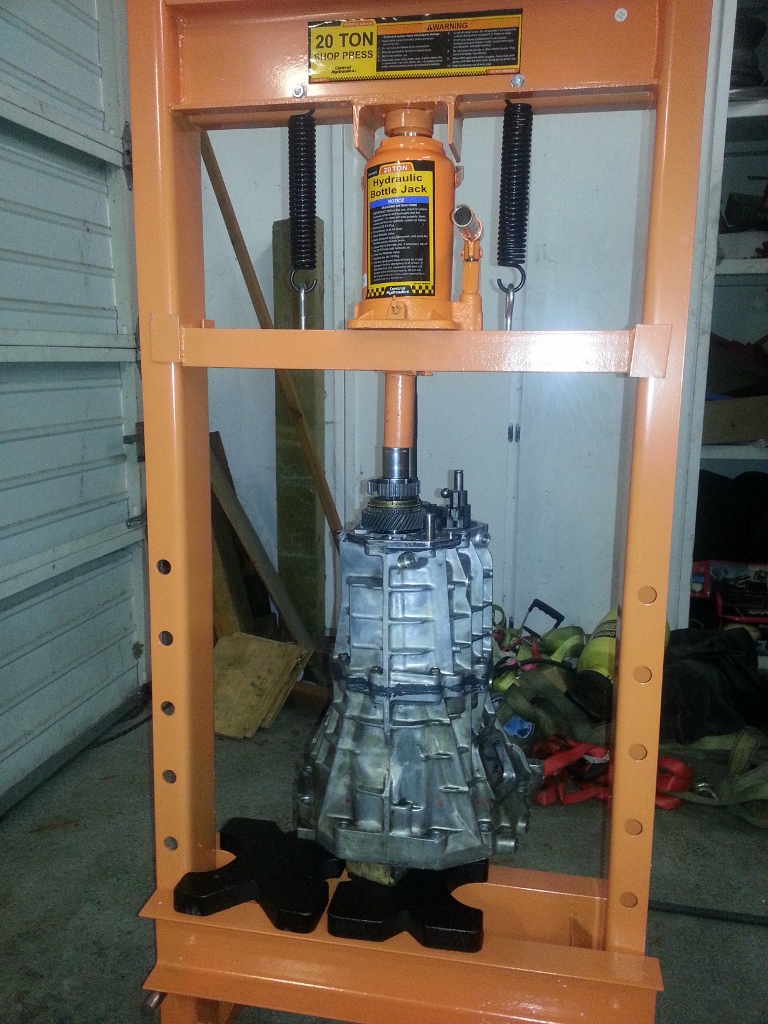

I made my own puller welding a big nut to a piece of plate and drilling three holes in it but yea that thing fits tight. no issues using a 20 ton press to press it on used an oak 4X4 to support the other end of the shaft. got it all together and it seems to shift good on the bench. hopefully I got everything right.

Attached Thumbnails
Another 6 speed bites the dust.-20131111_213432-768x1024-.jpg
bbundy is offline   Reply With Quote
Old 11-12-2013, 08:33 AM   #247
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

Quote:
Originally Posted by bbundy View Post
I made my own puller welding a big nut to a piece of plate and drilling three holes in it but yea that thing fits tight. no issues using a 20 ton press to press it on used an oak 4X4 to support the other end of the shaft. got it all together and it seems to shift good on the bench. hopefully I got everything right.
Good to hear! I'll probably end up doing it the same way.
Sokool is offline   Reply With Quote
Old 11-15-2013, 10:20 AM   #248
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 299
Total Cats: 17
Default

So, while you are disassembling everything, would you be willing to measure out the synchros?

There has been speculation that the s2000 carbon fiber synchro rings might be a drop in replacement. Which might lead to an even better 6 speed, (at least in shift feel and quality).
glade is offline   Reply With Quote
Old 11-15-2013, 11:38 AM   #249
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

Quote:
Originally Posted by glade View Post
So, while you are disassembling everything, would you be willing to measure out the synchros?

There has been speculation that the s2000 carbon fiber synchro rings might be a drop in replacement. Which might lead to an even better 6 speed, (at least in shift feel and quality).

THIS!!!! ^^^

Gear speed makes better than oem synchros
ctdrftna is offline   Reply With Quote
Old 11-15-2013, 01:50 PM   #250
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

what about the 6-speed makes it "stronger" than the 5-speed?
mx594m is offline   Reply With Quote
Old 11-15-2013, 01:52 PM   #251
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by mx594m View Post
what about the 6-speed makes it "stronger" than the 5-speed?
It goes one higher. You know when you're driving in 5th and you need that little bit more to get you over the edge? Well this one goes to 6th.
Leafy is offline   Reply With Quote
Old 11-15-2013, 02:25 PM   #252
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,571
Total Cats: 924
Default

Quote:
Originally Posted by Leafy View Post
It goes one higher. You know when you're driving in 5th and you need that little bit more to get you over the edge? Well this one goes to 6th.
EO2K is offline   Reply With Quote
Old 11-15-2013, 02:29 PM   #253
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 798
Total Cats: 25
Default

I hope they develop a 7 speed soon. That would be way cool.
mr_hyde is offline   Reply With Quote
Old 11-15-2013, 02:35 PM   #254
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,571
Total Cats: 924
Default

Take a 5 speed and weld it to a 6 speed. BAM! 11 speed
EO2K is offline   Reply With Quote
Old 11-15-2013, 02:37 PM   #255
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by EO2K View Post
Take a 5 speed and weld it to a 6 speed. BAM! 11 speed
Actually, it would have 30 speeds.
Leafy is offline   Reply With Quote
Old 11-15-2013, 02:38 PM   #256
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,457
Total Cats: 240
Default

Attached Thumbnails
Another 6 speed bites the dust.-2014_chevrolet_corvette_ill_fe_110131_717.jpg
TurboTim is offline   Reply With Quote
Old 11-15-2013, 02:39 PM   #257
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

Quote:
Originally Posted by mx594m View Post
what about the 6-speed makes it "stronger" than the 5-speed?
I dont know fro sure but I have broken seven of the 5-speeds and three of the 6-speeds.

In the five speeds ive broken second gear, third gear, and the primary gears. also had rapid failures like after two weekends.

the six speed I have broken 4th gear twice and screwed up a bearing on the secondary shaft once which might have been caused by a thrust washer for 4th gear breaking off the teeth on the reverse gear teeth on the secondary shaft.

I have never had any issues with Sycro's. don't even see any wear on them.
bbundy is offline   Reply With Quote
Old 11-15-2013, 02:44 PM   #258
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,571
Total Cats: 924
Default

Quote:
Originally Posted by Leafy View Post
Actually, it would have 30 speeds.
5+6=11

Attached Thumbnails
Another 6 speed bites the dust.-kelso-says-burn-70s-show.gif
EO2K is offline   Reply With Quote
Old 11-15-2013, 02:46 PM   #259
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by EO2K View Post
5+6=11

Then why does a bike with a 3 speed front and a 7 speed rear have 21 speed? Because you have 30 combinations with a 5 speed and 6 speed welded together.

Leafy is offline   Reply With Quote
Old 11-15-2013, 02:48 PM   #260
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,828
Total Cats: 555
Default

Quote:
Originally Posted by EO2K View Post
5+6=11

5x6=30
hi_im_sean is offline   Reply With Quote
