Cool Bare mimimum effort way of replacing springs only on coilover setup?

Hi Guys,

Before I start thinking myself: what is the bare mimimum effort way of replacing springs only on coilover setup?

I'm replacing my 500/300 setup with 800/500 because racecar.
Laur3ns is offline   Reply With Quote
Old 07-19-2011, 09:34 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Drop the top mount, detach the top mount, slide off spring, replace, replace, replace.

the rear sway may need to be disconnected, as well as the front long bolt. But that's the way I've done it.
Braineack is offline   Reply With Quote
Old 07-19-2011, 09:58 AM   #3
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Braineack View Post
Drop the top mount, detach the top mount, slide off spring, replace, replace, replace.

the rear sway may need to be disconnected, as well as the front long bolt. But that's the way I've done it.
Thanks. Was looking for something like this before I started.
Long bolt meaning to pull the upper control arm outboard? That would suck as I need to remove the sway reinforcement brackets.
Laur3ns is offline   Reply With Quote
Old 07-19-2011, 10:24 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

There are other methods, the problem in the front will be getting enough droop to get access to the top hat...I cant remember if I had to pull the long bolt or not, but you could disconnect the knuckle if anything...hell even disconnecting the sway bar up front might be enough.

but that's what I did to swap on my replace springs in the rear on my teins a few weeks back.
Braineack is offline   Reply With Quote
Old 07-19-2011, 10:34 AM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

"because racecer" = ban. Final warning.
hustler is offline   Reply With Quote
Old 07-19-2011, 10:35 AM   #6
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
"because racecer" = ban. Final warning.
Muwhahhaaa
Laur3ns is offline   Reply With Quote
Old 07-19-2011, 01:28 PM   #7
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Kent, WA
Posts: 97
Total Cats: 0
Default

You might be able to drop the spring seat low enough on the coilovers (perhaps off the bottom?) to get the assembly out without removing the long bolt or popping the ball joint.
Tim Irwin is offline   Reply With Quote
Old 07-19-2011, 01:42 PM   #8
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

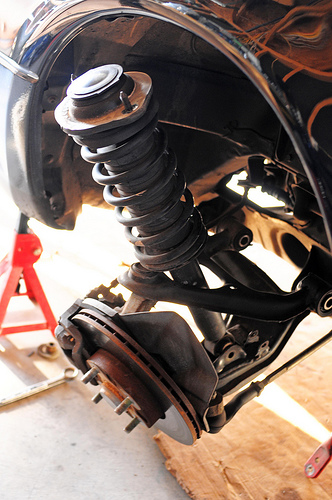

Long bolt removal is way simple. And doing so gives you this.

Attached Thumbnails
Bare mimimum effort way of replacing springs only on coilover setup?-3422858242_dd22bfa03b.jpg
revlimiter is offline   Reply With Quote
Old 07-19-2011, 02:18 PM   #9
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Quote:
Originally Posted by revlimiter View Post
Long bolt removal is way simple. And doing so gives you this.

He's saying that his sway bar mount reinforcements are in the way of removing the long bolt. Pull one sway bar link on each end and have your fat friend stand on the hub. You should be able to flex the bushings enough to flip the shock out of the upper control arm.

Last edited by vehicular; 07-19-2011 at 02:41 PM.
vehicular is offline   Reply With Quote
Old 07-19-2011, 02:36 PM   #10
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I was able to undo the top mount, the lower shock bolt, step on the bottom arm, and move the shock into a position where I could remove the spring. This was with a stock size spring, so it might be easier with a smaller diameter spring.
miatauser884 is offline   Reply With Quote
Old 07-19-2011, 03:40 PM   #11
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Just take it out?

should be 2 nuts and a bolt if your on anything besides oem.
shlammed is offline   Reply With Quote
Old 07-19-2011, 05:54 PM   #12
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by shlammed View Post
Just take it out?
should be 2 nuts and a bolt if your on anything besides oem.
THIS happened to be the way fortunately. The spring diameter and strut length and full droop with the two top mounts disconnected was enough. This is actually something you could do track side.

Now rocking 800/500 lbs/in (14/9 kg)
Laur3ns is offline   Reply With Quote
Old 07-19-2011, 11:04 PM   #13
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

A pry bar helps to increase droop to pull the shock.
wannafbody is offline   Reply With Quote
Old 07-20-2011, 08:31 AM   #14
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

what condition are those springs? What diam? How much you want for them shipped to 35802? Though it appears the shipping could be cost prohibitive.
miatauser884 is offline   Reply With Quote
Old 07-20-2011, 08:35 AM   #15
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by djp0623 View Post
what condition are those springs? What diam? How much you want for them shipped to 35802? Though it appears the shipping could be cost prohibitive.
The front 500 went to the back, so I only have 2x 300lbs/in springs in 7" length. 2.25" I.D. Shipping will be the issue and not sure if you want 300 only?
Laur3ns is offline   Reply With Quote
Old 07-20-2011, 09:43 AM   #16
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

would be nice...
shlammed is offline   Reply With Quote
Old 07-20-2011, 09:49 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

what would be nice?! are you overhung?
Braineack is offline   Reply With Quote
Old 07-20-2011, 10:06 AM   #18
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Shipping will be USD 50 max. How much are you looking to spend on 2x 300lbs/in springs? New is USD 150 from 949 excluding shipping.
Laur3ns is offline   Reply With Quote
Old 07-20-2011, 10:31 AM   #19
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Not overhung, i want 300 lb springs for my daily. currently its 600lb and it rides like i could remove the shocks and replace with metal rod for more comfort.
shlammed is offline   Reply With Quote
Old 07-20-2011, 10:34 AM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

So two people were discussing 300 lb springs, and you were just thinking to yourself, "My setup is harsh, 300 lbs springs would be nice," so then you proceeded to post the last three words of your intimate thought, without any real context or relation to that of what djp or spooky were discussing?

is that correct?
