Default Big Gulp needs a clutch.... Suggestions?

Well, Good ole Big Gulp has eaten her clutch. And eaten IS the proper term!!!

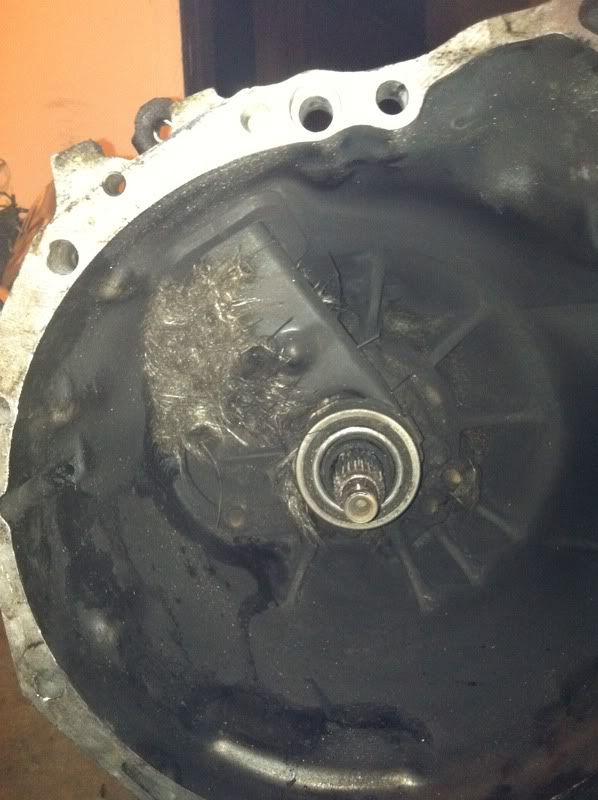

Name:  poorBigGulp003.jpg
Views: 5
Size:  68.8 KB

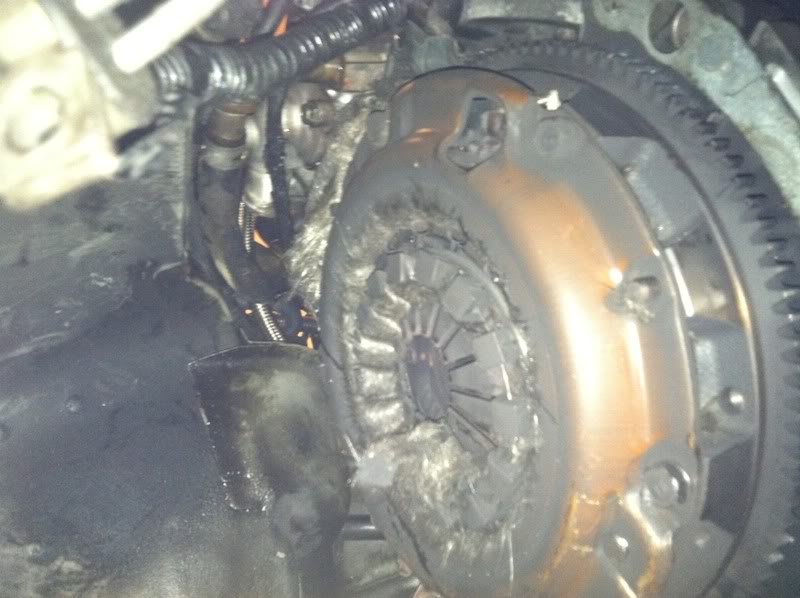

Name:  poorBigGulp004.jpg
Views: 4
Size:  63.7 KB

It WAS a CF PP and ACT organic street disc. So what I am looking to find it a clutch capable of holding at least 400 foot lbs and be VERY streetable as I will be driving her in bumper to bumper.

I am currently running Big Gulp at 16 psi. Mind you that is inter-cooled and on a highly built motor.. I have EVERY intention of taking her back to 26 psi soon as well.

I am looking at the FM S2, but it is not even rated for 400... I suspect it will not hold for very long. I do have every single intention of abusing it. Ideally I would like a clutch that is forgiving enough that it is not
A. an on/off switch
B. going to shatter my driveline rather than slip
C. going to make my left leg look like my right arm!

I intend on continuing to use the stock flywheel. The engine already revs fast enough!

I would love any feedback I can get. I have been reading clutch threads for 2 days and have yet to find a good solution. I figure you Turbo guys have to be hell on clutches ! And I do not own this car to drive like a little old lady.
viriiguy is offline   Reply With Quote
Old 04-26-2011, 08:06 PM   #2
Junior Member
iTrader: (3)

Join Date: Mar 2008
Location: Murphy, Tx
Posts: 182
Total Cats: 6
Default

Holy crap did you suck a bird into that thing?

Have you looked at the 949 racing twin disk setup?
It's expensive but it meets your requirements.
http://949racing.com/miata-twin-disc-clutch.aspx
Fidgitk is offline   Reply With Quote
Old 04-26-2011, 08:10 PM   #3
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

That, that is kind of similar to Baron's response too..
Pretty nasty huh?
viriiguy is offline   Reply With Quote
Old 04-26-2011, 08:12 PM   #4
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Was that a missed shift into second instead of fourth?
Godless Commie is offline   Reply With Quote
Old 04-26-2011, 08:12 PM   #5
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Spec Stage 3+

I have had a Spec clutch for a long time and have had no problems at all with it, I have a 4 puck disk it's very streetable and nice and soft.
jtothawhat is offline   Reply With Quote
Old 04-26-2011, 08:16 PM   #6
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

Quote:
Originally Posted by Godless Commie View Post
Was that a missed shift into second instead of fourth?
That was 6 years of abuse.


jtothawhat,
Do you find you have trouble with chatter with the puck disc? I have never driven one, but have read they are atrocious for DD.
viriiguy is offline   Reply With Quote
Old 04-26-2011, 08:32 PM   #7
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

No, never had problem with chatter or anything else. It's the easiest clutch to drive, I never liked the way ACTs drove.
jtothawhat is offline   Reply With Quote
Old 04-26-2011, 09:03 PM   #8
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

What type of driver are you? Me, I am a pedal to the floor sideways in the in the turns kinda guy... when I am alone anyway What kind of torque are you making?

I am just trying to gauge weather it will handle the stresses it will see. Surely if the ACT held up as long as it did...

Last edited by viriiguy; 04-26-2011 at 09:27 PM.
viriiguy is offline   Reply With Quote
Old 04-26-2011, 09:28 PM   #9
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

viiriiguy, more details on your car? how much power were you putting down at 26psi? What turbo? detaillls!!!!!
Faeflora is offline   Reply With Quote
Old 04-26-2011, 09:29 PM   #10
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Faeflora View Post
viiriiguy, more details on your car? how much power were you putting down at 26psi? What turbo? detaillls!!!!!
n00b! it's a substantially large supercharger setup.
y8s is offline   Reply With Quote
Old 04-26-2011, 09:37 PM   #11
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Lol... it's a STUPID large supercharger setup. Large enough to sound like you are being eaten by a jet engine while sitting in the passenger seat, to the point of not being able to hear the tires leaving rubber all over the road because of the S/C scream.
baron340 is offline   Reply With Quote
Old 04-26-2011, 09:42 PM   #12
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

Like y8s said,
Big Gulp is a one off Cold Side MP62 MONSTER!!! At 26 PSI she was dyno'd on pump gas at 342 rwhp and 347 Torque. That was by the builder a few years ago. Since then she underwent several changes again, he added Meth and Nitrous, dropped the boost down, worked on the Intercooler, throttle and exhaust.

Not sure what she makes right now, but I can tell you at 16 psi, most have said it is the most ride ever! And that is without the nitrous!

As for about the car?
The motor is a 1999 1.8l bored to 1.89l. The Crank was lightened and polished, Then the crank was balanced with the flywheel and Pullys on it. All ports, top to bottom were polished. The rods are Pauter and the pistons are Weisco. Compression has been lowered to 8.5 I believe.

There are also a lot of little tricks and tweaks that I am still finding as I go thru it as well.


Quote:
Originally Posted by baron340 View Post
Lol... it's a STUPID large supercharger setup. Large enough to sound like you are being eaten by a jet engine while sitting in the passenger seat, to the point of not being able to hear the tires leaving rubber all over the road because of the S/C scream.
LOL!!! Yea I LOVE that!

I bought the car Valentine's day of last year. Over that time it has been on the chopping block a couple of times.. But every time I drive it again, even if for only a few minutes, I realize I am nuts to consider getting rid of her!

But DAMN can she eat money!

Here is a youtube video to give an idea of the scream in question..

Ok nevermind.. here.
http://www.youtube.com/watch?v=x_Hmo71Nm5o
viriiguy is offline   Reply With Quote
Old 04-26-2011, 09:50 PM   #13
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

That sounds like a great car Once upon a time in 2005 I almost bought the FM ubercharger setup because of the noise it made.

Youtube video not working :(
Faeflora is offline   Reply With Quote
Old 04-26-2011, 09:55 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

949 twin disc or bust.
Braineack is offline   Reply With Quote
Old 04-26-2011, 09:56 PM   #15
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

Quote:
Originally Posted by Faeflora View Post
That sounds like a great car Once upon a time in 2005 I almost bought the FM ubercharger setup because of the noise it made.

Youtube video not working :(
Thanks! I love the sound! It is deafening... But oh so sweet.

Fixed the link.. Can't seem to make inline work.


Quote:
Originally Posted by Braineack View Post
949 twin disc or bust.
I have read that they are very much on or off. Is this not true?
viriiguy is offline   Reply With Quote
Old 04-26-2011, 09:57 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I would think theyd be better than any pucked disc.
Braineack is offline   Reply With Quote
Old 04-26-2011, 10:06 PM   #17
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

Hmmm, Maybe.
I know my neighbor has a higher horsepower stang with a pucked clutch. Wonder if he would let me play with it for a few?

Probably not.
viriiguy is offline   Reply With Quote
Old 04-26-2011, 10:34 PM   #18
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

949 organic twin plate with organic disks isn't going to be on-off.

you could go crazy and try one of each disk.
y8s is offline   Reply With Quote
Old 04-26-2011, 10:34 PM   #19
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Urrghh

I have a 6 puck sprung ACT with an xtreme pressure plate. Used to have the organic disc.

I like it a lot. Heavy pedal feel. Which I like. I slip it a lot for slow starts in first or it bangs around.

Your car sounds great. Where are you?
Faeflora is offline   Reply With Quote
Old 04-26-2011, 10:53 PM   #20
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

I have considered the 949, but the sheer cost of it almost guarantees I won't get to drive the ole girl any time soon. However, I may go back and do this again next year and go with a twin disc setup. I know it is something Richard wanted to do, but nothing was available at the time.

I just can't see me getting a grand past the wife atm though. :(
Maybe, but not very likely!

Faeflora I am in Tennessee, land of the Vols and the Dragon!
