Default Brake master cylinder brace = WIN

I've had the Carbing FSTB for well over a year now and just reinstalled the master cylinder brace it came with.

The pedal is MUCH firmer with it. Less travel to grab, less travel to brake. Really nice.

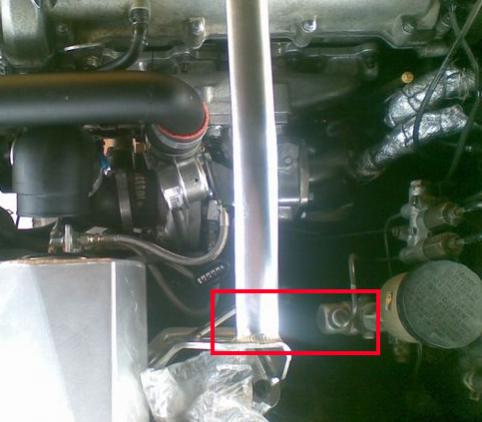

The idea is like this:


This is an old pic without it, but you get the idea:
Attached Thumbnails
Brake master cylinder brace = WIN-miata_brake_brace.jpg
Laur3ns is offline   Reply With Quote
Old 06-12-2009, 05:56 AM   #2
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Sweet, this is one of the MANY things we are doing to Savington's car while its down. But we will be fabbing our own using an old strut tower bar bracket.
crashnscar is offline   Reply With Quote
Old 06-12-2009, 06:02 AM   #3
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by crashnscar View Post
Sweet, this is one of the MANY things we are doing to Savington's car while its down. But we will be fabbing our own using an old strut tower bar bracket.
If you can weld you can build it yourself indeed. You do want some threading and a nut to preload for real effect. Mine sits against a 14mm socket on a bolt
Laur3ns is offline   Reply With Quote
Old 06-12-2009, 09:29 AM   #4
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I have one in too, but I probably need to upgrade my brakes in order to feel any effect from it.
kotomile is offline   Reply With Quote
Old 06-12-2009, 10:48 AM   #5
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I have the mazdaspeed 3 point bar. it had that brace on the right hand side. I cut and welded it to the left side (WITH MY MIG JOE PEREZ!!) and now it's awesome.
y8s is offline   Reply With Quote
Old 06-12-2009, 11:57 AM   #6
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by kotomile View Post
I have one in too, but I probably need to upgrade my brakes in order to feel any effect from it.
Needs more preload on the brace of brake bleeding maybe?
Laur3ns is offline   Reply With Quote
Old 08-19-2009, 05:32 PM   #7
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Any pictures of the braces mentioned?
Nagase is offline   Reply With Quote
Old 08-19-2009, 05:44 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

That's one of the few things I like about that guy with the weird hair and the puke colored miata, he welded the shock tower brace in. There's a lot of fle in it since it's not really sitting on anything flat. I drilled a hole and put a bolt with a couple nuts for a MC brace, but it still flexes a bit on the shock bolts. It did help quite a bit though.
curly is online now   Reply With Quote
Old 08-19-2009, 09:53 PM   #9
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

I have the mazdaspeed strut bar in my car, and all id have to do is drill a hole through it and double nut a bolt against the master cylinder. Done.
Saml01 is offline   Reply With Quote
Old 08-21-2009, 12:08 AM   #10
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: Rochester, MI
Posts: 137
Total Cats: 0
Default

Does anyone currently offer a stand-alone master cylinder brace? I've been thinking about making one up, but I don't know if there is already anything on the market.
Tim Broughton is offline   Reply With Quote
Old 08-21-2009, 12:19 AM   #11
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

The one in my car is standalone, but I bought it used and have no idea of its origins.

Spooky - I have it pretty well butted up against the MC, maybe I ought to try harder. Brakes are pretty freshly bled. Maybe I just can't tell the difference?
kotomile is offline   Reply With Quote
Old 08-21-2009, 12:21 AM   #12
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: Rochester, MI
Posts: 137
Total Cats: 0
Default

Interesting. I'll have to see what I can come up with.
Tim Broughton is offline   Reply With Quote
Old 08-21-2009, 10:20 AM   #13
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 754
Total Cats: 0
Default

Quote:
Originally Posted by Tim Broughton View Post
Does anyone currently offer a stand-alone master cylinder brace? I've been thinking about making one up, but I don't know if there is already anything on the market.
Not any more. At one point Rspeed was carrying some(most likely where Koto's came from) but they selling them like 2 years ago.
wildfire0310 is offline   Reply With Quote
Old 09-21-2009, 03:29 AM   #14
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

sorry to revive, but no one ever posted pictures of the braces installed. would like to see.
tasty danish is offline   Reply With Quote
Old 09-21-2009, 06:15 PM   #15
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I DIY'd one last weekend, I'll get some pics up tomorrow
Oscar is offline   Reply With Quote
Old 09-25-2009, 10:37 AM   #16
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

Quote:
Originally Posted by Oscar View Post
I DIY'd one last weekend, I'll get some pics up tomorrow
you lie...
tasty danish is offline   Reply With Quote
Old 09-25-2009, 10:59 AM   #17
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

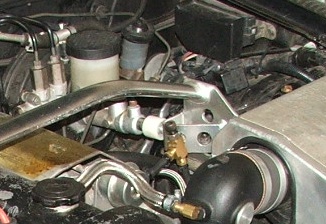

Had new MC, new caliper, new rotos, new pads and round the clock bleeding: result was reasonable but not wow. Just reinstalled brace: WIN.
Attached Thumbnails
Brake master cylinder brace = WIN-dscf8544.jpg
Laur3ns is offline   Reply With Quote
Old 09-25-2009, 10:36 PM   #18
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

not to be picky, but for those of us who have never seen the brace, that's a pretty small picture and isn't zoomed on the business end.

I'm asking be cause I can't find a string to search for that produces pictures. This websites search function doesn't discriminate between words. If I search "master cylinder brace" i get every thread with master, cylinder, brace or any combo of the words.
tasty danish is offline   Reply With Quote
Old 09-26-2009, 02:14 AM   #19
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Use quotes around your words, it's supposed to work but I'm pretty sure I've tried it before and it doesn't always work. There was a thread about new search features a while ago, I could be doing it wrong.

Anyways, the search is pointless, its a bolt pushed up against the master cylinder. Some people use a little nylon spacer supposedly to protect the master cylinder from damage, but I've been using a bolt out of my hardware drawer for years and it's fine.

Here's a pic on FM's site from their 2nd super four challenge car. That's all it really needs to be, a bolt against the mc.
Flyin' Miata : Supertuner Challenge : The event
curly is online now   Reply With Quote
Old 09-26-2009, 05:18 AM   #20
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
That's a good picture. Mine is from the Carbing brace with a slight adjustment (14mm socket as spacer). Ill take pictures today if I don't forget
