Old 09-26-2009, 10:24 AM   #21
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by tasty danish View Post
you lie...
I know, I'm a lying bastard

anyway:

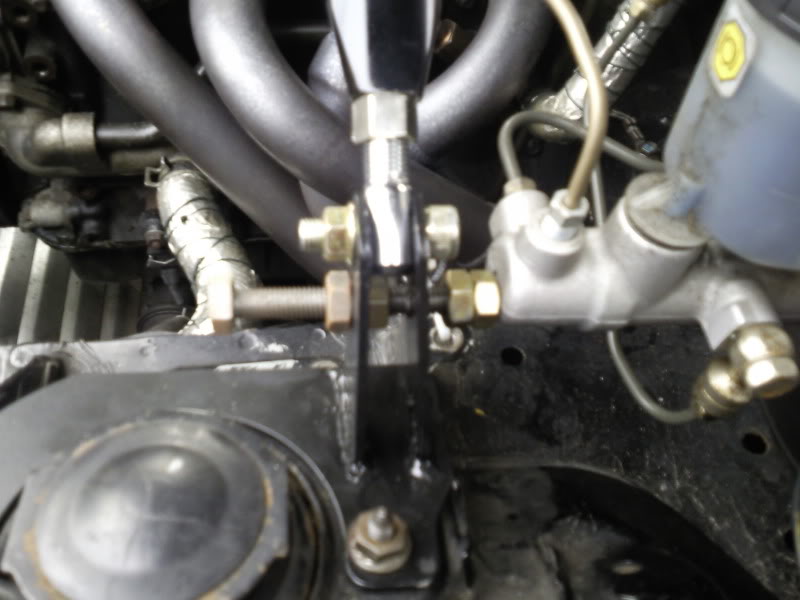

Name:  Foto0079.jpg
Views: 52
Size:  59.7 KB

Name:  Foto0080.jpg
Views: 124
Size:  84.1 KB

Brace done the quick 'n dirty way. A random bolt and some nuts I found. Preload is adjustable this way too.
Oscar is offline   Reply With Quote
Old 09-26-2009, 10:29 AM   #22
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

What brace is that?
gospeed81 is offline   Reply With Quote
Old 09-26-2009, 10:42 AM   #23
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I don't know, scored it on the cheap somewhere.
Oscar is offline   Reply With Quote
Old 09-26-2009, 03:02 PM   #24
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

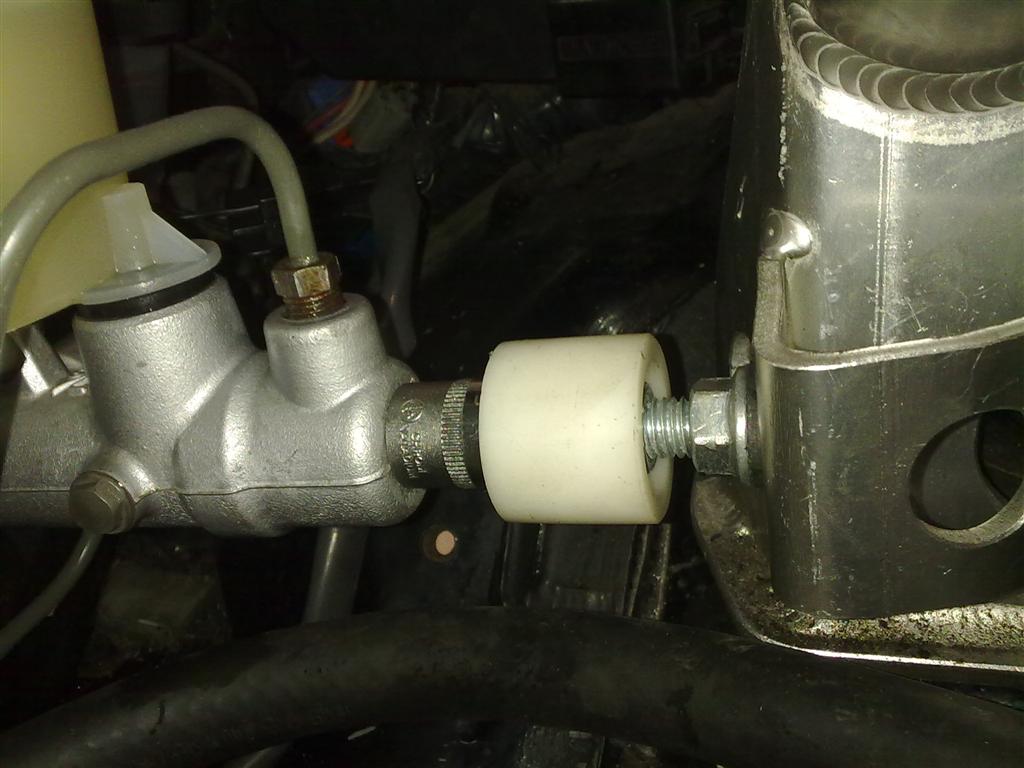

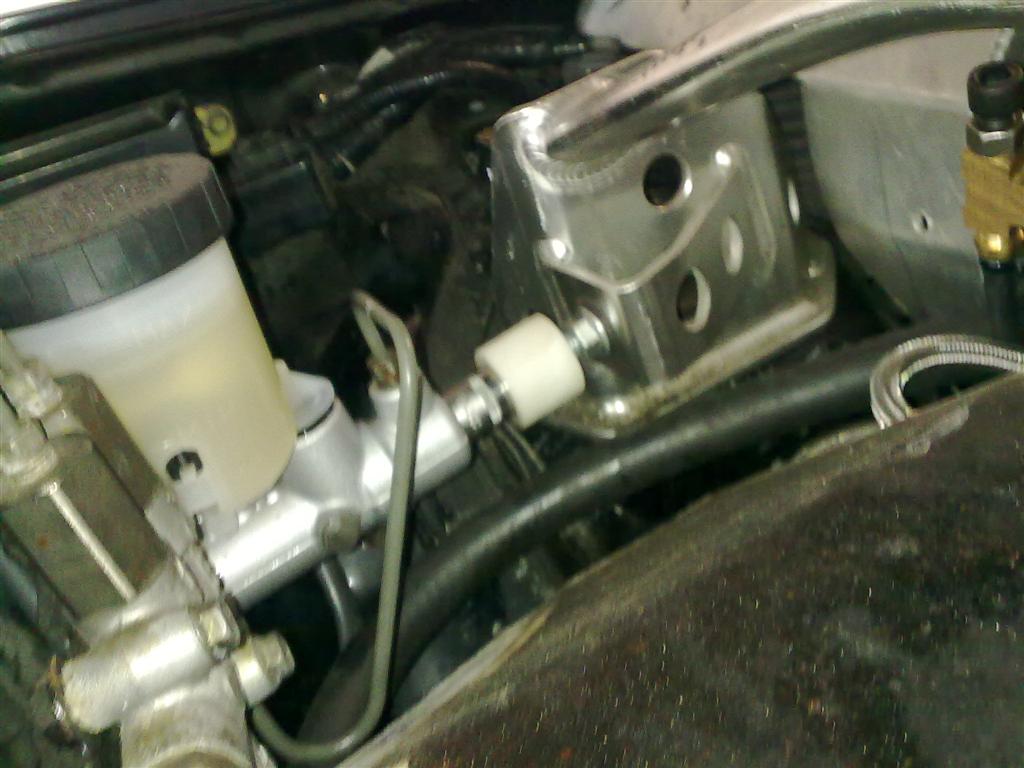

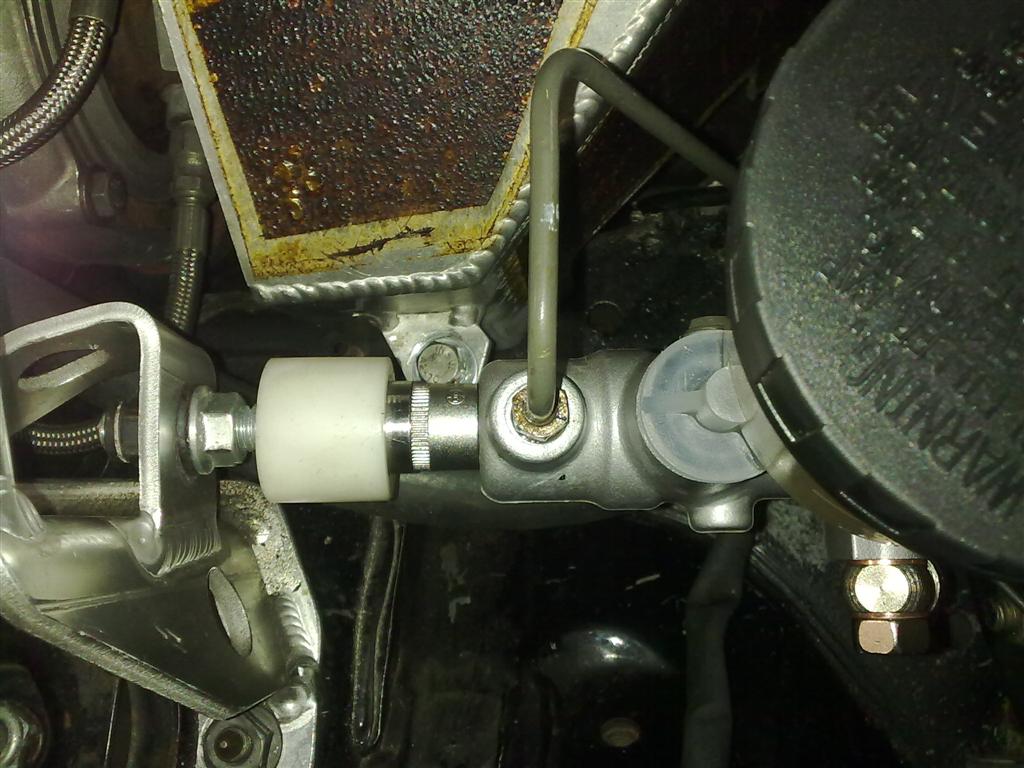

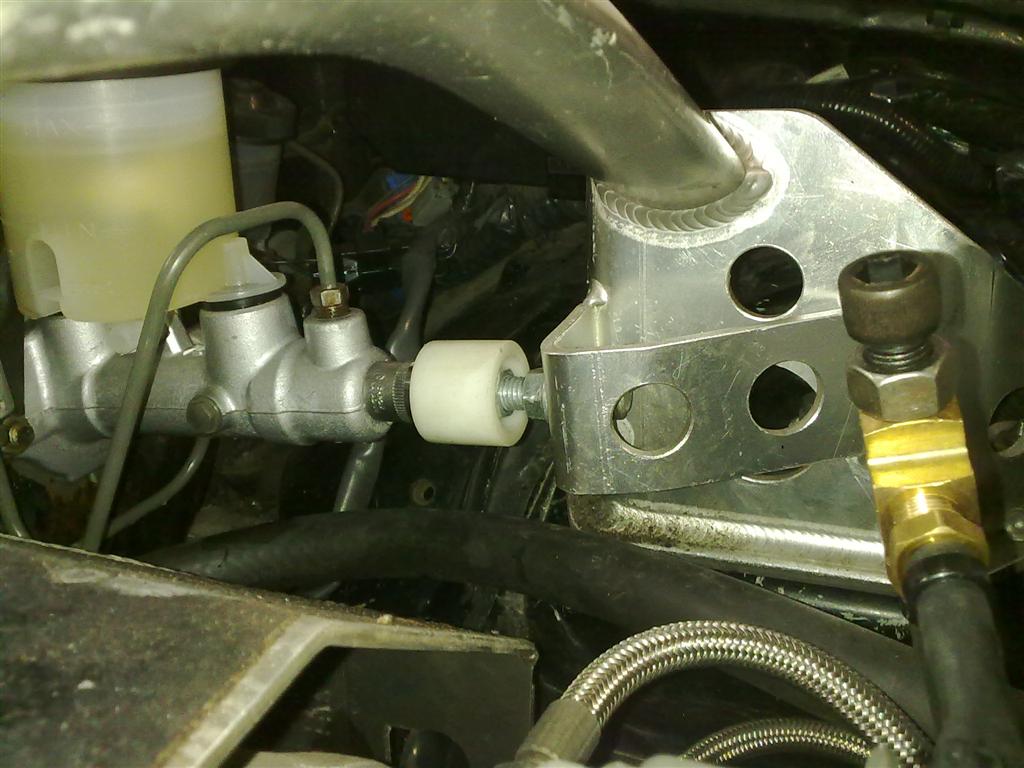

This is the ****:
Attached Thumbnails
Brake master cylinder brace = WIN-26092009240.jpg   Brake master cylinder brace = WIN-26092009241.jpg   Brake master cylinder brace = WIN-26092009242.jpg   Brake master cylinder brace = WIN-26092009243.jpg
Laur3ns is offline   Reply With Quote
Old 09-27-2009, 02:16 PM   #25
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

kick *** you guys, thank you VERY much!
tasty danish is offline   Reply With Quote
Old 12-07-2013, 03:20 AM   #26
Newb
iTrader: (1)

Join Date: Sep 2010
Posts: 20
Total Cats: -4
Default Need help

Quote:
Originally Posted by Laur3ns View Post
That's a good picture. Mine is from the Carbing brace with a slight adjustment (14mm socket as spacer). Ill take pictures today if I don't forget

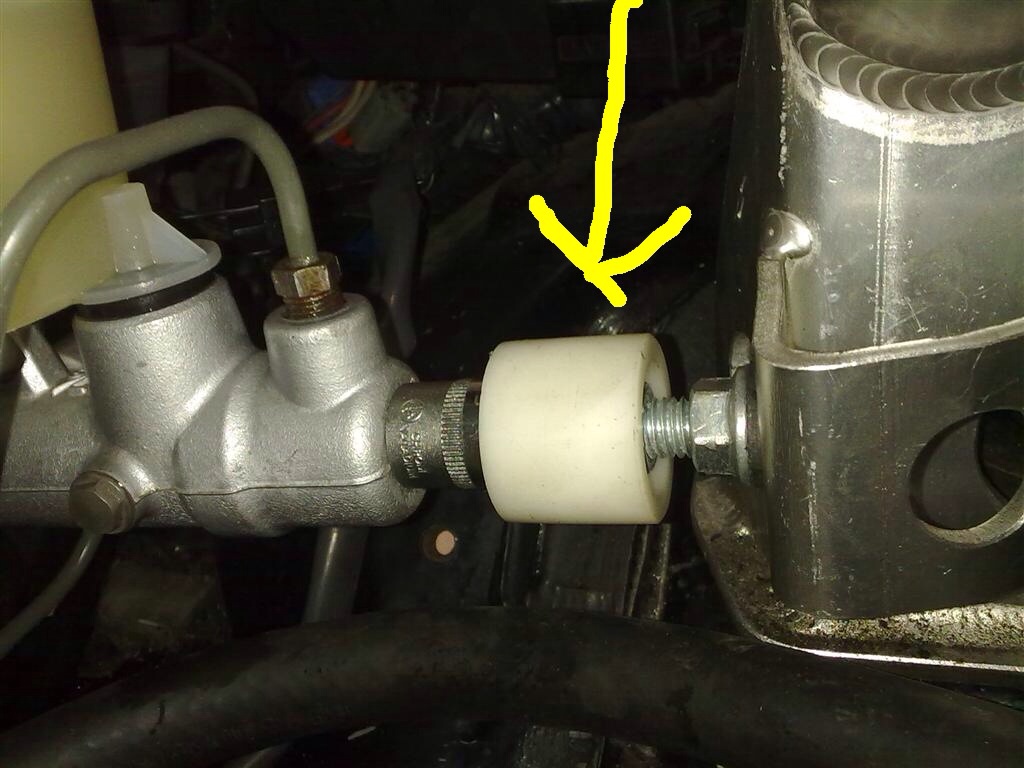

I'm interested in making a brake cylinder brace for my NB Miata. I have a Wilwood V8 brake master cylinder. I also have a Cobalt 3-point tower brace. What I plan to do is try to find the parts that I circled in yellow and then weld it on my 3-point tower brace. So my question is where can I buy those parts circled in yellow and what are they called ?
Attached Thumbnails
Brake master cylinder brace = WIN-image.jpg

Last edited by dt101; 12-07-2013 at 04:04 AM.
dt101 is offline   Reply With Quote
Old 12-07-2013, 03:46 AM   #27
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

at a hardware store
18psi is offline   Reply With Quote
Old 12-07-2013, 04:00 AM   #28
Newb
iTrader: (1)

Join Date: Sep 2010
Posts: 20
Total Cats: -4
Default

Quote:
Originally Posted by 18psi View Post
at a hardware store
What are those parts called? The white stopper, what is called?
Attached Thumbnails
Brake master cylinder brace = WIN-image.jpg

Last edited by dt101; 12-07-2013 at 04:17 AM.
dt101 is offline   Reply With Quote
Old 12-07-2013, 09:41 AM   #29
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 560
Default

Just a standard plastic (nylon) bushing. You could use anything there, whatever fits.
rleete is offline   Reply With Quote
Old 12-07-2013, 09:44 AM   #30
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 560
Default

Quote:
Originally Posted by dt101 View Post
... what are they called ?
Starting from the MC, I see a plastic bushing/spacer.
Next is a washer, two nuts, a section of threaded rod and another nut.
On the end is a hex spacer with a hex bolt in the end.

Everything should be available at any decent hardware store.
rleete is offline   Reply With Quote
Old 12-07-2013, 03:30 PM   #31
Junior Member

Join Date: Sep 2008
Location: Chicago, IL
Posts: 235
Total Cats: 4
Default

I'm not much of a fabricator so I got mine from here: Garage Star - Brake Master Brace
Slider is offline   Reply With Quote
Old 12-07-2013, 03:50 PM   #32
Newb
iTrader: (1)

Join Date: Sep 2010
Posts: 20
Total Cats: -4
Default

Got all the parts today from Lowes. Was only around $4. Btw the FM brace is better and cost half the price of the Garagestar. I would have bought the FM brake brace but they won't work with a v8 brake cylinder and 3-point tower brace...none of the ones on the market will. So that is why I had to go the custom route . I will do a write up.
dt101 is offline   Reply With Quote
Old 12-07-2013, 06:10 PM   #33
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

What's a V8 brake cylinder?
paNX2K&SE-R is offline   Reply With Quote
Old 12-08-2013, 02:10 AM   #34
Newb
iTrader: (1)

Join Date: Sep 2010
Posts: 20
Total Cats: -4
Default

Quote:
Originally Posted by paNX2K&SE-R View Post
What's a V8 brake cylinder?

Miata Race Master Cylinder kit
dt101 is offline   Reply With Quote
Old 12-08-2013, 02:12 AM   #35
Newb
iTrader: (1)

Join Date: Sep 2010
Posts: 20
Total Cats: -4
Default

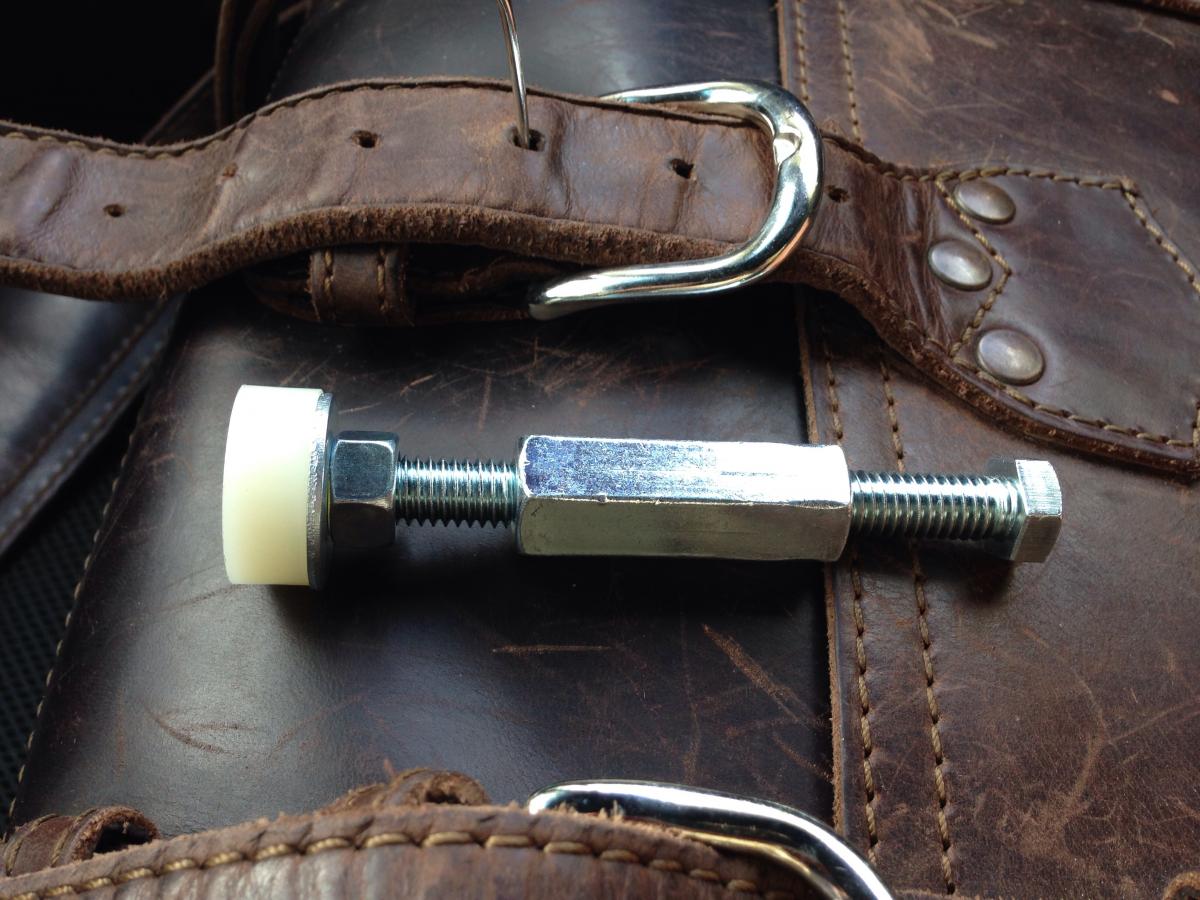

Attached Thumbnails
Brake master cylinder brace = WIN-image.jpg
dt101 is offline   Reply With Quote
Old 12-08-2013, 02:07 PM   #36
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

Quote:
Originally Posted by dt101 View Post
It's not a brace until it's installed on the car.
DaveC is offline   Reply With Quote
Old 12-08-2013, 05:49 PM   #37
Newb
iTrader: (1)

Join Date: Sep 2010
Posts: 20
Total Cats: -4
Default

Quote:
Originally Posted by DaveC View Post
It's not a brace until it's installed on the car.
Hey relax...those are the glamour shots...intended to tease you. The X-Rated **** pictures will be up soon enough.
dt101 is offline   Reply With Quote
Old 12-11-2013, 12:08 AM   #38
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Quote:
Originally Posted by Tim Broughton View Post
Does anyone currently offer a stand-alone master cylinder brace? I've been thinking about making one up, but I don't know if there is already anything on the market.
Garage Star and Flyin Miata offer them.
wannafbody is offline   Reply With Quote
Old 12-24-2013, 12:16 AM   #39
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

i made mine from a bit of 3"x1/8" flat bar cut and bent to shape and a 3/8 rod welded to brace it. very very cheap and very very effective! feels like i have braided lines!
4sfed5 is offline   Reply With Quote
Old 12-24-2013, 02:24 AM   #40
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Mines made out of air.
Impuls is offline   Reply With Quote
