Brake pad clips


Old 09-21-2018, 12:22 PM
  #1
Junior Member
Thread Starter
iTrader: (8)

Join Date: Sep 2013
Location: Denver, CO
Posts: 348
Total Cats: 13
Default Brake pad clips

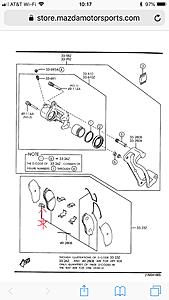

I need a little help. I changed out my front brake pads and calipers. The pads were set in the bracket with 4 positioning clips. The new brakes had 4 clips plus a 5th clip that is smaller and different than the others. I donít know the function of the clip or where to put it. The clip is referenced in mazdaís Diagram attached here. Red arrow points to it. Thanks yíall.
Attached Thumbnails Brake pad clips-7d584f9d-c41d-4d63-992b-2666c6265e48.jpeg
mrmonk7663 is offline
Old 09-21-2018, 03:15 PM
  #2
Senior Member
iTrader: (1)

Join Date: Jul 2014
Location: Kensington, MD
Posts: 586
Total Cats: -18
Default

Looks to me like it might be some kind of wear indicator.
huesmann is offline
Old 09-21-2018, 06:02 PM
  #3
Junior Member
Thread Starter
iTrader: (8)

Join Date: Sep 2013
Location: Denver, CO
Posts: 348
Total Cats: 13
Default

I have no idea. It’s a metal clip. But smaller than the 4 brake pad clips.
mrmonk7663 is offline
Old 09-24-2018, 02:26 PM
  #4
Senior Member
iTrader: (1)

Join Date: Jul 2014
Location: Kensington, MD
Posts: 586
Total Cats: -18
Default

Got a photo of the actual thing, not just a fuzzy parts diagram?
huesmann is offline
Old 09-24-2018, 03:16 PM
  #5
Junior Member
Thread Starter
iTrader: (8)

Join Date: Sep 2013
Location: Denver, CO
Posts: 348
Total Cats: 13
Default

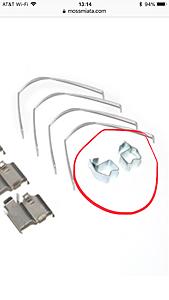

Here is a picture. Thanks.
Attached Thumbnails Brake pad clips-1a6e2041-423b-43be-bcaa-4e8b6794710d.jpeg
mrmonk7663 is offline
Old 09-24-2018, 09:06 PM
  #6
Junior Member

Join Date: Dec 2014
Location: Phoenix, AZ
Posts: 58
Total Cats: 38
Default

Those are the wear indicator tabs. The tiny bit of straight metal next to the curled over part skims the rotor and makes the squealing noise to let you know the friction material is gone.
Crarrs is offline
Old 09-24-2018, 09:27 PM
  #7
Junior Member
Thread Starter
iTrader: (8)

Join Date: Sep 2013
Location: Denver, CO
Posts: 348
Total Cats: 13
Default

Ahh ok great. I appreciate the confirmation. Thank you.
mrmonk7663 is offline
Old 09-24-2018, 09:40 PM
  #8
Senior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 1,279
Total Cats: 155
Default

All the pads I've used have the wear indicator pin already attached to the pad. Maybe oem pads dont. Donno
borka is offline
Old 09-24-2018, 09:59 PM
  #9
Junior Member
Thread Starter
iTrader: (8)

Join Date: Sep 2013
Location: Denver, CO
Posts: 348
Total Cats: 13
Default

These pads will be changed long before they wear out. They are just to get the car going.
mrmonk7663 is offline
