Default Bumpsteer; How to rid my car of it?

I have myself a 1990 Miata, I lowered it with Koni Yellow's(middle clip) and Racing Beat Springs. I just aligned the car for zero toe all around. I have also depowered the rack a la FM's guide. The car has a pronounced amount of bumpsteer when compared to stock.

I have read that 94 Miata R tie rods sit lower in the knuckle and can help remove it and also some have talked about actually putting spacers under the rack to move it up and correct the tie rod angles.

Any other simpler ideas as to little things I can do to make it better?.

Last edited by pitobread; 10-07-2012 at 12:30 PM.
pitobread is offline   Reply With Quote
Old 10-07-2012, 03:53 AM   #2
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

What wheels?
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-07-2012, 04:34 AM   #3
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 8
Default

go to the high perch. what ever you do will change the toe so your cheapest option is going with raising the spring seat. if you get rack spacers (which i havent really seen done right in a long time0 your alignment will get jacked again.


93le/R tie rod ends do help a bit. but it isnt a night and day difference imo. still worth it though
Twibs415 is offline   Reply With Quote
Old 10-07-2012, 12:29 PM   #4
Junior Member
Thread Starter

Join Date: Sep 2012
Posts: 73
Total Cats: 0
Default

I like it at the height it is at right now. If anything I want to lower the rear a touch more. I have access to an alignment rack whenever I need it so re aligning it is not an issue if I can fix my problems.

So you say a 93 LE has the same tie rods as the R? I am in Canada and was looking them up and did not find a listing for the R model, I will have to try the 93LE.

Current wheels on the car are BBS RM's 15x6.5 ET33 running 175/55/15 tires. I also have a set of Riken Turbo's 15x6 ET35 running 195/50/15 and there is no noticeable difference with either.
pitobread is offline   Reply With Quote
Old 10-07-2012, 12:59 PM   #5
Junior Member
Thread Starter

Join Date: Sep 2012
Posts: 73
Total Cats: 0
Default

I am actually having a hard time finding a set of either 94R or 93LE outers. Does anyone know if there is an aftermarket part number from Moog or the like or are they basically a dealer only item?
pitobread is offline   Reply With Quote
Old 10-07-2012, 02:49 PM   #6
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

NiklasFalk is offline   Reply With Quote
Old 10-08-2012, 05:39 AM   #7
Junior Member
Thread Starter

Join Date: Sep 2012
Posts: 73
Total Cats: 0
Default

So I take it that means they are dealer only and aftermarket just list the regular outers?
pitobread is offline   Reply With Quote
Old 10-08-2012, 09:15 AM   #8
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

175 tires? This isn't KiaRio.com.

But seriously, if your ride height is exceedingly low the geometry will not be conducive to proper handling. If your current height has your tie rods increasing in elevation toward the ends, the best you can do is set your static toe outward slightly so that as the wheel travels upward it goes to zero before toeing inward at the top of its range of travel. If you are starting with a static toe-in it could be dangerous in bumps and braking. Excessive negative camber may aggravate the issue.
sixshooter is offline   Reply With Quote
Old 10-08-2012, 01:04 PM   #9
Junior Member
Thread Starter

Join Date: Sep 2012
Posts: 73
Total Cats: 0
Default

I get 175's for free from Mercedes tire pile with 70 percent tread left. Heck yeah I am going to run them. I have some Federal SS595's in a bigger size on order but they are not a normally stocked size and the last time they were ordered in an oddball size it took 5 months for them to come in. Stupid Canada.



The car is not stupid low? I see others that look lower than me just browsing the forums. I daily the car and I don't enjoy scraping on everything all the time, so I was just curious what if anything others were doing so I could attempt to replicate it. I did notice an upward angle to the tie rods when I had it on the rack and this is part of the reason I am asking all these questions. If it were a Corolla like I am used to I would throw some RCA's on it and call it a day, but that is pretty hard with dual a arm.

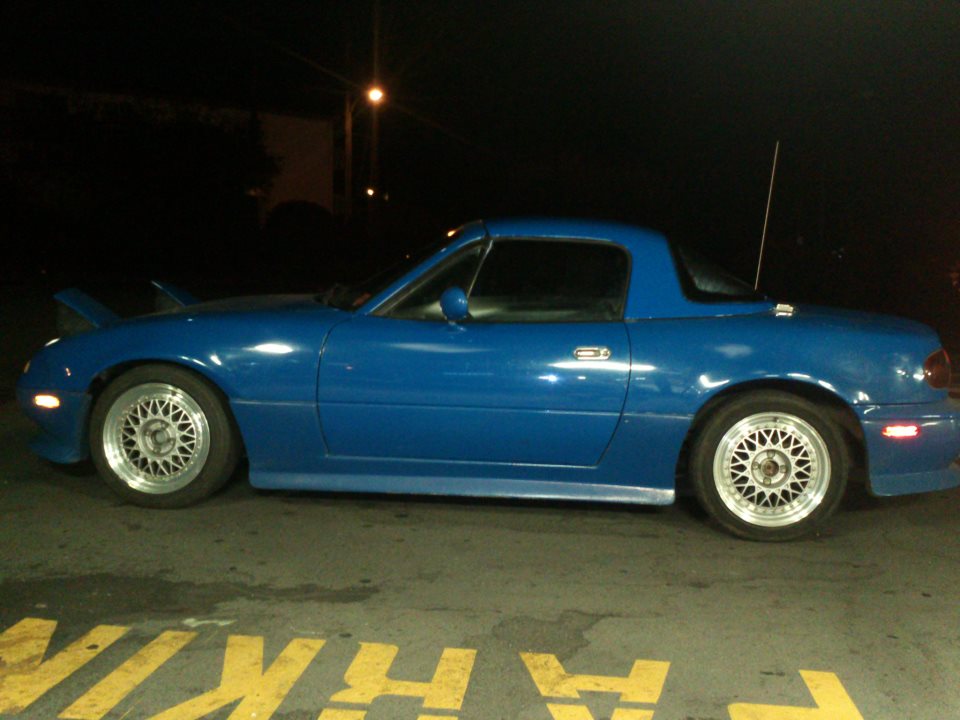

Attached Thumbnails
Bumpsteer; How to rid my car of it?-548181_2426080549206_1718928008_n.jpg
pitobread is offline   Reply With Quote
Old 10-08-2012, 02:18 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

You've named the two things that all non-Spec racers do to correct bumpsteer - '93LE/94R tie rod ends and steering rack shims. There's nothing else you can do AFAIK.
Savington is offline   Reply With Quote
Old 10-10-2012, 10:51 AM   #11
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

You're right, your car doesn't look excessively low, and your tires are not stretched as I had pictured since your wheels aren't too wide.
sixshooter is offline   Reply With Quote
Old 11-03-2012, 05:13 PM   #12
Junior Member
iTrader: (1)

Join Date: Apr 2009
Location: Tehachapi, CA
Posts: 52
Total Cats: 2
Default

since you de-powered, your steering isint as dampend as before either which means CASTER has a HUGE effect on steering feel and the ability to resist road imperfections from messing with your input on the wheel. you mentioned toe, but left out your camber and caster readings, so I figured I'de throw that in...

Last edited by halfdemonpyro; 11-03-2012 at 05:14 PM. Reason: more info
halfdemonpyro is offline   Reply With Quote
Old 11-04-2012, 05:34 AM   #13
Junior Member

Join Date: Feb 2012
Posts: 85
Total Cats: 1
Default

Quote:
Originally Posted by Savington View Post
You've named the two things that all non-Spec racers do to correct bumpsteer - '93LE/94R tie rod ends and steering rack shims. There's nothing else you can do AFAIK.
Is shimming the rack something you have done on your own cars ? Is it a noticeable improvement ?

my 95 has a little bump steer Id like to remove. The spacers seem like a cheap easy thing I could try. What thickness of spacer do you see people using ?
AllSystemsNominal is offline   Reply With Quote
Old 11-05-2012, 02:32 AM   #14
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

I have a plan to try something a little different, and way cheaper. s13 outer tie rod ends.

https://www.miataturbo.net/suspensio...83/#post946594
AkaZero is offline   Reply With Quote
Old 11-05-2012, 05:44 AM   #15
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Quote:
Originally Posted by AkaZero View Post
I have a plan to try something a little different, and way cheaper. s13 outer tie rod ends.

https://www.miataturbo.net/suspensio...83/#post946594
The value of that thread is the knowledge that the Bump-steer "solutions" for S13 can be tried on Miatas as well (7 degrees taper).

Tapered shim inserts (just to get a mm or two lowered pivot point)?
Stupid and risky or just not worth the effort?
The cotter pin hole location doesn't bother me since I'm using nylocks.

Last edited by NiklasFalk; 11-05-2012 at 06:07 AM.
NiklasFalk is offline   Reply With Quote
Old 11-02-2013, 11:34 AM   #16
Junior Member
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

Sorry to bring an old thread up. But has anyone used a rx7 fc tie rod and has good results? I am thinking of something like this
Mazda Rotary FC3S RX7 Adjustable Tie Rod End Kits New Product Sold as Pair | eBay
nismo502 is offline   Reply With Quote
Old 11-05-2013, 12:49 PM   #17
Newb

Join Date: Apr 2010
Location: Dallas Texas
Posts: 30
Total Cats: 0
Default

Like halfdemonpyro said; based on the little first-hand knowledge of your car, I'd think about getting a higher caster number.

I have a manual rack and daily drove it with ~5.5 degrees of caster and it was awesome. No bumpsteer

Now it's on 3.8 degrees and it feel a bit too light and has a touch of bumpsteer. I lowered the caster because I was going out of town for awhile and I was leaving the car with people who couldn't turn the wheel. >_<
chewy is offline   Reply With Quote
Old 11-05-2013, 02:38 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

ideas:

throw away the shitty konis.
throw away the shitty RB springs.
Braineack is offline   Reply With Quote
Old 11-05-2013, 03:46 PM   #19
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Dear , this thread is no longer about the OP, but a followup about using RX-7 parts on a Miata to assist in alleviating bump steer.
turbofan is offline   Reply With Quote
Old 11-05-2013, 04:04 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

ideas:

use LE tie rods.
Braineack is offline   Reply With Quote
