Old 07-08-2010, 09:25 AM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

I looked in the 99-2004 parts catalog. I only see NC10-39-040, the only difference in parts I see is the brackets to bolt to motor...

http://www.mazdamotorsports.com/pdfs...x5_9905_cg.pdf

page 9


the only other part i can find for the mounts is NAY1-39-040 which is the MazComp mount.
Braineack is offline   Reply With Quote
Old 07-08-2010, 09:35 AM   #22
Senior Member

Join Date: Aug 2009
Location: Long Island, NY
Posts: 576
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
I looked in the 99-2004 parts catalog. I only see NC10-39-040, the only difference in parts I see is the brackets to bolt to motor...

http://www.mazdamotorsports.com/pdfs...x5_9905_cg.pdf

page 9


the only other part i can find for the mounts is NAY1-39-040 which is the MazComp mount.
Well there you go
02semiata is offline   Reply With Quote
Old 07-08-2010, 10:02 AM   #23
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Dealerships online like Rosenthal list a different part number for MSM mounts, they're the same price as the MazdaComp mounts they also sell (listed under NAY1-39-040), but $10/ea more expensive than the 99-05 (04-05 Non-Turbo) mounts they list.

N076-39-040 - Engine Mount 2004-2005 Turbo

http://www.finishlineperformance.com...cat=315&page=3

RotorNutFD3S is offline   Reply With Quote
Old 07-08-2010, 10:25 AM   #24
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Part numbers for A MazdaSpeed mount have already been posted above
I'll get a pic of them, the part numbers and a price of each when they come in.
Doppelgänger is offline   Reply With Quote
Old 07-08-2010, 10:28 AM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

I know "N076" has been posted, I'm just saying the Official 99-05 Mazda Parts Catalog doesn't show a distinction for them. And they list the part number for the turbo and **** on that same page.
Braineack is offline   Reply With Quote
Old 07-08-2010, 10:56 AM   #26
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by Braineack View Post
I know "N076" has been posted, I'm just saying the Official 99-05 Mazda Parts Catalog doesn't show a distinction for them. And they list the part number for the turbo and **** on that same page.
...which is part of the reason I'm going to get some in my damn hands and document
Doppelgänger is offline   Reply With Quote
Old 07-08-2010, 11:10 AM   #27
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

let me try to get a hold of my friend. he works for mazda usa.
Pitlab77 is offline   Reply With Quote
Old 07-15-2010, 01:54 PM   #28
Junior Member

Join Date: Dec 2007
Location: Santa Fe, TX
Posts: 95
Total Cats: 2
Default

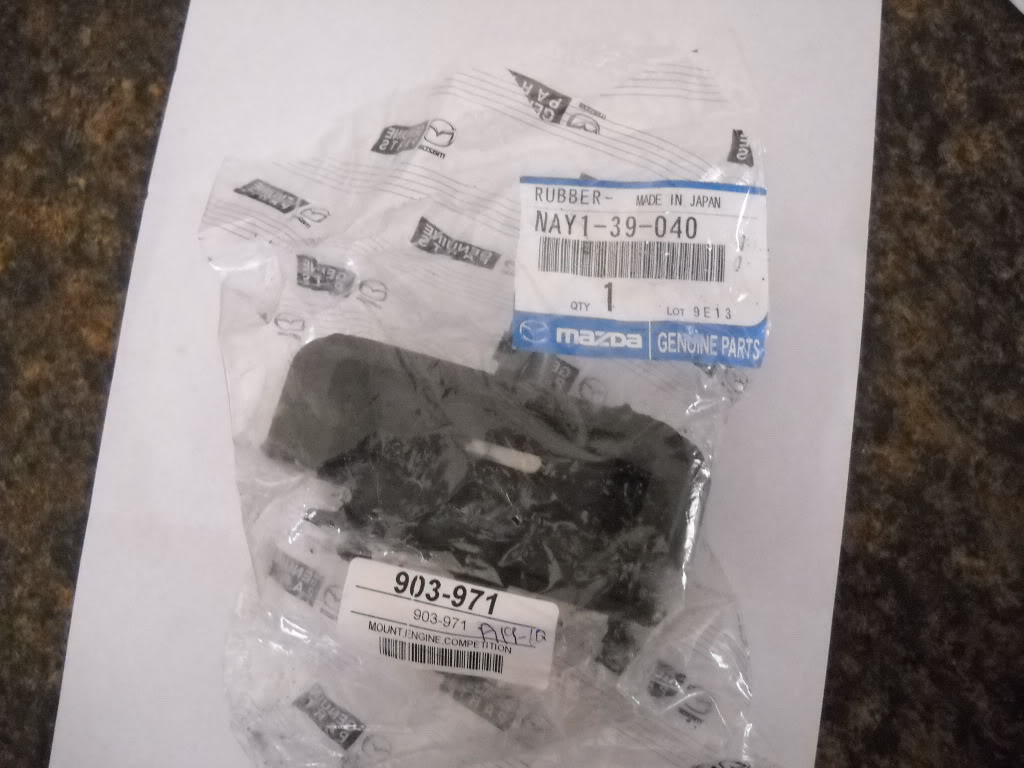

If it helps anyone, here is a pic of a Mazda Competition mount with part numbers. It has the raised white painted line and no raised "N".

Name:  CompMotorMount.jpg
Views: 127
Size:  136.0 KB
secretsquirrel is offline   Reply With Quote
Old 07-15-2010, 02:00 PM   #29
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

read much?
Doppelgänger is offline   Reply With Quote
Old 07-15-2010, 03:14 PM   #30
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

Quote:
Originally Posted by RotorNutFD3S View Post
Because companies like TrackDog advertise their upgraded mounts as MazdaSpeed I thought that they were the same as the MSM mounts, but never looked into it further because I never invested in different mounts until my engine build. And after doing some digging last Saturday I found that not to be the case. The mount that Mike got from me was from the 2004 MSM donor block I had, but it too has the 'N' symbol.
TrackDog sells Mazdacomp and advertises them as Mazdaspeed. I didn't know there was a difference and I doubt Gary does either. I work at TDR part time and have installed dozens of the motor mounts he sells. They have the line on the side and do NOT have an "N". Once this thread is completely clarified, I'll inform him about the differences.
johnwag is offline   Reply With Quote
Old 07-15-2010, 06:39 PM   #31
Junior Member

Join Date: Dec 2007
Location: Santa Fe, TX
Posts: 95
Total Cats: 2
Default

Quote:
Originally Posted by Doppelgänger View Post
read much?
Since there is some question throughout the thread of what part is advertised and what is actually shipped, I thought a picture of one of the "real" parts in it's original packaging w/part#'s could be useful to someone - at least one of the three mounts in question has been identified as "part in hand" with pics...I would have benefited from this picture instead of searching for days with mis-matched website pics and part#'s.... Good luck with the stock vs MSM search
secretsquirrel is offline   Reply With Quote
Old 07-19-2010, 07:05 PM   #32
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Finally got to compare a brand new "stock" mount to a brand new MSM/Mazdaspee/MS mount. Diffence found...will post more soon.
Doppelgänger is offline   Reply With Quote
Old 07-19-2010, 07:09 PM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by Doppelgänger View Post
Diffence found...will post more soon.

insert ***** size joke here?
Braineack is offline   Reply With Quote
Old 07-19-2010, 07:09 PM   #34
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

in for details as it is getting to the point for me to buy some engine mounts....
WonTon is offline   Reply With Quote
Old 07-20-2010, 10:09 AM   #35
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I am waiting for pics to be forwarded to me that I took yesterday.

So I had my friend at the local dealership order 1 new "stock" and 1 new MSM mount.
Part numbers were NYA1 and N076 as to be expected. Right off the bat, they were identical. The only real difference was a little silver stripe painted on one side of the MSM mount...similar to the MazdaComp mount.

Playing with the two, the MSM was clearly stiffer.

Also, all the casting marks between the two were EXACTLY the same. With one exception. On one side there is a dashed number. I found that all of the 01-05 mounts at MazMart had "1-4" stamped on them, as well as the new non-MSM mount. The MSM mount had "1-3". All of the 99/00 ones I found had "2-3" or "2-2" on them. While that's not 100% confirmed, it's something I'll keep up until I can confirm it.

Here is a pic of a MSM mount taken from mazdaspeedy.com where you can see A mark on the side of the mount



You can see it's not exactly a silver stripe there and there is no knowing how quickly that marking degrades once the car is driven around. (just like how the silver markings were long gone on the MC mounts I pulled from my car during the engine swap)

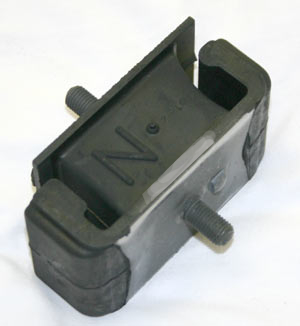

Attached is a RENDERING of how the new ones looked. Once I get the pics from Paul, they will be posted up.
Attached Thumbnails
Engine mount W T F (what we thought we knew...isn't)-04-70150.jpg
Doppelgänger is offline   Reply With Quote
Old 07-21-2010, 10:09 AM   #36
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

No one? Awwww you guys suck.
Doppelgänger is offline   Reply With Quote
Old 07-21-2010, 10:10 AM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

waiting for pics.
Braineack is offline   Reply With Quote
Old 07-21-2010, 10:29 AM   #38
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Have pics....

"Normal" engine mount





Mazdaspeed/MSM engine mount with silver stripe







Normal mount with "1-4" casting



MAZDASPEED with "1-3"





Though the silver stripe hasn't been confirmed to be MSM-Specific, I'd be willing to bet 99.9% sure that it is...considering they do something similar to the MC units. You can see the MAZDASPEED mount has more mold release on it, which could be a indicator that they need to because of the different compound in rubber used... or not (up for discussion).
As for the "1-x" casting, no confirmation on that either...but it's supect.
Doppelgänger is offline   Reply With Quote
Old 07-21-2010, 01:27 PM   #39
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

keep in mind some of the smaller text like the 1-4 may only mean that it was molded in cavity 4 of mold base 1 and not tell you anything about its rubber content or part number.
y8s is offline   Reply With Quote
Old 07-21-2010, 02:11 PM   #40
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

True. But comparing it to multiple other 01+ engine mounts, all were one, and the MSM was another. Like I said...just noting the differences between the two..take the findings as you may.
Doppelgänger is offline   Reply With Quote
