Old 04-03-2012, 04:20 PM   #41
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Fresno CA
Posts: 137
Total Cats: 3
Default

No, what I’m saying is that if you have a stock Miata, the Quaife ratios with the 4.1 R&P and OE diameter tires will have no problems with take off which was what I was addressing. As for my Miata, yes it's under 300 WHP. I didn't conceive this gear set with the sole purpose of making it more robust than the OE 5 speed. For the price of this gear set, just meeting that goal would not have enough value to manufacture and market it. There are other benefits to the Quaife gear set.
twothirdsCobra is offline   Reply With Quote
Old 04-04-2012, 09:19 AM   #42
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by twothirdsCobra View Post
No, what Iím saying is that if you have a stock Miata, the Quaife ratios with the 4.1 R&P and OE diameter tires will have no problems with take off which was what I was addressing. As for my Miata, yes it's under 300 WHP. I didn't conceive this gear set with the sole purpose of making it more robust than the OE 5 speed. For the price of this gear set, just meeting that goal would not have enough value to manufacture and market it. There are other benefits to the Quaife gear set.
Thanks for your input. Can you comment on the MY2000 box as a donor, the 2nd gear synchro please?
Laur3ns is offline   Reply With Quote
Old 04-04-2012, 12:29 PM   #43
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Fresno CA
Posts: 137
Total Cats: 3
Default

Quote:
Originally Posted by Spookyfish View Post
Thanks for your input. Can you comment on the MY2000 box as a donor, the 2nd gear synchro please?
Truthfully, I didn't check each years case for fitment. That said, as long as you use the 95-97 syncro's, slides, stops etc.... the gear set should work. As I posted above, I used/provided a 95 case for fitment.
twothirdsCobra is offline   Reply With Quote
Old 04-22-2012, 05:58 PM   #44
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

The new box should be here somewhere next week. I've heard of no issues putting it back together other than the reverse synchro being bad on the donor.

Meanwhile, I'm taking the car apart (PPF, driveshaft, etc) and can't remember what I did with the downpipe last time. I suppose disconnecting the downpipe from the turbo so I can move it around will be the minimum I need to do. But as a whole it won't go out of the car. It's a BEGI SSSG that used to be two parts - I don't see them coming apart ever again.

I need a transmission jack too...
Laur3ns is offline   Reply With Quote
Old 04-25-2012, 12:19 PM   #45
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Also check gear clearances. FM said they had an issue with gears binding. catastrophically.
Faeflora is offline   Reply With Quote
Old 04-25-2012, 04:37 PM   #46
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Faeflora View Post
Also check gear clearances. FM said they had an issue with gears binding. catastrophically.
Thanks, sounds plausible:

Spoke to the builder. He mention some machining and adding rings somewhere. I should have pics soon. Basically, the box would shift like ---- if put together as Quaife intended (maybe because my donor is MY00 and the Quaife was blueprinted MY95).

It should be ready to pick up end of this week.
Laur3ns is offline   Reply With Quote
Old 04-28-2012, 02:29 PM   #47
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Box is back together. Some machining, shimming, etc to make it the smoothest box. The gear set is definitely not 'drop-in'.

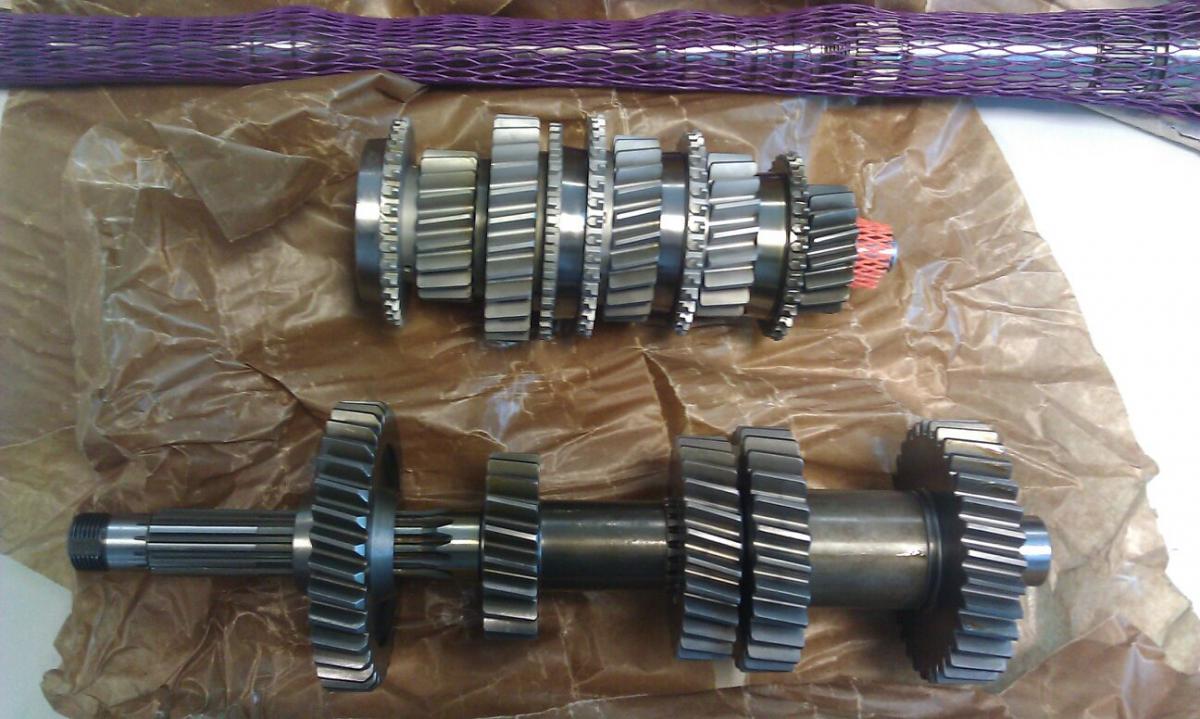

Quaife:

Compare to OEM:
Laur3ns is offline   Reply With Quote
Old 04-28-2012, 04:06 PM   #48
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

bad a$$
18psi is offline   Reply With Quote
Old 06-02-2012, 06:55 PM   #49
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

One month later and the new gearbox has finally mated with the engine. Of course it was a total bitch to position, but should be the last gearbox this car will see.

Sorta need to figure our with bolts went where on the bellhousing. There are 2 longer ones, 3 thin ones around the starter and the rest is virtually the same. Where to the 2 longer ones go?
Laur3ns is offline   Reply With Quote
Old 06-02-2012, 07:07 PM   #50
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Spookyfish View Post
One month later and the new gearbox has finally mated with the engine. Of course it was a total bitch to position, but should be the last gearbox this car will see.

Sorta need to figure our with bolts went where on the bellhousing. There are 2 longer ones, 3 thin ones around the starter and the rest is virtually the same. Where to the 2 longer ones go?
I believe the 2 longer ones go on the driver side to hold on the stick down pipe bracket.
shuiend is offline   Reply With Quote
Old 06-16-2012, 07:04 PM   #51
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Gearbox running!
https://vimeo.com/44148073

Last edited by Laur3ns; 06-16-2012 at 07:20 PM.
Laur3ns is offline   Reply With Quote
Old 06-17-2012, 12:22 AM   #52
Senior Member

Join Date: May 2008
Location: Canada
Posts: 513
Total Cats: 110
Default

Yup, sounds like a Quaife gearset, alright. Noisy in every gear except 4th. How do you like it so far?

You didn't seem to have any problems with 911s of any vintage. What's your curb weight and power? What tires/suspension are you running?
DeerHunter is offline   Reply With Quote
Old 06-17-2012, 05:47 AM   #53
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by DeerHunter View Post
Yup, sounds like a Quaife gearset, alright. Noisy in every gear except 4th. How do you like it so far?
Like it very well. The gearing is perfect (for this track at least) with longer 1, 2, 3 and 5th. Less gearchanges than before and more top speed. I have the short, short, short, 1:1, wide gears.

Quote:
You didn't seem to have any problems with 911s of any vintage. What's your curb weight and power? What tires/suspension are you running?
Around 292 crank hp (245 wheel) and 2200lbs excl driver, running a GAZ suspension combo with 800/500 and aero (splitter + GTC200). GAZ is used in the UK & Dutch MaX5 cup (SM equiv.).
Laur3ns is offline   Reply With Quote
Old 06-17-2012, 06:11 AM   #54
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Another session:
Laur3ns is offline   Reply With Quote
Old 06-18-2012, 03:20 PM   #55
Senior Member

Join Date: May 2008
Location: Canada
Posts: 513
Total Cats: 110
Default

Yikes, close call at about 7:27. Did you have to clean your driving suit afterwards?

There seems to be a lot of kick-back through the wheel. Is it a particularly bumpy track? Converted to manual steering?

You managed to dispatch the orange GT3-RS again, this time pulling him on the straight. Well done.
DeerHunter is offline   Reply With Quote
Old 06-18-2012, 06:18 PM   #56
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by DeerHunter View Post
Yikes, close call at about 7:27. Did you have to clean your driving suit afterwards?
No, but I did move brake bias forward

[quote]There seems to be a lot of kick-back through the wheel. Is it a particularly bumpy track? Converted to manual steering?
It's a converted manual with welded pinion. It's not super smooth, but not _very_ bumpy either. I think part of it is me driving

Quote:
You managed to dispatch the orange GT3-RS again, this time pulling him on the straight. Well done.
Yeah he was in the way. He must've short shifted because those cars have like 450+ hp? Either way I was going to take him in T1
Laur3ns is offline   Reply With Quote
Old 06-19-2012, 11:46 AM   #57
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

So many slow BMW's, so little time
Mobius is offline   Reply With Quote
Old 05-02-2013, 08:21 AM   #58
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Update: I love the new Quaife for it's ratio's and smoothness - but 3 extension housing bolts fell out last time... i suppose they were reused during assembly and that seems to be a no-no.
Laur3ns is offline   Reply With Quote
