Default installing axles into diff

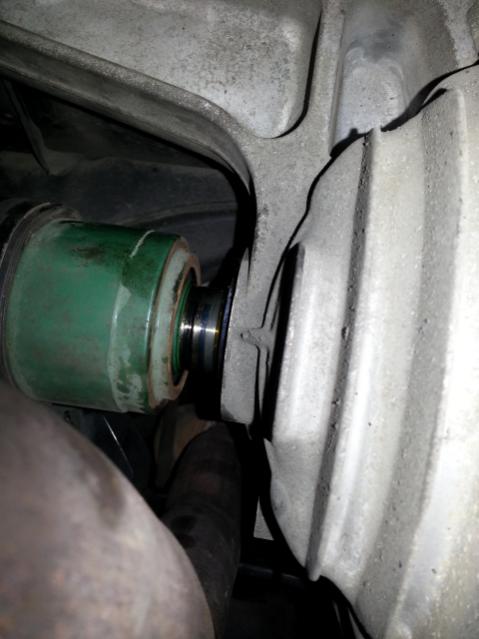

Just one more inch ...

Am I supposed to be able to get the axles back into the diff by hand? Or am I going to have to disassemble the axles and then hit them with a hammer? So far they don't want to go by hand.

Attached Thumbnails
installing axles into diff-2013-02-04-15.11.22.jpg
Mobius is offline   Reply With Quote
Old 02-04-2013, 07:21 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Bang the **** out of them or possibly tap with a deadblow.
hustler is offline   Reply With Quote
Old 02-04-2013, 07:51 PM   #3
Elite Member
Thread Starter
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

okay, where? They are fully assembled, hubs and everything. Will the cv joints survive if I bang on the wheel studs to seat the axle?
Mobius is offline   Reply With Quote
Old 02-04-2013, 08:28 PM   #4
Junior Member
iTrader: (2)

Join Date: Dec 2012
Location: Los Angeles, CA
Posts: 107
Total Cats: 11
Default

Insert them into the hubs and use the hub to bang them in. If you hit the boot you'll tear them.
ryanr is offline   Reply With Quote
Old 02-04-2013, 11:12 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

A little grease on the clip helps too. I have stub axles though, so I'm not much help. Those are easy.
curly is offline   Reply With Quote
Old 02-04-2013, 11:32 PM   #6
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Steps:
1- Center pin on shaft
2- Slide axle in
3- Drink Can-O-Manup
4- Lean into it and shove it in like you're not going to call it in the morning.
5- If you feel it pop in Yay
6- If you don't, drink more Manup

Mine took what feels like more than it should. Using the hubs to whack with a deadblow works too. Some cars they just slip in like a well worn woman, others take some anger.
TorqueZombie is offline   Reply With Quote
Old 02-05-2013, 01:50 AM   #7
Junior Member

Join Date: Nov 2012
Location: SF Bay Area
Posts: 59
Total Cats: 0
Default

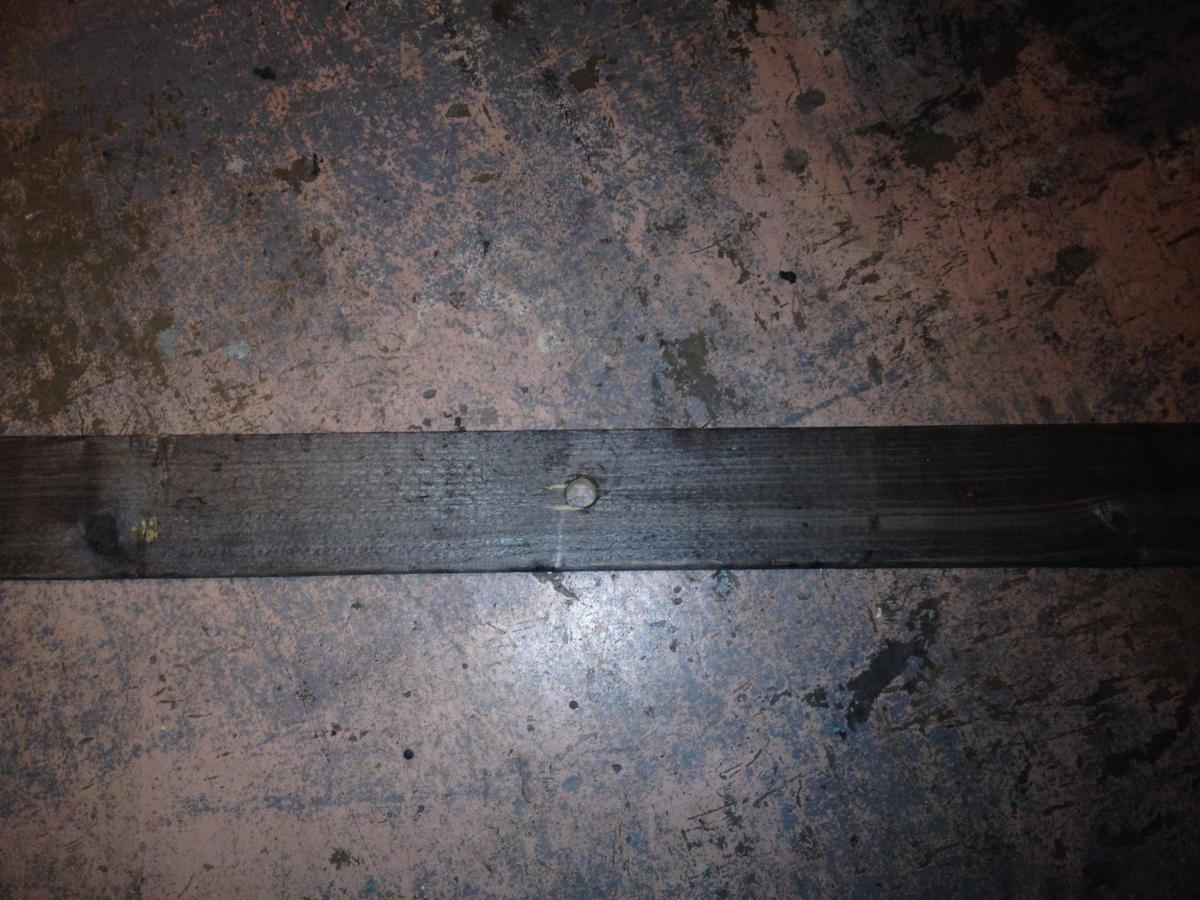

I drilled a hole in a 2x4 slightly bigger than the axle threads, then sitting on a small chair, rammed it forward with my knees 'til it popped in. The wood is soft enough to not screw up threads or splines. The 2x4 really only needs to be long enough to fit both your knees on either side of the axle but small enough to fit comfortably in the wheel well. Sounds weird, but worked well.
Here's a pic:


Attached Thumbnails
installing axles into diff-ejvvo5f.jpg

Last edited by Morshu; 02-05-2013 at 02:18 AM.
Morshu is offline   Reply With Quote
Old 02-05-2013, 01:54 AM   #8
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Not a bad idea. Don't copyright it, might use it
TorqueZombie is offline   Reply With Quote
Old 02-05-2013, 01:58 AM   #9
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Ridgecrest CA
Posts: 448
Total Cats: 44
Default

I unbolted the upright from the bottom, separated it from the control arm and used the brake rotor for leverage to push it in (after making sure the splines were partially seated). Worked like a champ and took minimal effort.
czubaka is offline   Reply With Quote
Old 02-05-2013, 02:00 AM   #10
Junior Member

Join Date: Nov 2012
Location: SF Bay Area
Posts: 59
Total Cats: 0
Default

Quote:
Originally Posted by TorqueZombie View Post
Not a bad idea. Don't copyright it, might use it
Please do!
Morshu is offline   Reply With Quote
Old 02-05-2013, 02:01 AM   #11
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Keep an eye out in the for sale thread. Going to hire the Chinese to make crappy versions.
TorqueZombie is offline   Reply With Quote
Old 02-07-2013, 03:18 PM   #12
Elite Member
Thread Starter
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

With the upper control arm detached, I used a small sledge with a piece of 2x4 on the hub to pop them in. Curly stopped by to lend a hand and check things out and he was pushing on the hub to take up the "slack" in the cv joints.

I had no Cans-O-Manup lying around (one of the dangers of being married - your various Manup powerups tend to disappear), so Curly and I substituted Pints of Manup from my Beer Fridge of Automotive Enhancement. I recommend the three beer lunch. It makes the day better.
Mobius is offline   Reply With Quote
Old 02-07-2013, 08:20 PM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Mobius' house and garage are interesting. Everywhere you look screams "I have kids!"

Look past the toys though, and you start to see top of the line miata parts tucked in everywhere. There's 949's big grip package, his 2001 bumper, TSE's brake ducts, 11.75" rotors, and book club passable muffler hidden in there. Unfortunately I realized that yes, he could out run me while I carried 4 AST coil overs.

P.S. To clarify, he's not messy. His 1914 house is just skimpy on storage.
curly is offline   Reply With Quote
Old 02-07-2013, 11:28 PM   #14
Elite Member
Thread Starter
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Yes, it is true, my house and what passes for my garage (while it still stands and does not leak (much)) is filled with toys. The only difference being the intended age bracket of said toys.
Mobius is offline   Reply With Quote
Old 02-08-2013, 04:20 AM   #15
Newb

Join Date: Feb 2013
Posts: 15
Total Cats: 0
Default

def. easier with the control arm detached.
