Old 11-17-2008, 10:37 PM   #21
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

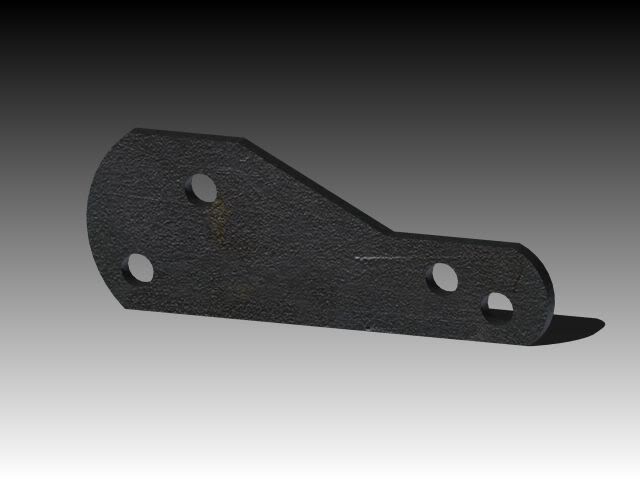

Name:  bracket.jpg
Views: 60
Size:  18.7 KB

quick 5 minute rendering

i need the correct diameter of the holes tho
240_to_miata is offline   Reply With Quote
Old 11-17-2008, 10:50 PM   #22
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Brain needs some help with his dimension layout.
cjernigan is offline   Reply With Quote
Old 11-17-2008, 11:00 PM   #23
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

haha yeah it was very hard to follow, but props for him for going thru that .dwg file cause i sure as hell wasnt going to.

i have 2 exams im studying for right now but if i take another study break ill neatly dimension that and put it on a nice layout
240_to_miata is offline   Reply With Quote
Old 11-17-2008, 11:12 PM   #24
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

factory dia 10 mm bolt dia for the caliper bracket.
7/16 (.4375 ) for mounting bracket to spindle.
iluvspd is offline   Reply With Quote
Old 11-17-2008, 11:25 PM   #25
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

M-tuned, any idea when this prototype kit might be ready? Do you have an estimate as to how much it would cost? And what other parts would we need to source?
curly is offline   Reply With Quote
Old 11-22-2008, 05:01 PM   #26
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

We plan on making it so you ONLY have to buy Rotors and Pads. I think initial hope was in the $75-100 range for brackets, hardware, and aluminum centering ring.
M-Tuned is offline   Reply With Quote
Old 11-22-2008, 05:50 PM   #27
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by [email protected] View Post
We plan on making it so you ONLY have to buy Rotors and Pads. I think initial hope was in the $75-100 range for brackets, hardware, and aluminum centering ring.

Dats wut I'm talkin bout. Yeah boyeeee!
cueball1 is offline   Reply With Quote
Old 11-22-2008, 08:40 PM   #28
Newb

Join Date: Oct 2008
Location: Charlotte nc
Posts: 18
Total Cats: 0
Default

Quote:
Originally Posted by cueball1 View Post
Dats wut I'm talkin bout. Yeah boyeeee!
+1
Frunza is offline   Reply With Quote
Old 11-22-2008, 08:42 PM   #29
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Awesome, get it done! We'd probably have to get a maximum ID for wheels, so there's no clearance issues.

That $75-$100 is for the front hardware only, correct? I wonder what it would take to put the 1.8 front rotors onto the back...
curly is offline   Reply With Quote
Old 11-22-2008, 11:23 PM   #30
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

Quote:
Originally Posted by [email protected] View Post
We plan on making it so you ONLY have to buy Rotors and Pads. I think initial hope was in the $75-100 range for brackets, hardware, and aluminum centering ring.
where do i sign up?
UrbanSoot is offline   Reply With Quote
Old 11-23-2008, 04:38 PM   #31
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

If you guys don't get er done I will. I can beat his price, probably in the 50-75 dollar range for the fronts. Maybe front and rear for a 100 U.S.D. Monday I can look into it more. I want this kit for my car and can't justify manufacturing just one.

B.T.W. this design probably needs some refinement. I found critical stress points with my analysis that makes this unsafe for some braking conditions. The last thing you want is an ejected/dangling caliper at 100 M.P.H. that makes your foot sink to the floor.

Last edited by TravisR; 11-23-2008 at 05:57 PM.
TravisR is offline   Reply With Quote
Old 11-24-2008, 01:20 PM   #32
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

M-Tuned, too bad it wasnt available 6 months ago...

Travis, great - design them up... do I get a free set for being the OP?
iluvspd is offline   Reply With Quote
Old 11-24-2008, 01:45 PM   #33
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

do it travis, compition is always good.
cardriverx is offline   Reply With Quote
Old 11-25-2008, 10:14 AM   #34
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by iluvspd View Post
M-Tuned, too bad it wasnt available 6 months ago...

Travis, great - design them up... do I get a free set for being the OP?
I'll hook you up, can you test these for me though? We're talking tire flat spotting madness

Travis
TravisR is offline   Reply With Quote
Old 11-25-2008, 10:39 AM   #35
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

how much shipped to holland?
I'd be in
Oscar is offline   Reply With Quote
Old 11-25-2008, 11:10 AM   #36
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Free shipping group buy on the FM Wilwood proportioning valve kit to correct all the front bias we're gonna have once we do this swap.

https://www.miataturbo.net/forum/t28557/#post334106
cjernigan is offline   Reply With Quote
Old 11-26-2008, 02:41 AM   #37
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

I'd think the brackets would cost almost nothing if they were lasered out of mild steel, 100 at a time. You could rough the holes with the laser, put them in a really simple CNC mill and get them perfect in about a minute per part. With the right tool, maybe even put in a slight countersink to allow more bolt head height.

Seems like you could use two brackets per side, sandwiching the ears on the upright. Then use spacers and shims between the brackets where the caliper mounting bolts pass through to match the thickness of the ears. The ears are generally not a precisely controlled thickness, as only the caliper mounting surface needs to be controlled relative to anything else, hence the need for shims. This would significantly increase the strength of the system (especially relative to the bending moments) without changing the z-axis position of the caliper or requiring a lot of fancy machining.
SolarYellow510 is offline   Reply With Quote
Old 11-26-2008, 02:52 AM   #38
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

i REALLY want me some.
UrbanSoot is offline   Reply With Quote
Old 11-26-2008, 02:58 AM   #39
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Quote:
Originally Posted by iluvspd View Post
factory dia 10 mm bolt dia for the caliper bracket.
7/16 (.4375 ) for mounting bracket to spindle.
Why are these not the same?
SolarYellow510 is offline   Reply With Quote
Old 11-29-2008, 12:45 PM   #40
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by iluvspd View Post
M-Tuned, too bad it wasnt available 6 months ago...

Travis, great - design them up... do I get a free set for being the OP?
I've had a set done, but was not ready for mass production. We are ready to go with these but are doing a few things a little different so no grinding of bolts is required etc.

Here is a thread with more details for all of you..

https://www.miataturbo.net/forum/t28696/#post335453

Last edited by M-Tuned; 11-29-2008 at 01:15 PM.
M-Tuned is offline   Reply With Quote
