Old 12-01-2008, 11:37 PM   #61
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

I know one of the guys at Race Tech in Belgium has done it already. They mostly work on prepping Skylines and stuff for Nurburgring weekend hot lap junkies.
SolarYellow510 is offline   Reply With Quote
Old 12-05-2008, 05:46 AM   #62
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

Im happy to start the commotion.

Marc @ M-Tuned Thanks for the props.

Travis - Thanks for sharing the egineering. Sure I can test, Blackhawk Farms is known as one of the hardest tracks in the country on brakes, but it will need to wait for spring, as we have a few inches of snow now. But in the interest of keeping me safe send a pair of brackets over. You have my addy from the OPG order.

Bolts were 2 diff dia so I could get a fit with 0 slop. I reamed the spindle holes.

Rotors over 11" are overkill. Too much weight, increased inertia, cost.

Racecars - Production racing (showroom stock, spec miata, production ect) have been utilizing factory components with success for decades. Race pads and good ducting are sufficient. Other classes with open rules add larger thermal capacity components, but anything beyond the maximum + safety factor will hurt laptimes. Remember, unsprung and rotational weight is equivelent to a factor of 10-15 times static sprung weight.
iluvspd is offline   Reply With Quote
Old 05-06-2016, 12:45 PM   #63
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

.
Attached Thumbnails

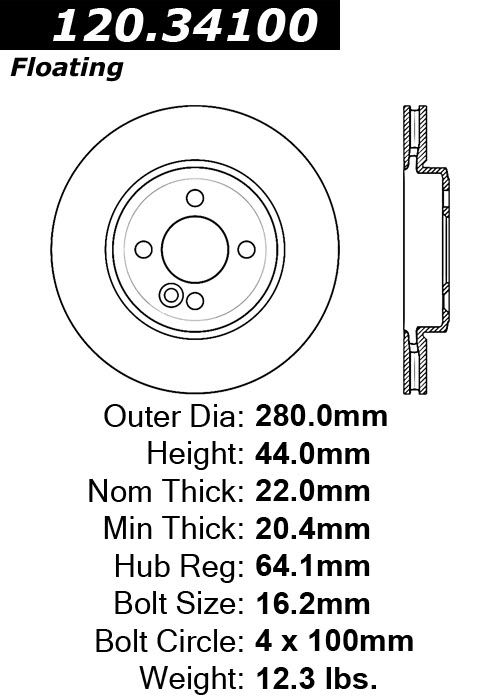

My Budget Big Brake Kit using Corrado rotors-80-mini_rotor_96a324660221217dbc430d737ba4f5fd22901619.jpg

Last edited by NBoost; 05-06-2016 at 12:59 PM. Reason: Damn it, beat me to that part, realized that about 8 min ago
NBoost is offline   Reply With Quote
Old 05-06-2016, 12:48 PM   #64
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Miata hub bore is 55mm.
Hondas are 64.1mm.
SolarYellow510 is offline   Reply With Quote
Old 05-06-2016, 12:59 PM   #65
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You need a hub centric ring to use any mini Cooper rotor on the miata. I 3d printed some temporarally and they worked OK, but I had vibrations on the highway till I replaced them with aluminum.

I don't know about 1.8 calipers, but mini rotors fit under wilwood calipers. You can go bigger than 11" too, if you want.
deezums is offline   Reply With Quote
Old 05-06-2016, 01:30 PM   #66
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

I suppose I could turn rings as well. I will continue to search for a rotor that has a 54.1 mm bore, just need to find how to search them by size rather than vehicle. A plus I saw with the Mini rotors is, they will likely be in production a lot longer than '90 Corrado brake parts will be (if they aren't discontinued already).

Last edited by NBoost; 05-06-2016 at 04:09 PM.
NBoost is offline   Reply With Quote
