Default NB Master Cylinder Area Picture Request

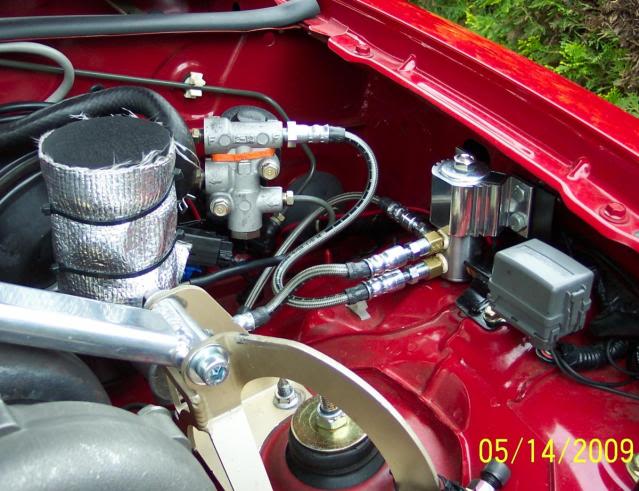

I'm getting ready to remove the line-lock from my 01 and install a proportioning valve. I'd like to move all the components back to as close as possible to the stock location if possible. It's been awhile and I can't find my before line-lock pics of this area. Could someone snap a picture or two of this general area (see picture) where I can actually see where the lines are supposed to be from the factory. Preferably without the STB in the way. This would need to be from a 99+ car because on the older cars it appears things are setup different. Thanks.

Name:  linelock.jpg
Views: 5
Size:  61.8 KB
JayL is offline   Reply With Quote
Old 11-23-2010, 01:43 PM   #2
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Jay,
Did you ever get a pic of this? I could hit you up tomorrow or Thur morning. Fire me an email at fmowry at verizon dot net.

Frank
fmowry is offline   Reply With Quote
Old 11-23-2010, 02:05 PM   #3
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Email sent, thanks.
JayL is offline   Reply With Quote
Old 11-23-2010, 05:45 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

y8s is offline   Reply With Quote
Old 11-24-2010, 11:22 AM   #5
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Quote:
Originally Posted by JayL View Post
Email sent, thanks.
Got it. Do you need more than what y8s posted?
fmowry is offline   Reply With Quote
Old 11-24-2010, 01:07 PM   #6
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

I'd be interested in a lower angle to show how the proportioning valve is located and if it's actually mounted to anything or do the lines completely support it. A picture taken from where the air filter box is located would be perfect. Thanks for the help, never thought I'd care about making something appear as close to stock as possible.
JayL is offline   Reply With Quote
Old 11-24-2010, 01:44 PM   #7
Junior Member
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

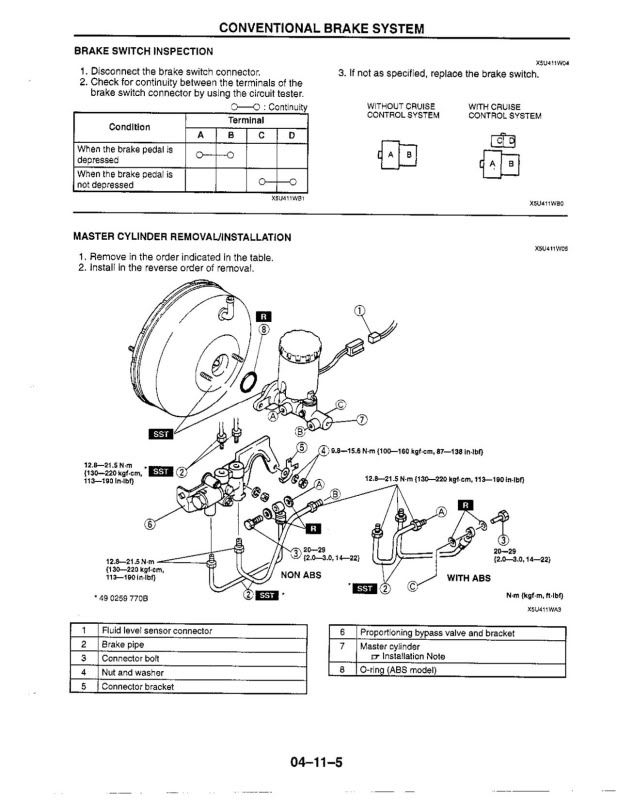

Name:  Fullpagefaxprint.jpg
Views: 1
Size:  79.0 KB
sv650_ck is offline   Reply With Quote
Old 11-24-2010, 02:43 PM   #8
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Thank you, that will work.
JayL is offline   Reply With Quote
Old 11-24-2010, 03:06 PM   #9
Senior Member
iTrader: (19)

Join Date: Oct 2007
Location: MoCo, MD
Posts: 703
Total Cats: 0
Default

If the line-lock isn't spoken for already, please drop me a PM. I have a stock proportioning valve should you need it.
