Old 10-21-2013, 11:18 PM   #21
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by vehicular View Post
Sell the Racelands on craigslist. Buy something that doesn't suck.
I wonder what I could get with $100 that doesn't suck more...

Quote:
Originally Posted by Slider View Post
buffon01 is offline   Reply With Quote
Old 10-21-2013, 11:39 PM   #22
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Quote:
Originally Posted by buffon01 View Post
I wonder what I could get with $100 that doesn't suck more...
Blown factory shocks. 2x4s. Welded chain. Rope soaked in wax. Super bouncy ***** in nested PCV pipe. Anything.
vehicular is offline   Reply With Quote
Old 10-22-2013, 12:27 AM   #23
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by vehicular View Post
Blown factory shocks. 2x4s. Welded chain. Rope soaked in wax. Super bouncy ***** in nested PCV pipe. Anything.
My crappy factory suspension was definitely worse than what I have now.
buffon01 is offline   Reply With Quote
Old 10-22-2013, 11:33 AM   #24
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Interesting. I drove a factory car, my car with shortened/ revalved Konis, and a car with brand new Racelands in the same afternoon a few months ago, and I thought the Raceland car was an underdamped, bouncy, unpredictable mess. While my dad's 91 SE on stock shocks was pleasent in all catagories.
vehicular is offline   Reply With Quote
Old 10-22-2013, 11:40 AM   #25
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by buffon01 View Post
I'm going to get the spacers and add the helper spring, that should help.
Adding spacers and helper springs is functionally equivalent to just raising the position of the existing spring perches.

If raising the perches to the desired ride height puts you into a coilbind situation, then you would have experienced coilbind at precisely the same height by using spacers and helper springs.
Joe Perez is online now   Reply With Quote
Old 10-22-2013, 01:24 PM   #26
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Quote:
Originally Posted by Joe Perez View Post
Adding spacers and helper springs is functionally equivalent to just raising the position of the existing spring perches.

If raising the perches to the desired ride height puts you into a coilbind situation, then you would have experienced coilbind at precisely the same height by using spacers and helper springs.
Not entirely true. He'll gain the compressed length of the helper spring worth of ride height at the same preload level, meaning that he can dial that much preload out to keep the same ride height.
vehicular is offline   Reply With Quote
Old 10-22-2013, 01:25 PM   #27
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

He will still have to suffer the ridicule of his peers, though.
vehicular is offline   Reply With Quote
Old 10-22-2013, 01:44 PM   #28
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by vehicular View Post
Not entirely true. He'll gain the compressed length of the helper spring worth of ride height at the same preload level, meaning that he can dial that much preload out to keep the same ride height.
No.

Adding a solid mass of metal (a compressed helper spring and spacer) in between the primary spring and the spring perch is functionally identical to raising the level of the spring perch.

Both of these two things will increase the ride height of the car by the same amount. Further, assuming that all four corners are raised up by the same amount, and that the car is not raised up so much that the suspension reaches the droop limit of its travel, the preload on the springs will remain unchanged.

Since the opposing force (the weight of the car) remains the same, for every 1 cm that the lower spring perch is raised up, OR for every 1 cm of "dead" thickness added between the spring and the perch (spacer, fully compressed "helper" spring, etc), the upper perch will rise by 1 cm, taking the car along with it, and the compressed length of the main spring (at rest, with the weight of the car bearing down on it) will remain the same.


If, as you suggest, he adds some amount of thickness of spacer and compressed helper spring, and then "dials out" that same amount of height by lowering the position of the lower spring perches, then nothing at all will have changed, either statically or dynamically, aside from adding a small amount of weight in the vicinity of the upper spring perch, and removing a small amount of weight in the vicinity of the wallet.
Joe Perez is online now   Reply With Quote
Old 10-22-2013, 02:23 PM   #29
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by vehicular View Post
Not entirely true. He'll gain the compressed length of the helper spring worth of ride height at the same preload level, meaning that he can dial that much preload out to keep the same ride height.

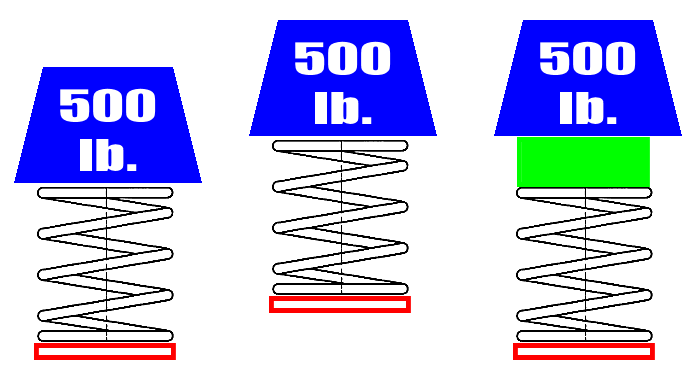

Following up on my previous, I've drawn a picture to help illustrate the point. In it, I have stripped the problem down to the barest essentials:



At the left, we have one spring, resting atop one lower spring perch (red rectangle), with a 500 lb weight sitting atop it which represents the weight of the car on one corner.

In the middle, I have raised up the lower spring perch by one inch. Since the weight atop the spring has not changed, the compression of the spring remains unchanged, and the spring and weight both move upwards by one inch.

At the right, I have left the lower spring perch in its original position, and added one inch worth of "dead space" to the system, the green rectangle representing a fully compressed helper spring and spacer. As before, the weight being exerted on the main spring does not change, so its length remains the same, and the 500 lb weight simply moves up by the same 1 inch. (It would be the same if this were placed below the main spring as above it.)


Does this help?
Attached Thumbnails
Racelands... Help me make this somewhat better-spring.gif
Joe Perez is online now   Reply With Quote
Old 10-22-2013, 03:55 PM   #30
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

You're thinking about this backward. He has already raised the spring perches and is now (possibly) in coil bind. If he adds the spacer that the helper spring becomes when you put weight on the spring package, he can lower the spring perch, and allow himself more spring travel and maintain his current near-stock ride height.
vehicular is offline   Reply With Quote
Old 10-22-2013, 06:59 PM   #31
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by vehicular View Post
You're thinking about this backward. He has already raised the spring perches and is now (possibly) in coil bind. If he adds the spacer that the helper spring becomes when you put weight on the spring package, he can lower the spring perch, and allow himself more spring travel and maintain his current near-stock ride height.
I'm not sure why you think this.

The compressed length of the spring is almost completely independent of ride height. It's a function of the spring rate, the length of the spring, and the weight of the vehicle. So, for a given vehicle weight, spring length and spring rate, the compressed length of the spring will be the same regardless of what the ride height is and how it was achieved. Thus, so will be the amount of free travel available before coil bind occurs.


If his current combination of spring length and ride height (as a function of lower spring perch location) mean that he is in coil bind at full compression at present, then lowering the lower spring perch and adding back in an equal amount of spacer to achieve the equivalent ride height will not fix anything- he will still encounter coil bind at precisely the same point in compression travel. The only ways to fix coil bind are:

1: Shorten the spring (best),

2: Lower the static ride height,

3: Raise the position of the upper spring perch relative to the chassis, or

4: Artificially limit compression travel, such as with bumpstop spacers (not a good thing.)

Last edited by Joe Perez; 10-22-2013 at 08:01 PM.
Joe Perez is online now   Reply With Quote
Old 10-22-2013, 07:13 PM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by vehicular View Post
You're thinking about this backward. He has already raised the spring perches and is now (possibly) in coil bind. If he adds the spacer that the helper spring becomes when you put weight on the spring package, he can lower the spring perch, and allow himself more spring travel and maintain his current near-stock ride height.

okay...

Braineack is offline   Reply With Quote
Old 10-22-2013, 08:59 PM   #33
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

1.)
Quote:
Originally Posted by Joe Perez View Post
The compressed length of the spring is almost completely independent of ride height.

The only ways to fix coil bind are:


2: Lower the static ride height,
Wat



2.) I don't understand what the disconnect is here. Racelands are stupid, but they aren't in coil bind all the time.
vehicular is offline   Reply With Quote
Old 10-22-2013, 10:32 PM   #34
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by vehicular View Post
2.) I don't understand what the disconnect is here. Racelands are stupid, but they aren't in coil bind all the time.
Nobody ever said they were.

Discussions of coil bind are completely independent of judgements as to the relative merits of one damper vs. another. The suggestion was put forth that adding spacers between the spring and spring perch was somehow different from adjusting the height of the perch itself, and I am debunking that specific observation.
Joe Perez is online now   Reply With Quote
Old 10-24-2013, 05:39 PM   #35
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by Joe Perez View Post
I'm not sure why you think this.

The compressed length of the spring is almost completely independent of ride height. It's a function of the spring rate, the length of the spring, and the weight of the vehicle. So, for a given vehicle weight, spring length and spring rate, the compressed length of the spring will be the same regardless of what the ride height is and how it was achieved. Thus, so will be the amount of free travel available before coil bind occurs.


If his current combination of spring length and ride height (as a function of lower spring perch location) mean that he is in coil bind at full compression at present, then lowering the lower spring perch and adding back in an equal amount of spacer to achieve the equivalent ride height will not fix anything- he will still encounter coil bind at precisely the same point in compression travel. The only ways to fix coil bind are:

1: Shorten the spring (best),

2: Lower the static ride height,

3: Raise the position of the upper spring perch relative to the chassis, or

4: Artificially limit compression travel, such as with bumpstop spacers (not a good thing.)

I was under the impression that instead of getting the spacers I could get a longer spring, but that conflicts with 1 (shorten the spring)... I'm confused.
buffon01 is offline   Reply With Quote
Old 10-26-2013, 11:35 AM   #36
Newb

Join Date: Jun 2013
Location: Auckland, New Zealand
Posts: 11
Total Cats: 0
Default

I'm going to go ahead and take a wild guess that what you need is a spring with larger spacing between each coil(I have no idea for the terminology here) of the spring.

So instead of:
\
\
\

It becomes:
\

\

\

etc
SK-NZ is offline   Reply With Quote
Old 10-26-2013, 01:32 PM   #37
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

I'm still using the Racelends that the PO installed on my car, because cheap. I replaced the rear springs with 7"x250# QA1s and still had coil bind. Then I found a set of 8"x250# Eibachs which also have a smaller wire diameter. Now I have no coil bind issues whatsoever, have the height at roughly 4.75" to the weld, and the ride is somewhat less intolerable than before. OP this is probably your best bet for a cheap fix.
matthewdesigns is offline   Reply With Quote
Old 10-26-2013, 02:24 PM   #38
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

I feel more dumber after reading this one
Stealth97 is offline   Reply With Quote
Old 11-11-2013, 02:02 PM   #39
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Thanks for the comments. The car seems fine for now. I'll update later if anything changes.
buffon01 is offline   Reply With Quote
