Old 12-07-2009, 02:59 PM   #41
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Doppelgänger View Post
This. I am getting this symptom as well and have been attributing it to the rear wheel(s) locking up and slowing RPMs. Boy it's annoying as f*ck when you try to get back on the throttle and build up rpms/boost.

I tried raising the car to increase droop as well as disconnecting the sway bar, but neither yielded much change. My next step is to see what I can do to really plant the rear wheels down.
take the rear swaybar off, or put on a looser bar like I told you a few posts ago.
hustler is offline   Reply With Quote
Old 12-07-2009, 04:09 PM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

lol at still using a rear bar.
Braineack is offline   Reply With Quote
Old 12-07-2009, 04:14 PM   #43
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
why are there 2-options for the 1.8 miata and MSM? Is it just different splines, or could other stuff be different? I ask because I have 2 3.63's and can't seem to make them fit in my pumpkin and now I'm like $900 in just in ring-gears and there is no end in sight.
Sell me a 3.63 set for cheap.
Laur3ns is offline   Reply With Quote
Old 12-07-2009, 04:58 PM   #44
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by hustler View Post
take the rear swaybar off, or put on a looser bar like I told you a few posts ago.

At the last 3 autoX's I did, I diconnected the rear sway and it didn't make a difference, I think it's really a lack of droop from the Ohlons that is pulling enough weight off the inside wheel to allow it to spin/lock under trail braking. Like I said, I tried raising the ride height to get more dropp, but it didn't work...this is how I get to the idea of trying to really plant the rear. If this doesn't work, I'm selling the car
Doppelgänger is offline   Reply With Quote
Old 12-07-2009, 05:18 PM   #45
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

Dopplegangbang: It's your diff. I too, was having inside wheel spin in hard cornering on the track with my torsen and that was with 120whp. It didn't matter which direction I turned.

I resolved my non-stop wheel spin issues by swapping to a Cusco RS clutch type LSD.

Gary at trackdog has been having torsen wheelspin issues for a couple of years. He's swapped/removed sway bars and played with settings and ultimately ended up keeping the rear bar because he like the handling with the rear bar. Driving style and car feel obviously play a big factor, but a real diff makes a huge difference.

i could elaborate more and show video, but emilio and I know what's up.
johnwag is offline   Reply With Quote
Old 12-07-2009, 06:01 PM   #46
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I guess I'll call Peloquin tomorrow.
hustler is offline   Reply With Quote
Old 12-07-2009, 06:27 PM   #47
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

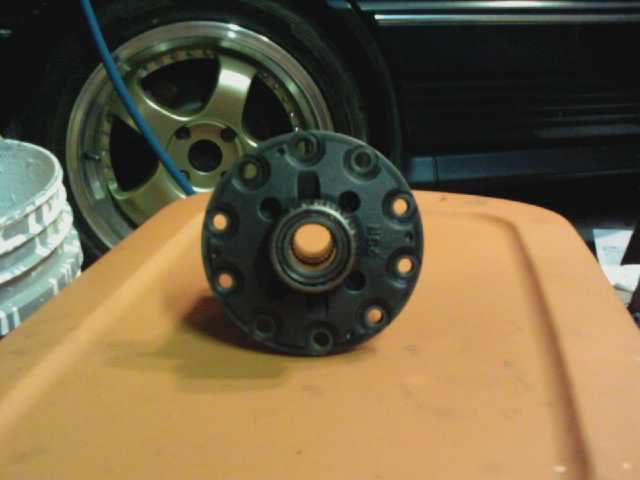

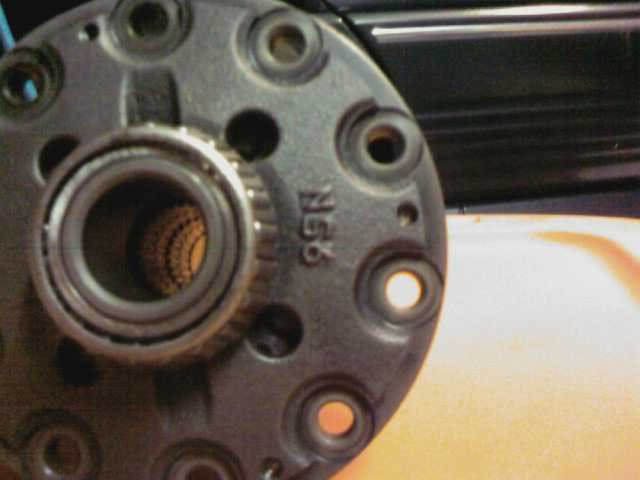

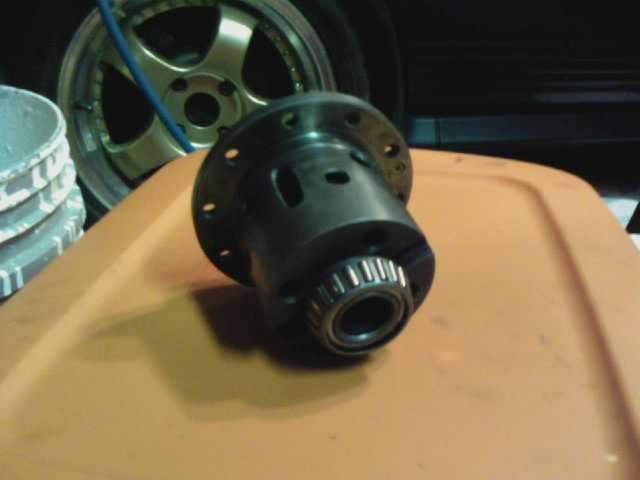

i have a s2k torsen ready to ship if anyone wants one. (ap1) great condition
$250 plus shipping

sorry not trying to threadjack. this is a reply to the op really, but anyone if he's not interested.

Name:  diff3.jpg
Views: 11
Size:  18.5 KB

Name:  diff2.jpg
Views: 11
Size:  21.1 KB

Name:  diff1.jpg
Views: 12
Size:  24.9 KB
spoolin2bars is offline   Reply With Quote
Old 12-07-2009, 06:28 PM   #48
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Quote:
Originally Posted by Ben View Post
Have you driven an MSM? Their Bosch Torsen is unique. My SOTP says it locks sooner than the Torsen II. It's been too long since I've driven a Torsen I.

I agree, my MSM acted nothing like my 95 with a torsen, the MSM would chatter when leaving stop light's and making a right turn under accel.

Quote:
Originally Posted by hustler View Post
I guess I'll call Peloquin tomorrow.
The brakes, manifold, torsen problems are all setup and driver specific. If your not having the problem then forget about it. By my calculations this board is costing you close to 1k-2k a month...ouch
jacob300zx is offline   Reply With Quote
Old 12-07-2009, 08:45 PM   #49
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by johnwag View Post
Dopplegangbang: It's your diff. I too, was having inside wheel spin in hard cornering on the track with my torsen and that was with 120whp. It didn't matter which direction I turned.

I resolved my non-stop wheel spin issues by swapping to a Cusco RS clutch type LSD.

Gary at trackdog has been having torsen wheelspin issues for a couple of years. He's swapped/removed sway bars and played with settings and ultimately ended up keeping the rear bar because he like the handling with the rear bar. Driving style and car feel obviously play a big factor, but a real diff makes a huge difference.

i could elaborate more and show video, but emilio and I know what's up.
How easy is the RS to modulate when applying throttle? 1.5 way? 2 way? I've heard of them having some understeer issues...but I guess that can be neutralized with a little different driving style.
Doppelgänger is offline   Reply With Quote
Old 12-17-2009, 07:03 PM   #50
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Quote:
Originally Posted by Doppelgänger View Post
...I think it's really a lack of droop from the Ohlons that is pulling enough weight off the inside wheel to allow it to spin/lock under trail braking.
That's the first thing that came to my mind, too.

Also try less rebound damping.
JKav is offline   Reply With Quote
Old 12-17-2009, 08:39 PM   #51
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by Doppelgänger View Post
but I guess that can be neutralized with a little different driving style.
because what I want to do is spend $1100 on a differential and then have to alter my driving style due to an undesirable characteristic.

I've driven an OS Giken - it's quite impressive. It doesn't really feel like anything particularly special, except when I come out of a tight 3rd gear corner and stick 300wtq to the ground with absolutely no drama at all.
Savington is offline   Reply With Quote
Old 12-17-2009, 09:30 PM   #52
Junior Member
iTrader: (2)

Join Date: Dec 2006
Posts: 110
Total Cats: 0
Default

Your not going to eliminate the wheel spin with sway bar/shock adjustments.
some of these guys have been telling you the Torsen,any Torsen, has it's limits.
With sticky tires this is going to happen no matter what.
This is why Matt Andrews, Emilio , Savington , and all the track guys on real tires are using a clutch type diff.
Being able to put the power down and get out of the hole is not going to happen with a torsen. Besides , you will love your car again once you add a clutch type. It doesn't need to be the OS. But I'm sure You won't want anything less.
urban is offline   Reply With Quote
Old 12-17-2009, 10:45 PM   #53
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

To be fair, the Torsen is a great diff up to about 200whp. The OSG is faster (1+ second laptime drop in a 135whp pseudo-EP car going from a Torsen), but the Torsen won't noticeably hold you back.

Get into the 250tq range, and it'll be pretty apparent on tighter corners that you've got wheelspin issues.

I think Emilio has a 3.63 OS Giken for sale.
Savington is offline   Reply With Quote
