Replacing rear wheel studs, is it tough? - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Suspension, Brakes, Drivetrain discuss the wondrous effects of boost and your miata...

Reply



LinkBack Thread Tools Search this Thread
Old 04-08-2011, 12:18 AM   #21
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

I know on most cars if it's a tight fit getting them in, you can grind down one side of the back of the stud to sneak it in.
flounder is offline   Reply With Quote
Old 04-11-2011, 03:24 PM   #22
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Found the old hub still connected to the upright. It will work. You have to flatten the sheetmetal dust shield right where it has a flange between the brake caliper mounts. Once you do this you can get the stud out at that spot.

Side note - I dont see how the CV housing would get in the way but it might factor in. Mine was a loose hub/upright so I could not confirm with that still attached.
Landrew is offline   Reply With Quote
Old 06-06-2012, 01:14 AM   #23
Junior Member

Join Date: Sep 2008
Location: Chicago, IL
Posts: 235
Total Cats: 4
Default

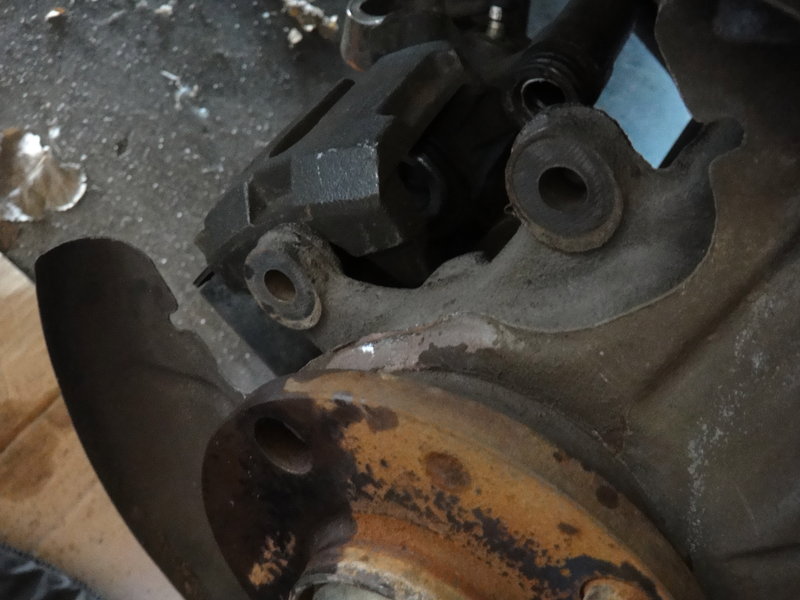

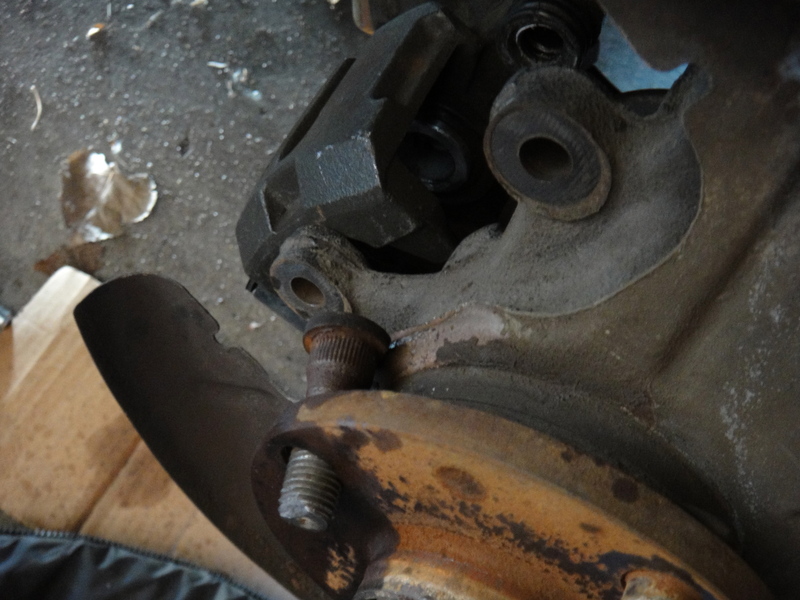

I know this is an old thread but in case anyone needs a visual, just did this on my 95. Flattened the part of brake dust shield with a hammer, and there was plenty of room for it to come out. The shield can be bent back with pliers.



Attached Thumbnails
Replacing rear wheel studs, is it tough?-dsc00864yo.jpg   Replacing rear wheel studs, is it tough?-dsc00865h.jpg
Slider is offline   Reply With Quote
Old 06-06-2012, 07:10 PM   #24
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

The new ARP long studs come pre-notched and they can be installed without replacing the bearing. I didn't think this was possible, but I changed a set on Crusher a few events ago and was surprised to see that it was possible.
Savington is offline   Reply With Quote
Old 06-15-2012, 09:05 AM   #25
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

If you guys are doing it this way, then why does 949 say this? General disclaimer?

Quote:
WARNING: Wheel studs, whether OEM or aftermarket, must be pressed in.

DO NOT hammer from backside or pull through with a nut on the other side
dgmorr is offline   Reply With Quote
Old 06-15-2012, 10:07 AM   #26
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

Hammering can bend them. Pulling through with nut can stretch them. That said, I've hammered them in, and pulled them tight with a nut. Never had a problem.

Just take it slow and easy, and it is fine. Do it by hand, no impact wrenches.
rleete is offline   Reply With Quote
Old 06-15-2012, 10:09 AM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

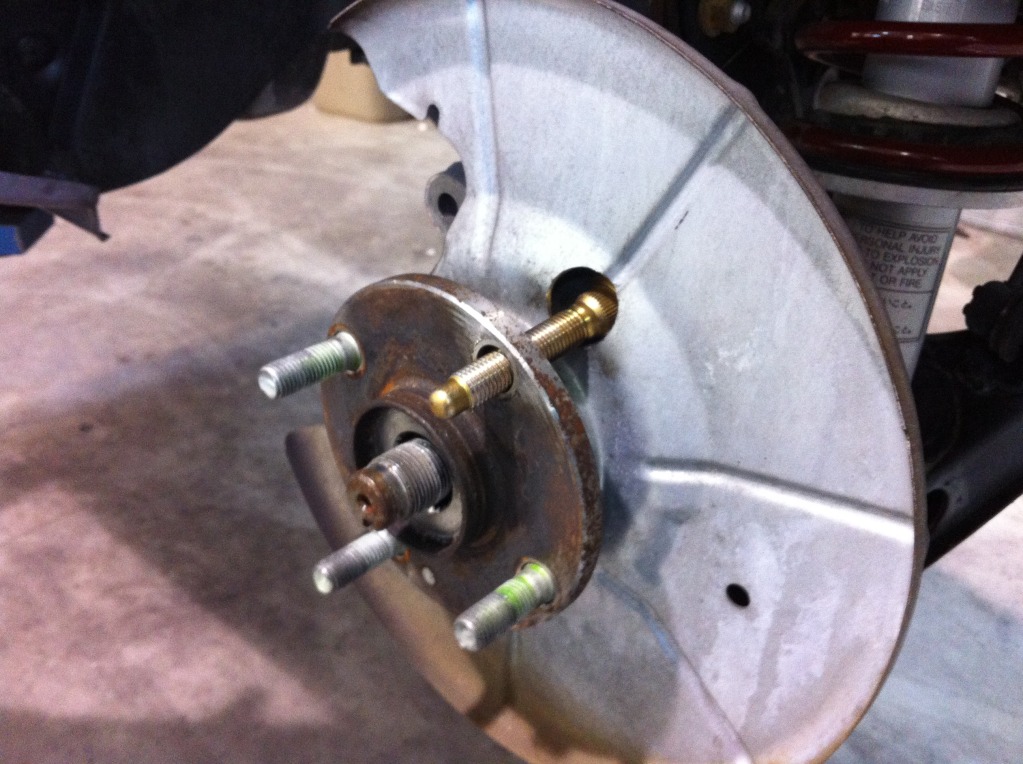

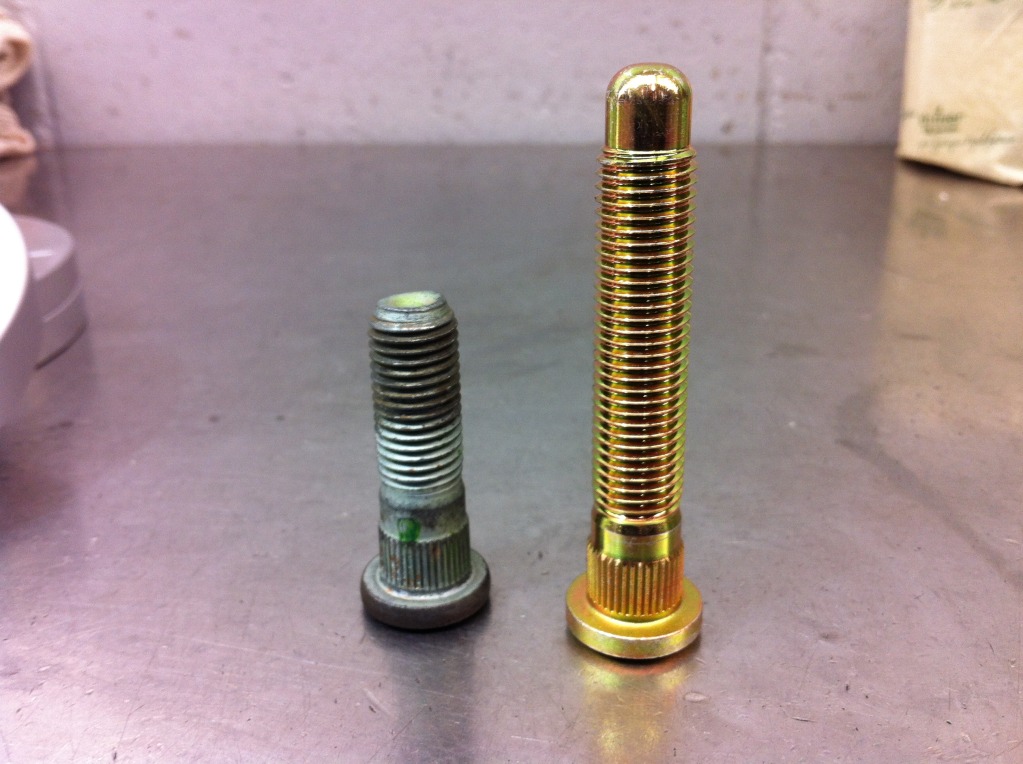

Attached Thumbnails
Replacing rear wheel studs, is it tough?-img_0546.jpg   Replacing rear wheel studs, is it tough?-img_0535.jpg
Braineack is offline   Reply With Quote
Old 06-15-2012, 01:26 PM   #28
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by rleete View Post
Hammering can bend them. Pulling through with nut can stretch them. That said, I've hammered them in, and pulled them tight with a nut. Never had a problem.

Just take it slow and easy, and it is fine. Do it by hand, no impact wrenches.
I swapped one for a stock-style replacement earlier this year (need to get the ARPs, but that's for another day), pulling it in with a nut. It took noticably less effort than one applies when torquing the lugnuts, so if that's all it takes to stretch one then I don't understand how they survive normal use.

--Ian
codrus is offline   Reply With Quote
Old 06-15-2012, 01:33 PM   #29
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

I think it's just a standard disclaimer. You know some idiot is going to mess one up and try to sue, so they put that there.
rleete is offline   Reply With Quote
Old 06-26-2013, 12:45 PM   #30
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

bump
just did this on a 1.6 rear and found the sweet spot...
there are pics posted in this thread which already contain the right spot. didn't see those pics until just now...
dust shield def has to be bent out of place...
the knuckle MAY or MAY NOT need a tiny little notch cut out. but yeah, i was able to get the old ones out and the new ones in without removing the hub.
phillyb is offline   Reply With Quote
