Default Slave Cylinder Thoughts

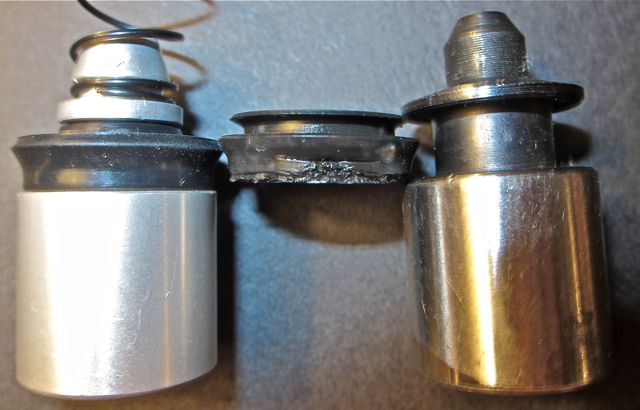

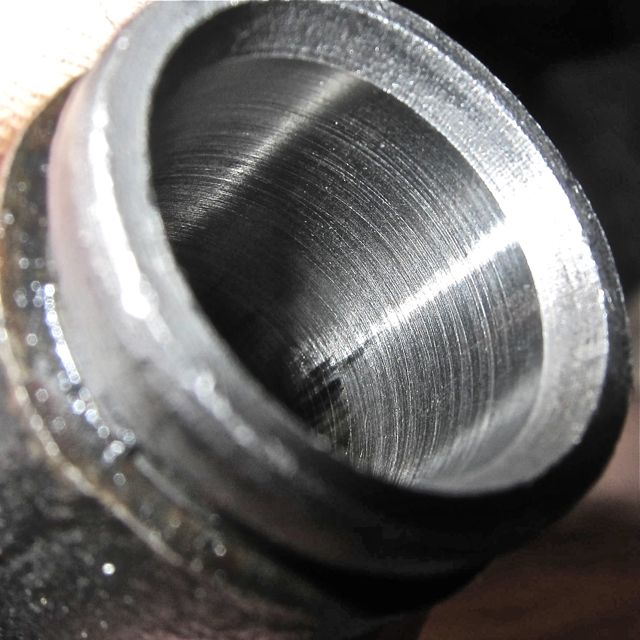

Here are some bits from a slave cylinder rebuild project. Check out the bore which to the naked eye looks shiny and smooth. Next shots shows the failed seal (see where it leaked?) next to the rebuild kit parts. The rebuild kit uses an anodized aluminum piston instead of a ferrous slug.

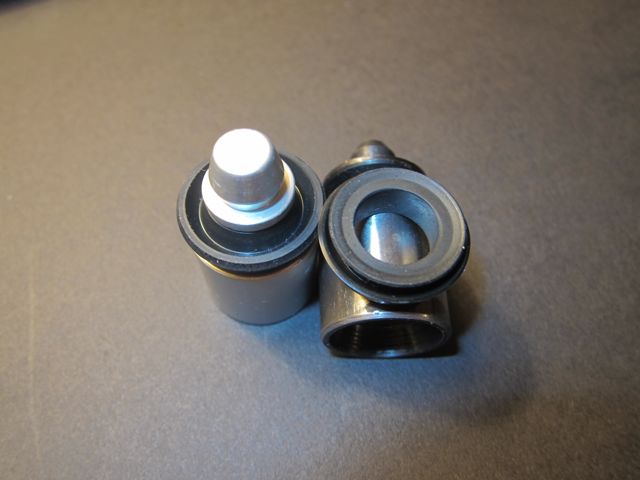

But look at the seals. The rebuild kit version is heftier and firmer. Look at the OD vicinity. I wonder if the service life will improve. The seal that failed is quite thin and flexible.

On the bore finish…I will flex-hone the bore. This provides a superior finish compared to regular honing. It leaves little folded metal and very smooth peaks. The valleys will still be there to retain fluid (which the seal people feel is very important). If the bore is too smooth, the seal moves across too dry of a surface which degrades seal life expectancy.
Attached Thumbnails
Slave Cylinder Thoughts-slavebore.jpg   Slave Cylinder Thoughts-slavepistons1.jpg   Slave Cylinder Thoughts-slavepistons2.jpg
sjmarcy is offline   Reply With Quote
Old 08-19-2011, 10:01 AM   #2
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

That rebuild kit is the one that I have used before. That said, O'Reilley Auto now carries slaves in stock in town for $19.94. Makes me wonder if it is even worth spending the 15 minutes to rebuild. I've done four now so it's no biggie.
Stein is offline   Reply With Quote
Old 08-19-2011, 10:14 AM   #3
I'm Miserable!
Thread Starter

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by Stein View Post
That rebuild kit is the one that I have used before. That said, O'Reilley Auto now carries slaves in stock in town for $19.94. Makes me wonder if it is even worth spending the 15 minutes to rebuild. I've done four now so it's no biggie.
Things like slave cylinders and front hubs are items every Miata enthusiast should have "in stock".

But many receive low lifespans out of the lower priced options. The slave I showed is under warranty. So a new one is available for free. However the present one only lasted a year while the OE version lasted over 10. I would not expect the replacement cheap SC to last 10 years.

You could just keep loading in cheapies. Or do things like load in ubergrease into your front wheel bearings. Or redo your slave cylinder for a higher life expectancy. Between the stronger seal and a more seal friendly bore hone it should be possible to have better than OE slave cylinder life. You can do this with higher quality seals and five minutes with a flex-hone.
sjmarcy is offline   Reply With Quote
Old 08-19-2011, 02:14 PM   #4
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Are the factory ones pricey?
JasonC SBB is offline   Reply With Quote
Old 08-19-2011, 02:17 PM   #5
I'm Miserable!
Thread Starter

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by JasonC SBB View Post
Are the factory ones pricey?
Not really. It's the hassle and inconvenience factor. You can also get rebuild kits for 4 dollars. I like to have bulletproof parts. Since there are different seals that will work along with more seal-friendly honing techniques it begs the question.
sjmarcy is offline   Reply With Quote
Old 08-19-2011, 03:14 PM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

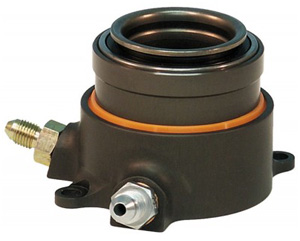

perhaps your rebuild kit should include this:

Attached Thumbnails
Slave Cylinder Thoughts-release-large.jpg
y8s is offline   Reply With Quote
Old 08-19-2011, 03:41 PM   #7
I'm Miserable!
Thread Starter

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
perhaps your rebuild kit should include this:

What??! No remote bleed?

BTW…research has shown that Mazda themselves came out with a slightly larger seal for the slave cylinders. The larger seal in the Dorman kit I showed makes more sense now. It's slightly larger in diameter and the OD flap is about 3 times thicker than the "lite" variation. It is noticeably harder to load into the bore than the wimpier version for instance. The same bits are used on some other Mazdas and even some Fords.

I'll see if I can find a cross reference for the actual rubber seal itself. Usually the boot, piston, and spring survive fairly well. I bet they are dirt cheap, like 12 cents.

Last edited by sjmarcy; 08-19-2011 at 04:11 PM.
sjmarcy is offline   Reply With Quote
Old 08-21-2011, 05:07 PM   #8
I'm Miserable!
Thread Starter

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

I might try this out for 10 bux…dual seals baby!
Attached Thumbnails
Slave Cylinder Thoughts-dualseal.jpg
sjmarcy is offline   Reply With Quote
Old 08-21-2011, 05:21 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm the guy who always takes a spare slave cylinder and timing belt to the track with him...every time.
