Old 09-26-2013, 03:40 PM   #21
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,655
Total Cats: 1,558
Default

Quote:
Originally Posted by Godless Commie View Post
Having said all this, I still need to come up with data such as number of coils and coil spacing for an 8" spring with an inside diameter of 2.5".
Desired spring rate is 300, 275 and 225 lbs, respectively.
Available wire diameters are 8, 8.5, 9, 9.5, 10 and 10.5 mm. (Al spring steel)
I guess you could use the formula for that, then.
sixshooter is offline   Reply With Quote
Old 09-26-2013, 03:56 PM   #22
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Quote:
Originally Posted by Joe Perez View Post
But seriously. I think that the mathematical approach is probably going to yield more accurate answers than something involving a bathroom scale. The basic idea behind the scale contraption is a sound one, but I don't think I'd go that way myself from a practical standpoint.
Joe, please refer to post #19.
Godless Commie is offline   Reply With Quote
Old 09-26-2013, 03:58 PM   #23
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Quote:
Originally Posted by sixshooter View Post
I guess you could use the formula for that, then.
I'll be crunching numbers as soon as I am done translating regulations and int'l correspondence on horse racing.
Godless Commie is offline   Reply With Quote
Old 09-26-2013, 04:05 PM   #24
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Godless Commie View Post
Joe, please refer to post #19.
Doh.

Please refer to the timestamps on posts 19 and 20.
Joe Perez is offline   Reply With Quote
Old 09-26-2013, 04:09 PM   #25
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Quote:
Originally Posted by sixshooter View Post
I have a better idea. Use mathematics and a set of dial calipers to do it the right way. A formula exists for determining spring rates. I've seen it published a number of times, including in the book by Herb Adams called "Chassis Engineering". I'm sure it is on teh interwebz somewhere.

Suspension Coil Spring Rate Design Equations Formulas Calculator

Another one:Spring Constant Calculator
Another one: Helical Spring Calculators - Spring Index, Spring Rate, Shear Stress, Deflection
Another one: Coil Spring Rate Calculations by Wallace Racing

FORMULA:

spring rate =

modulus of spring steel X wire diameter^4
--------------------------------------------------------------------
8 X number of active coils X mean coil diameter^3

*modulus of spring steel = 11,250,000 pounds/inch^2 = 78,500 newtons/millimeter^2

I have successfully tested this formula on stock Miata springs of a known rate and aftermarket springs of a known rate. I then used it to determine the approximate rates of some additional springs I had around. The modulus of spring steel is a constant.

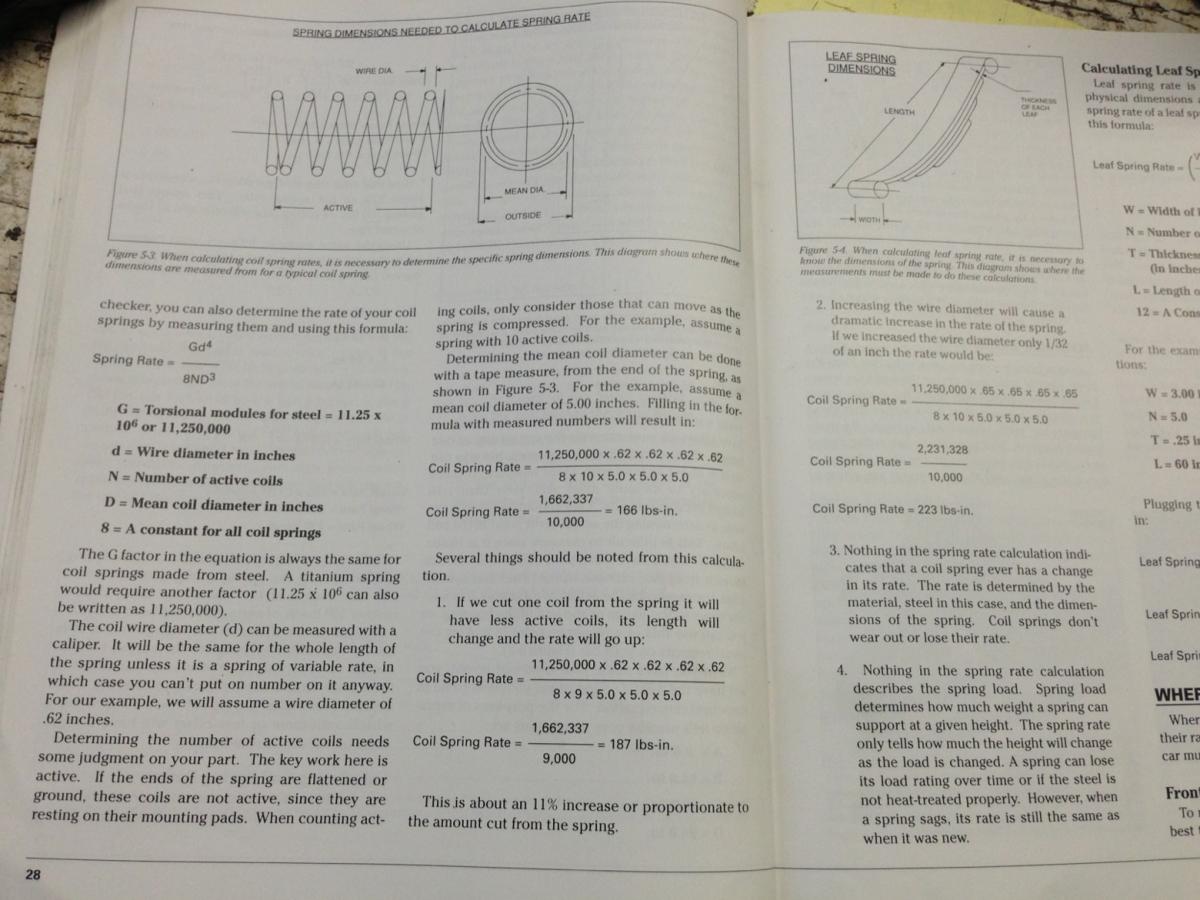

The Herb Adams book gets a regular workout around here-

Here are the pages that cover it.. If anybody wants hi-res pics of them just pm me your email address.

Attached Thumbnails
Tell me if this DIY spring rate tester will work-image.jpg
Pinky is offline   Reply With Quote
Old 09-26-2013, 04:10 PM   #26
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Quote:
Originally Posted by Joe Perez View Post
Doh.

Please refer to the timestamps on posts 19 and 20.
I'm pretty sure intelligence reports submitted on September 10, 2001 had timestamps on them, too, but that did not prevent the intended recipients from missing them.
Godless Commie is offline   Reply With Quote
Old 09-26-2013, 04:46 PM   #27
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Attached Thumbnails
Tell me if this DIY spring rate tester will work-osb1j.jpg
mgeoffriau is offline   Reply With Quote
Old 09-26-2013, 04:51 PM   #28
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by sixshooter View Post
I have a better idea. Use mathematics and a set of dial calipers to do it the right way. A formula exists for determining spring rates. I've seen it published a number of times, including in the book by Herb Adams called "Chassis Engineering". I'm sure it is on teh interwebz somewhere.

Suspension Coil Spring Rate Design Equations Formulas Calculator
Sprign rate is a function of diameter to the power of 4. A 1% error in thickness will give you a 4% error in spring rate. Paint will give you a 1% error.
JasonC SBB is offline   Reply With Quote
Old 09-26-2013, 05:23 PM   #29
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Quote:
Originally Posted by JasonC SBB View Post
Sprign rate is a function of diameter to the power of 4. A 1% error in thickness will give you a 4% error in spring rate. Paint will give you a 1% error.
20ft.lb on a 500ft.lb spring. It will at least put him in the ballpark. If they were decent springs they'd be labeled anyway.
Savington is online now   Reply With Quote
Old 09-26-2013, 05:31 PM   #30
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by Savington View Post
20ft.lb on a 500ft.lb spring. It will at least put him in the ballpark. If they were decent springs they'd be labeled anyway.
And if the labels are missing along with the paint, well accuracy just went up.
y8s is offline   Reply With Quote
Old 09-27-2013, 11:43 AM   #31
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

Quote:
Originally Posted by Godless Commie View Post
A formula tells you what the result "should be".
It does not take into account factors such as defective materials, aging, sloppily applied thick paint layer that could affect the caliper reading for wire diameter, treatment failures, etc....
The only material factors that affect the result from the mathematical calculation is the torsional modulus of the steel. All steels have near as makes no difference the same torsional modulus. Spring steel, high-strength low alloy steel, **** chinese steel, steel with a bunch of crap defects in it, etc. etc. etc. That is to say, if you use the number provided, it will be 95%+ correct, no matter what the springs are made of, as long as it's some sort of steel. I'm not sure what you mean by treatment failures (heat treatment? won't affect it).

As others have eluded to, the other factors you have mentioned will only lead to small errors in the calculation.

I would recommend doing both if you are deadset on making a spring compressor testing rig-a-ma-jig. Do the calculation on at least the first few springs you test to validate your test jig.

Have fun
Efini~FC3S is offline   Reply With Quote
Old 09-28-2013, 12:44 AM   #32
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

It's easier to google online spring rate calculators to find your spring rate. However, you need an accurate caliper to put the correct info in.
wannafbody is offline   Reply With Quote
