Default What's the difference between these two Torsens?

I've compiled two torsens. One I bought from a guy who pulled it from a 90-93 chassis, so i know it wasn't original to the car. Came with single piece axles.

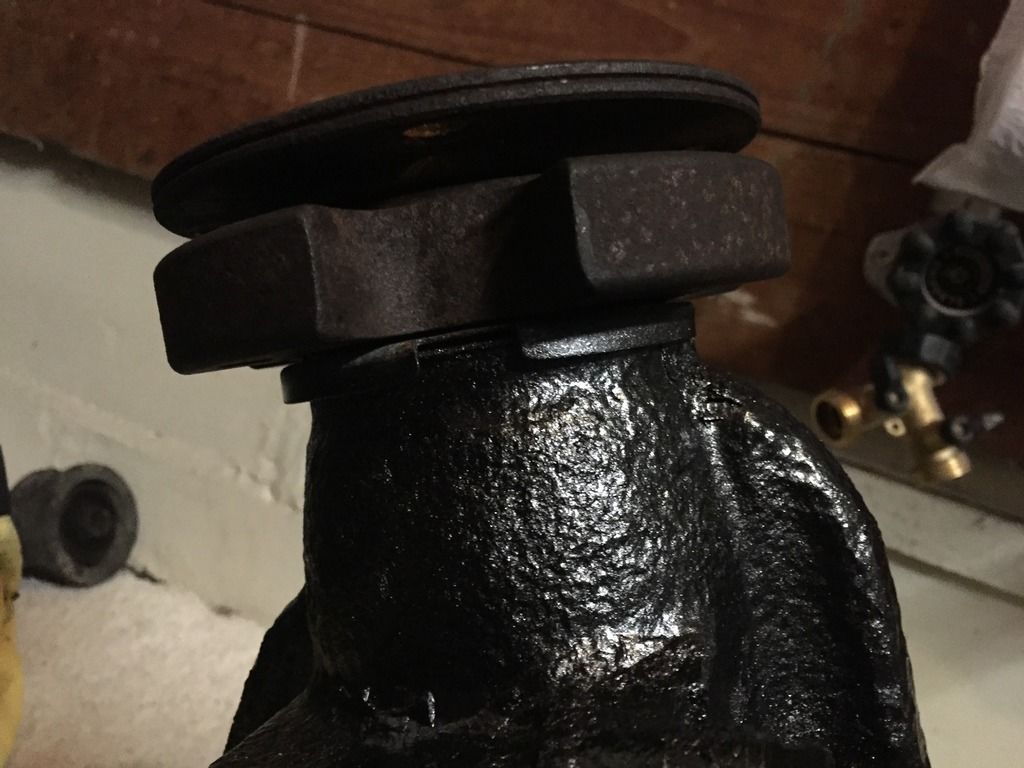

It has this metal tabbed ring on it:

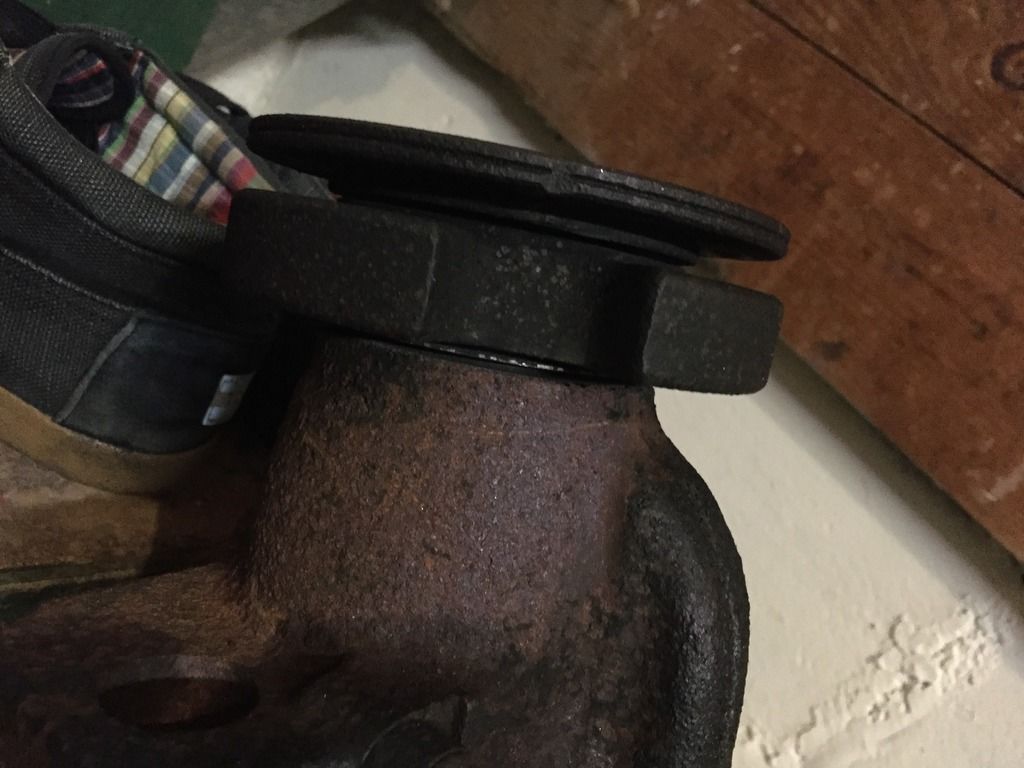

This torsen I got along with a motor setup i recently acquired. Everything came out of a '96 m edition. I have no way of knowing if it was original to the car or not. It does NOT have the tab ring.



I can't seem to find any information on if that tab ring makes any difference in Torsen gearing or not. When I search for images of a 3.9 torsen, the ones I see don't have rings. When I search for 4.1 torsen, i see ring tabs. I'm working on getting the torsens opened up but a few of the bolts are giving me headaches. Can anyone chime in? IF i do get them opened, what am I looking for/counting to be able to tell what it is I'm working with?

Thanks
Attached Thumbnails
What's the difference between these two Torsens?-80-img_5820_zps2s3l9an2_a40fe65b88a8bb6810a3a8e3ce54f59b13905cb9.jpg   What's the difference between these two Torsens?-80-img_5821_zpsemhspn4c_4dff7a5a8698e3ca44b80bcfcfc305262279801b.jpg
OGWar is offline   Reply With Quote
Old 01-05-2016, 12:45 AM   #2
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

pinion teeth/ring teeth = ratio
deezums is offline   Reply With Quote
Old 01-05-2016, 12:50 AM   #3
Junior Member
Thread Starter

Join Date: Nov 2015
Posts: 157
Total Cats: 10
Default

Quote:
Originally Posted by deezums View Post
pinion teeth/ring teeth = ratio
Thank you - I'll be sure to take a closer look if i can separate them without rounding the few bolts giving me fits. I've tried heat, PB, screaming, you name it.

As far as the metal ring with the tabs...the "guide" if you will - Any idea why some torsens have it and others don't?
OGWar is offline   Reply With Quote
Old 01-05-2016, 12:58 AM   #4
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I know it has nothing to do with gear ratio, but nothing else. Don't even know what it is to be honest.

You can turn the thing and count revolutions to get the ratio, doesn't need to be open. However many turns on the pinion to get one rev is the ratio.
deezums is offline   Reply With Quote
Old 01-05-2016, 12:59 AM   #5
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Pull the axles out and see if you can see completely through the diff.

Differential Spotters Guide
psyber_0ptix is offline   Reply With Quote
Old 01-05-2016, 09:19 AM   #6
Junior Member
Thread Starter

Join Date: Nov 2015
Posts: 157
Total Cats: 10
Default

Oh I know for sure they're both torsens, clear as day through the axle holes.

so as I'm turning the driveshaft flange I'm looking inside the axle hole to see how many turns it takes for the internal teeth to make a full revolution?
OGWar is offline   Reply With Quote
Old 01-05-2016, 09:47 AM   #7
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Oh I misread that the first one was legit out of an NA6, not a removed swap in an NA6. twist and count.
psyber_0ptix is offline   Reply With Quote
Old 01-05-2016, 09:48 AM   #8
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Im pretty sure its a torsional damper, the metal ring thing that is.

Quote:
Originally Posted by OGWar View Post

so as I'm turning the driveshaft flange I'm looking inside the axle hole to see how many turns it takes for the internal teeth to make a full revolution?
yes
hi_im_sean is offline   Reply With Quote
Old 01-05-2016, 10:02 AM   #9
Junior Member
Thread Starter

Join Date: Nov 2015
Posts: 157
Total Cats: 10
Default

Thanks everyone. If for any reason the ring correlates to different ratios I'll post it
OGWar is offline   Reply With Quote
Old 01-09-2016, 12:42 AM   #10
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Colorado
Posts: 166
Total Cats: 5
Default

The damper (large metal ring) is on manual transmission cars and a diff without it is from a automatic transmission car. That is unless someone removed it, common on Spec Miata. Mine is gone, they can fail, They separate at the rubber bond.

IIRC, on '99 + cars, autos were 4:10 and manuals 4:30.
GraemeD is offline   Reply With Quote
