Old 09-22-2015, 07:42 PM   #21
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by aidandj View Post
<p>I use it to clean my rotors from the oil they pack them with.</p><p>And washing my hands when they get real grimmy.</p>
Be careful doing that, I've done it too, but there's some bad cancer-causing chemicals in that stuff. I wear gloves now when using it.
patsmx5 is offline   Reply With Quote
Old 09-22-2015, 07:43 PM   #22
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Not sure. OGRacing would know the answer to that.</p>
aidandj is offline   Reply With Quote
Old 09-22-2015, 07:43 PM   #23
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Don't ever set it on fire, it makes stuff that smells like fresh cut grass. If you inhale it, you die. Phosgene is the word, or the bad stuff. I agree with pat as well, that **** is not to be fucked with. I bet you can't even buy it in cali.

That means don't weld parts cleaned with brake cleaner, either. Don't do lines off hot brake rotors cleaned with brake clean.

I plan on pulling my pads and blowing out whatever dust gets between the pad and caliper as I rotate the wheels. I plan on using air, because you really don't want to pack dust down in the bore between the piston.
deezums is offline   Reply With Quote
Old 09-22-2015, 08:35 PM   #24
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

<p>
Quote:
Originally Posted by Savington View Post
Did you fall and hit your head?
Quote:
Originally Posted by aidandj View Post
</p><p>No. He edited that post. When I saw his response all it said was. Both of them actually. He didn't say they catch on fire until I specifically asked what was wrong with them.</p><p>&quot;run the bootless and replace them every 3 years. they only cost 200 bucks for a pair.&quot;</p><p>Which tells me nothing of why not to, other than they are cheap.</p><p>
</p><p>&nbsp;</p><p>I actually laughed out loud, and had intended on making a similar post as Andrew did. Glad you clarified </p><p>Seems like best bet is just to use the crap out of them and replace them every 3 years or so. Not too bad.</p>
turbofan is offline   Reply With Quote
Old 09-22-2015, 09:05 PM   #25
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by deezums View Post
Don't ever set it on fire, it makes stuff that smells like fresh cut grass. If you inhale it, you die. Phosgene is the word, or the bad stuff. I agree with pat as well, that **** is not to be fucked with. I bet you can't even buy it in cali.

That means don't weld parts cleaned with brake cleaner, either. Don't do lines off hot brake rotors cleaned with brake clean.

I plan on pulling my pads and blowing out whatever dust gets between the pad and caliper as I rotate the wheels. I plan on using air, because you really don't want to pack dust down in the bore between the piston.
It's tetrachloroethylene that makes phosgene when you heat it, and no, you can't buy it in California. Brake cleaner here is basically heptane and acetone.

--Ian
codrus is offline   Reply With Quote
Old 09-23-2015, 08:10 PM   #26
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by aidandj View Post
<p>No. He edited that post. When I saw his response all it said was. Both of them actually. He didn't say they catch on fire until I specifically asked what was wrong with them.</p><p>&quot;run the bootless and replace them every 3 years. they only cost 200 bucks for a pair.&quot;</p><p>Which tells me nothing of why not to, other than they are cheap.</p>
I've never had issues with the Bootless. Many years of service and no maintenance on the pistons. I've seen lots of dust boots turned to charcoal.
bbundy is offline   Reply With Quote
Old 09-25-2015, 04:41 PM   #27
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

Quote:
Originally Posted by aidandj View Post
<p>Reliability. Grime around the pistons.</p><p>Street cars have dust boots for a reason.</p>
Those are are mean for track use, stock 1.8 calipers boots melted while on track.. I assume any boots will do the same... and you got the feedback info that they will BBQ even on Wilwood's calipers.

Check the pistons for wear and replace if you can...
joyrider is offline   Reply With Quote
Old 09-25-2015, 05:28 PM   #28
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I think I got the catching on fire thing figured out.

So walk me through this noob style.

When changing pads I want to make sure to clean the piston off real good before pushing it back into the caliper. So compressed air? Wipe it clean?

Can I push them in one by one?

Stupid questions but I've never dealt with wilwoods before.
aidandj is offline   Reply With Quote
Old 09-25-2015, 05:31 PM   #29
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by aidandj View Post
I think I got the catching on fire thing figured out.

So walk me through this noob style.

When changing pads I want to make sure to clean the piston off real good before pushing it back into the caliper. So compressed air? Wipe it clean?

Can I push them in one by one?

Stupid questions but I've never dealt with wilwoods before.
I would just wipe them off with a rag and push them back in. I have always used an old brake pad and a c-clamp to push the pistons back in, not sure if that's the proper way but it's always worked for me.
patsmx5 is offline   Reply With Quote
Old 09-25-2015, 08:44 PM   #30
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You're gonna need to support all ze pistons when you try reinserting them, otherwise they'll go pop again and that's no fun.

I have no idea on the dust, I was gonna cross that bridge when I came to it.
deezums is offline   Reply With Quote
Old 09-26-2015, 03:10 AM   #31
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

I've had Dynalites on my car for 10 years now and never bothered to clean the pistons, seems to be doing fine.

As for retracting the pads, it's best to do it by pushing all of them at once, but I've done it before with just a screwdriver and it works fine. The best way of it is to buy one of these, though:

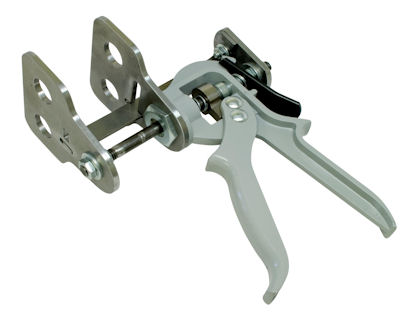

Lisle Tools 29100LISLE Disc Brake Pad Spreader

Insert it in the caliper, squeeze 3 times, wiggle it to pop it out, and insert new pads. Done.

--Ian
Attached Thumbnails
Wilwood Dynapro/dynalite maintenance-29100lisle.jpg
codrus is offline   Reply With Quote
Old 09-26-2015, 03:12 AM   #32
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Thats like $20 too much. Wish harbor freight had a version.
aidandj is offline   Reply With Quote
Old 09-26-2015, 07:56 PM   #33
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

If i could buy it locally at that price and have it now I'd do it NAO. But unfortunately it won't arrive before Laguna so... maybe later. maybe.
turbofan is offline   Reply With Quote
Old 09-27-2015, 01:42 AM   #34
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Caliper spreader is choice for fixed calipers multiple pistons. Works great on my lotus calipers as well as 6-8 piston gigantic bmw/porsche calipers. Worth it's weight in gold
greddygalant is offline   Reply With Quote
Old 09-27-2015, 04:29 PM   #35
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

EDIT : wrong pic
Attached Thumbnails

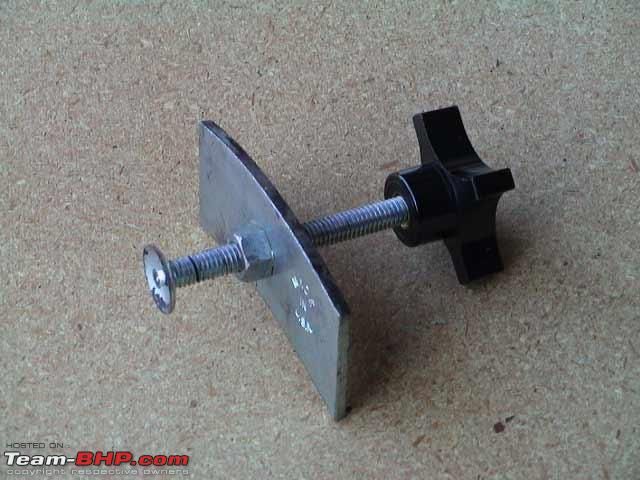

Wilwood Dynapro/dynalite maintenance-80-484293d1295185325_diy_sunday_usage_front_brake_pad_replacement_brake_piston_tool2_430293f88a1.jpg

Last edited by joyrider; 09-27-2015 at 04:51 PM.
joyrider is offline   Reply With Quote
Old 09-27-2015, 04:34 PM   #36
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

How would that work for something like a dynapro?
aidandj is offline   Reply With Quote
Old 09-28-2015, 02:48 AM   #37
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by aidandj View Post
How would that work for something like a dynapro?
It doesn't, that's for a single piston sliding caliper like the factory one.

Swapped pads today and I couldn't find my caliper speculum, had to make do with a screwdriver instead. Took a few minutes longer, but still works fine.

Found the spreader 10 minutes after I was done with the brakes, while getting out the heat gun.

--Ian
codrus is offline   Reply With Quote
Old 09-28-2015, 11:47 AM   #38
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by aidandj View Post
<p>Not sure. OGRacing would know the answer to that.</p>
sorry i was out of town all week with the SCCA runoffs and racing with NASA @ Savannah.

generally the pistons will move outward, so keeping the pistons clean isn't that much of a concern. if you want, during pad a change (when the pistons are moving inward).. hit the pistons with brake clean and wipe them off with a lint free rag. that should keep them clean. but like i said before you shouldn't have any problems with dirt, and stainless pistons shouldn't rust.
OGRacing is offline   Reply With Quote
