what radiator be that Doppelgänger?
FRT_Fun is offline   Reply With Quote
Old 04-01-2010, 11:58 AM   #22
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

His is a PWR. I had a PWR and my reroute's upper radiator hose also rested on the intercooler/TB pipe. Annoyed me since the same thing happened with the old FMII kit and OEM upper radiator hose. Was going to have a 90* elbow welded onto the radiator so that it would clear, but never got around to it before parting the car.

RotorNutFD3S is offline   Reply With Quote
Old 04-01-2010, 01:01 PM   #23
I'm Miserable!
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

keep em coming!
railz is offline   Reply With Quote
Old 04-01-2010, 03:50 PM   #24
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Quote:
Originally Posted by Doppelgänger View Post
<^> *******
My oh my, somebody knows how to use the flower button!

I'll post these now since my internet is currently working (fingers crossed). I know it's an over the radiator setup, but it's the stock hose with an inch or so cut off each end, so you can get an idea for how much room it'll give you.

Name:  IMG_0329.jpg
Views: 94
Size:  127.4 KB
Name:  IMG_0328.jpg
Views: 96
Size:  81.9 KB
Name:  IMG_0327.jpg
Views: 98
Size:  134.2 KB
curly is online now   Reply With Quote
Old 04-01-2010, 07:00 PM   #25
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

I have no clearance at all on my 1.8 with the BEGI up pipe and a Godspeed rad. The rad hose is squished against the IC pipe hard enough I used that coil stuff inside to keep the hose open. I shortened the rad inlet and the IC up pipe just to get to that stage with the big rad. I need to move the rad slightly forward some how and get these things some space. Hate the rubbing.
cueball1 is offline   Reply With Quote
Old 04-03-2010, 07:44 PM   #26
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Wow I don't know what kind of drugs I was on when routed my ****... I thought I had it like most of the others posted on here... no, not at all.

FRT_Fun is offline   Reply With Quote
Old 04-04-2010, 09:30 AM   #27
Autobot Miata
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

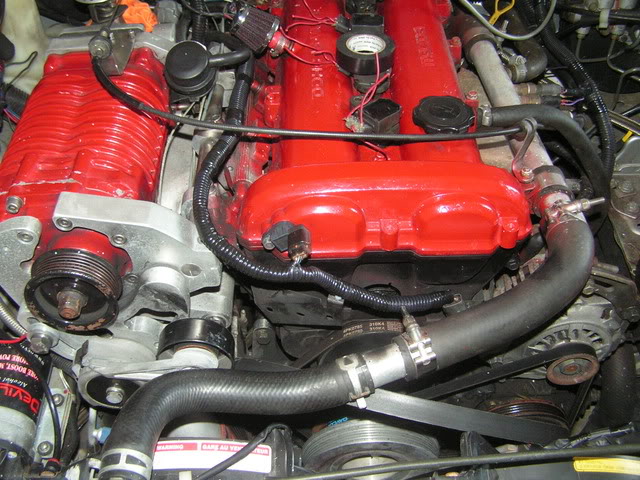

Here is mine, it runs on the other side of the motor, to avoid my supercharger.
Name:  7hrslater3.jpg
Views: 97
Size:  146.6 KB
viriiguy is offline   Reply With Quote
Old 04-04-2010, 12:21 PM   #28
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

I decided to use a piece of regular hose with bends that allow the rear portion to sit on the shelf. The thermostat itself (not in view in this photo) is actually right behind the shock tower brace. I wrapped old hose over any place where it might actually make contact with anything just to ensure it doesn't rub.

Name:  CopyofDSCF0143.jpg
Views: 95
Size:  76.1 KB
JayL is offline   Reply With Quote
Old 04-04-2010, 08:30 PM   #29
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

First it was like this...


Then it went like this...


Quickly followed by this...


(The new hose I will be using once I get a tube to connect the rear hose with this one)


And then all the sudden it was like this...



Now I just need to build some shroud and I'm good.
FRT_Fun is offline   Reply With Quote
Old 04-06-2010, 07:56 PM   #30
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: Louisville, KY
Posts: 232
Total Cats: 0
Default

Here is the first routing I had on my VVT car. But realized the hose was above the radiator so now it is shoved down below the intake. It's kind of in a U-shape though. The hose is too long and I need to cut it. I still need to get the air out of the system fully though because it is overheating for a minute on warmup before cooling back down.

AutoFreak57 is offline   Reply With Quote
Old 04-07-2010, 11:18 AM   #31
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

It's difficult to tell because of the angle of the photo, but it looks like that extra bend in your reroute hose is sitting in a high spot, perhaps even higher than the radiator cap? Air could collect there and make it difficult to bleed. Do like the rest of us and cut it down and bring it closer to the intake mani to eliminate that bent section. You want the rad cap to be the highest point in the system.
ScottFW is offline   Reply With Quote
Old 04-07-2010, 02:12 PM   #32
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

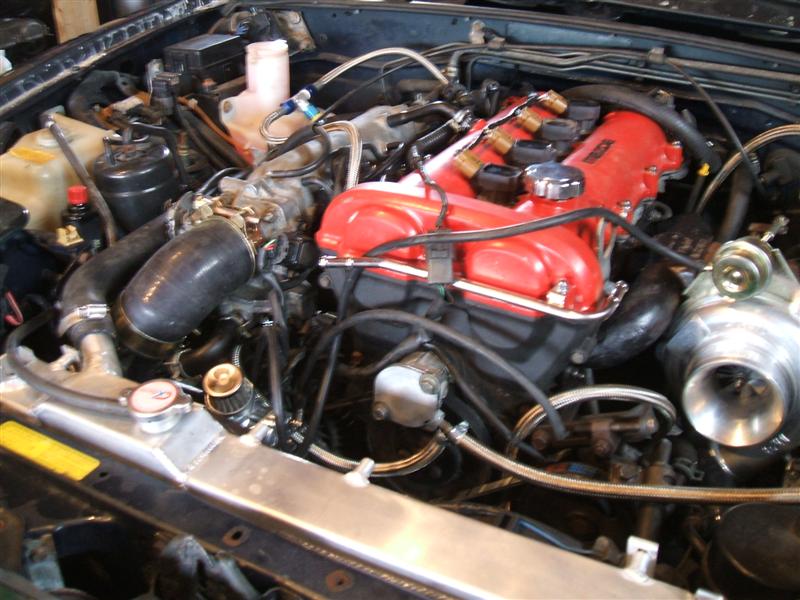

Cut off the end of the Radiator and re-welded another piece so the it bend and avoids the IC pipe....no rubbing My engine bay is a MESS, for this, I apologize.
Attached Thumbnails
Needs pics of your Coolant Re-Route Route-dscf1629-medium-.jpg
Preluding is offline   Reply With Quote
Old 04-07-2010, 06:01 PM   #33
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: Louisville, KY
Posts: 232
Total Cats: 0
Default

Quote:
Originally Posted by ScottFW View Post
It's difficult to tell because of the angle of the photo, but it looks like that extra bend in your reroute hose is sitting in a high spot, perhaps even higher than the radiator cap? Air could collect there and make it difficult to bleed. Do like the rest of us and cut it down and bring it closer to the intake mani to eliminate that bent section. You want the rad cap to be the highest point in the system.
Yes, it is the highest point right now. I bent it down so that the hump is below the intake manifold right now. I will probably go pick some more coolant up this weekend and take that hose off, cut it, and fully "burp" the system. Back up, then front up, right? It still is heating up now, but only to about 230 before it drops instead of off the gauge. It is low enough that the stock gauge doesn't move out of it's regular position
AutoFreak57 is offline   Reply With Quote
Old 05-03-2011, 12:32 PM   #34
Senior Member
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default Thread necromancy....

So you guys that used a pipe to connect a short hose at the radiator to the longer hose coming from the back; two questions:

1. What did you use for the pipe?

2. Did you weld a bead on the pipe ends to keep the hoses on?
soloracer is offline   Reply With Quote
Old 05-03-2011, 01:52 PM   #35
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I used a copper pipe with screw on fittings soldered on and slipped the rubber hose on the screw on fittings with a bunch of thread sealant on them. I'm returning the coolant from my stock oil cooler to another fitting off the copper pipe as well.
Preluding is offline   Reply With Quote
Old 05-03-2011, 02:37 PM   #36
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Thanks to a local forum member, the pipe used on my reroute pictured above was a 14" piece of aluminum pipe, polished, beaded on the ends, and had a 1/4" NPT bung welded on with a 1/4" NPT to 5/16" barb fitting for the throttle body coolant return line (you can see this near the front of it on the underside).

This is an old build picture:

RotorNutFD3S is offline   Reply With Quote
Old 05-03-2011, 03:09 PM   #37
Senior Member
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

That's nice. A bit more elaborate than my needs though. I'm thinking of maybe trying to find a 32mm inline coolant sensor adaptor and using that if I can't find something suitable at Lowe's /Home Depot, or NAPA.
soloracer is offline   Reply With Quote
Old 05-03-2011, 07:43 PM   #38
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

I've since moved to this setup:
https://www.miataturbo.net/showthrea...t=reroute+hose

With my heater core return and coolant sensor in a piece spliced into the lower hose.
curly is online now   Reply With Quote
Old 05-03-2011, 11:55 PM   #39
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I picked up a pipe from the hardware store, cut that ****, and beat the **** out of it till there was a lip on each end. I had no problems with it.
astroboy is offline   Reply With Quote
Old 05-04-2011, 01:02 AM   #40
Senior Member
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

Quote:
Originally Posted by astroboy View Post
I picked up a pipe from the hardware store, cut that ****, and beat the **** out of it till there was a lip on each end. I had no problems with it.
pics?
soloracer is offline   Reply With Quote
